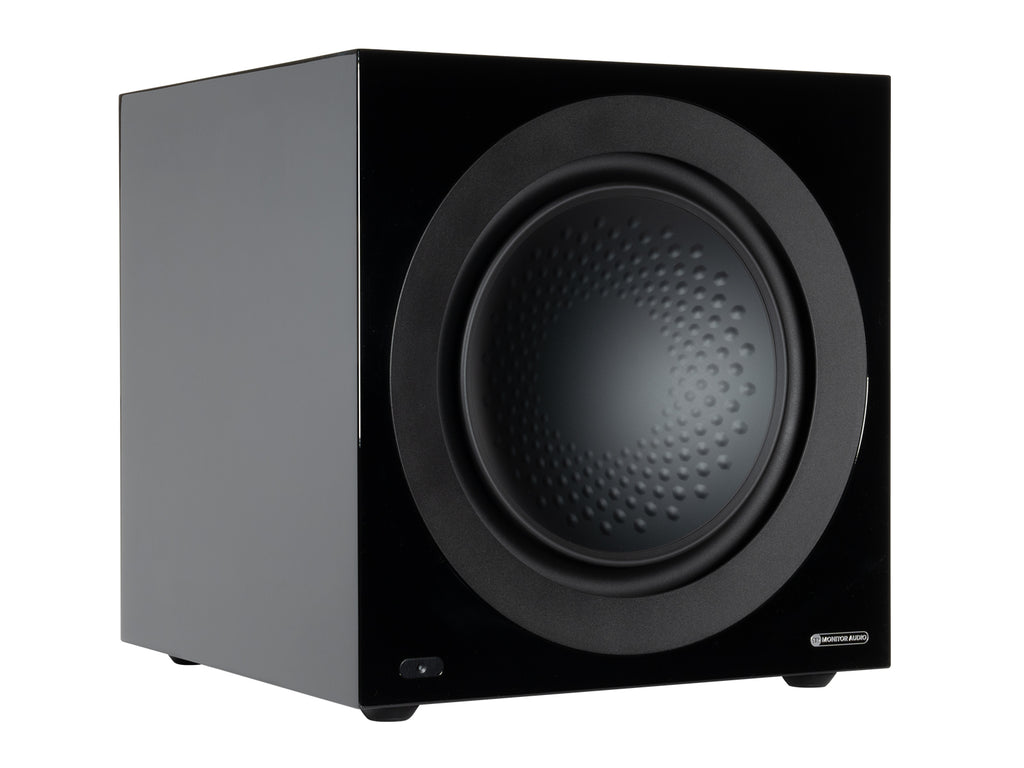

Monitor Audio Anthra W15 Subwoofer
Monitor Audio Anthra W15 Subwoofer
Monitor Audio Anthra W15 Subwoofer
Monitor Audio Anthra W15 Subwoofer
Monitor Audio Anthra W15 Subwoofer

    Monitor Audio Anthra W15 Subwoofer

    R 64,990.00

      Monitor Audio Anthra W15 Subwoofer

      The W15 is the largest subwoofer within the Anthra subwoofer series. It features a 15” (38 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 1,500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.




      Key Features:

      • 1 x 15” (38 cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium (C-CAM) high-excursion driver for super-clean performance
      • 1 x 1,500 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume
      • Massive motor assembles and longer round-wound voice coils, which are dual layered and made of copper-coated aluminium wire (CCAW) for precise control at extreme low frequencies
      • 2 inch full-colour LCD display screen with rotary dial for menu selection and basic setup
      • RCA inputs (left/right. The left Input is LFE)
      • RCA outputs allows daisy chain of up to 4 Anthra subwoofers
      • XLR inputs for professional installation connectivity option
      • XLR outputs allows daisy chain of up to four Anthra subwoofers
      • Available in Gloss Black and Satin White finishes
      • MaestroUnite Setup for Monitor Audio Anthra Subwoofers allows a user complete bespoke setup. Available to download from the App Store and Google Play.
      Specifications:
      System Format Active - Sealed Cabinet
      Lower Frequency Limit -6dB @16Hz
      Upper Frequency Limit (LPF Off) -6dB @400Hz
      Drive Unit Complement 1x 15" (381 mm) High Linear-Excusion Triple Suspension Driver
      Amplifier Classification
      High-Efficiency Class-D
      Upper Frequency Limit
      (LPF Off) -6dB @400Hz
      Driver Excursion (pk-pk) 50 mm
      DSP 28 Bit 50 MIPS Configuratable through MaestroUnite
      Analogue Digital Conversion Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
      Amplifier Output Power, 240Vac Instantaneous: 2500 W*
      Continuous short-term: 1400 W**
      Amplifier Output Power, 120Vac Instantaneous: 2500 W
      Continuous short-term: 1400 W
      LED UI Control Brightness, On-Off
      Phase Control 0-360 Degrees measured at LPF Crossover
      Low Pass Filter
      20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
      Custom EQ
      Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
      Volume Level Wide adjustable input gain to allow maximum output from a wide range of input signals
      Inputs
      Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)
      Mono/LFE Balanced XLR
      Outputs Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
      Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input
      Mains Input Voltage Universal Mains, 85-265VAC
      External Dimensions (without feet) (HxWxD) 439 x 439 x 439 mm
      Power Consumption

      550 W



      Cabinet Construction Braced 25 mm thick MDF with 36 mm front baffle
      Grille Cloth covered magnetically attached Grilles
      Weight 35.41 kg (78 lb 1 oz)
