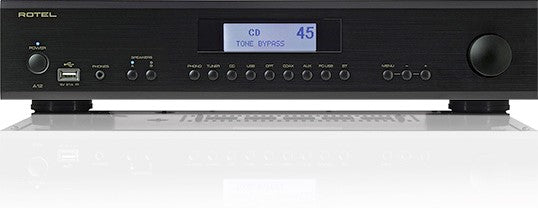

The A12 integrated amplifier displays the same clean lines and intuitive operation as the A14 with output power rated at 60 watts per channel RMS into 8 ohms. Rotel engineers begin their quest for uncompromising audio performance at the power supply. This is the heart of an amplifier and an area where considerable time and investment is spent. Rotel manufactures its own toroidal transformers in-house to high tolerances using raw materials selected from proven, trusted suppliers. The result is a rugged power supply that won’t easily distort the music under dynamic conditions or with difficult speaker loads.
Specifications
| Continuous Power Output | 60W/Ch (All channels driven, 8Ω) |
| Total Harmonic Distortion (THD) | (20Hz–20kHz) <0.03% |
| Frequency Response |
Line Level Inputs: 10Hz - 100kHz ±0.5dB
Digital Inputs: 10Hz - 80kHz ±3dB Phono Input: 20Hz - 15kHz ±0.5dB |
| S/N Ratio (IHF "A" Weighted) |
Line Level Inputs: 100dB
Digital Inputs: 103dB Phono Input: 90dB |
| Dimensions (W × H × D) |
430 × 93 × 345mm
17" × 3.6" × 13.5" |
| Front Panel Height | 80mm (3.15") |
| Power Consumption | 230W |
| Standby Power Consumption | <0.5W |
| Net Weight | 8kg |
| BTU Rating (4Ω, 1/8th power) | 517 BTU/h |
