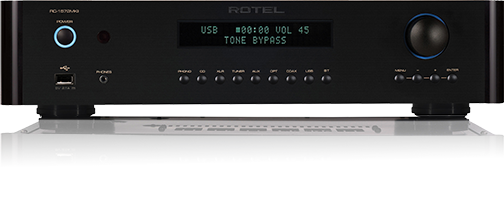

Rotel RC-1572MKII

• Dimensions (W × H × D)431 × 99 × 338mm
  17" × 3.9" × 13.5"
• Front Panel Height2U / 88.1mm (3.5")
•  Power Requirements120V, 60Hz Power
• Consumption35W
• Standby Power Consumption<0.5W
•  Net Weight8.4kg (18.5lbs.)
• BTU Rating65 BTU/h

• Total Harmonic Distortion (THD)
• (20Hz–20kHz) <0.004%
• Frequency Response
  Line Level Inputs :10Hz - 100kHz (+0dB, -0.2dB)Digital Inputs:20Hz - 20kHz (0±0.5dB, Max)Phono Input:20Hz - 20kHz (+0.3dB, -0.2dB)
• S/N Ratio (IHF "A" Weighted)
  Line Level Inputs: 118dB Digital Inputs: 100dBPhono Input: 80dB

Intermodulation Distortion

 (60Hz:7kHz, 4:1)
<0.004%

Preamplifier Output Level

1.44 V (at - 20 dB)

Input Sensitivity

Line Level Inputs (RCA): 200mV
Line Level Inputs (XLR): 300mV
Digital Inputs: 0dBFs
Phono Input (MM): 3mV

Output Level

Unbalanced (RCA): 1V
Balanced (XLR): 2V

Coax/Optical Digital Input Signals

LPCM (Up to 24-bit/192kHz)

Channel Separation

Line Level Inputs (RCA): >85dB
Line Level Inputs (XLR): >75dB
Phono Input: >85dB

PC-USB

USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)*
*Driver Installation Required
MQA and MQA Studio (up to 24-bit/384kHz)
Roon Tested
