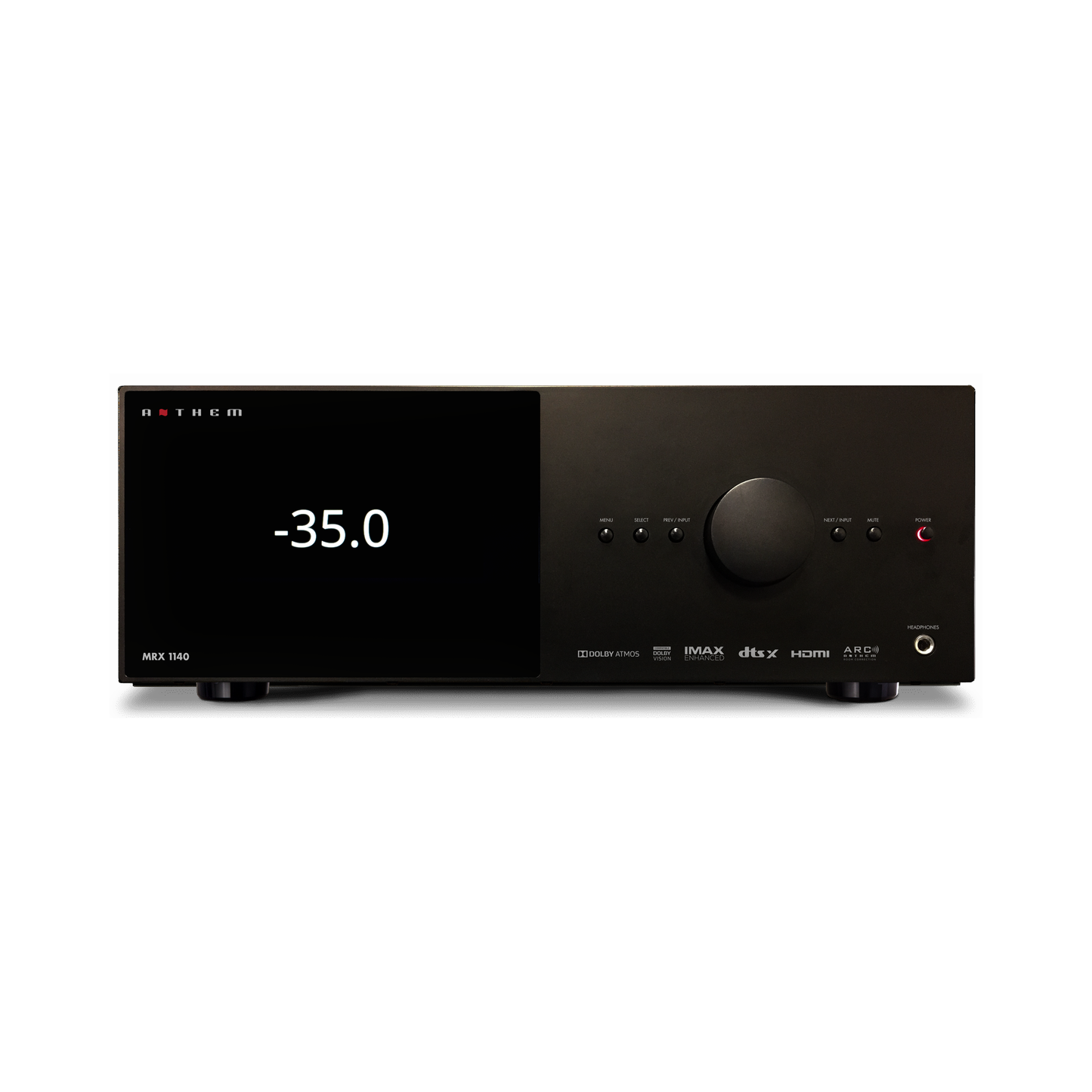

Anthem MRX 1140 8K AV-Receiver

15.2 Pre-Amplifier / 11 Amplifier Channel A/V receiver with Dolby Atmos, DTS:X and IMAX Enhanced



Anthem's MRX A/V Receivers are about maximising audio performance that previously has been unobtainable at their respective price points. Building on the feature set of our previous models, we've added the newest version of ARC Genesis, a redesigned and more accurate calibration microphone, Anthem's Web User Interface, integrated streaming support, object-oriented audio codecs with support for up to 15.2 channels and the clean power delivery Anthem is known for with up to 140 watts per channel.


The MRX 540, 740 and 1140 are a great way to bring premium audio to any home theater or media room. Seamlessly integrate your smart TV or projector with 7 dedicated 8K HDMI inputs that support 8K/60Hz or 4K/120Hz pass-through and 3 dedicated outputs with eARC. With MRX, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity.

Specifications

PREAMPLIFIER
Maximum Output (<0.01% THD) 5.2 VRMS, 7.1VRMS
Frequency Response 20Hz - 30KHz +/-0.2dB
Frequency Response, Analog-Direct N/A
THD+N (2 Vrms output) -100 dB
S/N Ratio (2 Vrms output, IEC-A filter) 110 dB
PREAMPLIFIER + AMPLIFIER (1 W output)
MRX 1140 / MRX 740 SNR: 91 dB ch 1-5, 86dB others
MRX 540 SNR: 91 dB ch 1-5
SPEAKER IMPEDANCE
Compatible with 4 Ohms or higher impedance.
MAXIMUM CONTINUOUS OUTPUT (1% THD)
  MRX 1140 MRX 740 MRX 540
Channels 1-5, Two Driven into 8 Ohms 140 W 140 W 100 W
Channels 1-5, Two Driven into 6 Ohms 170 W 170 W 130 W
Remaining Channels, Two Driven into 8 Ohms 60 W 60 W n/a
Remaining Channels, Two Driven into 6 Ohms 75 W 75 W n/a
POWER CONSUMPTION
  MRX 1140 MRX 740 MRX 540
Typical Load 570 W 485 W 365 W
Standby 0.3 W 0.3 W 0.3 W
Standby IP Control Enabled 1.8 W 1.8 W 1.8 W
Standby HDMI Bypass Enabled 4.9 W 4.9 W 4.9 W
DIMENSIONS
Height (without feet) 6" (15.24 cm)
Height with Rackmount Kit 4U
Width 17" (43.18 cm)
Depth (including wifi ant not power cord) 14-1/2" (36.4 cm)
WEIGHT
MRX 1140 33.6 lb (15.2 Kg)
MRX 740 33.2 lb (15.1 Kg)
MRX 540 28.2 lb (12.8 kg)
POWER REQUIREMENT
120 V version: In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
220-240 V version: In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.

Caring for your Speakers and Amplifiers

To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.

Speakers

  • Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
  • Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
  • Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
  • Speaker cabinets cannot be replaced please handle with care.

AV & Stereo Amplifiers

  • If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
  • Turn off the amplifier before swoping out or adding speaker cable
  • Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
  • adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
  • Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
