Denon AVR-X6800H 11.4 Ch. 8K AV Receiver
R 87,290.00
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Product Description
Product Description
Care
Care
Shipping & Returns
Shipping & Returns

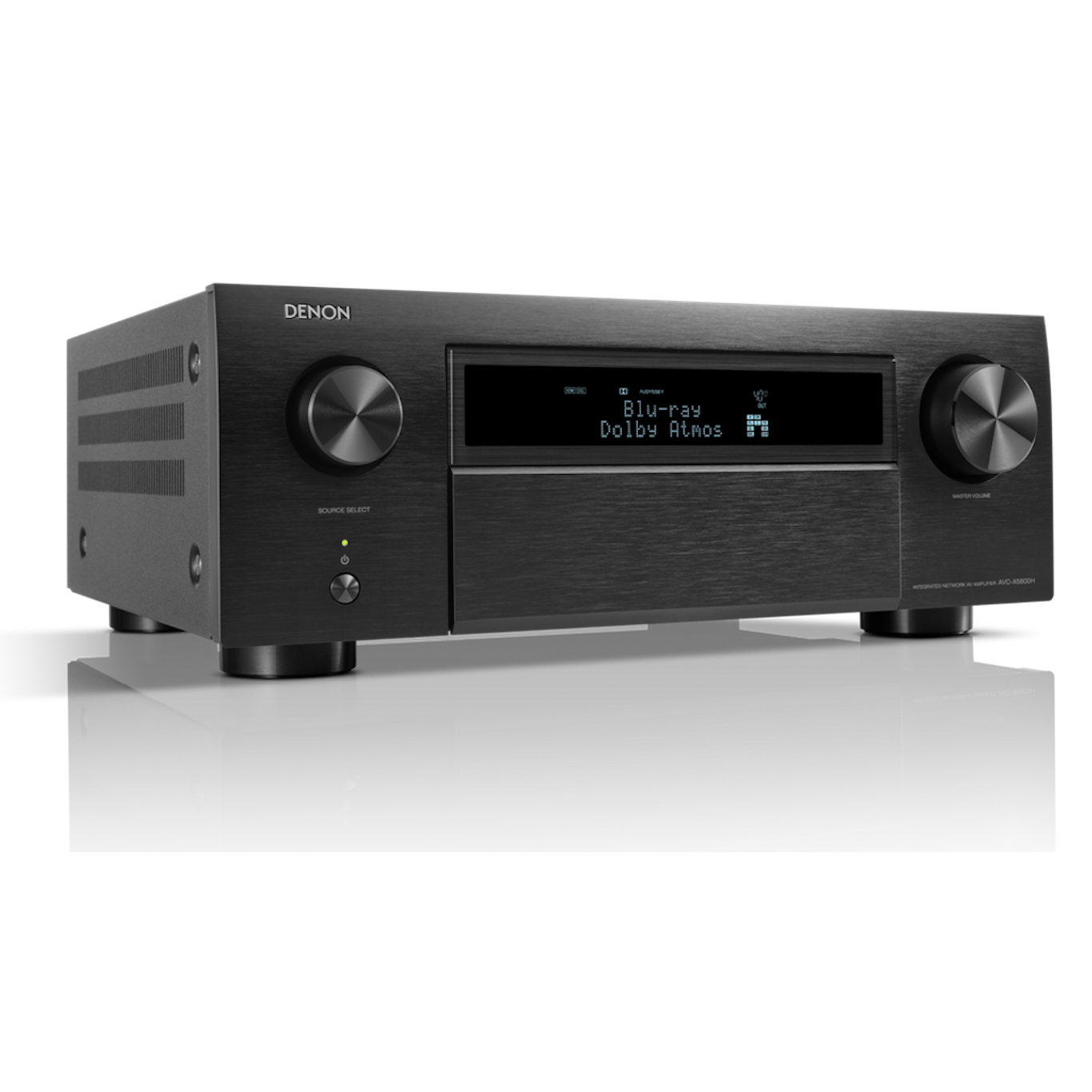

Denon AVR-X6800H 11.4 Ch. 8K AV Receiver with HEOS® Built-in
Designed and manufactured in Japan, the AVR-X6800H drives 11.4 channels of amplification for an upscaled experience. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X6800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.
- 11.4 channels
- 140W per channel
- 8K Ultra HD
- 3D Audio
- HEOS® Built-in
- Seven HDMI Inputs
Specifications
| Multichannel Surround | |
| DTS HD Master, DTS:X, DTS:X Pro | Yes, Yes, No |
| DTS Neo:X, DTS Neural:X | No, Yes |
| DTS Virtual:X | Yes |
| IMAX Enhanced | Yes |
| Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music | Yes, Yes, Yes, Yes |
| Dolby ProLogic Ilz, Dolby Surround | No, Yes |
| Auro 3D | Yes |
| 360 Reality Audio / MPEG H | Yes, Yes |
| Multichannel Stereo | Yes |
| Max. Number of Processing (Pre-Amp) Channels | 13.4 |
| Sound Enhancements | |
| Discrete Power Amplifier | Yes |
| D.D.S.C. HD Digital | Yes (32 bit) |
| Pure Direct | Yes |
| Clock Jitter Reducer | Yes |
| Alpha Processing | AL32 Processing Multichannel |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ, Dynamic Volume | Yes, Yes |
| Audyssey LFC | Yes |
| Dirac Live Upgradability | Yes |
| Compressed Audio Restorer | Yes |
| Network | |
| Media Server | Yes |
| HEOS Wireless Multi-Room Technology | Yes |
| Alexa / Google Voice Assistant / Apple HomePod | Yes, Yes, Yes |
| Lossy Formats: MP3, WMA, AAC | Yes, Yes, Yes |
| Lossless Formats: FLAC, ALAC, WAV | Yes, Yes, Yes |
| Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) | Yes, Yes, Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| AirPlay 2 | Yes |
| TuneIn | Yes |
| Spotify Connect | Yes |
| Roon Tested | Yes |
| HEOS App Control | Yes |
| Compatible with Remote APP for Smart Phones | Denon 2016 AVR Remote |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| HDMI | |
| HDMI Inputs: Back, Front | 7, No |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main, Zone | 2, 1 |
| HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB | Yes, Yes |
| HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR | Yes, Yes, Yes, Yes, Yes |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate, Quick Frame Transport, Quick Media Switching | Yes, Yes, No |
| 3D Signal Pass-through | Yes |
| 8K Signal Pass-Through, Scaling, GUI Overlay | Yes, Yes, Yes |
| DSD Audio Capability | Yes |
| Audio Return Channel (ARC), Enhanced ARC | Yes, Yes |
| Auto LipSync | Yes |
| Multi-room CI | |
| Multi-Room Zones | 3 |
| Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog | Yes (2ch), Yes (2ch), Yes, Yes |
| Zone Audio Output: Speaker, Pre-Out | Yes, Yes |
| Zone HDMI Output from HDMI Source | Yes |
| IP Control, RS232 Control, Web Control, App Control | Yes, Yes, Yes, Yes |
| Remote In / Out | Yes, Yes |
| DC Trigger Output | 3 |
| HDMI Diagnostics | Yes |
| Others | |
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 Dirac Live (upgrade) |
| Front Display | 2-Line FLD |
| GUI Languages | 3 (English, Spanish, French) |
| Setup Assistant | Yes |
| Quick Select Plus, Quick Select | Yes, No |
| Variable Crossover | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | Yes |
| Auto Power Off | Yes |
| Sleep Timer | Yes |

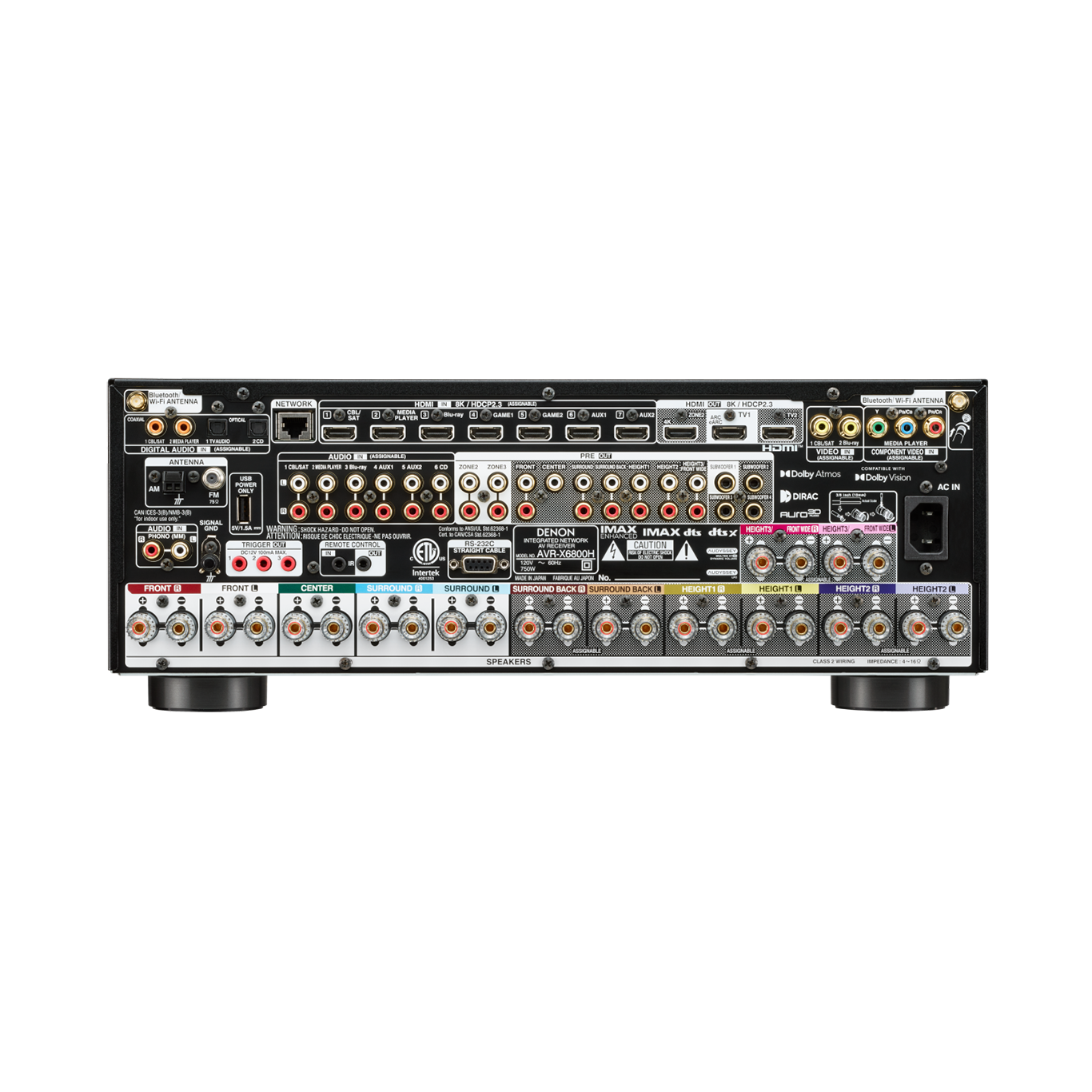

| Inputs/Outputs | |
| HDMI In, Out | 7, 3 |
| Multi-Room Video Out: Video, HDMI | No, Yes |
| Analog In, Out | 6, No |
| Phono (MM) In | Yes |
| Digital In: Optical, Coaxial | 2, 2 |
| Multi-Room Out: Analog, Digital | 2, No |
| Multichannel Pre-out | Yes (13.4) |
| Subwoofer Out | 4 (independent) |
| Speaker Terminal: Gold-Plated Screw, Regular Screw | No, Yes |
| Number of Speaker Terminals | 13 |
| Speaker A / B | Assignable |
| Bi-amp Drive | Assignable |
| Multi-Room Speaker Terminal | Assignable |
| Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB | No, No, No, No, Yes |
| USB Audio, Made for iPod, Made for iPhone | Yes, No, No |
| AM/FM Tuner | No |
| Specifications | |
| Number of Power Amps | 11 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 140W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 175W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 250W |
| General | |
| Metal Front Panel | Yes |
| System Remote Control | RC-1256 |
| Pre-Programmed, Learnable, LCD Display | Yes, No, No |
| Power Consumption in W | 750 |
| Power Consumption No-Sound (ECO On / Off) in W | 65W/110W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions | Antenna: Horizontal: (W x D x H) in Inches 17.1 x 15.3 x 6.6 Antenna: Vertical: (W x D x H) in Inches (17.1 x 15.3 x 9.3) W/O Antenna: (W x D x H) in Inches [17.1 x 14.9 x 6.6] |
| Weight in LBS | 34.4 |
| Weight in LBS (Packaging) | 40.1 |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
