DRX-8.4 11.4-Channel Network AV Receiver
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
DRX-8.4 11.4-Channel Network AV Receiver
Best-in-class, the Integra DRX-8.4 11.4 Channel Network AV Receiver delivers all the nuance and power intended by artists and creators to modern homes around the globe. State-of-the-art features and advanced technologies power a robust home theater experience and the whole home ecosystem
Superior Audio Performance
Our close working relationships with integrators gives us the leading edge in tailoring holistic, end-to-end solutions for the premium lifestyle consumer and the professional installer. The Integra DRX-8.4 boasts more power, more symmetry and an unprecedented number of referral-ready features. Simply put: we mean business, and we’re ushering in a new dawn of audiophile-level sound with this industry-dominating AVR.
Processing Details
The whole home entertainment experience can be aligned with this state-of-the-art technology and fueled by studio-grade processing capability, including the industry’s highest performance 32-bit audio DAC to provide unprecedented dynamic range with ultra-low distortion.
This THX® Certified Select AV also supports Dolby Atmos®, DTS:X®, IMAX enhanced, with firmware updates available for Auro-3D (Summer 2023), so you can have the full theater experience.
Specifications
| > AUDIO | 11 Channel Amplifier |
| 150 Watts per channel (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC) | |
| All new Integra symmetric class A/B amplifier design | |
| All new Integra engineered chassis and audio signal path for optimum noise reduction and signal clarity | |
| Two precision 32-bit ESS ES9026PRO Hyperstream® audiophile DACs | |
| DSP | 11.4 channel processing for up to 7.2.4 configurations |
| 2 INDEPENDENT subwoofer channels plus 2 parallel outputs for connectivity convenience | |
| Dolby Atmos®, DTS:X®, Auro-3D FW update June ‘23, IMAX Enhanced, Dolby Atmos Music and other major formats | |
| DIRAC LIVE ROOM CALIBRATION | Dirac Live Premium License INCLUDED (20Hz - 20kHz) - no upgrade required; enables quick out of box setup |
| Setup via Dirac PC/MAC app and optional USB mic (Advanced), OR free Integra mobile app and included wired mic (Basic) | |
| Dirac Live Bass Control ready (single or multi) as an optional user upgrade | |
| VIDEO | Newly designed HDMI 2.1 signal paths with (6) 40Gbps |
| inputs capable of 8K/60 and 4K/120 | |
| Total of 7 HDMI Inputs/3 Outputs & eARC | |

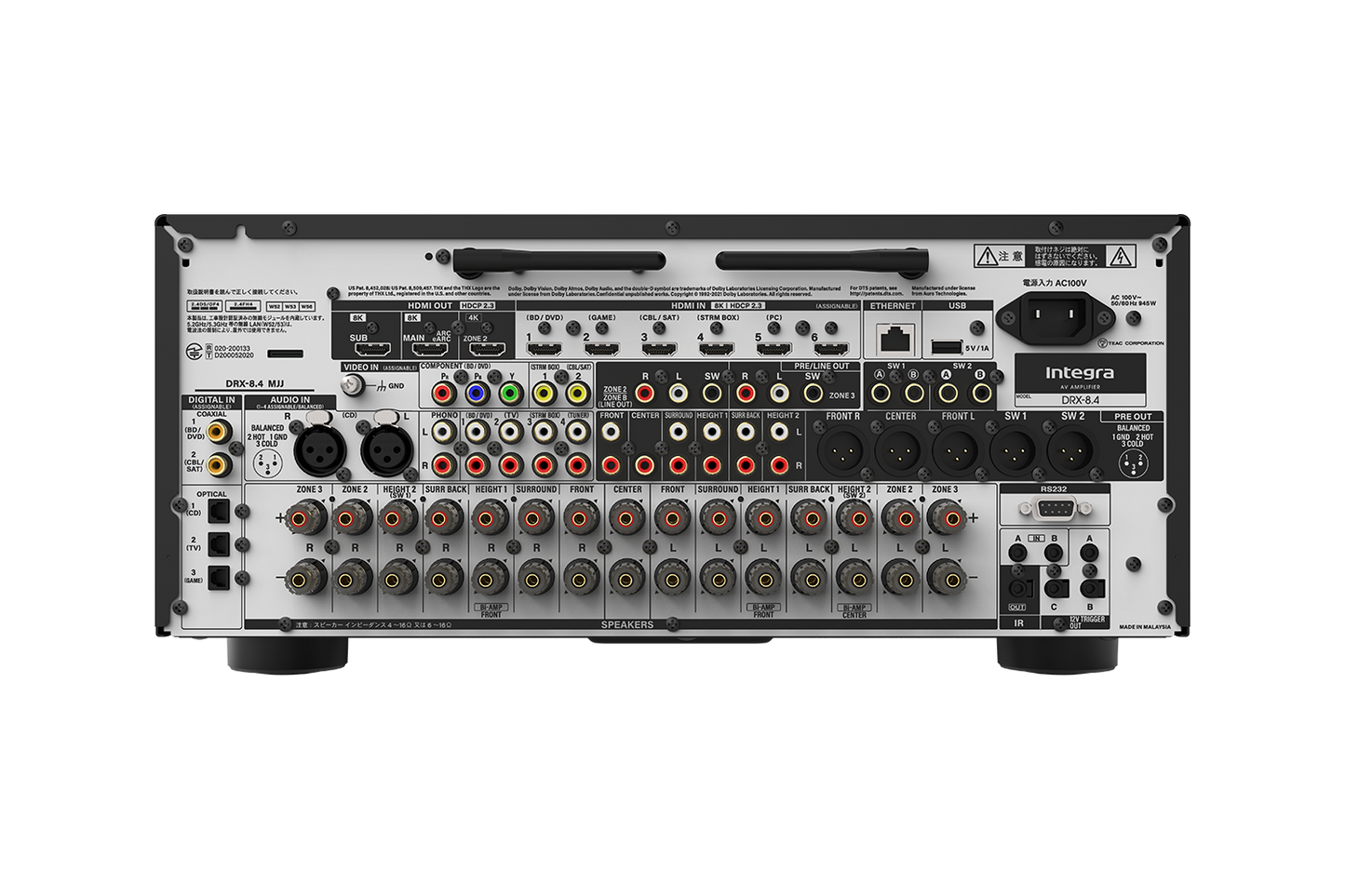

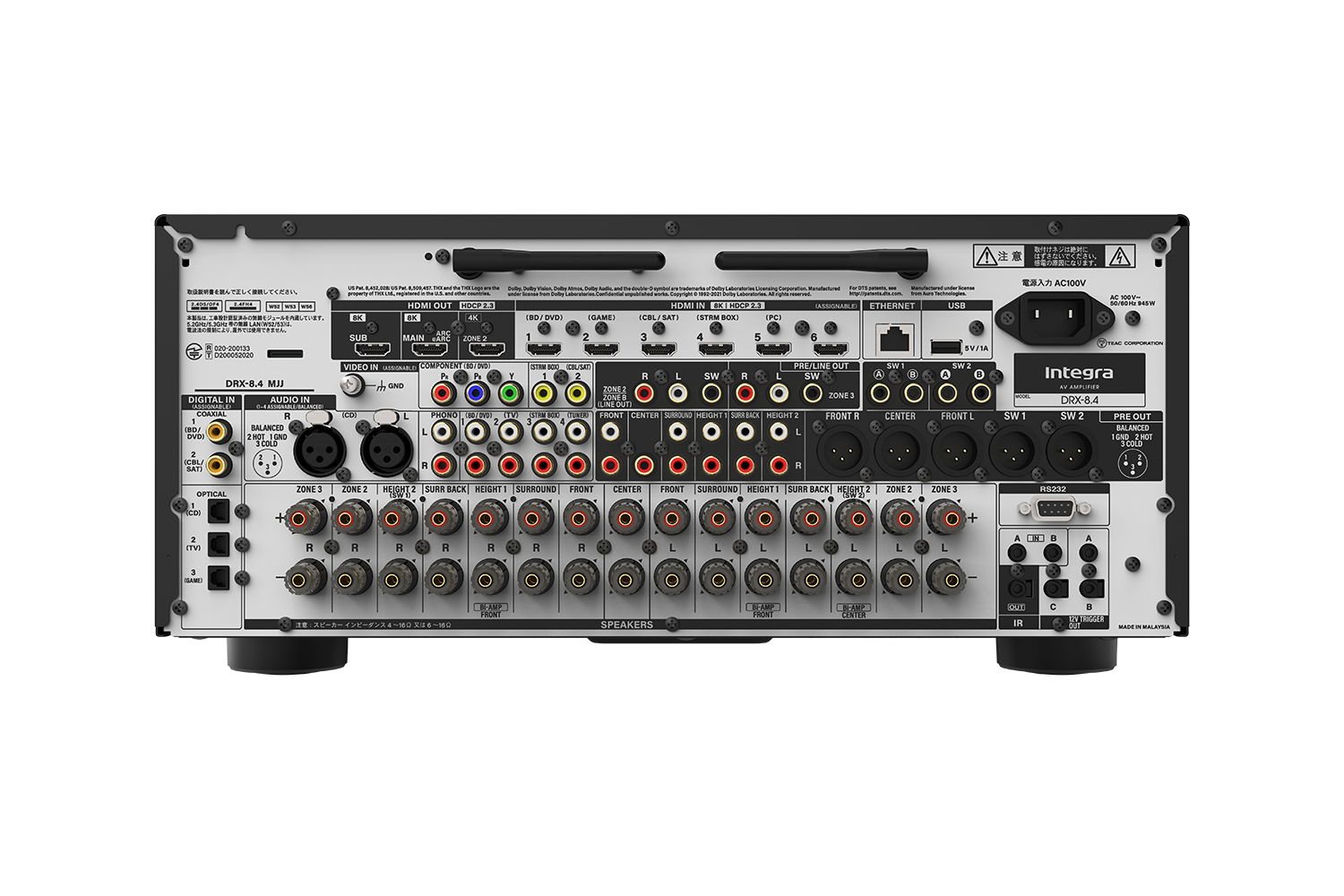

| PREMIUM CONNECTIONS | 11.4 channel RCA preouts |
| XLR preouts for L/C/R/SW1/SW2 | |
| Stereo XLR input | |
| NETWORK | Roon Ready (RAAT network interface code preinstalled in the device) (FW update June) |
| Chromecast built-in, Airplay 2 (defeatable in AVR setup for smoother client UX) | |
| Spotify, Amazon Music HD, Tidal, Deezer, Pandora, TuneIn | |
| Works with Sonos Certified | |
| AptX HD Bluetooth transmitter for personal listening | |
| CONTROL AND SERVICE | Advanced Web App for setup, backup and recall of all avr settings; Default password can be changed by dealer |
| Wireless room calibration using Dirac PC/Mac app and optional USB mic (UMIK-1 recommended) | |
| Quad core network processor for ultimate IP responsiveness and stability | |
| Assignable amps for Zone 2, Zone 3, and passive subwoofers | |
| Compatible with OVRC Pro, Domotz, Luxul Pro Watch, VPN, and other monitoring platforms | |
| Onboard diagnostics tool kit, including test patterns and EDID/HDCP adjustment, virtual remote; all available via web app | |
| Integra’s most robust API ever, with discrete commands for virtually any AVR function | |
| Custom control drivers based on Integrator feedback. Developed and maintained by Integra’s software team in Osaka, Japan | |
| RACK KIT | IRK-180-4C (Optional) |
| DIMENSIONS | 17 1/8” x 7 13/16” x 18 1/2” (435 x 198 x 470 mm); |
| WEIGHT | 49.6 lbs (22.5 kg) |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
