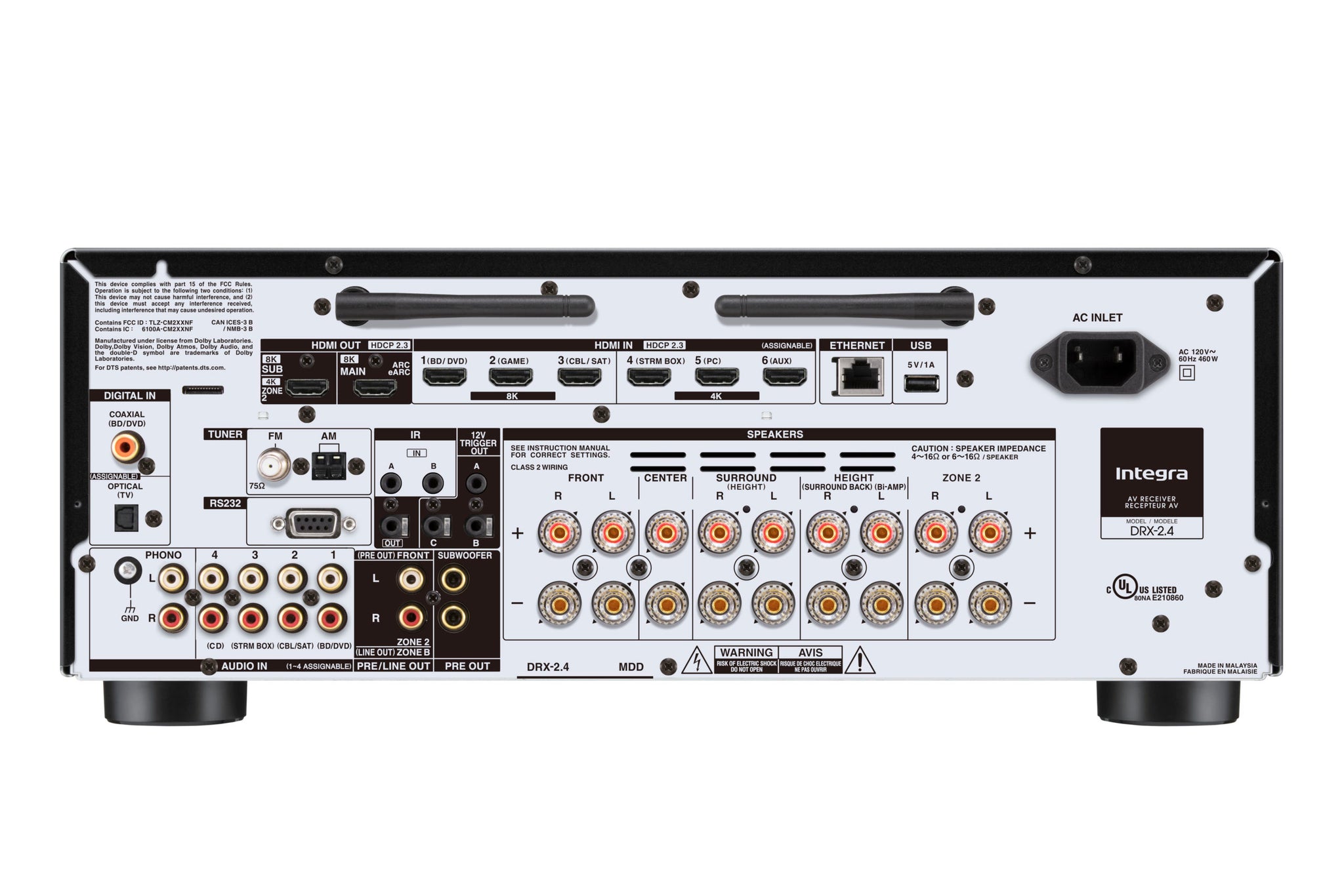

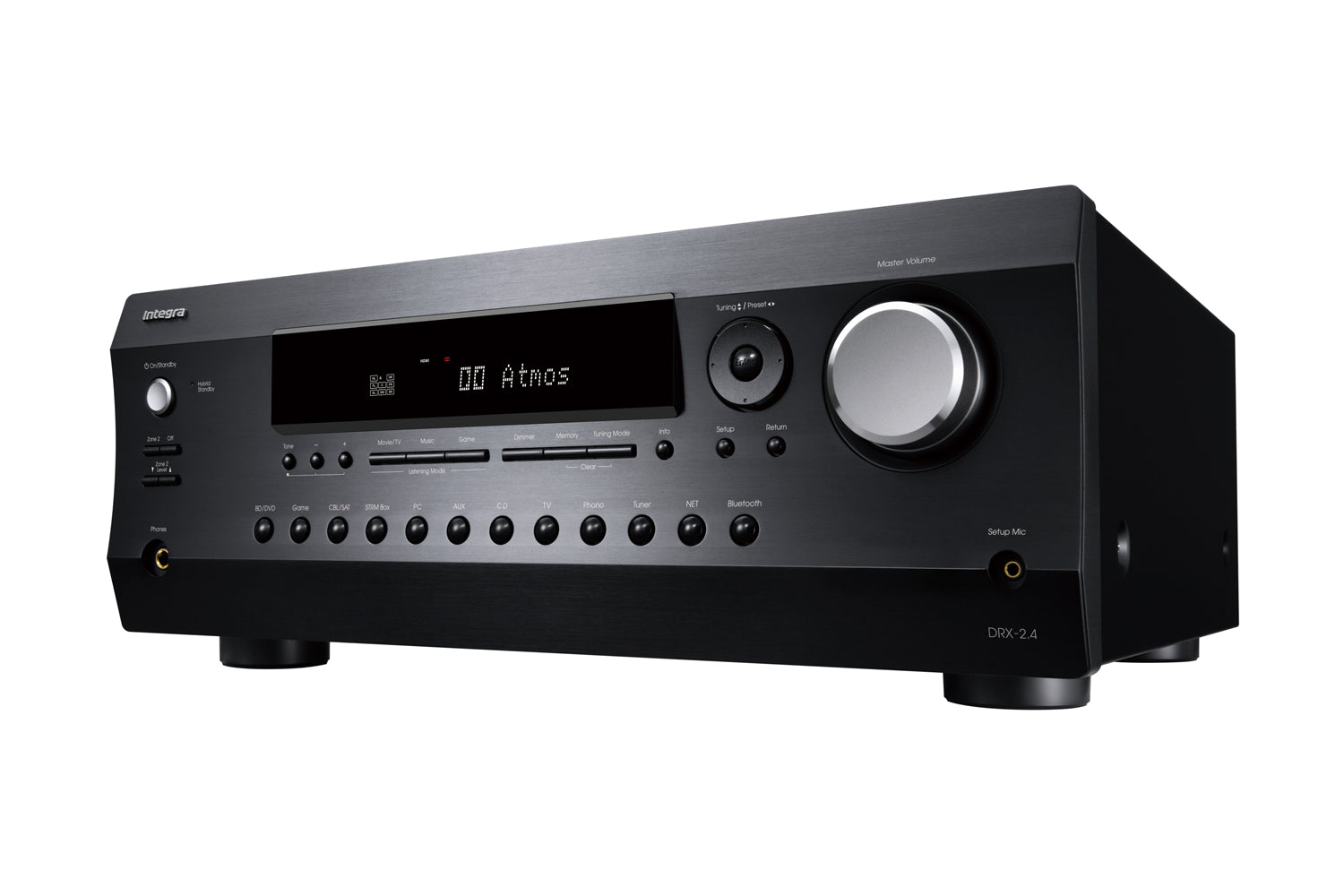

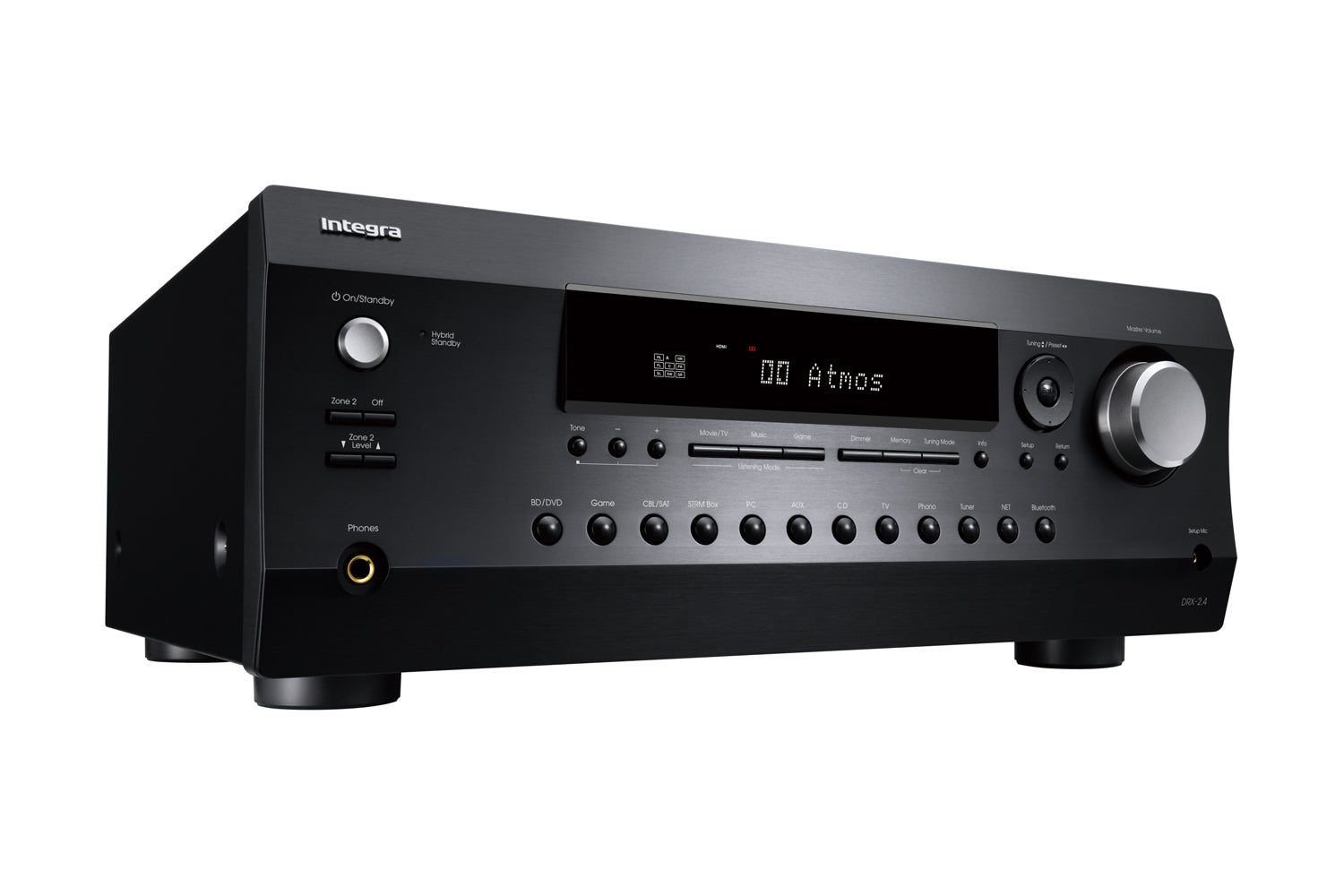

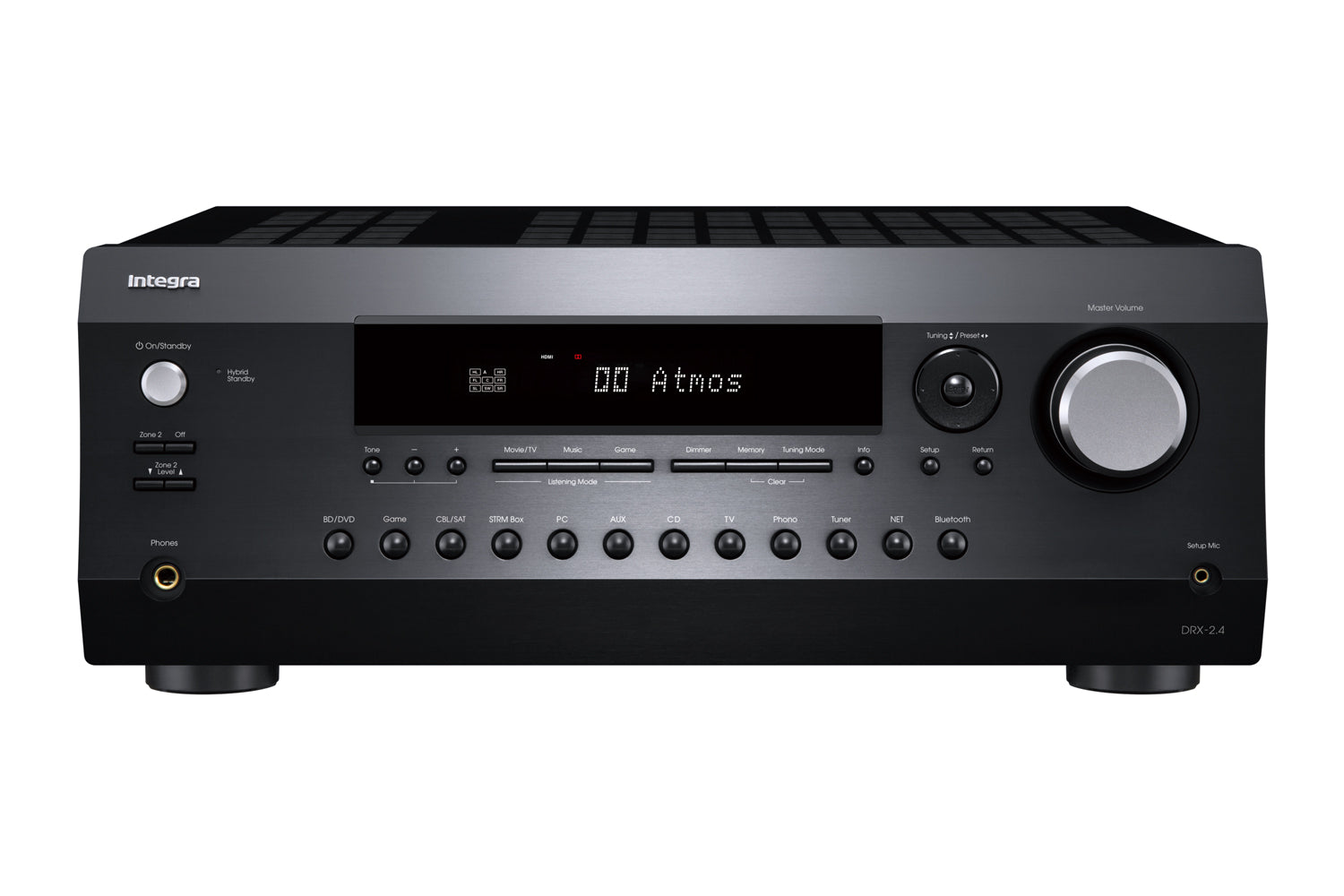

Integra DRX 2.4 7.2-Channel Network AV Receiver
High-spec HDMI® will unlock exciting features for gamers and film lovers in your family, including 8K video passthrough, HDR10+, and low-latency gameplay. Enjoy DTS: X® and Dolby Atmos® 3D soundtracks with refined Integra power and convenient voice-controllable multi-room audio.
Features:
- 5.2.2-ch Dolby Atmos® and DTS:X® playback
- DTS Virtual:X™ and Dolby Atmos Height Virtualization
- Dolby Surround® and DTS® Neural:X upmixing
- HDMI®*1 supports 8K/60p (4:4:4/12-bit*2, 4:2:2/12-bit*2, 4:2:0/10-bit), 8K/30p (4:4:4/12-bit*2, 4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/12-bit*2, 4:4:4/10-bit, 4:2:2/12-bit) video passthrough, HDR10+, Dolby Vision™, HDR10, HLG, BT.2020, VRR (Variable Refresh Rate), DSC (Display Stream Compression), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching), eARC (enhanced Audio Return Channel), DeepColor™, x.v.Color™, LipSync, and HDCP 2.3
- HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD*3
- Bidirectional Bluetooth® wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3; RX: SBC/AAC, TX: SBC/Qualcomm® aptX™/apt X HD)
- Separate Zone 2 speaker outputs enable 5.2.2-ch + Zone 2 speaker connection, 5.2.2-ch playback switching to 5.2-ch + Zone 2 playback*4
- Dedicated Zone 2 DAC supports synced/independent D/A audio distribution (including HDMI/SPDIF/NET*5) via Zone 2 speaker outputs and Zone 2 pre-out*6
- Share any MAIN audio source to a wireless headphone dock via Zone B line-out*6
- Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
- AccuEQ Room Calibration with subwoofer EQ and AccuReflex™
- Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog
Specifications
| Power Output Front L/R | 80 W/Ch at 8 Ohms, 20 Hz–20 kHz, 0.08%, 2 Channels Driven, FTC, 170 W/Ch at 6 Ohms, 1 kHz, 10%, 1 Channel Driven, |
| Dynamic Power | 160 W (3 Ohms, Front) 125 W (4 Ohms, Front) 85 W (8 Ohms, Front) |
| Input Sensitivity and Impedance | 200 mV rms/47 k-Ohms (Line/Unbalance) 3.5 mV rms/47 k-Ohms (Phono MM) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz, Half Power) |
| Rated RCA Output Level and Impedance | 1 V rms/470 Ohms (Pre-out/Subwoofer Pre-out) 200 mV rms/470 k-Ohms (Zone B Line-out) |
| Phono Overload | 70 mV (MM, 1 kHz, 0.5%) |
| Frequency Response | 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode) |
| Tone Control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 106 dB (IHF-A, Line) 80 dB (IHF-A, Phono) |
| Speaker Impedance | 4 Ohms–16 Ohms |
| Power Supply | AC 120 V~, 60 Hz |
| Power Consumption | 460 W |
| Standby Power Consumption | 0.1 W |
| Dimensions (W x H x D) | 17 1/8˝ x 6 7/8˝ x 14 13/16˝ (435 x 174 x 376.5 mm) |
| Weight | 21.2 lbs. (9.6 kg) |
| Carton Dimensions (W x H x D) | 22 1/16˝ x 12˝ x 18 3/8˝ (560 x 305 x 467 mm) |
| Weight | 21.2 lbs. (9.6 kg) |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
