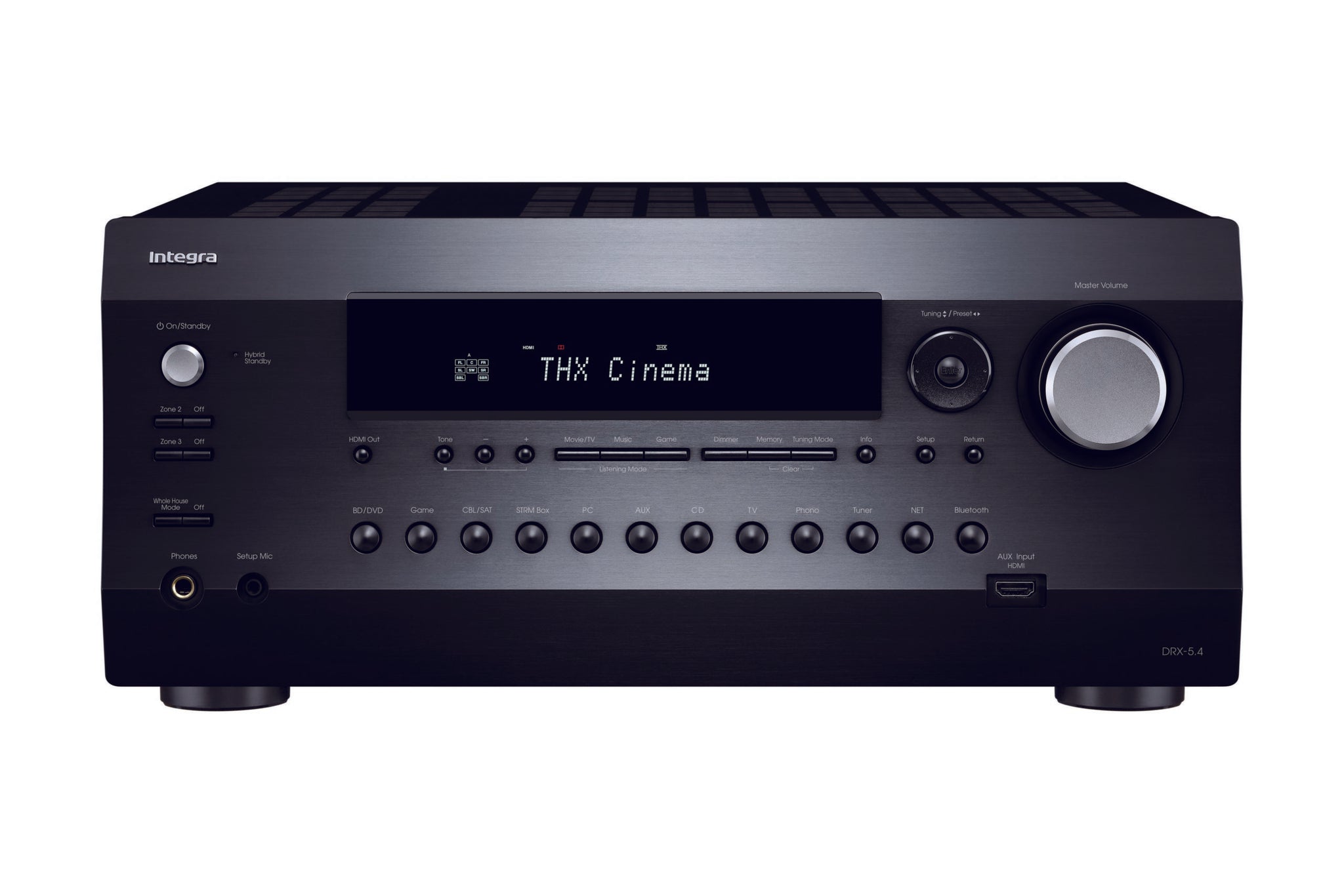

Integra DRX 5.4 9.2-Channel Network A/V Receiver
Theater-reference Dolby Atmos® or DTS: X® sound through up to 7.2.4 channels complements 8K HDR video passthrough. Connect 5.2.4-channel speakers and Zone 2 speakers and switch between 5.2.4-ch and 5.2.2-ch + Zone 2 playback, or use 5 GHz/2.4 GHz Wi-Fi® and your voice to control music all around your home.
Specifications
| Power Output Front L/R: | 215 W/Ch at 6 Ω, 1 kHz, 10%, 1 Channel Driven, 180 W/Ch at 6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC |
| Dynamic Power: | 250 W (3 Ω, Front) 220 W (4 Ω, Front) 130 W (8 Ω, Front) |
| Input Sensitivity and Impedance: | 200 mV rms/47 kΩ (Line/Unbalance) 3.5 mV rms/47 kΩ (Phono MM) |
| THD+N (Total Harmonic Distortion + Noise): | 0.08% (20 Hz–20 kHz, Half Power) |
| 0.08% (20 Hz–20 kHz, Half Power) | 1 V rms/470 Ω (Subwoofer Pre-out) 200 mV rms/470 Ω (Zone 3/Height 2/Pre-/Line-out) |
| Phono Overload: | 70 mV (MM, 1 kHz, 0.5%) |
| Frequency Response: | 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode) |
| Tone Control: | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio: | 106 dB (IHF-A, Line) 80 dB (IHF-A, Phono) |
| Speaker Impedance: | 4 Ω–16 Ω |
| Signal Level | 1 Vp-p/75 Ω Composite Video 1 Vp-p/75 Ω Component Video (Y) 0.7 Vp-p/75 Ω Component Video (Pb/Pr) |
| Tuning Frequency Range: | FM 87.5 MHz–108 MHz AM 522/530 kHz–1,611/1,710 kHz |
| FM/AM Preset Memory: | 40 Stations |
| Power Supply: | AC 220–240 V~, 50/60 Hz |
| Power Consumption: | 870 W |
| Standby Power Consumption: | 0.15 W |
| Dimensions (W x H x D): | Dimensions (W x H x D): |
| Weight | 14.0 kg |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
