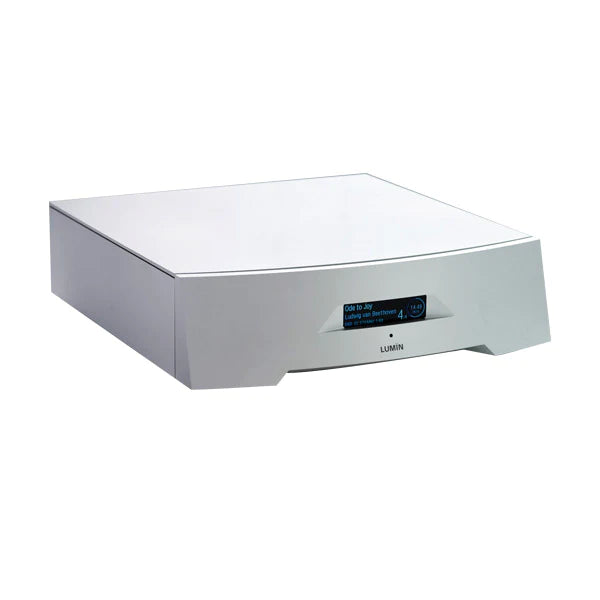

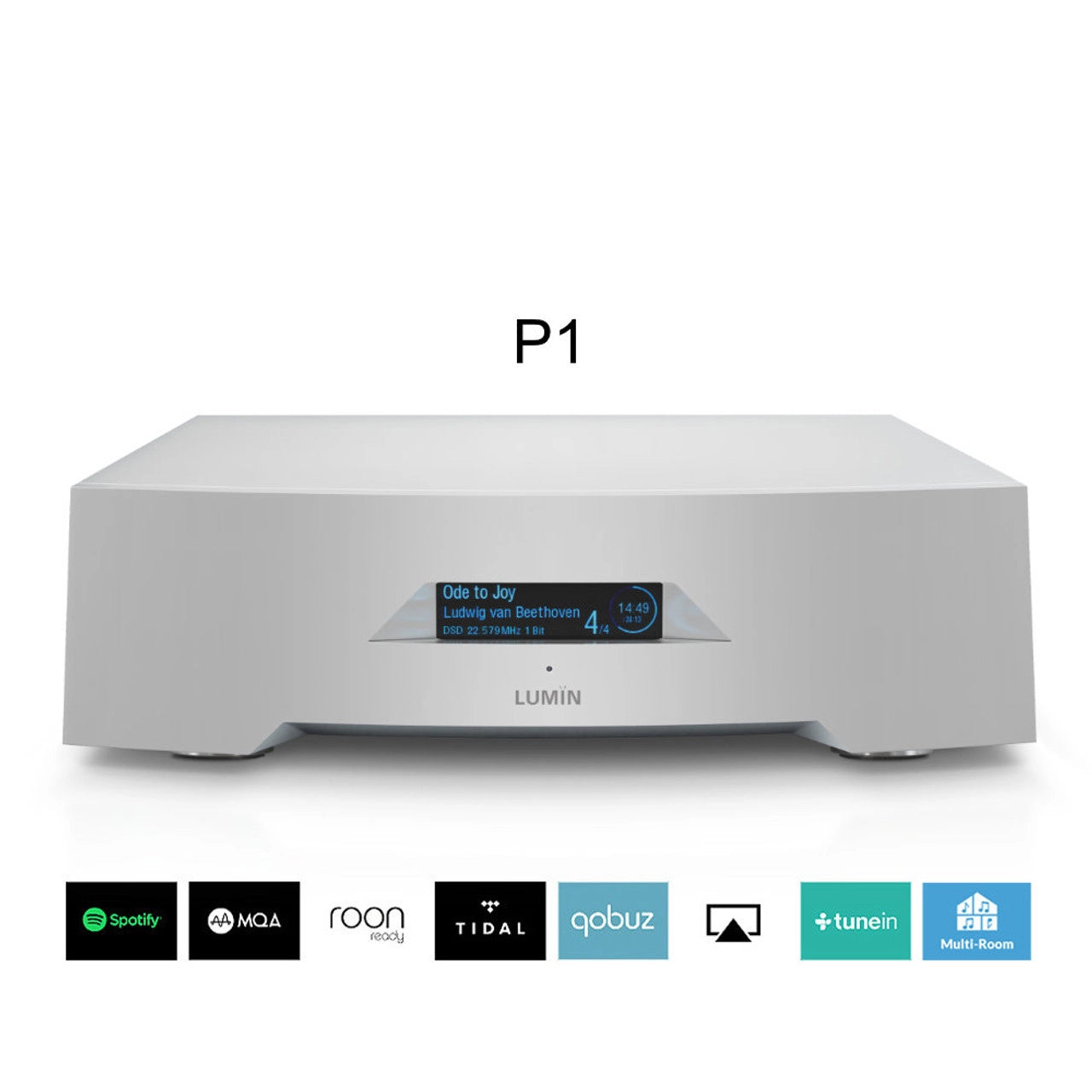

Lumin P1 Network Music Player with DAC
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Lumin P1 Network Music Player with DAC
CHECK INSTORE FOR AVAILABILITY
WHY LUMIN P1
Our most flexible player yet, LUMIN P1 is designed to sit right in the heart of your audio system. Use as a streamer, a DAC, a pre-amplifier or all three!
Main Features
LUMIN P1 makes system integration easier than ever:
- 9 digital & analogue inputs
- USB digital audio input & output support up to Native DSD512
- Balanced & unbalanced analogue inputs
- SPDIF & AES input support up to 192/24 & DoP
- HDMI 2.0 inputs & 4K passthrough with ARC support
Specified for exceptional musical performance:
- New processor delivers native DSD512 & PCM384 playback
- Dual Mono design throughout maximises channel separation
- Dual ES9028PRO SABRE DACs in Mono mode
- Femto Clock System with precision FPGA distribution
- New integrated dual-toroidal linear power supply & all-in-one chassis
- Fibre Network provides complete isolation from network digital noise
- Leedh Processing lossless volume control
9 Digital & Analogue Inputs
New to LUMIN P1, 9 inputs provide enough flexibility for any audio or video stereo system:
USB
Industry-leading XMOS USB audio controller
Native DSD512 and PCM384 compatible
Windows 10 & Mac OS compatibility
ANALOGUE
Balanced and Unbalanced analogue input
LEEDH volume processing
Passthrough function for home cinema integration
SPDIF/AES
DoP64 / 192 kHz 24-bit compatible
TOSLINK, SPDIF (RCA), AES inputs
HDMI
HDMI 2.0 Specification compatible
Supports 2.0 PCM audio decoding
HDR, Dolby Vision, Dolby Atmos, DTS passthrough
ARC compatible output
X1 Heritage
LUMIN P1 takes many flagship features from the outstanding LUMIN X1:
FIBRE NETWORKING
Immensely popular on X1, optical networking provides complete isolation from network noise. Additionally, dual network ports mean that you can connect LUMIN L1 or a NAS directly to P1.
FEMTO CLOCKING SYSTEM
P1 includes dual Femto crystal oscillators and our proprietary FPGA clock distribution system first debuted in X1.
OUTPUT BUFFER DESIGN
The fully balanced Dual Mono analogue output module including legendary Lundahl Output transformers has been keeping music-lovers happy since the original LUMIN A1.
DUAL-TOROIDAL POWER SUPPLY
The roomy P1 chassis provides space to move the X1 toroids inboard for a cleaner installation, while retaining all the benefits of separate analogue and digital circuits.
New Remote Control
A new tactile infrared remote control allows easy change of input, volume adjustment, playlist navigation and more.
The exceptionally well-constructed acrylic and zinc LUMIN remote is made in Austria and is entirely Roon Ready.
The new infrared receiver built in to LUMIN P1 is compatible with universal remote controls, phones and automation systems.
Flexible Setup Options
Use as a streamer, a DAC, a pre-amplifier or all three!
IDEA 1 - STREAMING DAC
LUMIN P1 can be used like all other LUMIN players. With its DSD512/PCM384 support, Femto Clock System, Fibre Networking, toroidal power supply, and Leedh Processing, P1 is second only to LUMIN X1 in pure streaming ability.
IDEA 2 - HI-FI HUB
Connect all your stereo sources to LUMIN P1 and attach a power amplifier and you've got everything you need for an incredible music system.
IDEA 3 - 2-CHANNEL TV SYSTEM
No need for an AV Receiver. Simply attach your HDMI sources to LUMIN P1 and P1 to your TV. With HDMI ARC, all your audio comes through your main speakers.
Technical Specifications
NETWORK PLAYBACK
Up to DSD512
Up to 384 kHz, 16-32-bit, Stereo
MQA Full Decoding
UPSAMPLING RATES & BIT DEPTHS
DSD128 upsampling option for all files
PCM 384kHz upsampling option for all files
DIGITAL INPUT
USB:
USB Audio Class 2 Compatible
WINDOWS 10 (Release 1703 or above) / Mac OSX or above
DoP 128 support
PCM 44.1-384 kHz, 16/32-bit, Stereo
AES/OPTICAL/SPDIF:
PCM 44.1 kHz-192 kHz, 16-24-bit
DSD64 (DoP64, DSD over PCM)
HDMI X3:
PCM 2.0 Audio support
4K Video Passthrough
DIGITAL OUTPUT
USB:
Native DSD512 support
PCM 44.1-384 kHz, 16-32-bit, Stereo
BNC SPDIF:
PCM 44.1 kHz-192 kHz, 16-24-bit
DSD64 (DoP64, DSD over PCM)
HDMI X1: (HDMI PASSTHROUGH AND ARC SUPPORT)
PCM 2.0 Audio support
4K Video Passthrough
ARC (Audio Return Channel) support
ANALOGUE INPUT
RCA Unbalanced x1
XLR Balanced x1
ANALOG OUTPUT
Dual ESS SABRE32 ES9028Pro DAC chips
Fully balanced layout with high-quality components
Output connectors coupled with dual LUNDAHL LL7401 output transformers
Femto Clock System with precision FPGA distribution
OPTICAL NETWORK
Industry-standard SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
POWER SUPPLY
Internal dual-toroidal
Separate digital & analogue circuitry
Low-noise linear regulator
PHYSICAL
FINISH:
Black anodised aluminium
Raw aluminium
DIMENSIONS & WEIGHT
350mm (W) x 380mm (D) x 107mm (H)
Weight: 12kg
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
