Epson EB-L690E WUXGA Laser Projector - 6500 Lumens 3LCD
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
This product is not available for purchase online. Please call to enquire.
Epson EB-L690E WUXGA Laser Projector
Elevate your professional presentations with the Epson EB-L690E, a premium laser projector engineered for demanding business environments. Delivering exceptional 6500 ANSI lumens brightness with advanced 3LCD technology, this projector ensures vibrant, clear visuals in any lighting condition, from large boardrooms to conference halls and auditoriums.
The EB-L690E features a maintenance-free laser light source with up to 20,000 hours of operation, eliminating lamp replacements and reducing total cost of ownership. With native WUXGA (1920 x 1200) resolution and 16:10 aspect ratio, it's perfectly suited for displaying detailed spreadsheets, presentations, and high-definition content with exceptional clarity.
Key Features
- 6500 ANSI lumens brightness for brilliant images in ambient light
- Native WUXGA (1920 x 1200) resolution for sharp, detailed visuals
- 20,000-hour laser light source with zero maintenance
- Advanced 3LCD technology for superior color brightness and accuracy
- 16:10 aspect ratio ideal for business applications
- 2,500,000:1 dynamic contrast ratio for deep blacks and vibrant colors
- Motorized lens with wide lens shift range for flexible installation
- 1.6x optical zoom for installation versatility
- HDBaseT connectivity for single-cable AV and control
- Edge blending and geometric correction for multi-projector setups
- Portrait mode support for digital signage applications
- Network monitoring and control via Epson Projector Management
Technical Specifications
| Model Number | EB-L690E |
| Display Technology | 3LCD, 3-chip technology |
| Native Resolution | WUXGA (1920 x 1200) |
| Brightness | 6500 ANSI lumens (white & color brightness) |
| Contrast Ratio | 2,500,000:1 (Dynamic) |
| Light Source | Laser diode |
| Light Source Life | Up to 20,000 hours (Normal) / 30,000 hours (Extended) |
| Aspect Ratio | 16:10 (native), supports 16:9, 4:3 |
| Lens Type | Motorized focus, zoom, and lens shift |
| Zoom Ratio | 1.6x optical zoom |
| Lens Shift | Vertical: ±67% / Horizontal: ±30% |
| Throw Ratio | 1.44 - 2.33:1 |
| Screen Size | 50" - 500" (diagonal) |
| Keystone Correction | Vertical: ±30° / Horizontal: ±30° |
| Geometric Correction | 4-corner, curved surface, point correction |

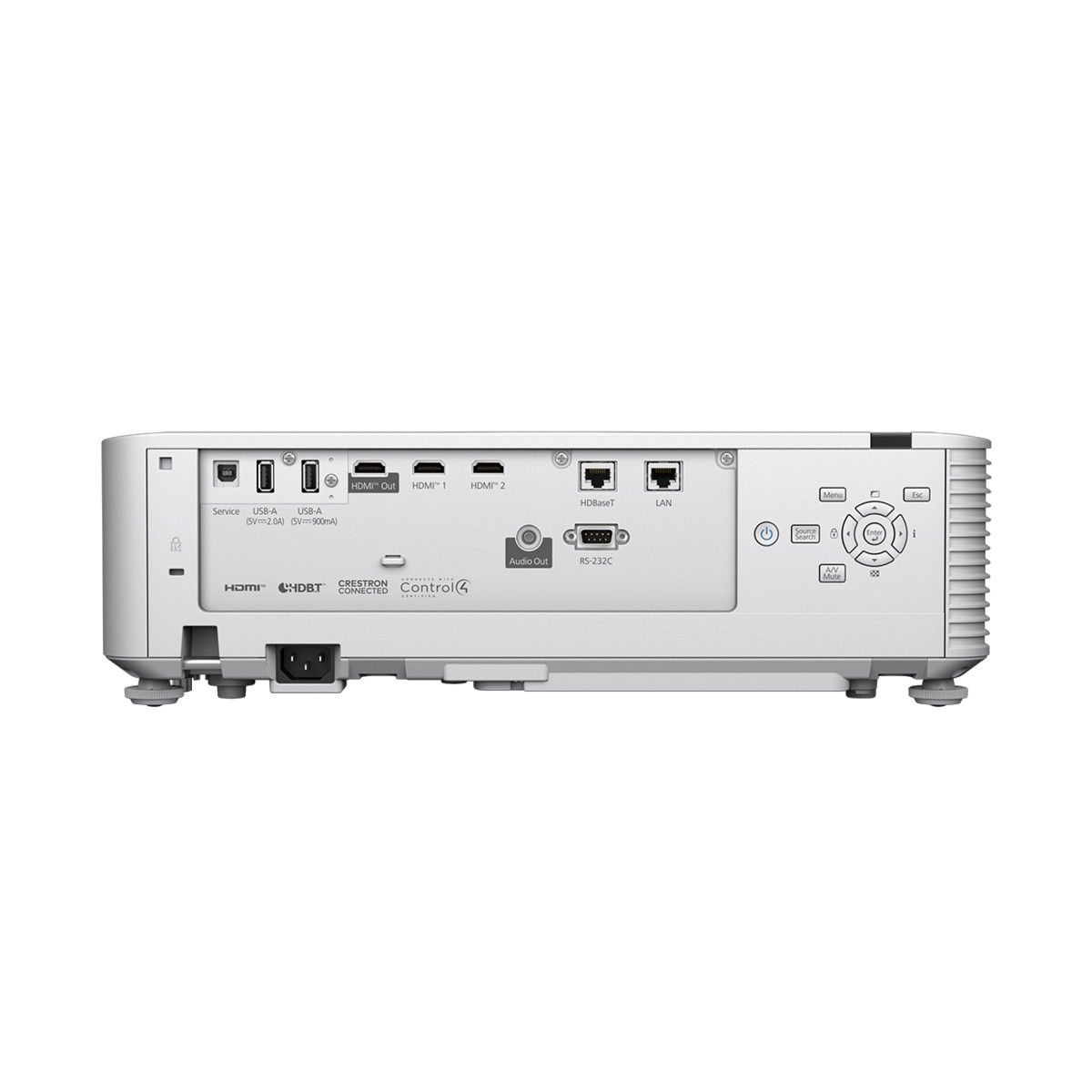

| Connectivity | 2x HDMI, HDBaseT, VGA, USB Type-A, USB Type-B, RS-232C, RJ-45 (LAN), Stereo Mini Jack |
| Network Features | Wired LAN, Epson Projector Management, PJLink, Crestron RoomView, AMX Device Discovery |
| Audio | 16W mono speaker |
| Noise Level | 38dB (Normal) / 29dB (Quiet) |
| Power Consumption | 565W (Normal) / 0.5W (Standby) |
| Dimensions (W x D x H) | 503 x 437 x 163 mm (without feet) |
| Weight | 11.7 kg |
| Operating Temperature | 0°C - 50°C (32°F - 122°F) |
| Operating Altitude | 0 - 3,048m (0 - 10,000 ft) |
| Security Features | Kensington lock, password protection, control panel lock |
| Warranty | 3 years or 10,000 hours manufacturer warranty |
