HANA EH High-Output Moving Coil Phono Cartridge

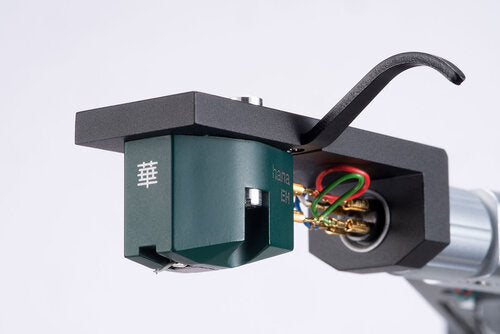

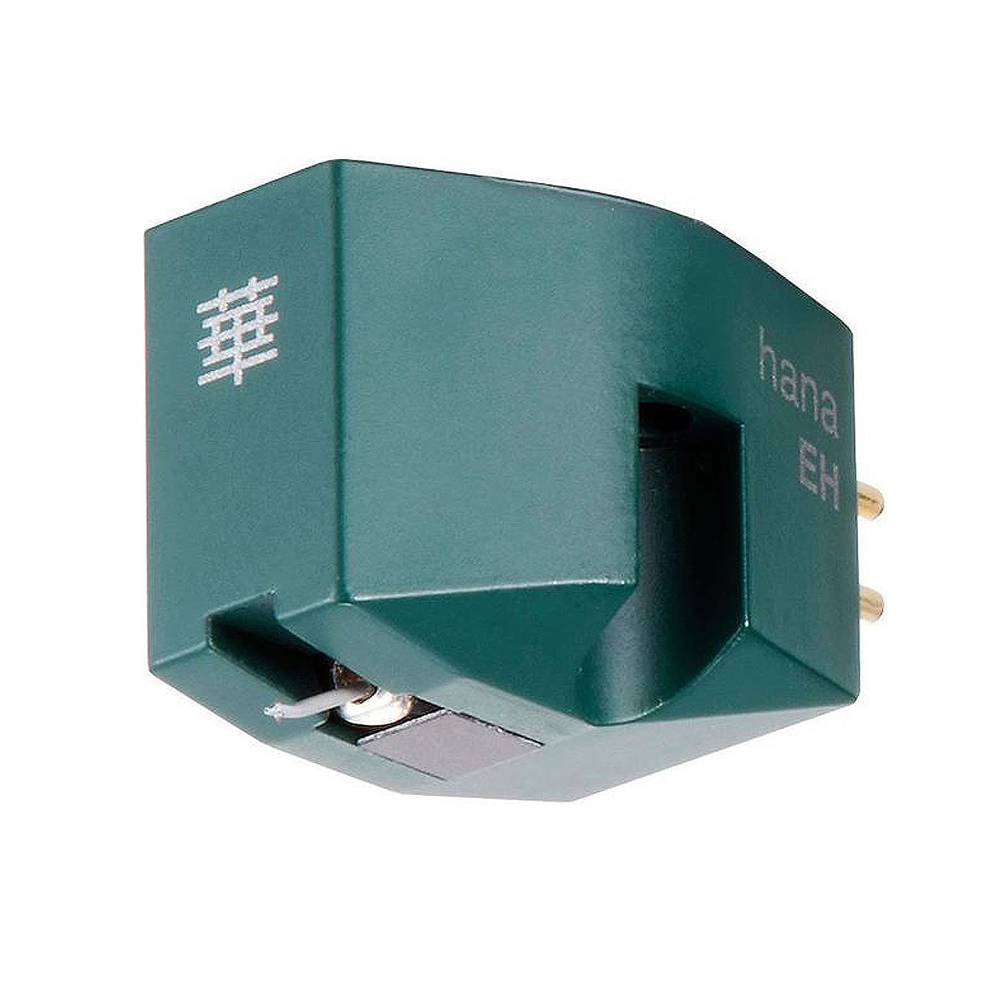

The HANA EH high-output moving coil cartridge represents the best way to upgrade from "starter" MM cartridges that typically come packaged with most entry-level turntables. Weighing in at only 5 grams and possessing exceptional tracking ability, the HANA EH cartridge's distinctive moss green body houses a special cross-coil generator, reproducing outstanding bass response and dynamics.
Key Features
- High-Output Moving Coil Design - 2mV output for plug-and-play compatibility with MM phono stages
- Elliptical Stylus - Synthetic elliptical stylus for superior groove tracking and detail retrieval
- Aluminum Cantilever - Lightweight, rigid cantilever for accurate signal transmission
- Cross-Coil Generator - Proprietary design delivers exceptional bass and dynamic range
- Lightweight Design - Only 5 grams for compatibility with a wide range of tonearms
- Excellent Tracking - 70 µm trackability at 2g tracking force
- MM Phono Stage Compatible - Works with standard MM inputs on integrated amplifiers and AV receivers
- Distinctive Moss Green Body - Premium aesthetic with superior build quality
Complete Technical Specifications
| Cartridge Type | High-Output Moving Coil (MC) |
| Stylus Type | Synthetic Elliptical |
| Cantilever Material | Aluminum |
| Output Level | 2.0 mV @ 1 kHz |
| Output Balance | <2 dB @ 1 kHz |
| Vertical Tracking Force (VTF) | 2.0 grams |
| Trackability | 70 µm @ 2g |
| Channel Separation | 25 dB @ 1 kHz |
| Internal Impedance | 30 Ω @ 1 kHz |
| Recommended Load Impedance | >400 Ω (MM phono stage compatible) |
| Cartridge Weight | 5 grams |
| Body Color | Moss Green |
| Generator Type | Cross-Coil Moving Coil |
| Manufacturer | HANA (Excel Sound Corporation) |
| Warranty | 2 Years |
Compatibility
The HANA EH is designed for plug-and-play compatibility with MM (moving magnet) phono stages found in most integrated amplifiers, AV receivers, and standalone phono preamps. The high 2mV output eliminates the need for a specialized MC phono stage or step-up transformer, making it an ideal upgrade path for vinyl enthusiasts.
What's Included
- HANA EH Moving Coil Cartridge
- Mounting Hardware
- Stylus Guard
- User Manual
Perfect For
The HANA EH is perfect for vinyl enthusiasts looking to upgrade from entry-level MM cartridges without investing in expensive MC phono stages. Its exceptional tracking ability, detailed sound reproduction, and plug-and-play compatibility make it an outstanding choice for turntables ranging from entry-level to high-end audiophile systems. Ideal for jazz, classical, rock, and all music genres where detail, dynamics, and tonal accuracy matter.
