Klipsch CS-16CSM Inceiling Speaker - each
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days

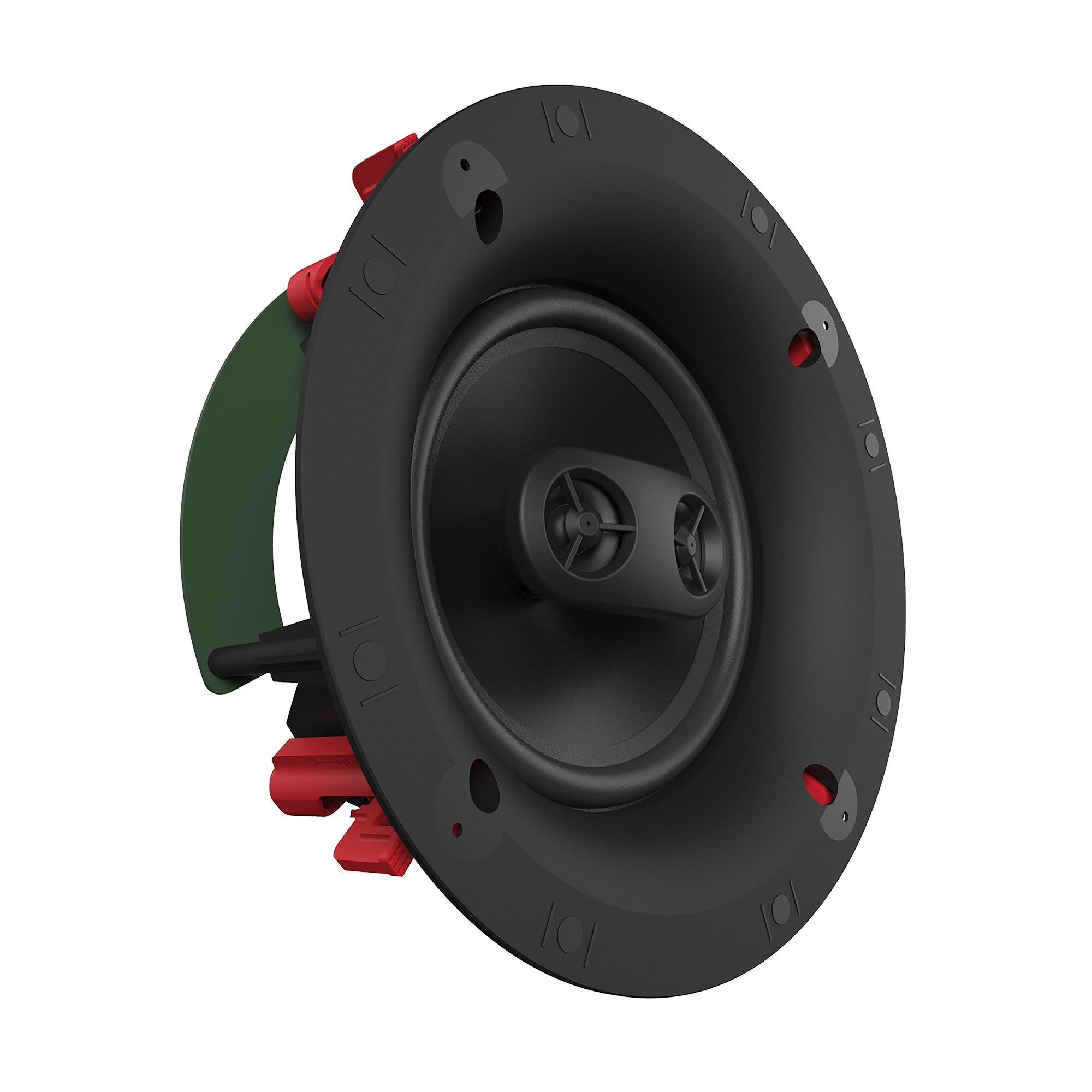

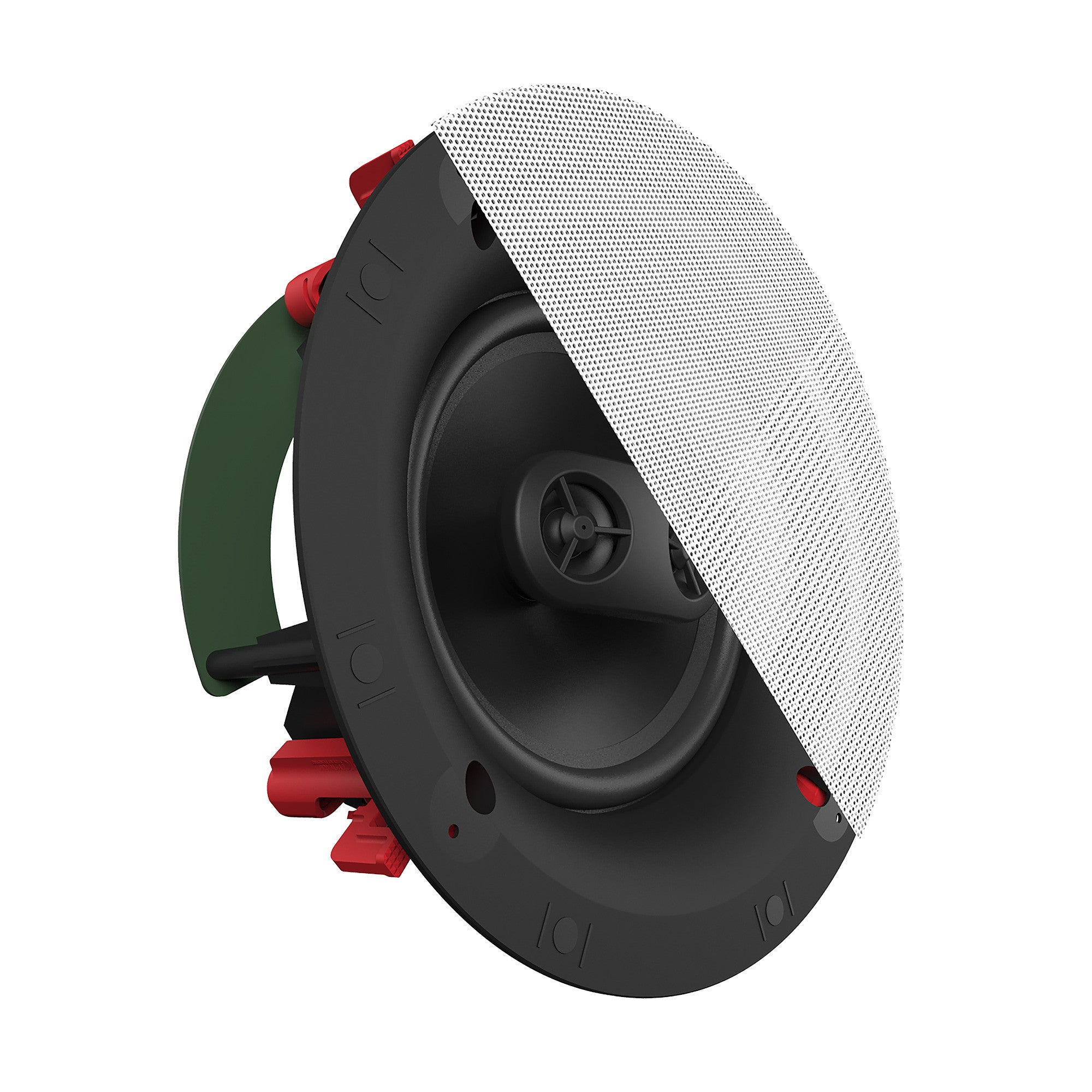

Klipsch CS-16CSM
Using the same design principles of our premium architectural and box speaker lines, the Klipsch Custom series delivers true Klipsch sound to any budget. The CS-16CSM features a 6.5” Polymer woofer and dual 1” Polymer tweeter. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.
Features:
- 6.5” Polymer woofer
- Dual 1” Polymer tweeter
- Patented Sky Hook® Tool-Free Installation System

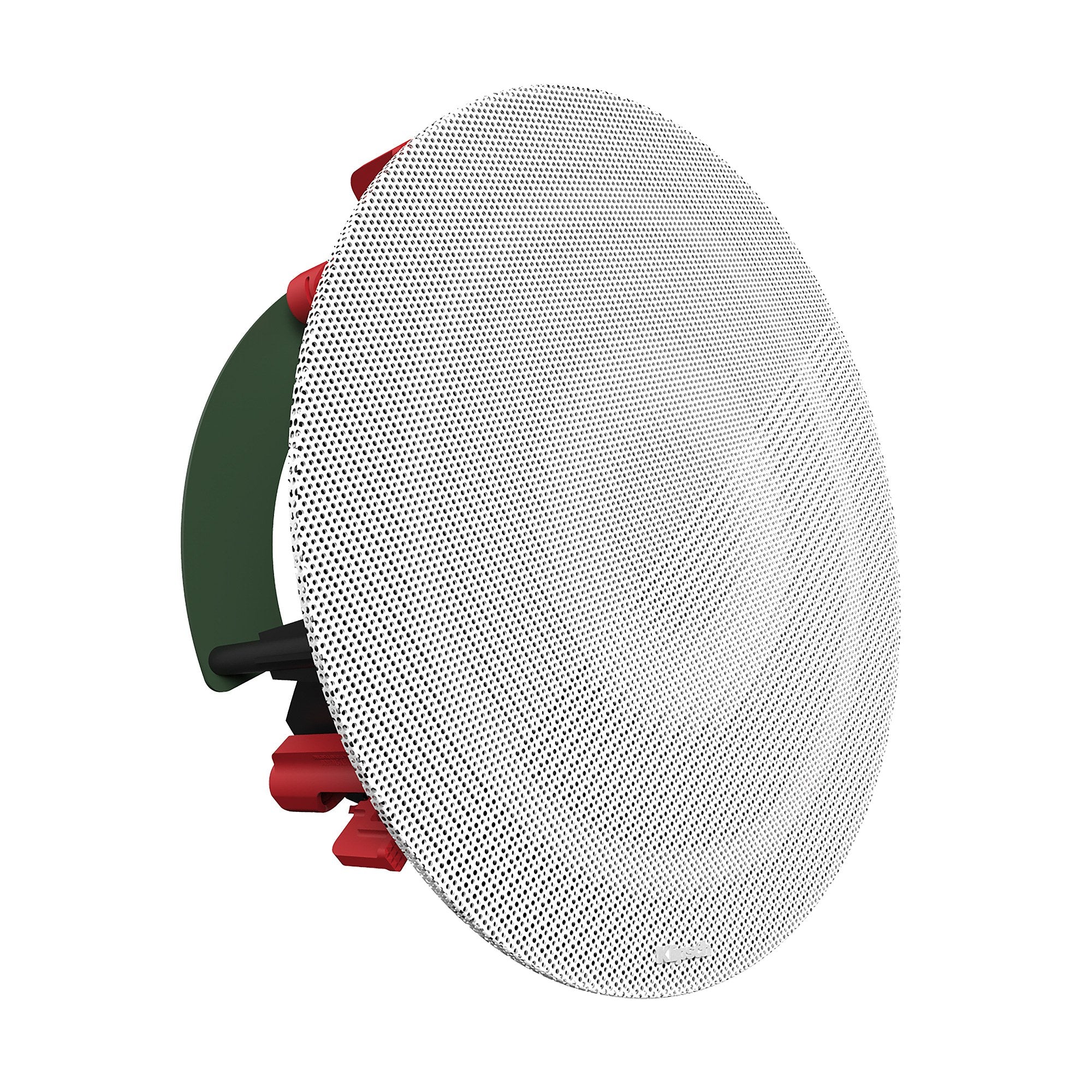

- Bezel-Free Magnetic Grille
Specification:
| FREQUENCY RANGE | 65Hz - 20kHz +/- 3dB |
| HIGH FREQUENCY DRIVER | Dual .75" (19mm) Polymer Dome Tweeters |
| LOW FREQUENCY DRIVER | 6.5” (165.1mm) Dual Voice Coil Polymer Woofer |
| SENSITIVITY | 91 dB @ 2.83V / 1m |
| POWER HANDLING | 40W RMS / 160W Peak |
| ENCLOSURE MATERIAL/TYPE | ABS/Infinite Baffle |
| FINISH | Black Baffle/Frame, White Paintable Grille |
| PRODUCT DIMENSIONS | .2” W x 9.2” H x 4.09” D (233mm H x 233mm W x 104mm D) |
| MOUNTING DEPTH | 3.98” (101mm) |
| CUTOUT DIMENSIONS | 7.99” (203mm) |
| PRODUCT WEIGHT | 7 lbs (3.18kg) |
| INCLUDED IN BOX | Round Magnetic Grille |
| INSTALL KIT | IK-650-C II (Sold Separately) |
| FIRE RATED ENCLOSURE | ME-650-C (Sold Separately) |
| BUILT FROM | 2017 |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
