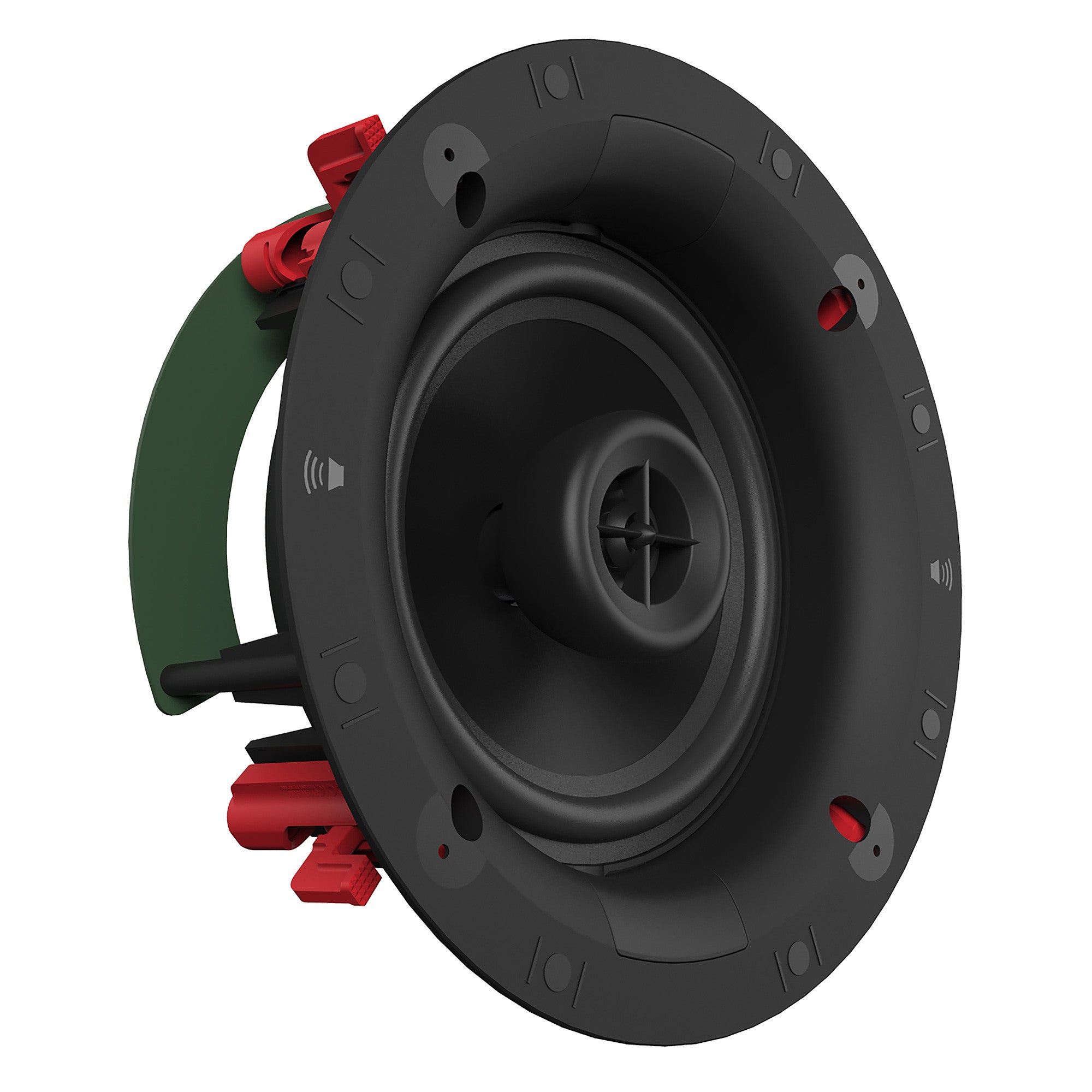

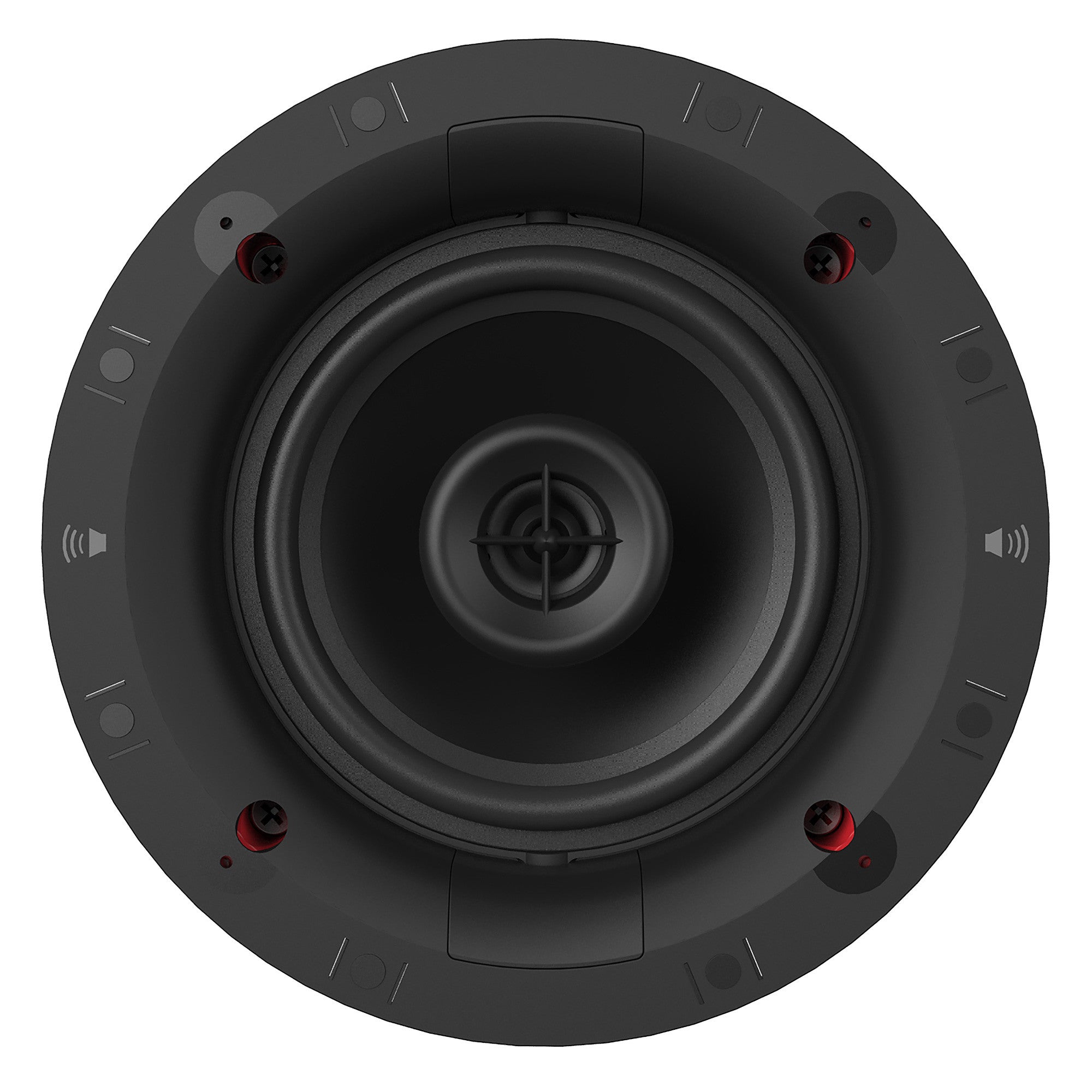

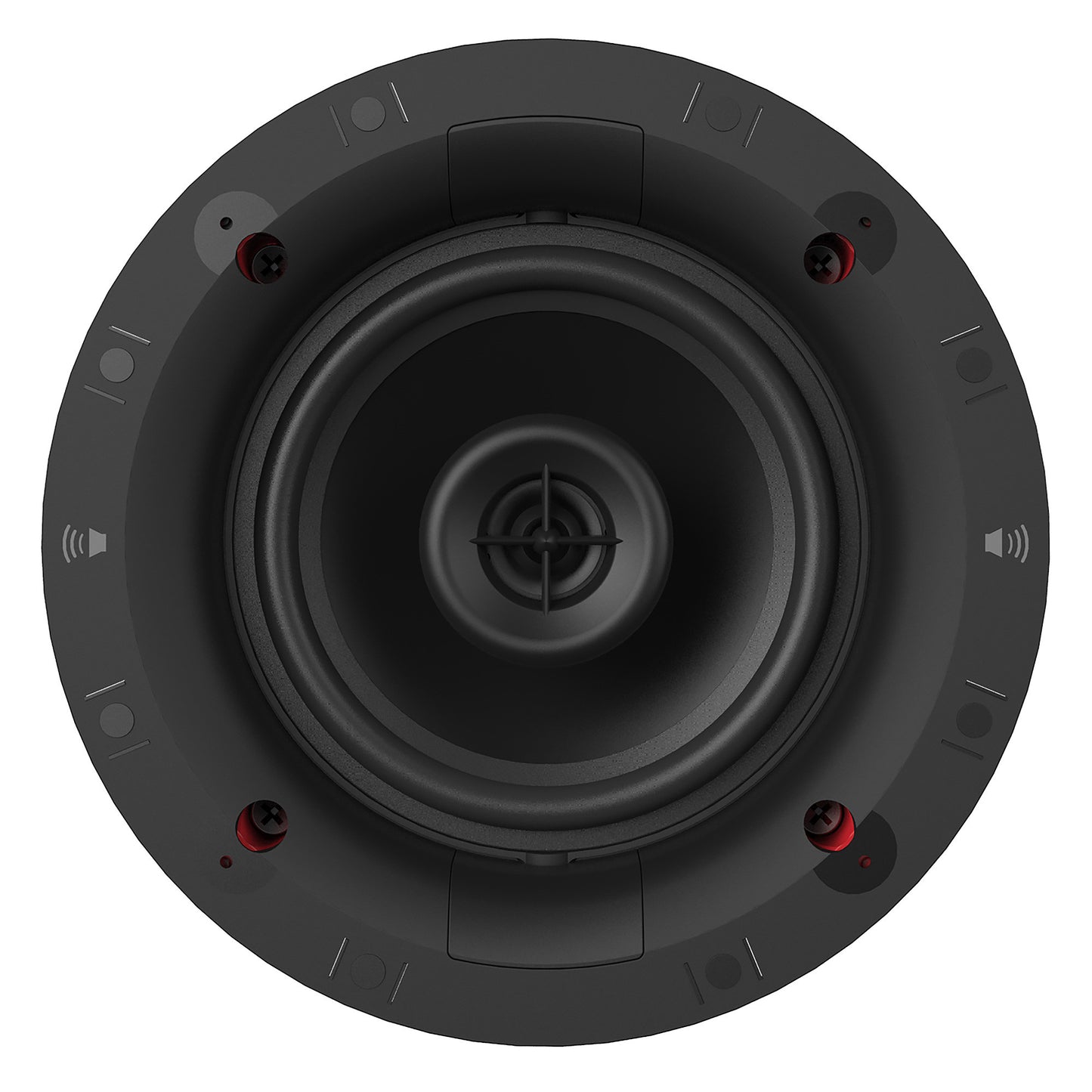

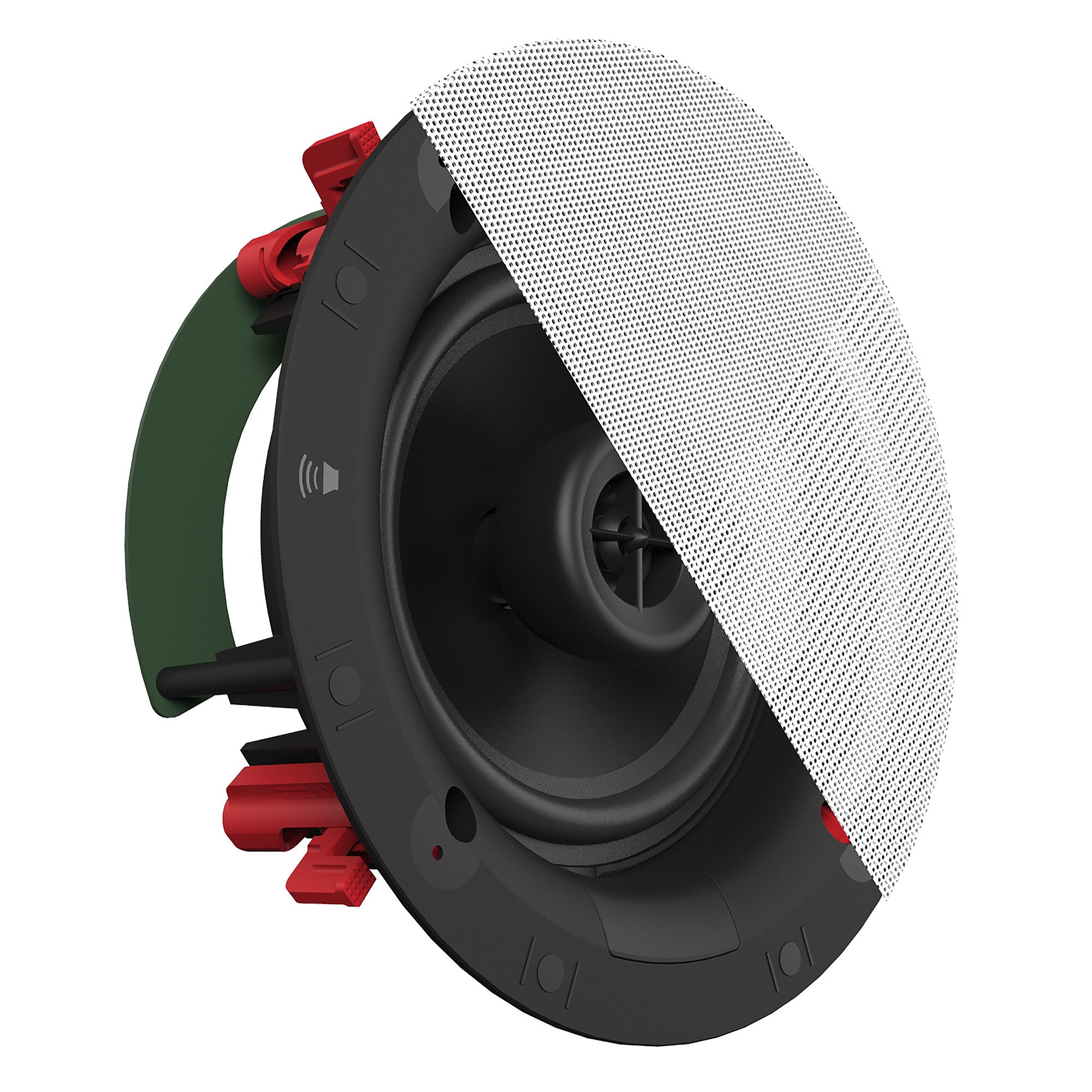

Featuring the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160CDT features a 6.5” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook™ patented Cinch by Swarm Installation System, your install time is reduced by 75%.
| FREQUENCY RANGE | 65Hz-20KHz +/- 3dB |
| HIGH FREQUENCY DRIVER | 1" (25.4mm) Silk Dome Tweeter mated to a round Tractrix® Horn |
| LOW FREQUENCY DRIVER | 6.5” (165.1mm) Polypropylene Woofer |
| SENSITIVITY | 91 dB @ 2.83V / 1m |
| COVERAGE ANGLE | 100° |
| POWER HANDLING | 50W RMS / 200W RMS |
| IMPEDANCE | 8 Ohm Compatible |
| ENCLOSURE MATERIAL/TYPE | ABS/Infinite Baffle |
| FINISH | Black Baffle/Frame, White Paintable Grille |
| PRODUCT DIMENSIONS | 9.17” W x 9.17” H x 4.53” D (233mm H x 233mm W x 115mm D) |
| MOUNTING DEPTH | 4.41” (112mm) |
| CUTOUT DIMENSIONS | 7.99” (203mm) |
| PRODUCT WEIGHT | 7 lbs (3.18kg) |

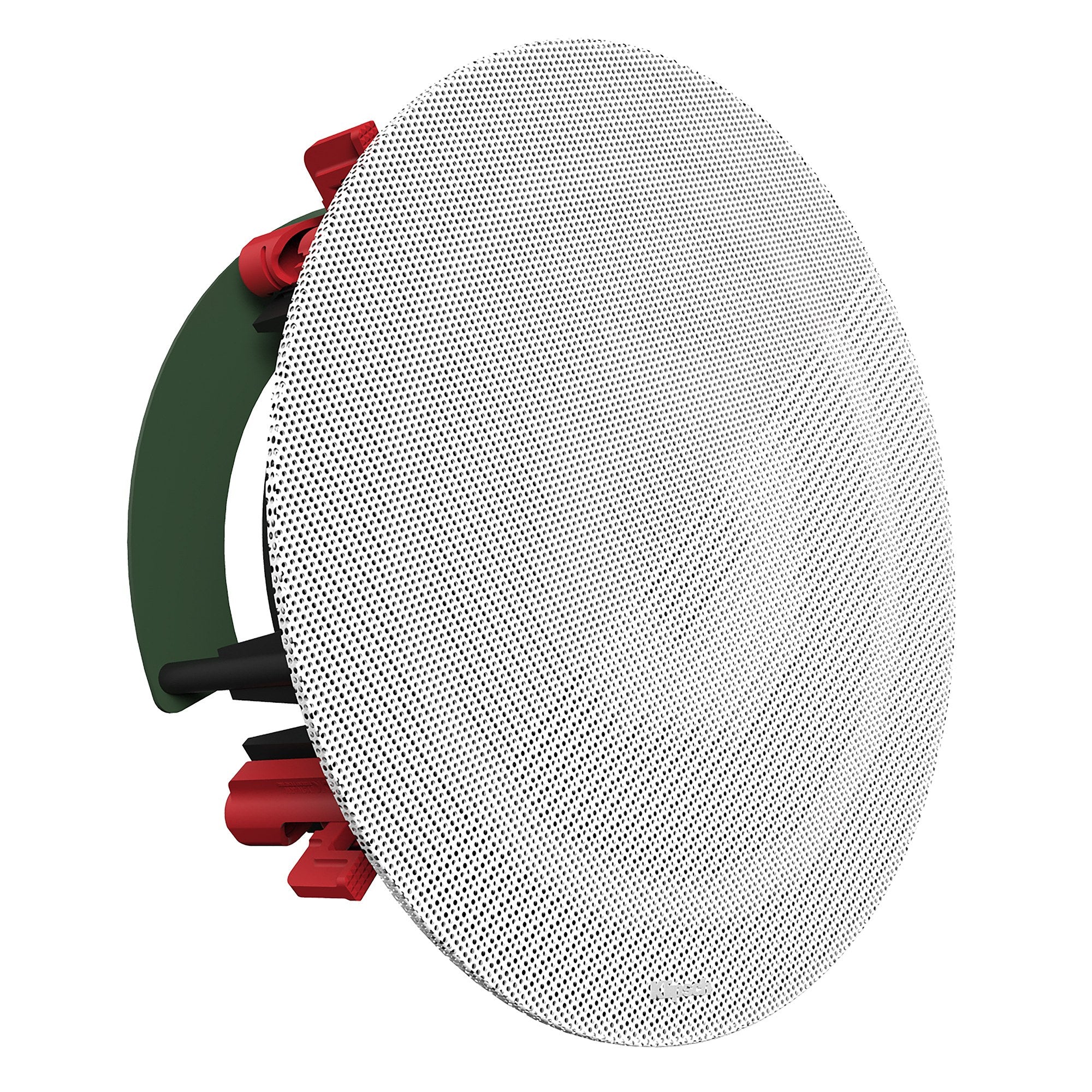

| INCLUDED IN BOX | Round Magnetic Grille |
| INSTALL KIT | IK-650-C II (Sold Separately) |
| FIRE RATED ENCLOSURE | ME-650-C (Sold Separately) |
| BUILT FROM | 2017 |
