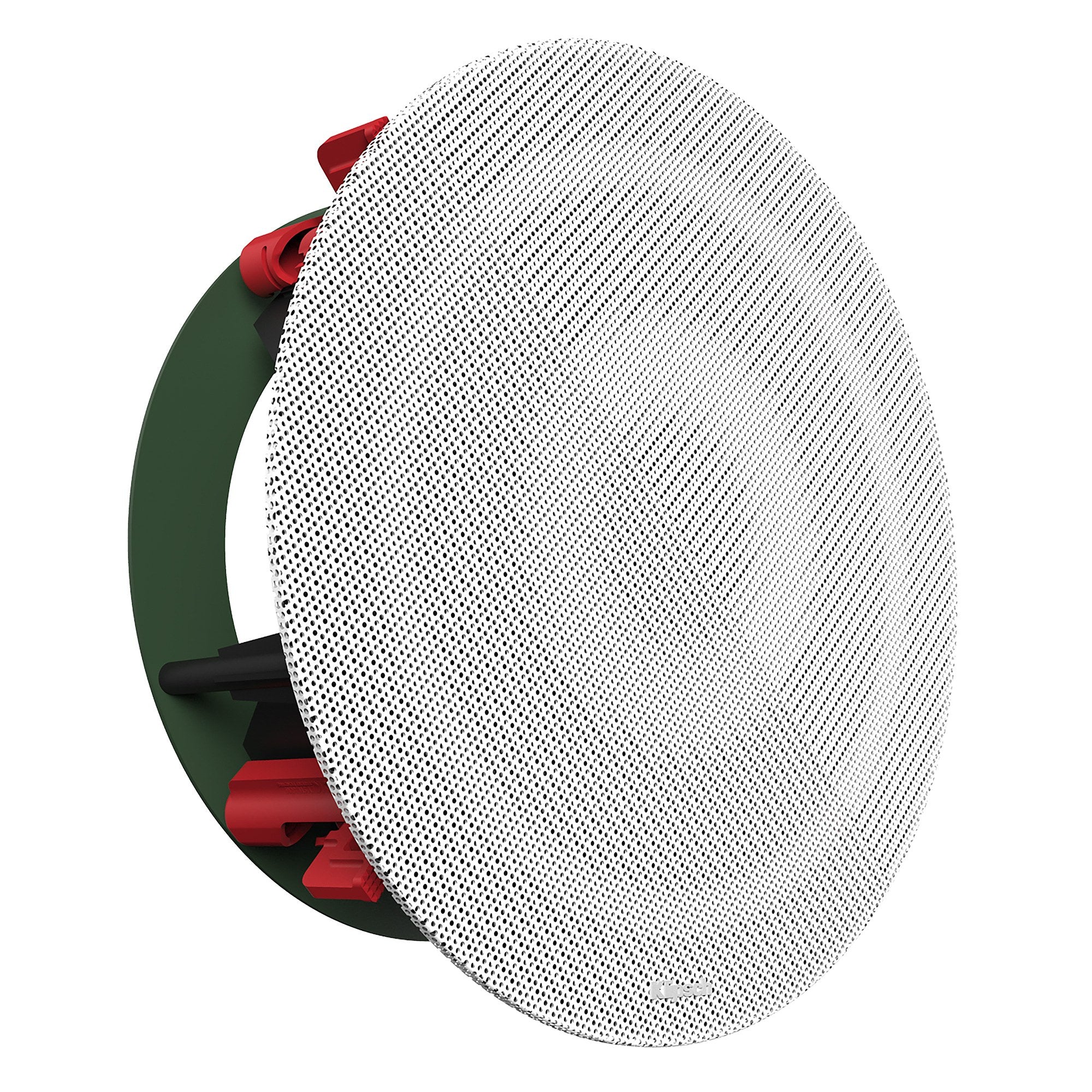

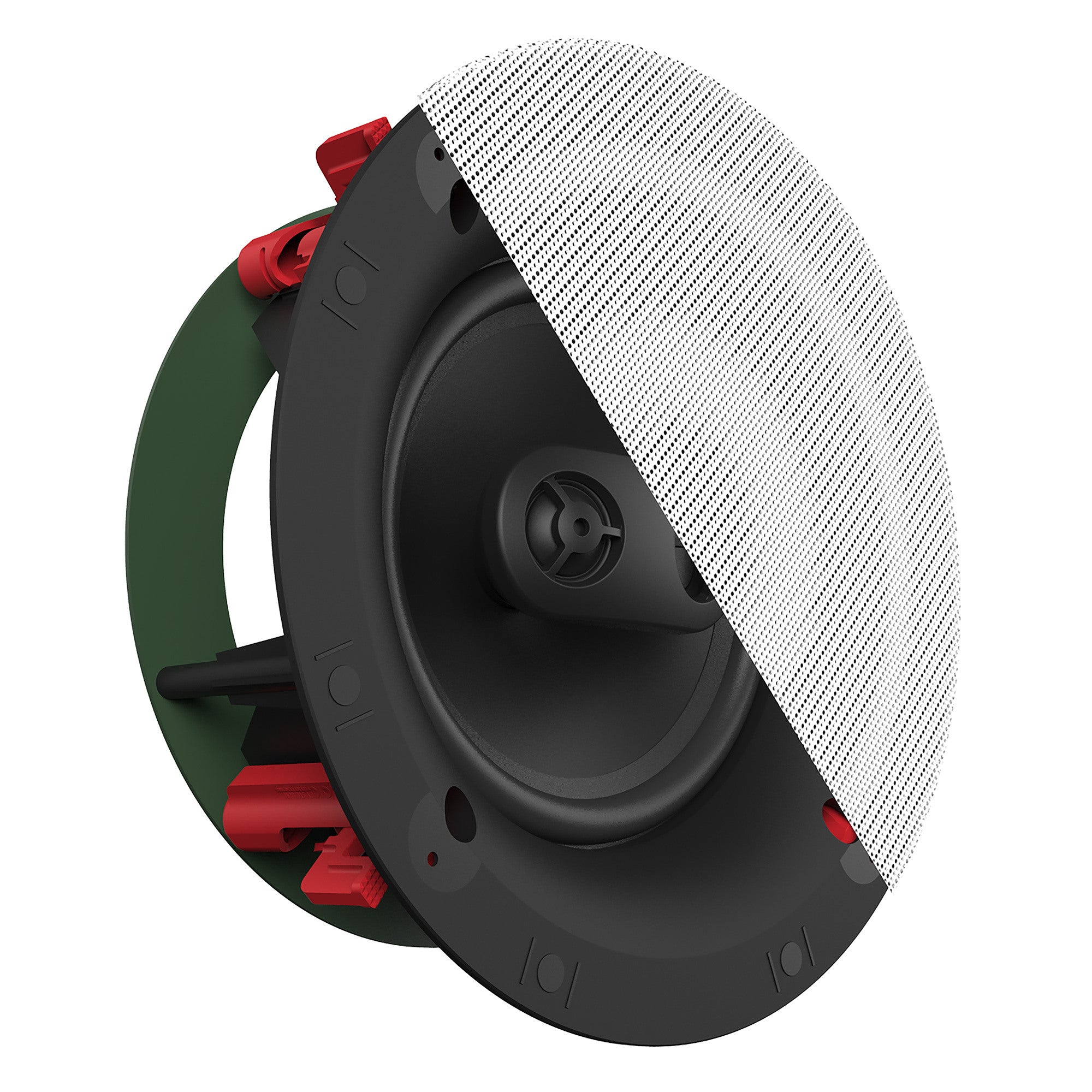

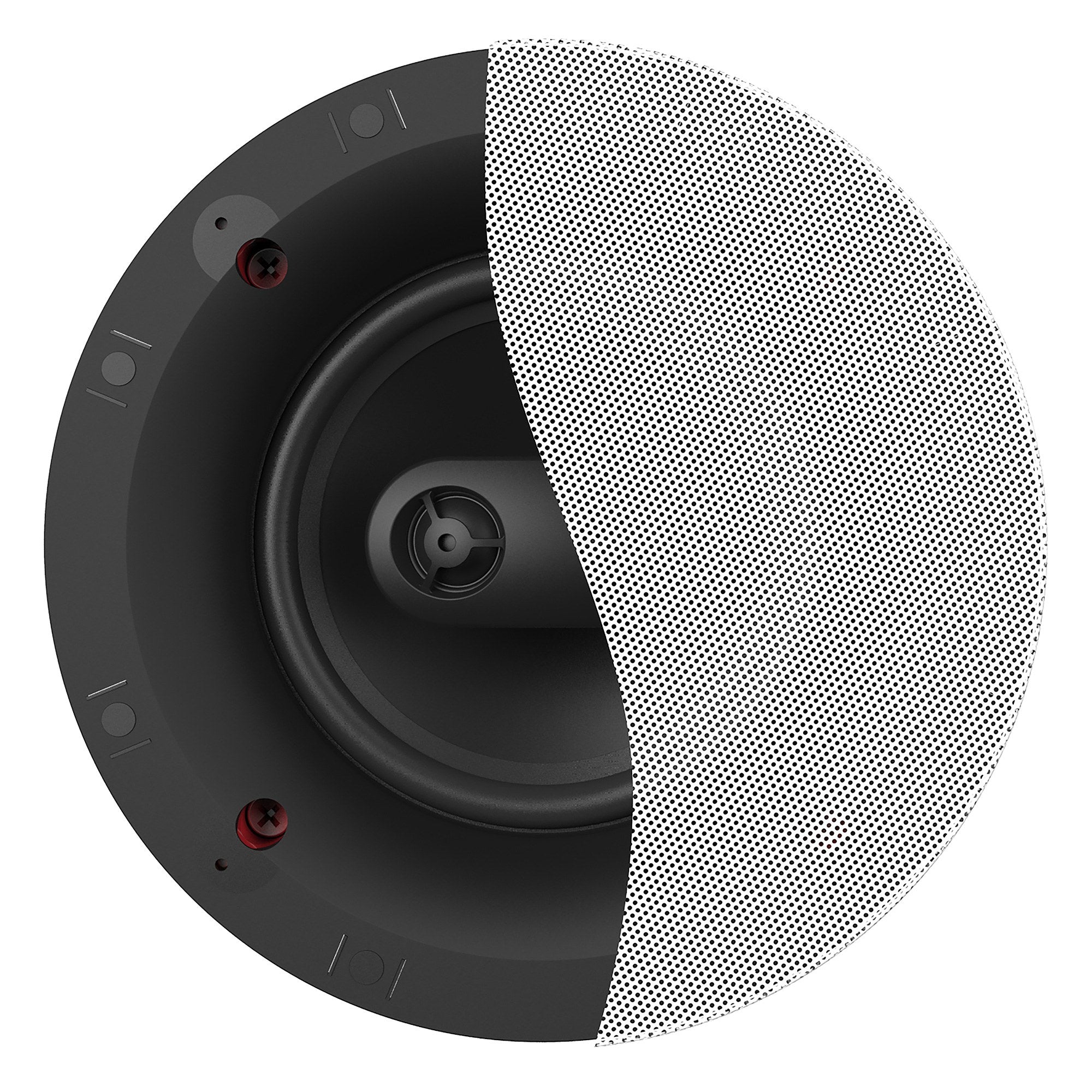

Klipsch DS-180CSM Inceiling Speaker
Using the same acoustic voicing and design principles of our more premium architectural and box speaker lines, the all-new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 8” Polypropylene woofer and two .75” Silk Dome tweeters, the DS-180CSM brings dynamic, powerful, detailed sound to your distributed audio system - for true stereo sound in spaces where two speakers aren’t possible.
Features:
- 8” Polypropylene woofer
- Dual .75” Silk Dome tweeter
- Patented Sky Hook® Tool-Free Installation System

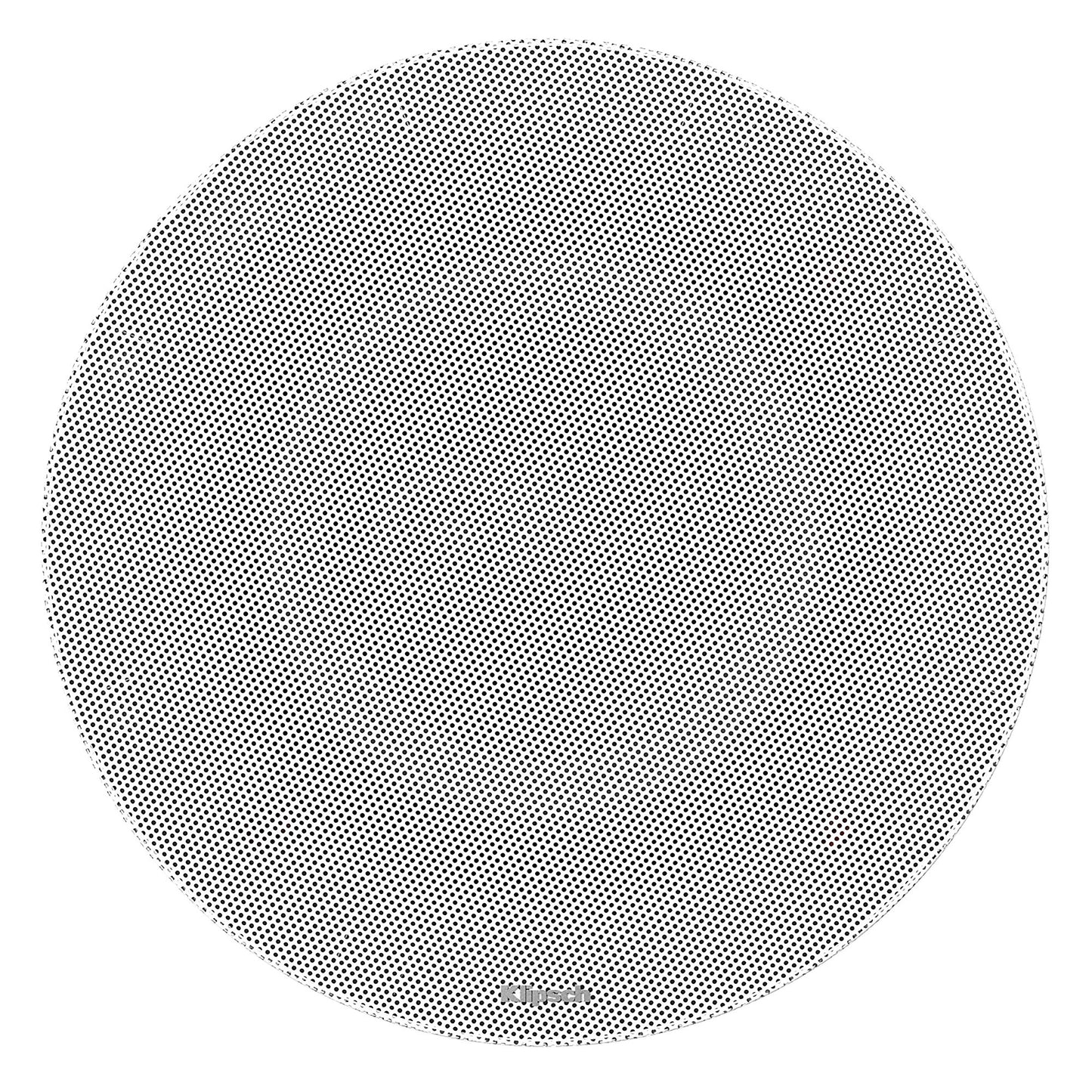

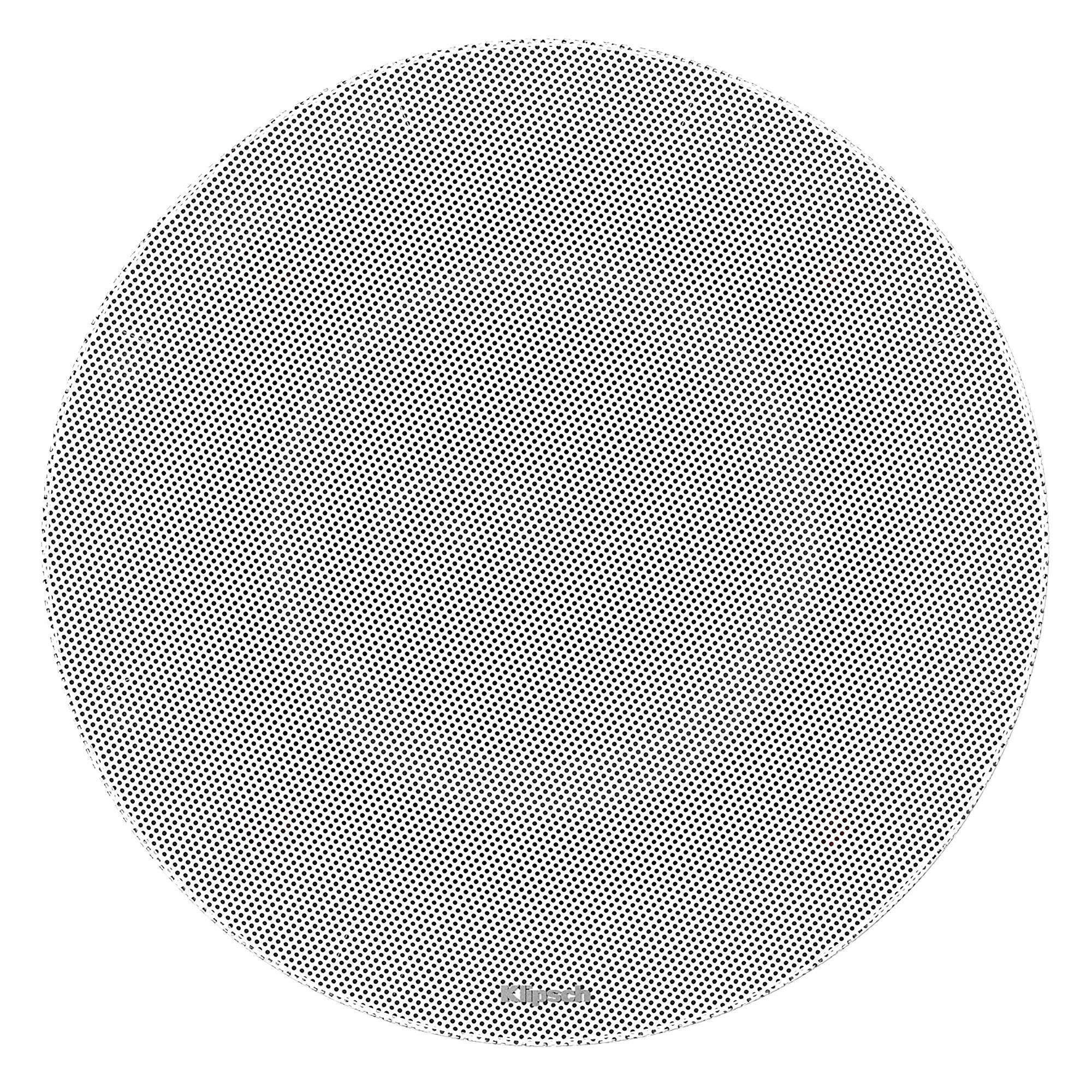

- Bezel-Free Magnetic Grille
Specifications:
| FREQUENCY RANGE | 55Hz-20KHz +/- 3dB |
| HIGH FREQUENCY DRIVER | Dual .75" (19mm) Silk Dome Tweeters |
| LOW FREQUENCY DRIVER | 8" (203.2mm) Polypropylene Woofer |
| SENSITIVITY | 94 dB @ 2.83V / 1m |
| COVERAGE ANGLE | 160° |
| POWER HANDLING | 50W RMS / 200W RMS |
| IMPEDANCE | 8 ohms compatible |
| ENCLOSURE MATERIAL/TYPE | ABS/Infinite Baffle |
| FINISH | Black Baffle/Frame, White Paintable Grille |
| PRODUCT DIMENSIONS | 10.75” W x 10.75” H x 4.37” D (273mm H x 273mm W x 111mm D) |
| MOUNTING DEPTH | 4.25” (108mm) |
| CUTOUT DIMENSIONS | 9.57” (243mm) |
| PRODUCT WEIGHT | 7.4 lbs (3.36kg) |
| INCLUDED IN BOX | Flat Paintable Magnetic Grille |
| INSTALL KIT | IK-800-C II (Sold Separately) |
| FIRE RATED ENCLOSURE | ME-800-C (Sold Separately) |
| BUILT FROM | 2017 |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
