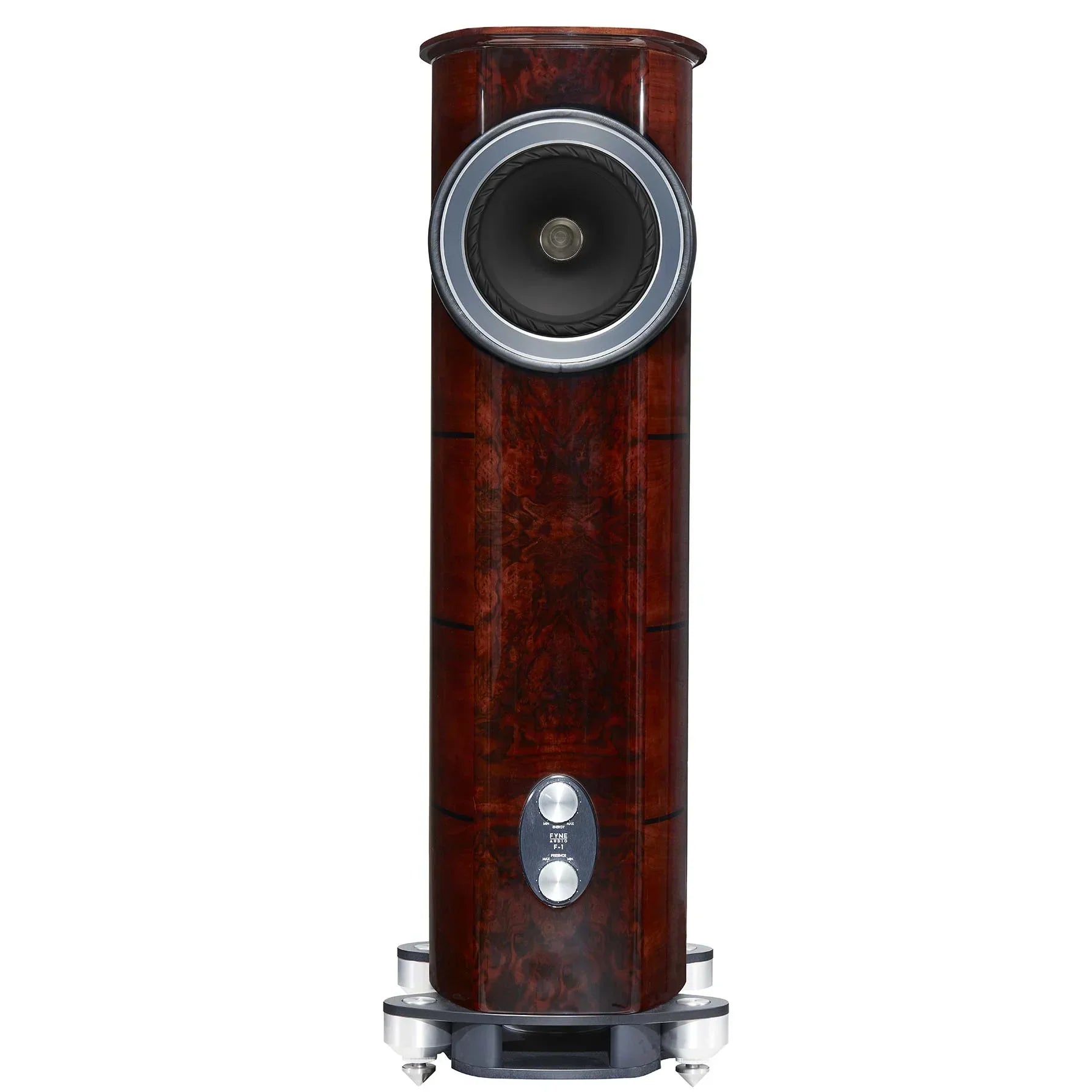

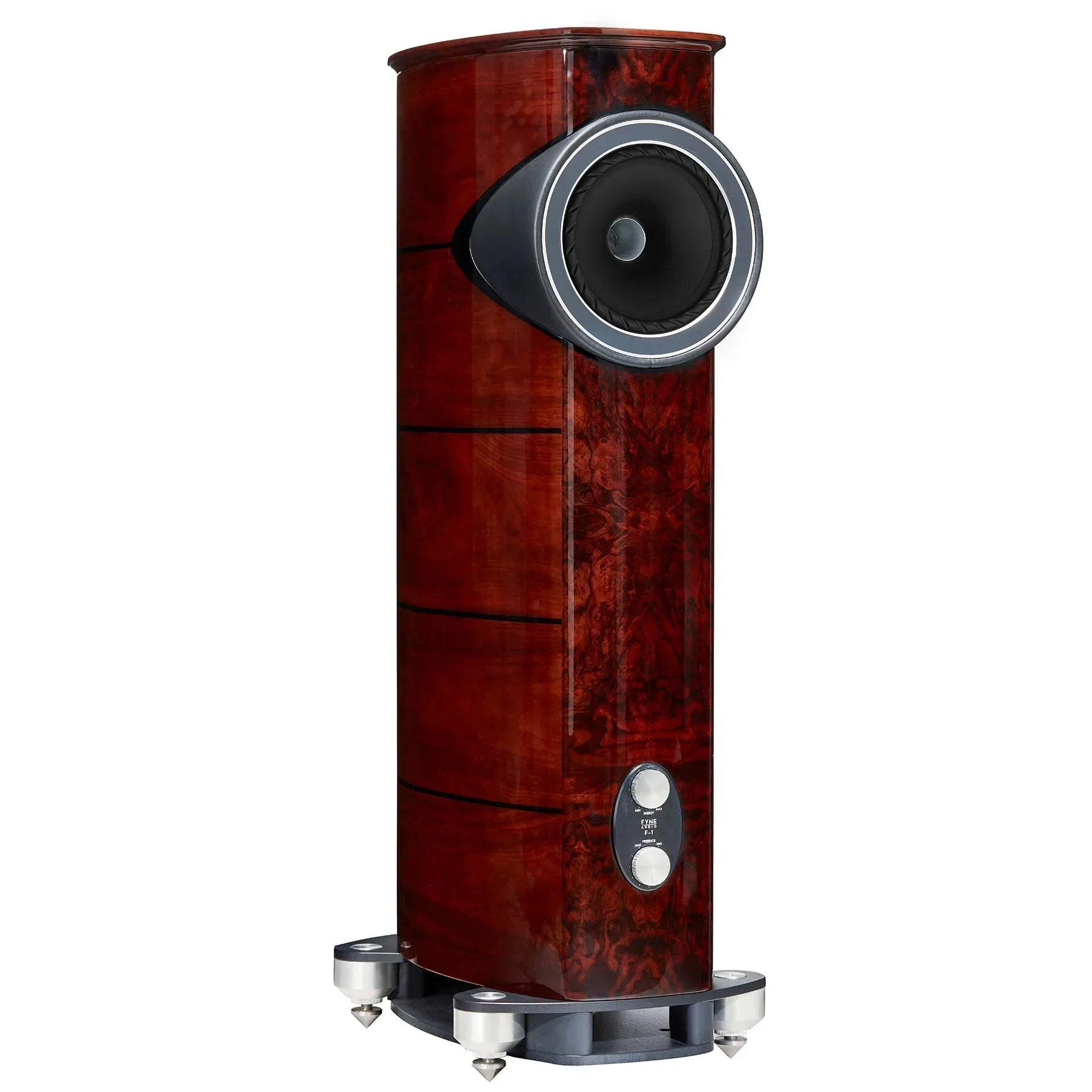

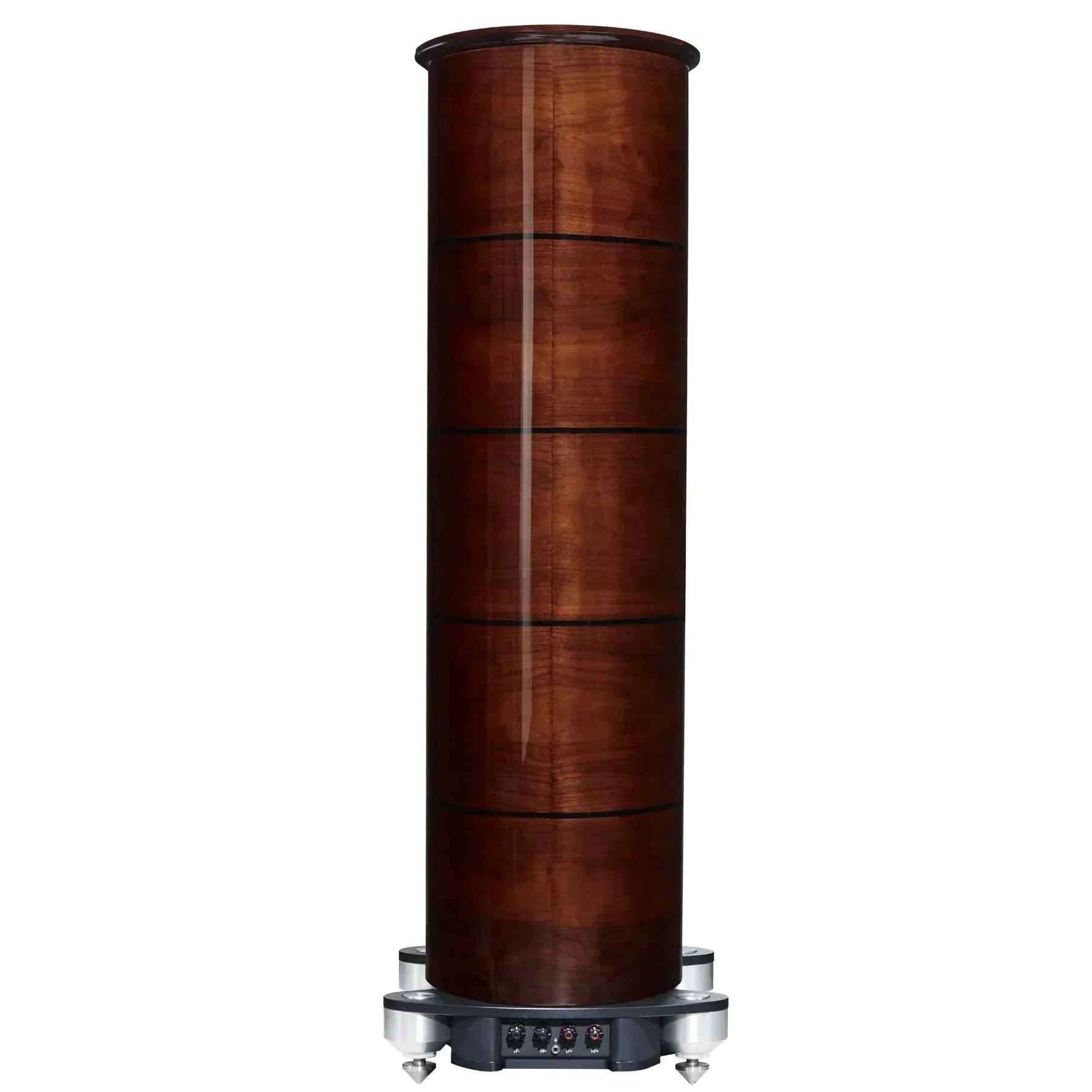

Fyne Audio F1.10S Floorstanding Speaker - pair
The F1-10S builds upon the original and critically acclaimed F1-10. Distilling Fyne Audio’s decades of Hi-Fi point source loudspeaker expertise into a design of breath-taking acoustic performance, the F1-10S is an eye-watering beauty. Dr Paul Mills and his development team have reimagined the crossover and upgraded the 250mm (10″) IsoFlare driver to include FyneFlute technology. Combined with the twin cavity BassTrax ported cabinet, the result is an enhanced bass reaching down to 26Hz. Featuring a 75mm titanium dome compression tweeter, the 10” IsoFlare driver offers a seamless, time aligned HF response to over 26kHz for ultimate realism and listener engagement. The F1-10S’s very high sensitivity (94dB/W ensures exceptional dynamic range and compatibility with the widest range of amplifiers from single ended triode valve models to the highest power solid state designs. The BassTrax porting and high quality potentiometer controls for HF energy and presence ensure the F1-10S will deliver optimum performance irrespective of room size or placement. Designed, hand crafted and hand finished at Fyne Audio’s UK manufacturing facility the sumptuous lacquered burr walnut finish of the F1-10S offers a bold statement in loudspeaker design for the audiophile.
Specifications
| System Type | 2 way, downwards firing port with BassTrax Tractrix diffuser |
| Recommended amplifier power (Watt RMS) | 20 - 280 |
| Peak power handling (Watt) | 500 |
| Continuous power handling (Watt RMS) | 140 |
| Sensitivity (2.83 Volt @ 1m) | 94dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 26Hz - 26kHz |
| Drive unit complement | 1 x 250mm IsoFlare point source driver with FyneFlute surround, multi-fibre bass / midrange cone, with 75mm titanium alloy dome compression tweeter, neodymium magnet system |
| Crossover frequency | 750Hz |
| Crossover type | Bi-wired passive low loss, 2nd order low pass, 2nd order high pass, Deep Cryogenically Treated |
| System adjustments | High frequency energy (750Hz - 26kHz) +/-3dB Presence (2.5kHz - 5.0kHz) +/- 3dB |
| Dimensions - HxWxD | 1191 x 405 x 581mm (46.9 x 15.9 x 22.9”) |
| Weight - Each | 57.7kg |
| Finishes | Piano Gloss Walnut |
|
Notes: Bookshelf dimensions includes grille, terminals, and any plinth, but excludes feet. Floorstand dimensions includes grille, terminals and plinth, but excludes spikes. Subwoofer dimensions include feet. All information was correct at the time of publishing. Fyne Audio Ltd reserve the right to amend details of the specification without notice in line with our policy for continuous improvements. |
|
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
