SVS PB17-Ultra R|Evolution Subwoofer (Black Gloss)
SVS's flagship ported subwoofer and one of the most capable home subwoofers made. The PB17-Ultra R|Evolution combines a 17-inch high-excursion driver with dual 8-inch voice coils, a 2,800-watt RMS dual-mono amplifier, a 295MHz DSP and variable port tuning, reaching a subterranean 12Hz with SVS Auto EQ room calibration.
The 17-Ultra R|Evolution Series is a ground-up redesign with multiple SVS firsts, including the first dual-mono SVS amplifier and 8-inch dual voice coils. The triple-ported PB17-Ultra pressurises even large rooms with visceral, effortless bass, while remaining precise and musical.
Key Features
High-Excursion 17-inch Driver
- Light, rigid 17-inch glass-fibre composite cone
- 55 lb four-piece toroidal ferrite motor
- Extreme-excursion catenary SBR rubber surround for long, pistonic travel
Dual 8-inch Voice Coils
- 4-layer bi-filar dual voice coils with high thermal efficiency
- Copper-clad aluminium voice coil wire for stable energy transfer and precise driver control
STA-2800D Dual-Mono Amplifier
- 2,800 watts RMS continuous, 6,000+ watts peak dynamic
- SVS's first dual-mono design: two Class D monoblocks with discrete MOSFET outputs, each driving one voice coil
- Eight 60A / 200V MOSFETs
Switch Mode Power Supply with PFC
- Onboard AC line conditioning stabilises voltage and filters interference
- Maintains a stable 160V rail from a standard 15A household circuit
- Power factor correction for efficiency and consistent peak output
- Convection cooling with no exterior heatsinks
295MHz Analog Devices DSP
Shapes in-room frequency response with precision, stabilises power delivery and runs multi-point thermal, voltage and current monitoring, with 120dB signal-to-noise DACs.
Variable Port Tuning, App and Auto EQ

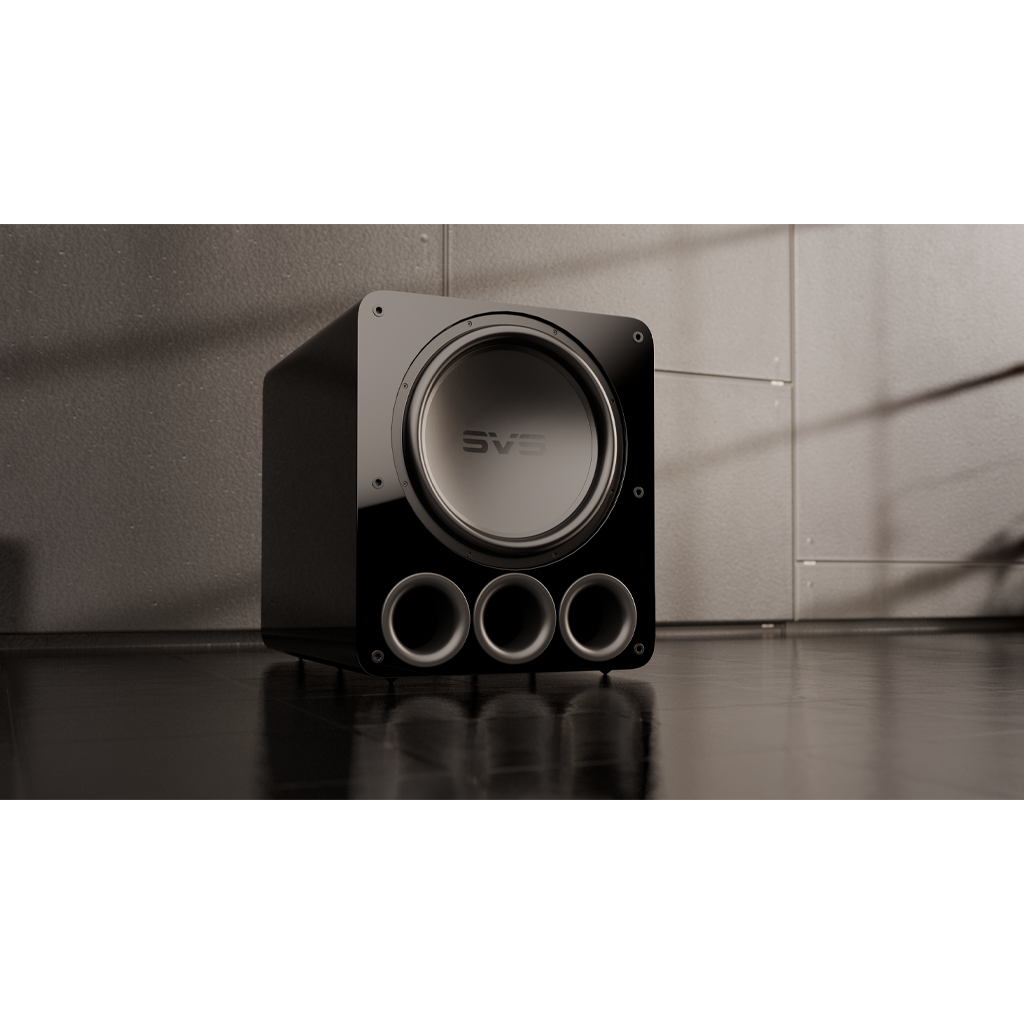

- Triple 4-inch high-flow ports with Standard, Extended and Sealed tuning modes (three foam plugs supplied)

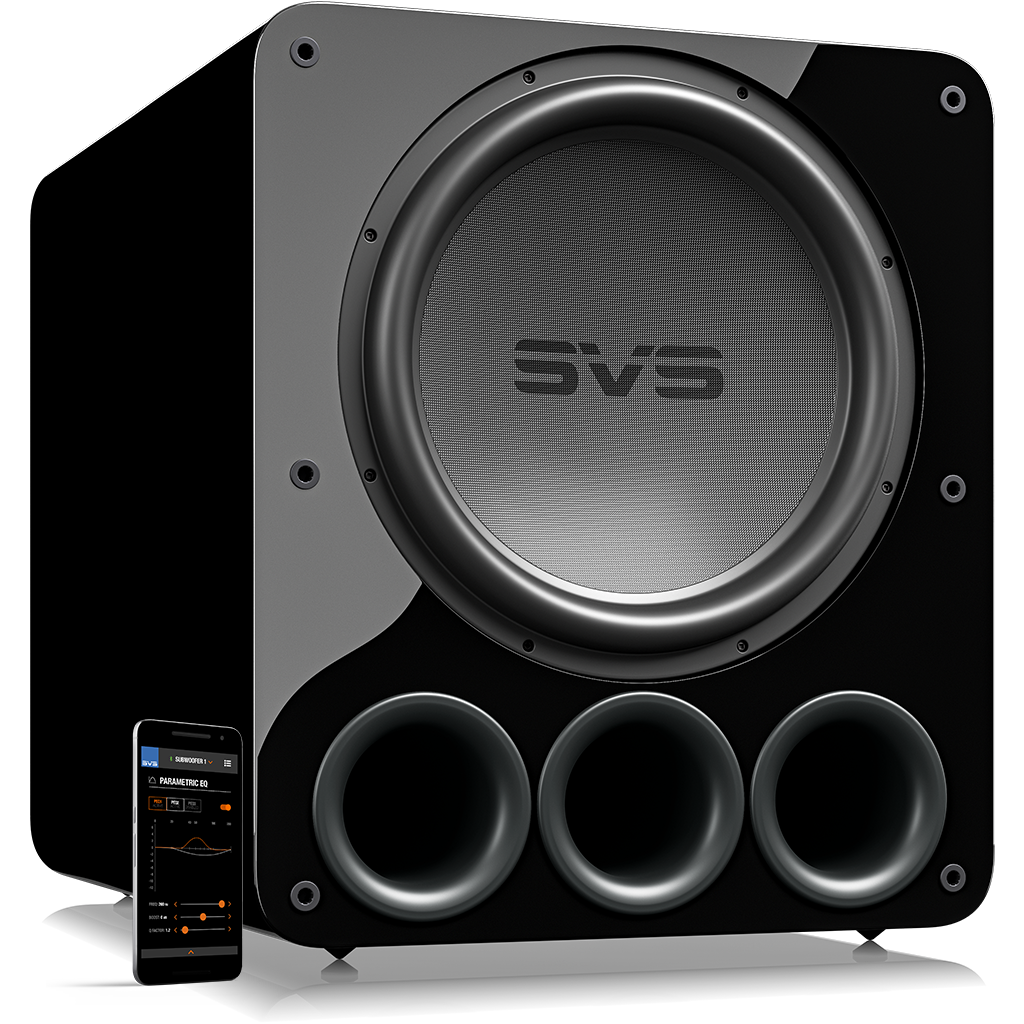

- Bluetooth app control on iOS, Android and Amazon Fire with six parametric EQs, room gain, presets and power management
- SVS Auto EQ room correction using your phone or the optional SVS Auto EQ Mic
Specifications
| Specification | Details |
|---|---|
| Model | PB17-Ultra R|Evolution |
| Cabinet Configuration | Ported (triple 4" high-flow ports) |
| Driver | 17" high-excursion driver with dual 8" voice coils |
| Amplifier | 2800 watts RMS (6000+ watts peak), STA-2800D dual-mono discrete Class D |
| Frequency Response (Standard mode, all ports open) | 14 Hz to 220 Hz +/- 3 dB |
| Frequency Response (Extended mode, 2 ports open) | 12 Hz to 220 Hz +/- 3 dB |
| Frequency Response (Sealed mode, all ports sealed) | 14 Hz to 320 Hz +/- 3 dB |
| DSP | 295 MHz Analog Devices audio DSP, 56-bit filtering |
| DAC Signal-to-Noise Ratio | 120 dB |
| Inputs | Unbalanced RCA (10 kohm, up to 4 Vrms), Balanced XLR (14 kohm, up to 14 Vrms / +24 dBu) |

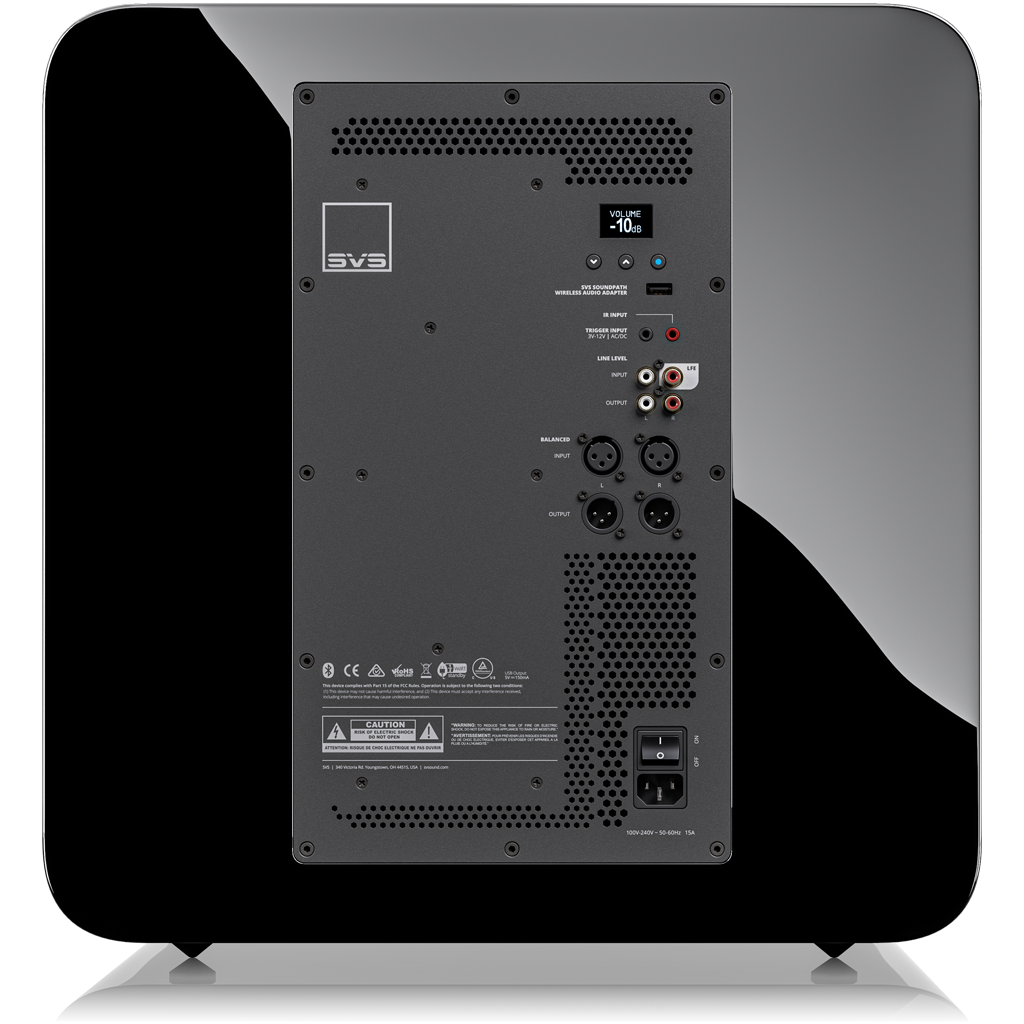

| Control & Integration | 3.5 mm trigger (3-12 V AC/DC), 3.5 mm IR input, Auto/On, USB power for SVS SoundPath Wireless Audio Adapter |
| Standby Power | 0.5 W |
| Dimensions (with grille) | 25.0" (635 mm) H x 21.7" (550 mm) W x 29.3" (744 mm) D |
| Dimensions (without grille) | 25.0" (635 mm) H x 21.7" (550 mm) W x 28.5" (723 mm) D |
| Shipped Dimensions | 30.2" (767 mm) H x 27.5" (698 mm) W x 38.4" (976 mm) D |
| Weight (unboxed) | 164.7 lb (74.7 kg) |
| Shipped Weight | 186.1 lb (84.4 kg) |
| Colour | Black Gloss |

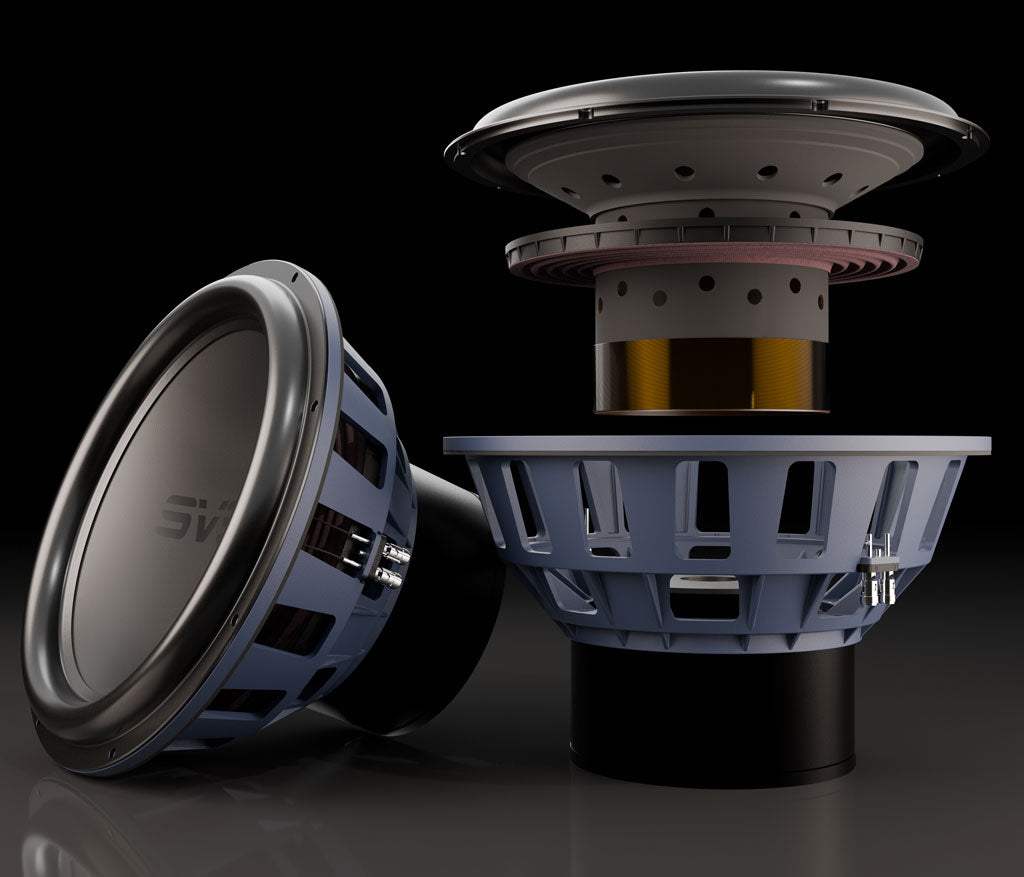

Driver Specifications
| Specification | Details |
|---|---|
| Driver Weight | 63.76 lb (28.92 kg) woofer with 54.17 lb (24.57 kg) motor |
| Excursion | 48.9 mm Xmax, 81.78 mm Xmech |
| Voice Coil | 8" diameter, 4-layer bifilar copper-clad aluminium windings |
| Motor | Four-piece Y35 ferrite magnet, 1010 steel top plate, oversized T-yoke, dual shorting rings |
| Suspension | Dual Nomex extreme-excursion linear spiders |
| Surround | Custom SBR rubber catenary |
| Cone | Vented composite sub-structure with glass-fibre laminated dustcap |
| Basket | 17" powder-coated cast aluminium |
In the Box
- PB17-Ultra R|Evolution subwoofer

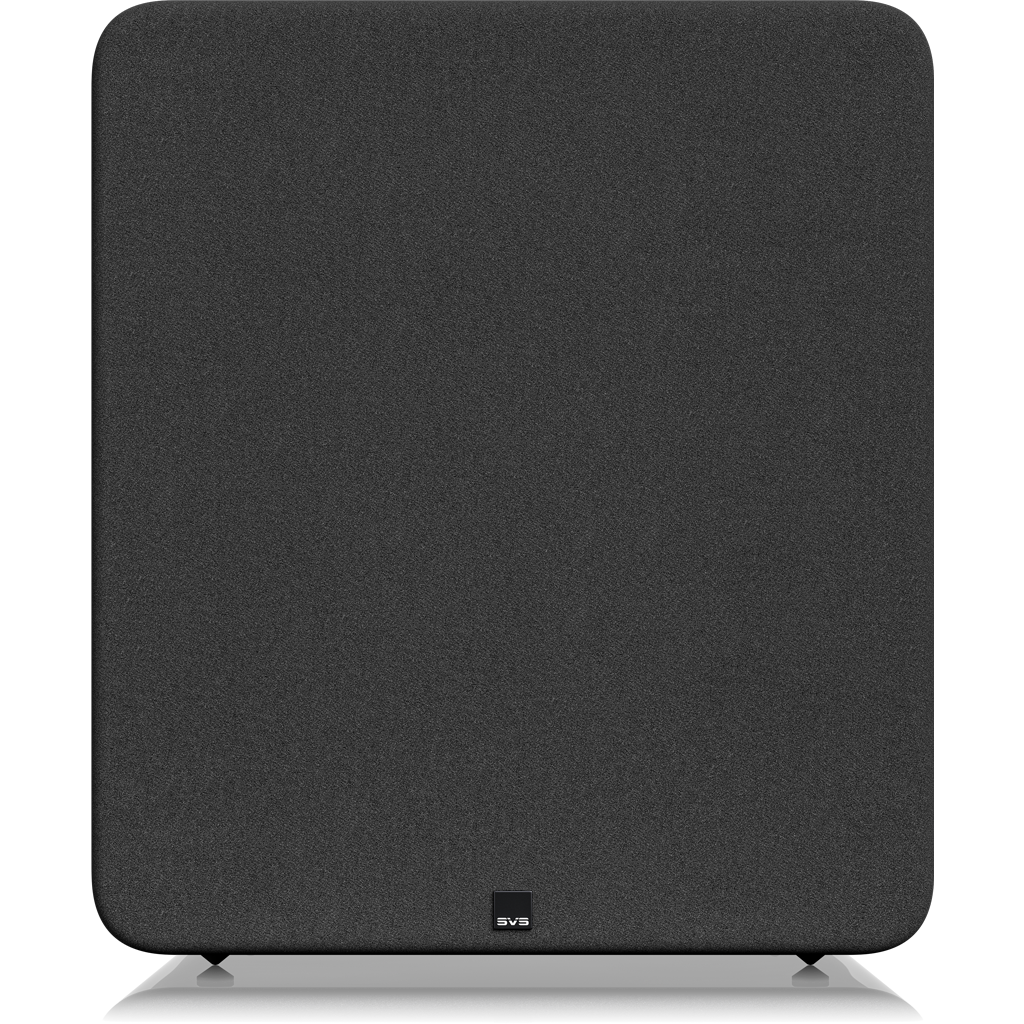

- Extra-thick ABS grille frame with fabric mesh cover
- Three foam port tuning plugs
- Iso-elastomer feet
- Heavy-duty 6' power cord
- Quick Start Guide
Downloads
- PB17-Ultra R|Evolution Owner's Manual (PDF, svsound.com)
- PB17-Ultra R|Evolution Quick Start Guide (PDF, svsound.com)
Specifications sourced from the manufacturer, SVS (svsound.com). Prices are recommended retail including 15% VAT.
