Cornered Audio LS2 High-Output On-Wall Speaker
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days

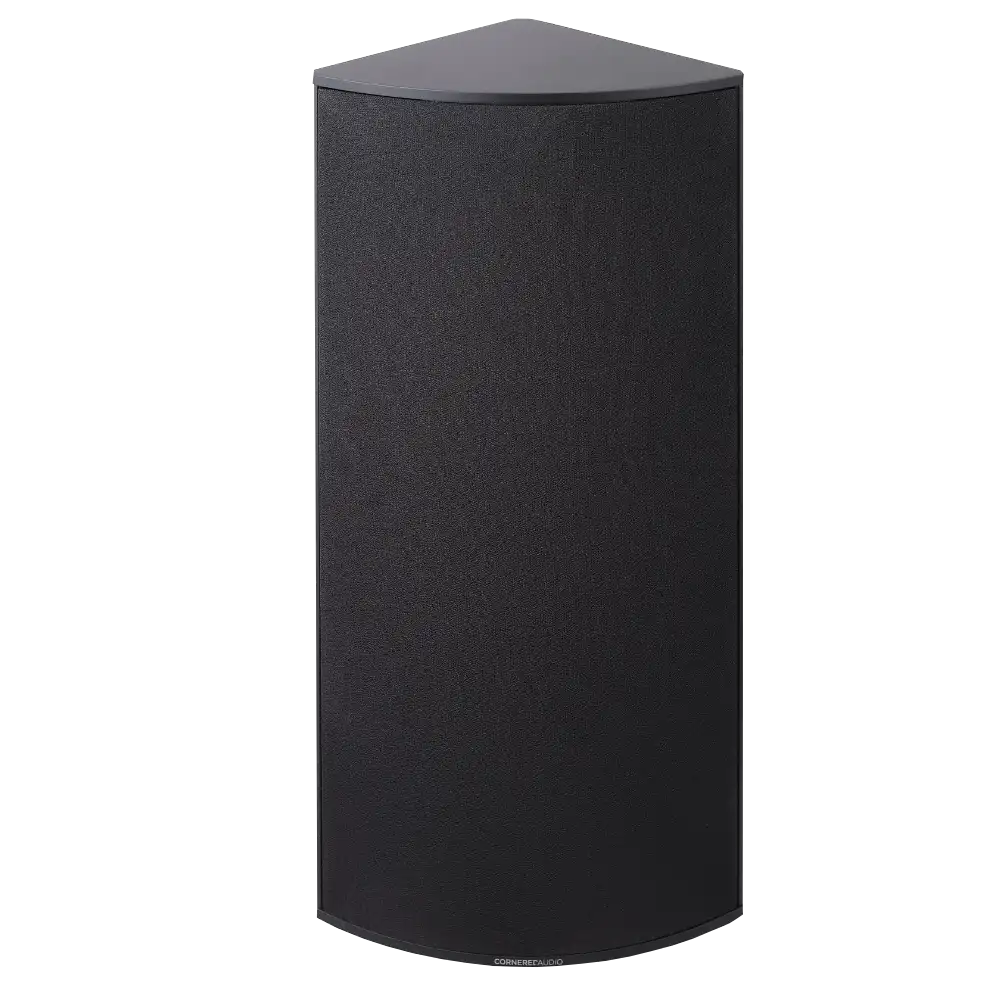

Cornered Audio LS2 High-Output On-Wall Speaker
The LS2 is a compact speaker with extreme output relative to its size ratio. It is a dedicated top-box, designed for very high output in large rooms, whether indoor or semi-outdoor. Two, three, or four LS2's can mount below each other and form a compact line source with coverage of 90×50 degrees and an ability of delivering up to 108 dB SPL at 30 meters.
There is no internal passive crossover and the LS2 is designed to be driven by Cornered DSP amplifiers. It features a ported design but requires a subwoofer below 120 Hz.
Connections are recessed in the rear side wall and custom brackets are available for the LS2, both for horizontal and vertical on-wall positioning as well as for hanging in clusters. LS2 has a remarkable dynamic range and combines high output with excellent clarity.
Key Features
- 2x 6-1/2" woofers with neo magnet
- 2x 1" horn-loaded dome tweeters
- Aluminum cabinet construction
- Designed for high SPL applications
- Available in black or white finish
- Compact line source capability when stacked
- Custom mounting brackets available
- Remarkable dynamic range with excellent clarity
Technical Specifications
| Specification | Details |
|---|---|
| Woofers | 2x 6-1/2" with neo magnet |
| Tweeters | 2x 1" horn-loaded dome |
| Power Handling (IEC268) | 500 watts |
| Power Handling (Peak) | 2000 watts |
| Sensitivity (2.83V/1m) | 96 dB |
| Maximum SPL (Long Term) | 123 dB |
| Maximum SPL (Peak) | 129 dB |
| Frequency Response | 120 Hz - 20,000 Hz |
| Nominal Impedance | 16 ohms |
| Coverage Pattern | 90° × 50° |
| Cabinet Material | Aluminum |
| Cabinet Design | Ported (requires subwoofer below 120 Hz) |
| Dimensions (H×W×D) | 502mm × 232mm × 167mm (19.8" × 9.1" × 6.6") |
| Weight | 7.6 kg (16.8 lbs) |
| Available Finishes | Black, White |
| Amplification Required | Cornered DSP amplifiers (no internal passive crossover) |
Applications
The LS2 is ideal for high SPL applications in large rooms, commercial installations, indoor and semi-outdoor venues. Multiple units can be stacked to create a compact line source array for extended coverage and increased output.
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
