Sonance VX66R In-Ceiling Speaker
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Sonance VX66R 6.5" In-Ceiling Speaker
The VX66R is a premium 6.5" round in-ceiling speaker with white micro trim grille, delivering exceptional audio performance for residential and commercial installations. Part of Sonance's Visual Experience Series Level 6 performance tier.
Technical Specifications
| Model Number | VX66R |
| Brand | Sonance |
| Performance Level | Level 6 |
| Speaker Type | In-Ceiling Round |
| Woofer Size | 6.5" (165mm) polypropylene |
| Tweeter | 1" (25mm) pivoting silk dome |
| Frequency Response | 55Hz - 20kHz (±3dB) |
| Sensitivity | 90dB (2.83V/1m) |
| Power Handling | 10-125 watts |
| Recommended Amplifier Power | 10-125 watts |
| Impedance | 8 ohms |
| Crossover Frequency | 2.5kHz |
| Cutout Diameter | 8.125" (206mm) |
| Mounting Depth | 3.75" (95mm) |
| Overall Diameter | 9.5" (241mm) |

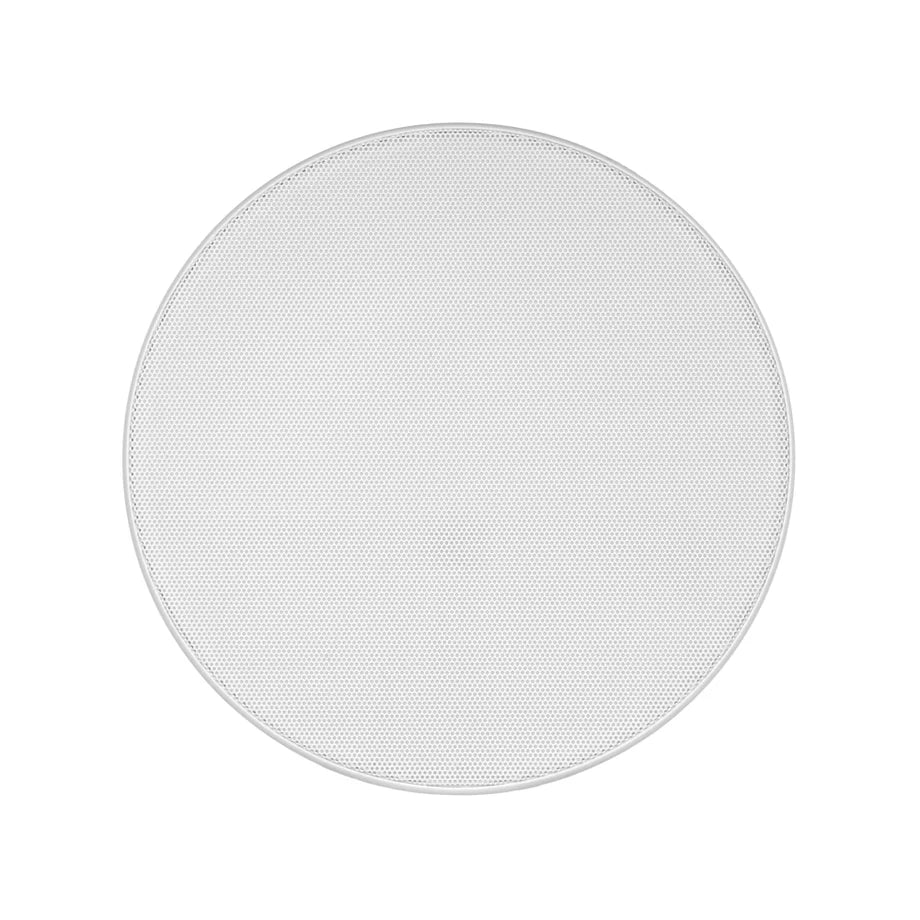

| Grille Style | White Micro Trim (paintable) |
| Trim Options | Round or Square trim available |
| Weight | 1.9kg (4.2 lbs) |
| Warranty | Limited Lifetime Warranty |
| UPC/Barcode | 810428020400 |
Key Features
- Sonance CDX Crossover Design - Proprietary crossover technology delivers warmth and detail at all volume levels for superior listening experience with optimized component selection
- Advanced Waveguide Design - Engineered for maximum coverage and fidelity to create detailed, comfortable, and consistent listening throughout the room with wide dispersion pattern
- Pivoting Tweeter - 1" silk dome tweeter can be aimed up to 15° for optimal sound dispersion and sweet spot targeting
- Polypropylene Woofer - 6.5" driver with butyl rubber surround for accurate bass response and long-term durability
- Level 6 Performance - Enhanced audio performance with higher power handling and improved frequency response compared to Level 4 models
- Flexible Installation Options - Standard one-stage or optional two-stage installation design for new construction or retrofit applications
- Multiple Grille Options - Choose from Micro Trim, Trimless, or TRUFIG Mounted Trimless grille styles
- Customizable Finish - Grille painting or laser printing grille service available to match any décor
- TRUFIG Compatible - Optional TRUFIG finish and installation for precision alignment and seamless integration
- Moisture Resistant - Suitable for humid environments when properly installed
- Dog-Leg Mounting Clamps - Secure installation in various ceiling types and thicknesses (0.25" to 1.5")
Visual Experience Series
The VX66R is part of Sonance's Visual Experience Series, designed to deliver premium audio while maintaining architectural aesthetics. The Level 6 performance tier offers enhanced audio quality with higher power handling and extended frequency response.
Available Configurations
- In-Ceiling Round (Round or Square trim options)
- In-Wall Rectangle
- Driver sizes: 4.5" (Small), 6.5" (Medium), or 8" (Large)
- Performance levels: 0, 2, 4, 6, or upgrade to VXQ Level 8 with Quadratech
Installation Benefits
The two-stage installation process allows for preconstruction wiring and space reservation, completing with a simple snap-in of the speaker module. This makes the VX66R ideal for both new construction and retrofit projects. The included dog-leg clamps ensure secure mounting in various ceiling types and accommodate ceiling thicknesses from 0.25" to 1.5".
Applications
- Home theater surround sound systems
- Whole-home audio distribution
- Commercial background music
- Multi-room audio installations
- Architectural integration projects
- Distributed audio systems
What's Included
- VX66R speaker with pre-installed backcan
- White micro trim grille (paintable)
- Dog-leg mounting clamps
- Installation template
- Owner's manual
Warranty Information
Limited Lifetime Warranty valid on Visual Experience Series products purchased from an authorized Sonance dealer or distributor. (Excludes grille and Extreme models which have a limited 5-year warranty.)
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
