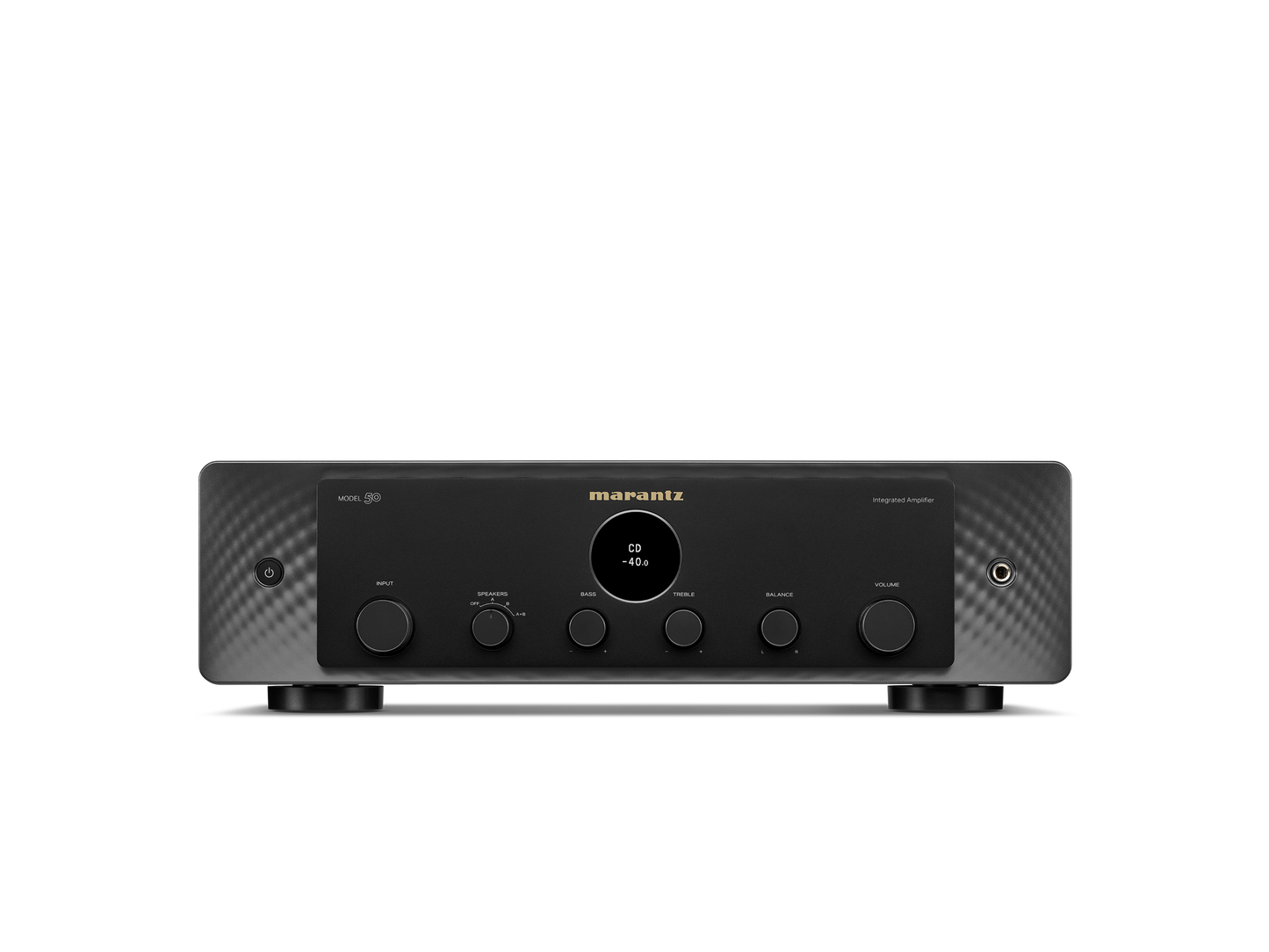

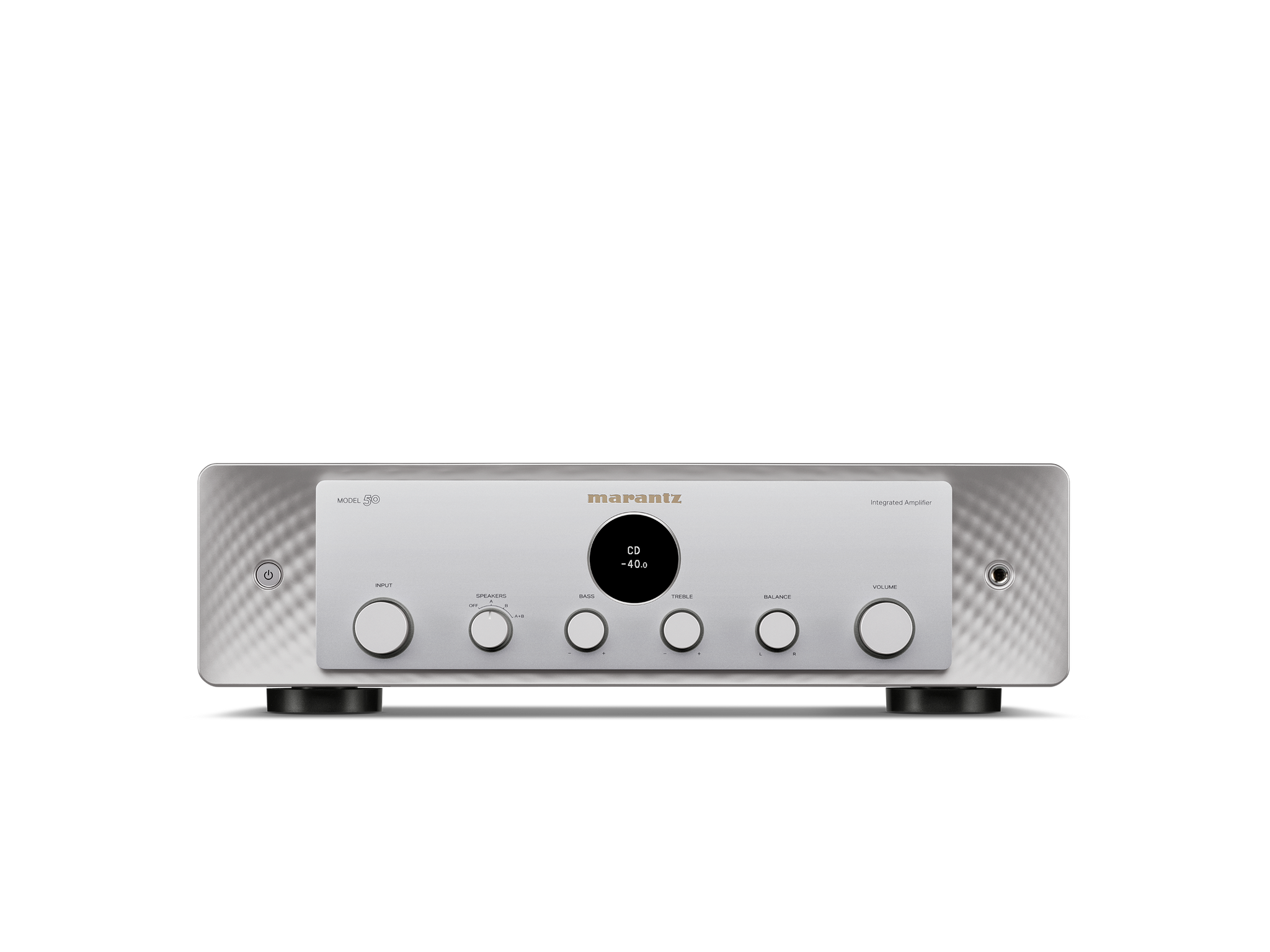

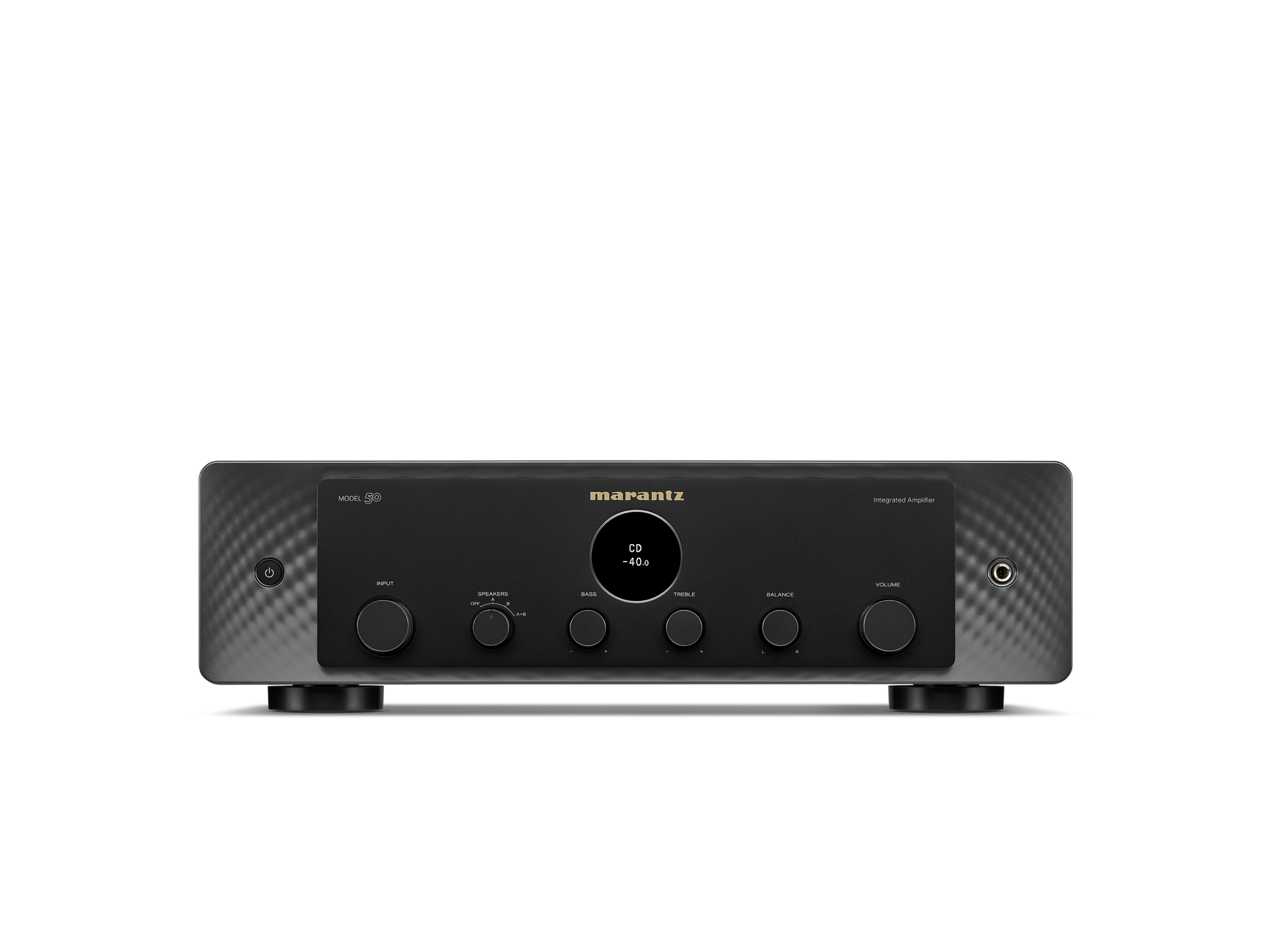

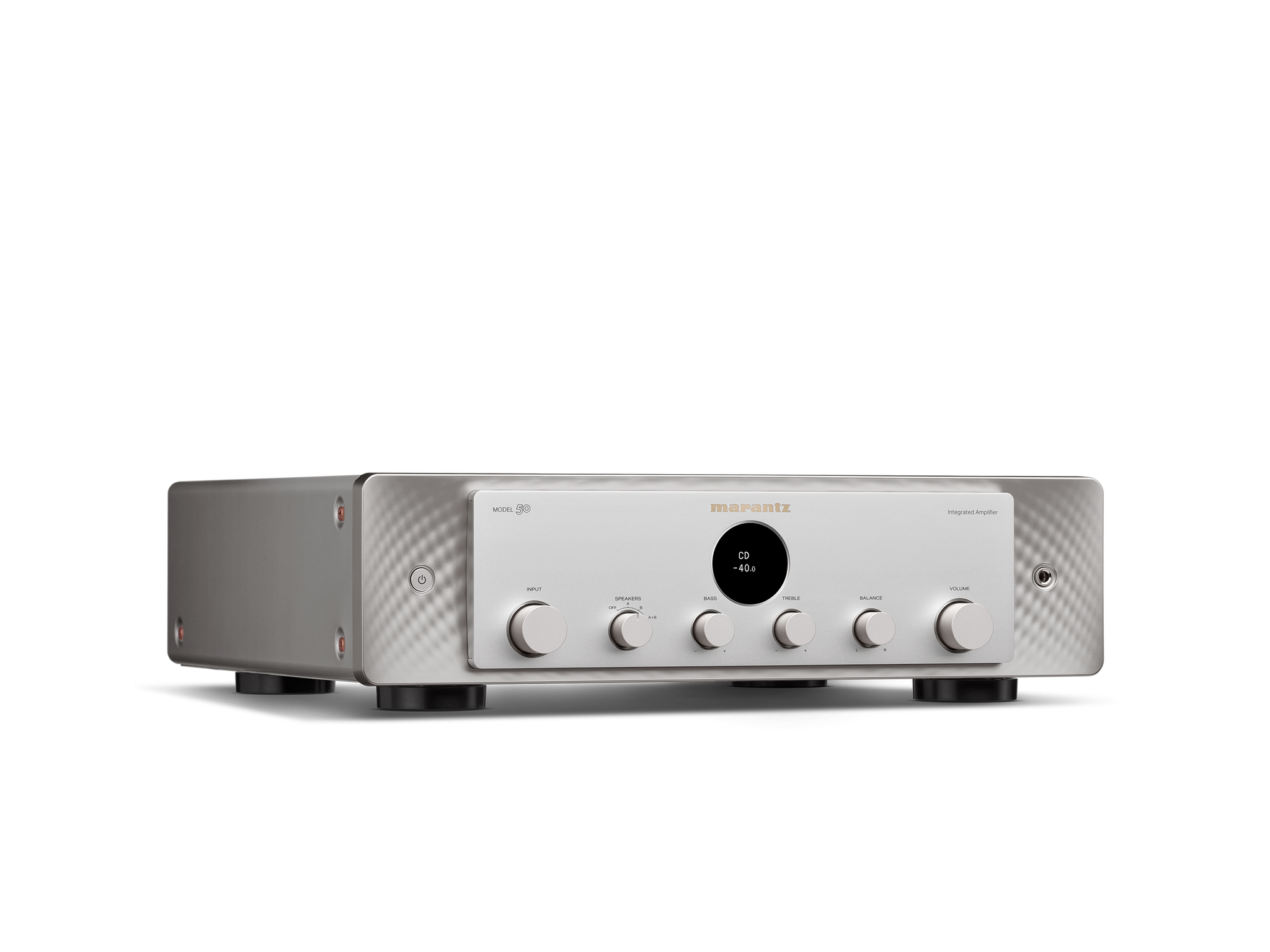

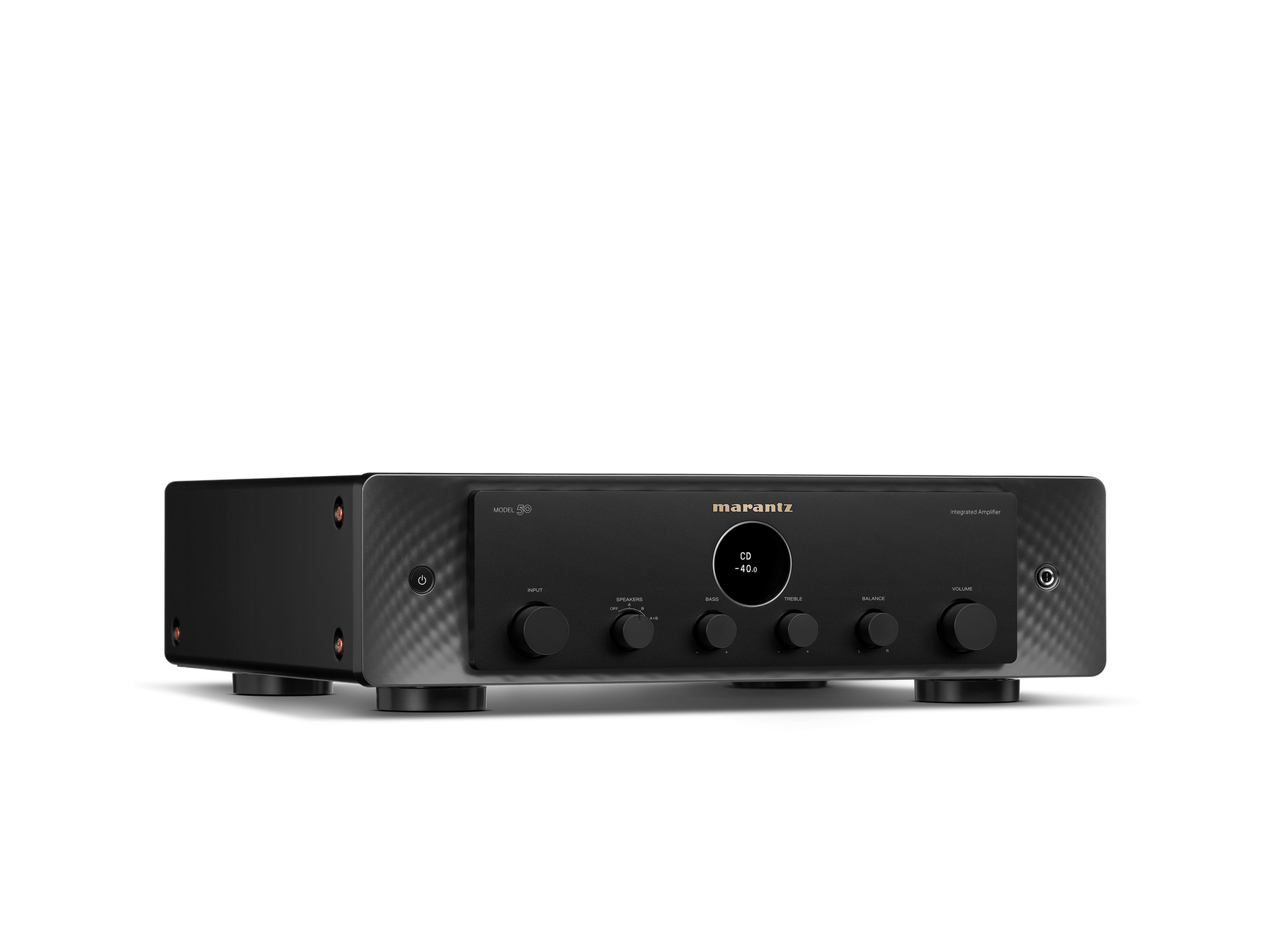

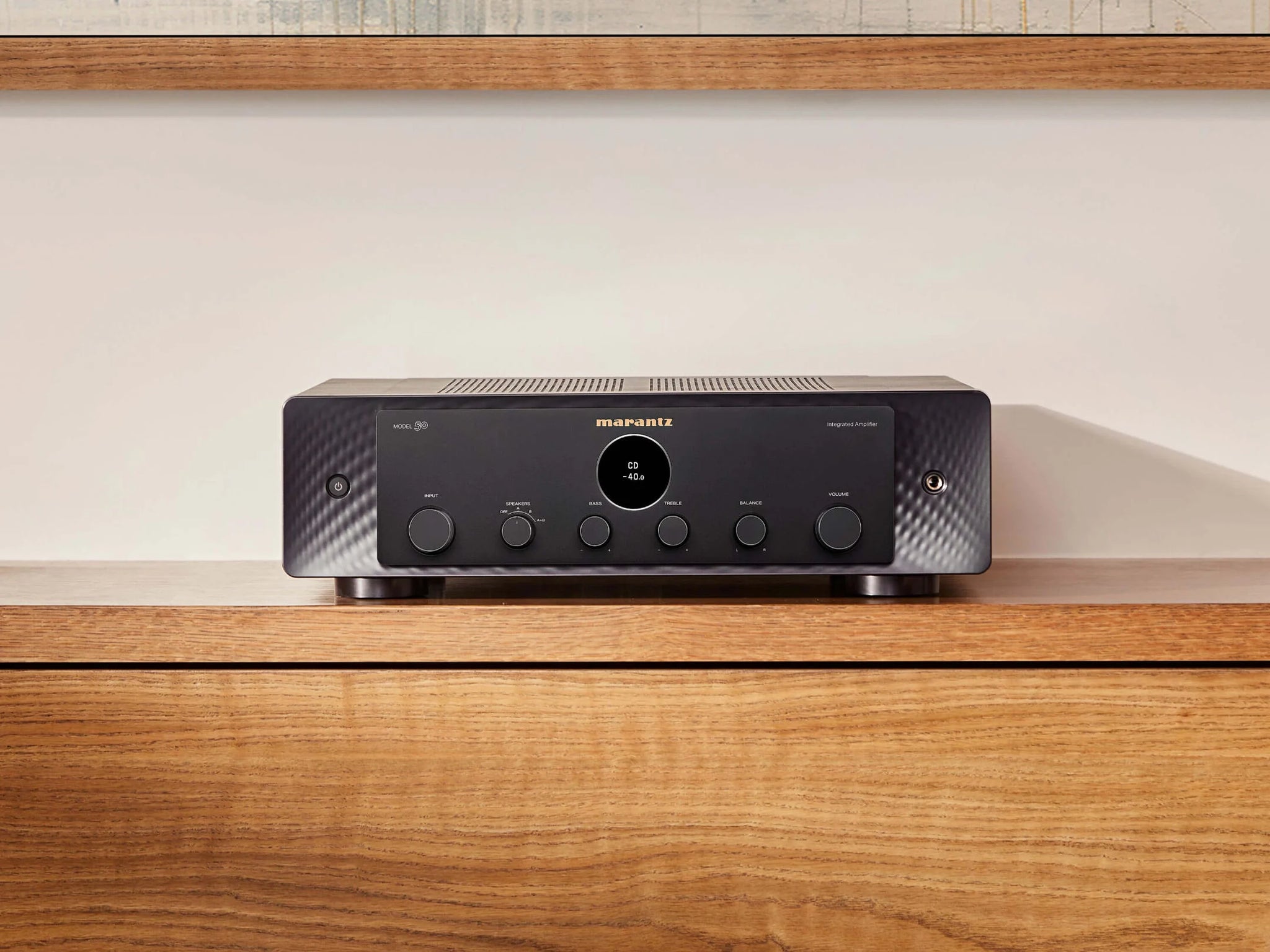

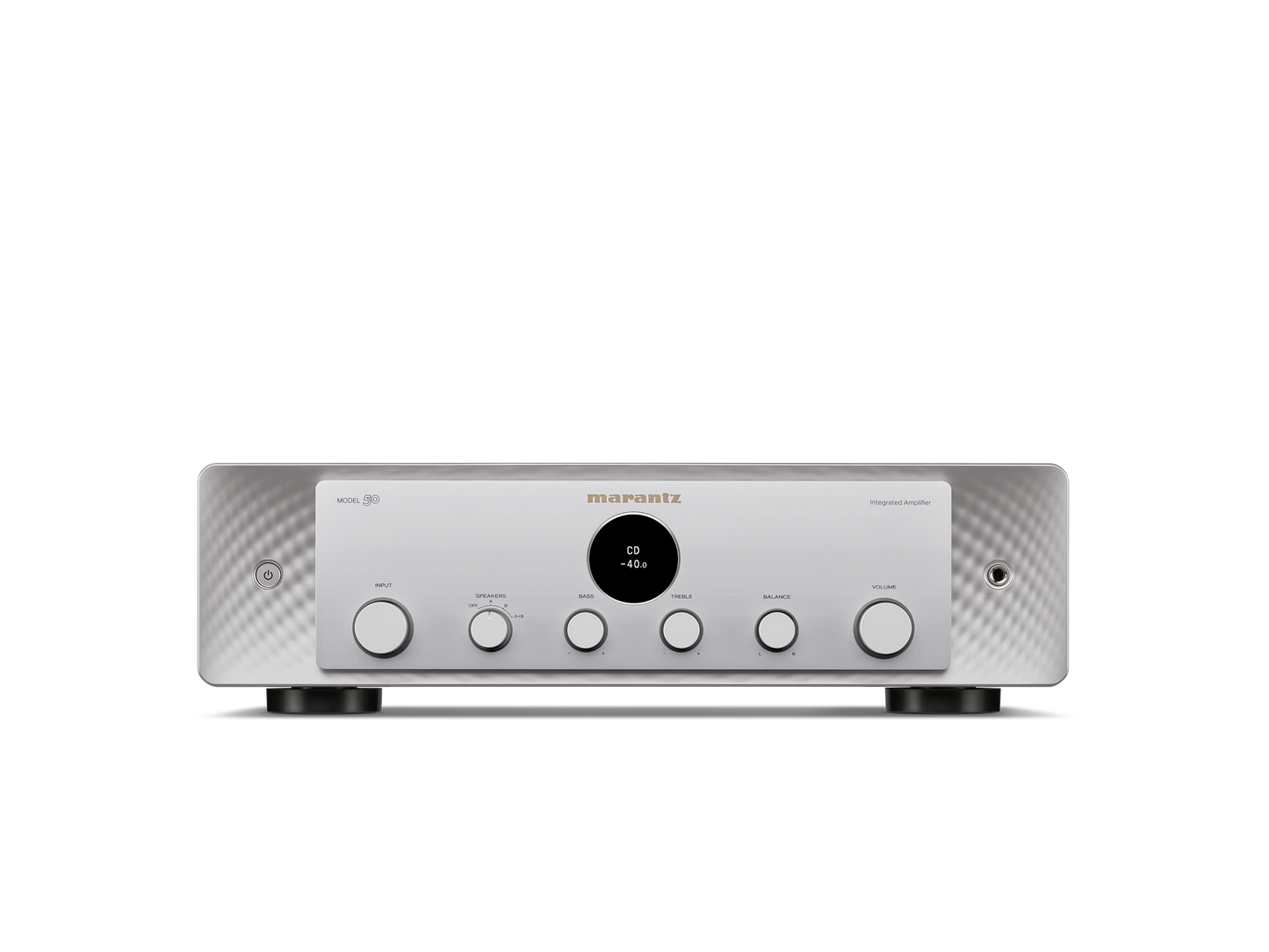

Marantz MODEL50 Integrated Stereo Amplifier
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Marantz MODEL50 integrated Stereo Amplifier
MODEL 50 was designed and engineered to be thoroughly modern, yet timeless. Engineered with Marantz proprietary technologies, this integrated amplifier pushes the boundaries of audio equipment design to reveal the musicality in all your stereo source components.
- Artisinal Design
- 2.2 Channels
- 70 Watts Per Channel
- Custom HDAM
An Evolution 70 Years in the Making
Warm, rich, and spacious sound. Elegant to behold. Marantz 50 series strikes a perfect balance between timeless and modern.
Exquisite Style
Marantz designed MODEL 50 to be thoroughly modern, yet timeless. Hallmark aesthetic cues like symmetry, warmth, and tactile satisfaction push the boundaries of audio equipment design inspired by icons of their past.
Powerful Yet Precise
With a precisely engineered Class A/B amplifier, MODEL 50 will drive your loudspeakers with authority yet reveal details you never knew existed.
Sound Master Tuned
The Marantz Sound Master meticulously tuned MODEL 50 for amazing performance with careful parts selection to create the Most Musical Sound in your home.
Moving Magnet Phono
The built-in MM phono stage works with your turntable to amplify the nuance and tone in your records. Using a new circuit without distortion-inducing coupling capacitors.
Stereo Preamp Out
MODEL 50’s stereo preamp outputs add valuable flexibility to your audio system setup. Connect a subwoofer, add channels to your home theater, or multiply listening zones—the possibilities are endless.
Specifications
| Features | |
| Channels | 2 |
| Current Feedback Topology | Yes |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium | - / Yes / - |
| Digital in: USB-B / optical / coaxial / USB-A | - / - / - / - |
| HDAM version | SA3, SA2 |
| Power Transformer: Toroidal / El | Yes / - |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetric PCB Layout | Yes |
| Aluminium extrusion heat sink | Yes |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / - |
| Others | |
| Linear Drive Power Supply | Yes |
| Liniear volume control | Yes |
| Schottky diodes | Yes |
| Input buffer amp (all inputs / CD only) | - / - |
| Solid Heat Sinks | Yes |
| System block shielding: Copper / metal / none | none |
| Bottom Plate | triple |
| Low noise OLED display Yes | |
| Source Direct | Yes |
| Power Amp direct | Yes |

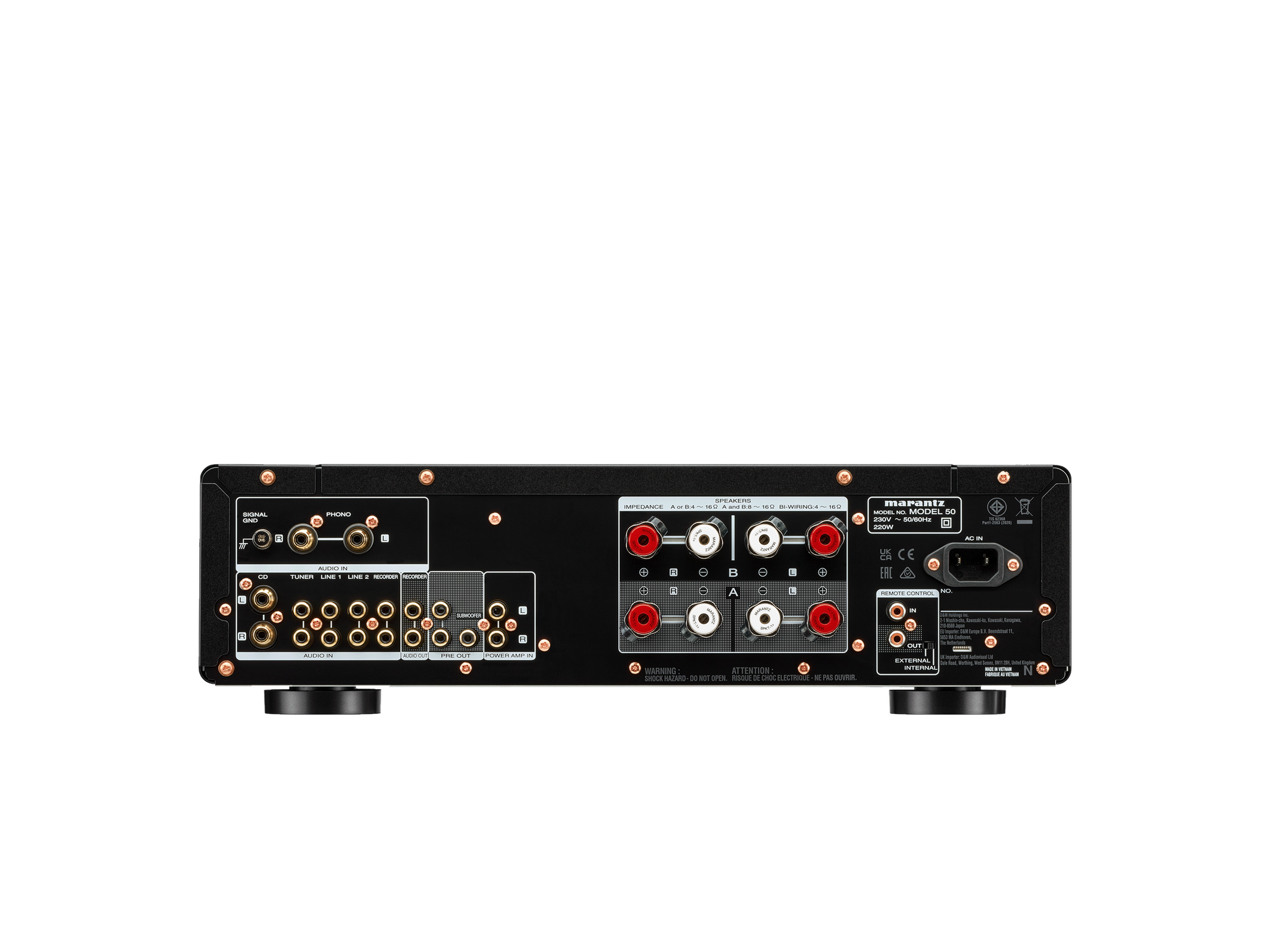

| Inputs Outputs | |
| Audio Inputs | 6 |
| Digital in: USB-B / optical / coaxial / USB-A | - / - / - / - |
| Phono Input: MM / MC | Yes / - |
| Audio Outputs | 1 |
| Balanced In / Out | - / - |
| Pre-out / Main-in | Yes + subwoofer / - |
| Power Amp Direct IN | Yes |
| Gold Plated Cinch | Yes |
| Speaker A / B | Yes |
| Speaker Terminals | Marantz SPKT-1+ |
| Number of terminals | 4 |
| D-Bus | Yes |
| Headphone Out | Yes |
| Specifications | |
| Power Output (8 / 4 Ohm RMS) | 70 W / 100 W |
| Frequency Response | 5 Hz–100 kHz |
| Total Harmonic Distortion | 0.02 % |
| Damping Factor | 100 |
| Input Sensitivity: MM | 1.4 mV / 47 kΩ |
| Signal to Noise Ratio: MM/MC | 87 dB / - |
| Input Sensitivity: High level | 185 mV / 16 kΩ |
| Signal to Noise Ratio: High level | 116 dB (2 V input) |
| Input Sensitivity: Power Amp Direct IN | 1.5 V / 15 kΩ |
| Signal to Noise Ratio: Power Amp Direct IN | 125 dB |
| Treble Control | ± 10 dB at 15 kHz |
| Bass Control | ± 10 dB at 50 Hz |
| General | |
| Available Colors: Gold / Silver / Black / Silver-Gold | - / - / Yes / Yes |
| Metal Front Panel | Yes |
| Power Consumption in W | 220 |
| Standby Consumption in W | 0.3 |
| Auto Power off | Yes |
| Detachable Power Cable | Yes |
| Remote Control | RC003PMND |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) in mm | 442 x 431 x 130 |
| Weight in kg | 14.2 |
| Carton Maximum Dimensions (W x D x H) in mm | 527 x 517 x 255 |
| Carton Weight (inc. product) in kg | 17.5 |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
