McIntosh MC611 1-Channel Solid State Amplifier



• 600 Watt Quad Balanced Monoblock
• 55% increase in Dynamic Headroom compared to previous model
• Autoformer™, Power Guard®, Sentry Monitor™, Monogrammed Heatsinks™, Solid Cinch™ speaker binding posts

The monoblock MC611 Quad Balanced Power Amplifier produces 600 Watts of power – enough to satisfy nearly any loudspeaker. A pair of MC611s can easily drive an impressive home stereo system, or add more of them to power a home theater. Thanks to our unique output Autoformer™ technology, your speakers will receive the full 600 Watts regardless if they have 2, 4 or 8 Ohm impedance, allowing you the ability to use the MC611 to its full potential.

"The MC611 is one of the most beautiful sounding amplifiers I’ve ever heard, and at the same time is one of the most realistic sounding amplifiers I’ve ever heard. And this continues to blow me away every time I turn the MC611s’ power on." Winner of Best of 2018 Blue Note Award. - Enjoy The Music

The MC611 has received numerous updates and improvements compared to our previous 600 Watt monoblock model. Chief among them is that filter capacity has been doubled which has resulted in a dramatic 55% increase in dynamic headroom from 1.8dB to 2.8dB. This twofold increase in filter capacity also helps improve the performance of low end bass frequencies.

We have made many technological and engineering advancements to our amplifiers over the years.

"The MC611s offer massive power with minimal distortion at all frequencies, into any load. In doing so they are virtually unique… Easy going silky smooth sound, richly detailed and dynamically awesome." Awarded 5 out of 5 Globes. - Hi-Fi World

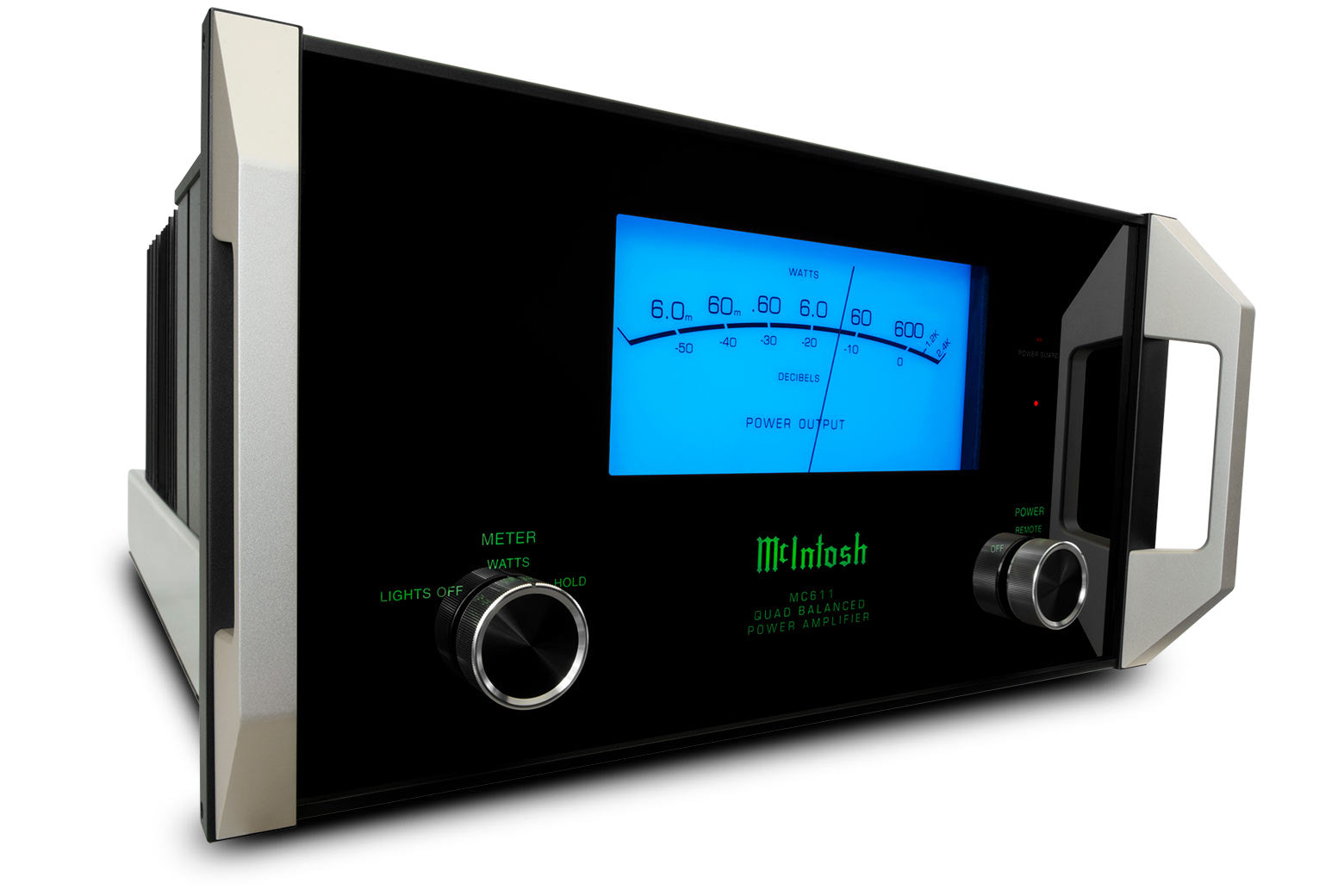

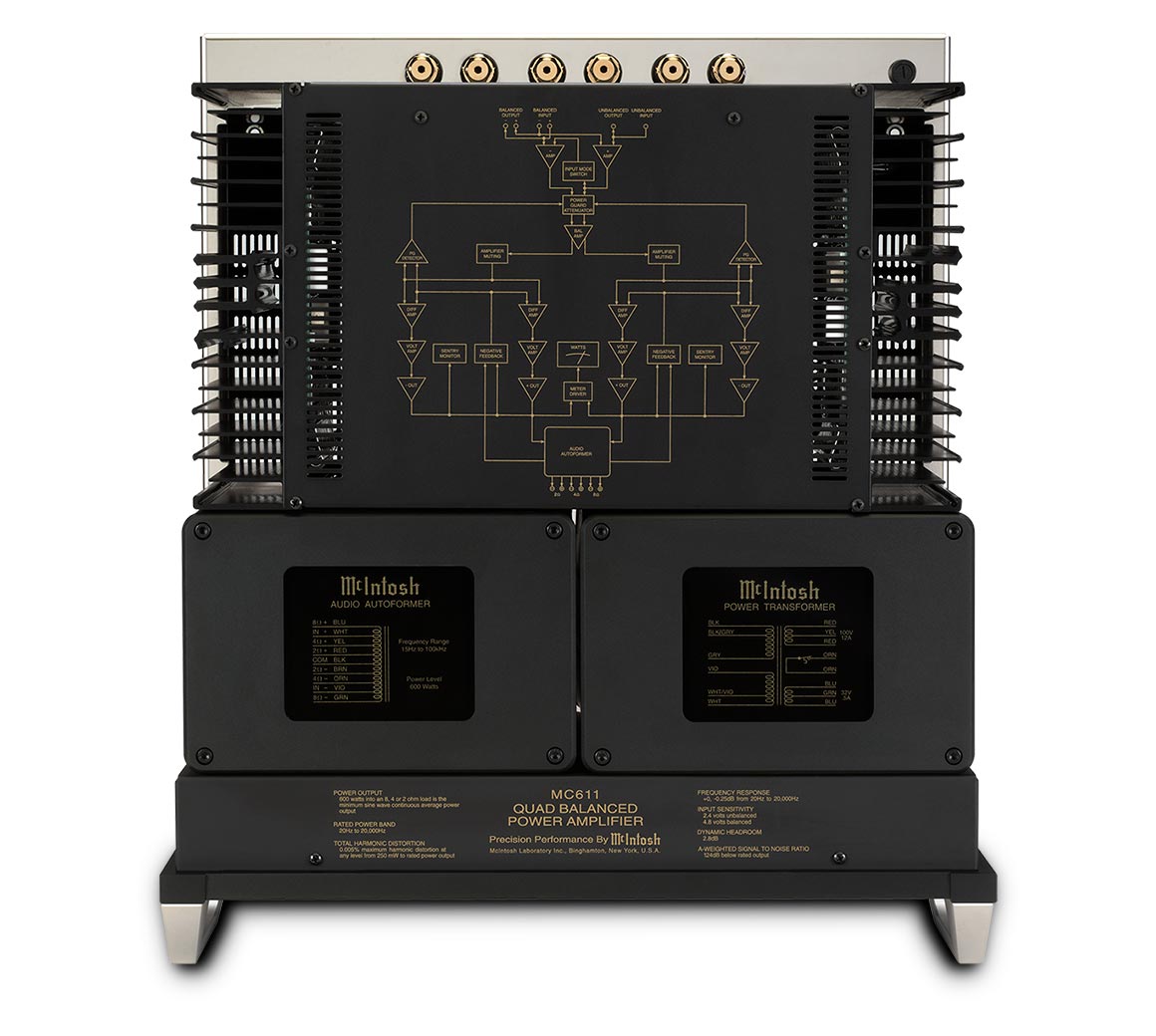

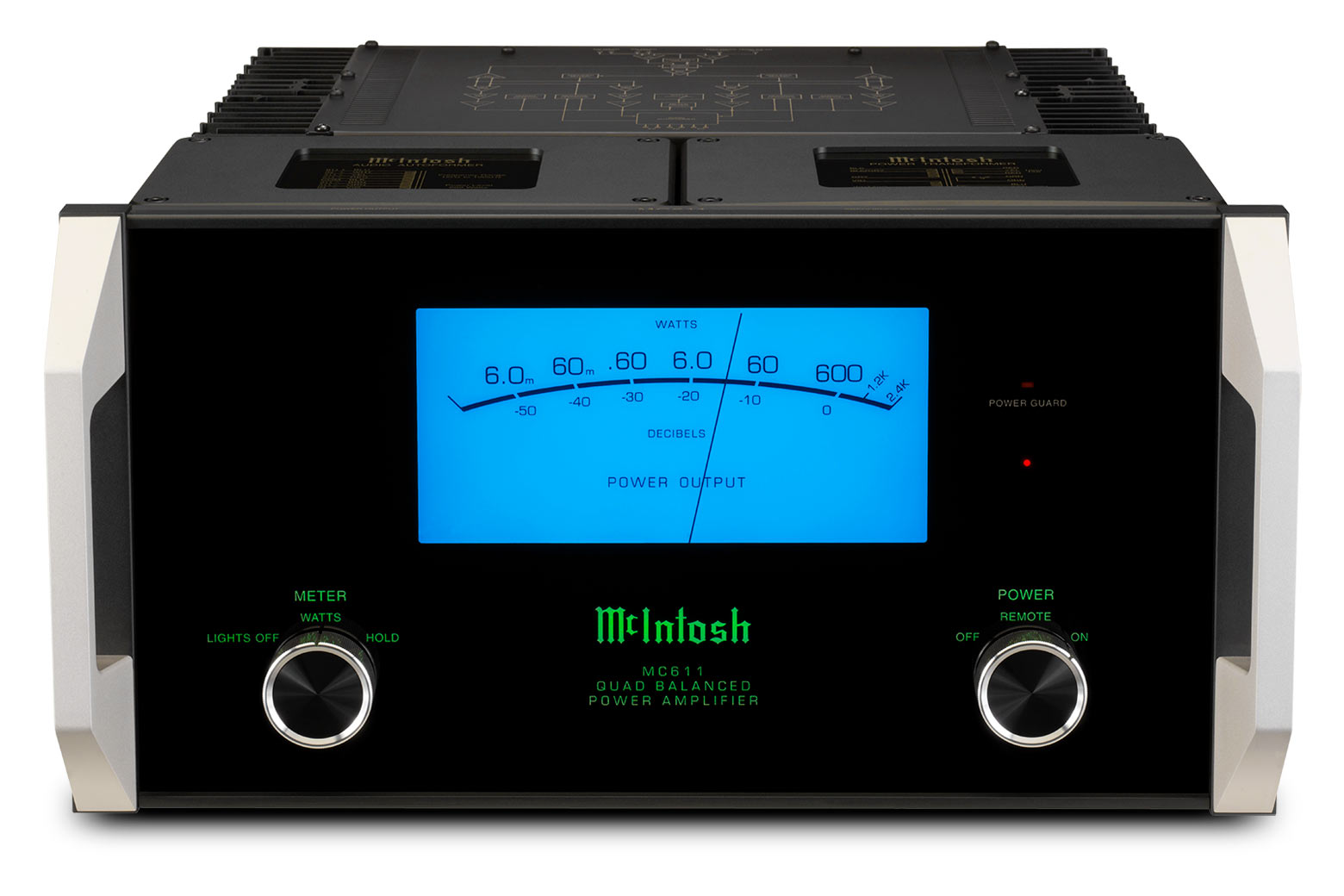

The front panel features new direct LED backlighting for improved appearance and color accuracy. On top, the audio Autoformer and power transformer remain seated just behind the front panel, but are now contained in new glass topped enclosures. Behind them are 2 of our Monogrammed Heatsinks™ which connect to advanced high current output transistors that help eliminate thermal equilibrium lag time. A screening of the amplifier’s block diagram has been added to the panel located between the heatsinks.

McIntosh Monogrammed Heatsink.

"Attack, sustain, decay came through with such clarity and power you – I – rarely hear through high-power amplifiers... Highly Recommended, A++++." - Audiophile Style

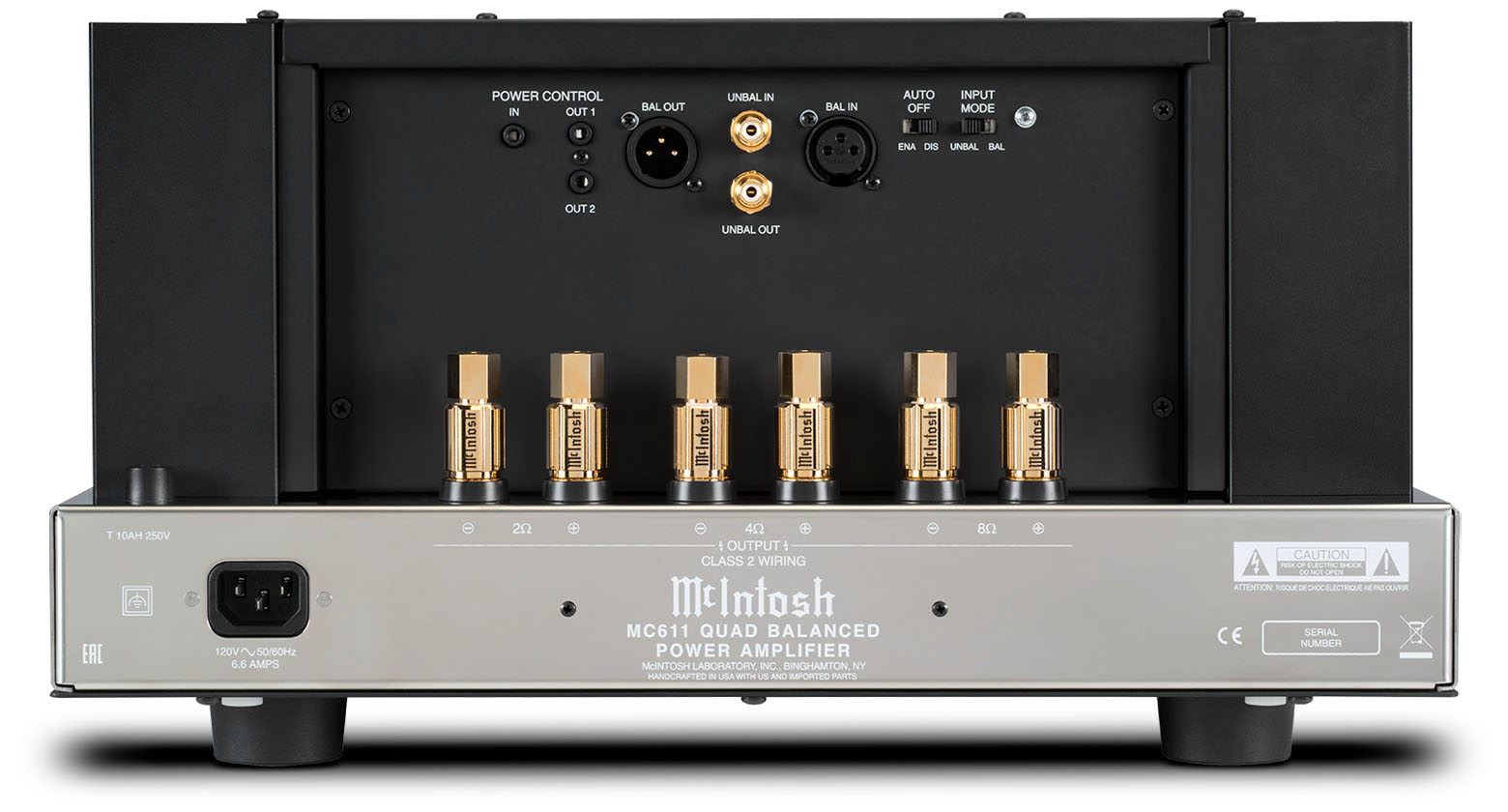

On the back, there continues to be 3 sets of our Solid Cinch™ speaker binding posts (1 set for each speaker impedance), but more space has been added between each set to allow for easier speaker cable management. Our eco-friendly power management system, which will turn the amp off after a set amount of time when no input signal has been detected, has also been added. Other enhancements include heavier gauge internal wiring and upgraded circuit components.



McIntosh Solid Cinch speaker binding posts.

"A rare combination of effortless power and sophistication" that allows it to easily "drive almost any type of speaker." Highly Recommended: 6 Stars - Lyd & Bilde



In addition to all these improvements, the MC611 is full of other exclusive McIntosh technologies:

• Power Guard® that monitors and adjusts the input signal at the speed of light and makes real time adjustments to prevent harsh sounding and potentially speaker damaging clipping
• Sentry Monitor™ - our fuse-less short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal
• Quad Balanced design that cancels virtually all noise and distortion that may have crept into the audio signal
• Power Control to send power on/off signals to other connected McIntosh components for easy system power up and shutdown

Both a balanced and unbalanced output are included to make bi-amping or tri-amping your speakers easier; they can also be used to send the audio signal to a secondary system if your preamplifier does not have enough outputs, or to connect a powered subwoofer.

Specifications

Electronic Specifications
FTC Power Output Rating	600 W
Power Output per Channel	600 W into 2, 4 or 8 ohms
Number of Channels	1
Total Harmonic Distortion	0.005%
S/N below rated output	Balanced: 124dB Unbalanced: 120dB
Dynamic Headroom	2.8dB
Damping Factor	>40 Wideband
Rated Power Band	20Hz to 20kHz
Frequency Response	+0, -0.25dB from 20Hz to 20kHz +0, -3.0dB from 10Hz to 100kHz Control
Remote Power Control	Yes
Multi-Channel DB25 Cable	N/A
General Specifications
Circuit Configuration	Quad Balanced
Circuit Design	Solid State
Mono Bridge	N/A
Mono Parallel	N/A
Output Type	Autoformer™
Meters	Yes
Meter Light Switch	Yes
Balanced Input	1
Front Panel	Glass with handles
Illumination	Direct LED
Chassis Style	Polished stainless steel & black painted steel
Connectivity
Speaker Binding Post Type	Patented Solid Cinch™ Speaker Binding Posts
Weights & Dimensions
Unit Dimensions (W x H x D)	17-1/2" (44.45cm) x 9-7/16" (23.97cm) (including feet) x 22" (55.88cm) (including front panel, handles and cables)
Unit Weight	97.5 lbs (44.32 kg)
Shipping Weight	130.5 lbs (59.32 kg)
