Mcintosh MC2301 1-Channel Vacuum Tube Amplifier
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Mcintosh MC2301 1-Channel Vacuum Tube Amplifier
- 300 Watt Quad Balanced Monoblock
- Vacuum tube powered
From the demands of massed chorale to full-on rock and roll, the MC2301 delivers the most extraordinarily lifelike and dynamic performance ever heard from a McIntosh tube amplifier. With an output of 300 Watts, it provides enough high power to drive even the most demanding loudspeaker. And thanks to our patented Unity Coupled Circuit output transformer, this full 300 Watts is available to 2, 4 or 8 Ohm speakers.
The MC2301 is the first McIntosh vacuum tube amplifier to use our Quad Balanced design. This design cancels virtually all noise and distortion in the audio signal. As a result, even when amplified to high levels the signal is effectively free of any distortion. Our fuse-less short-circuit protection circuit Sentry Monitor™ disengages the output stage before current exceeds safe operating levels and then resets automatically. Inputs for balanced and unbalanced cables are available to provide flexibility in connecting the rest of your audio system.

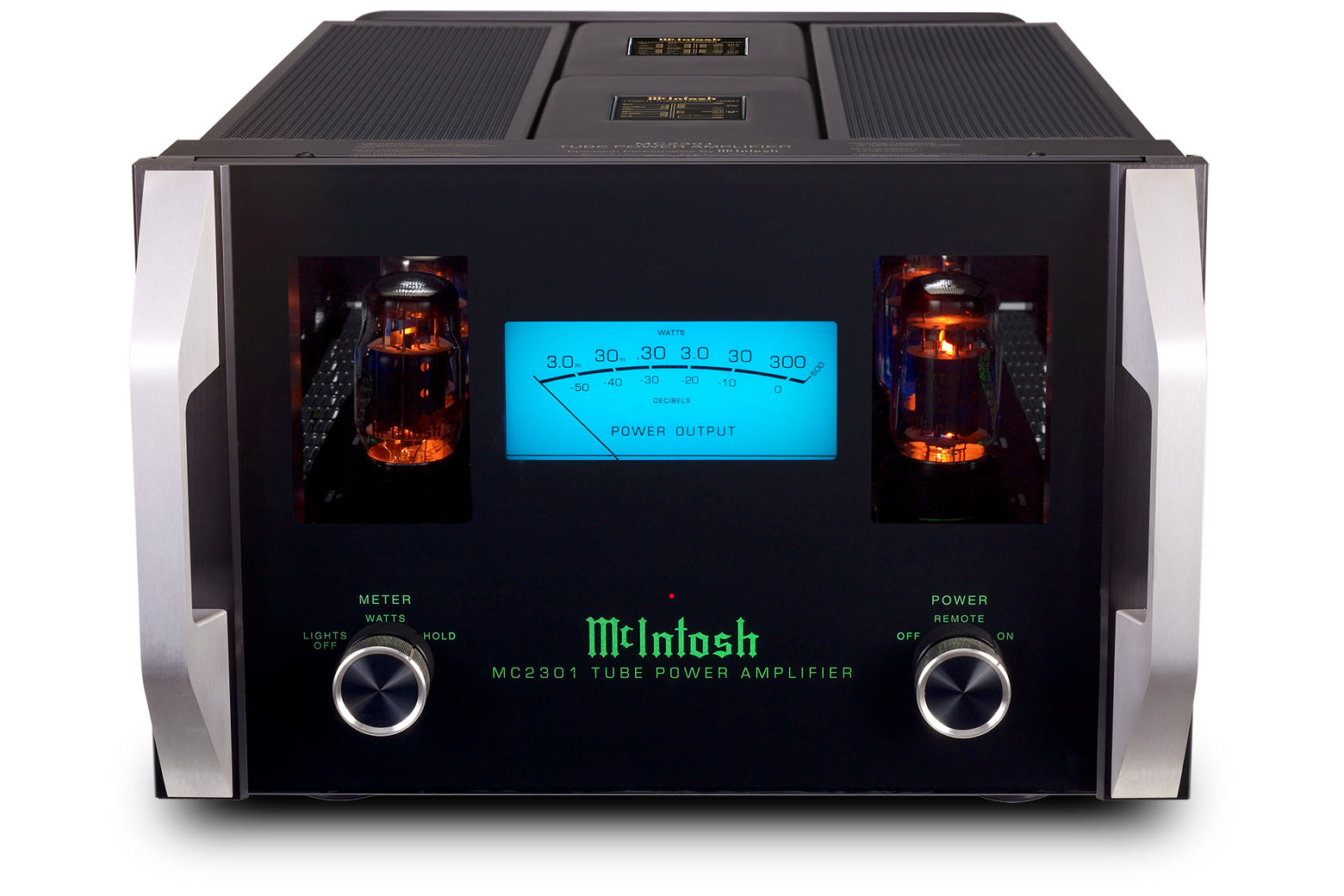

The attractive blue meter is flanked by two rows of output vacuum tubes that bring even more visual appeal to the front panel to go along with the knobs and brushed aluminum handles that all effortlessly blend with the polished stainless steel chassis. The MC2301 is well suited for stereo music systems.
Specifications
| Electronic Specifications | |
| FTC Power Output Rating | 300 W |
| Power Output per Channel | 300 W into 2, 4 or 8 ohms |
| Number of Channels | 1 |
| Total Harmonic Distortion | 0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20kHz (≤ 0.25% harmonic distortion at 1kHz) |
| S/N below rated output | 117dB |
| Dynamic Headroom | 1.2dB |
| Damping Factor | >15 Wideband |
| Rated Power Band | 20Hz to 20kHz |
| Frequency Response | +0, -0.5dB from 20Hz to 20kHz +0, -3.0dB from 10Hz to 100kHz |
| Control | |
| Remote Power Control | Yes |
| Multi-Channel DB25 Cable | N/A |
| General Specifications | |
| Circuit Configuration | Quad Balanced, Unity Coupled |
| Circuit Design | Vacuum Tube |
| Mono Bridge | No |
| Mono Parallel | No |
| Output Type | Unity Coupled Output Transformer |
| Meters | Yes |
| Meter Light Switch | Yes |

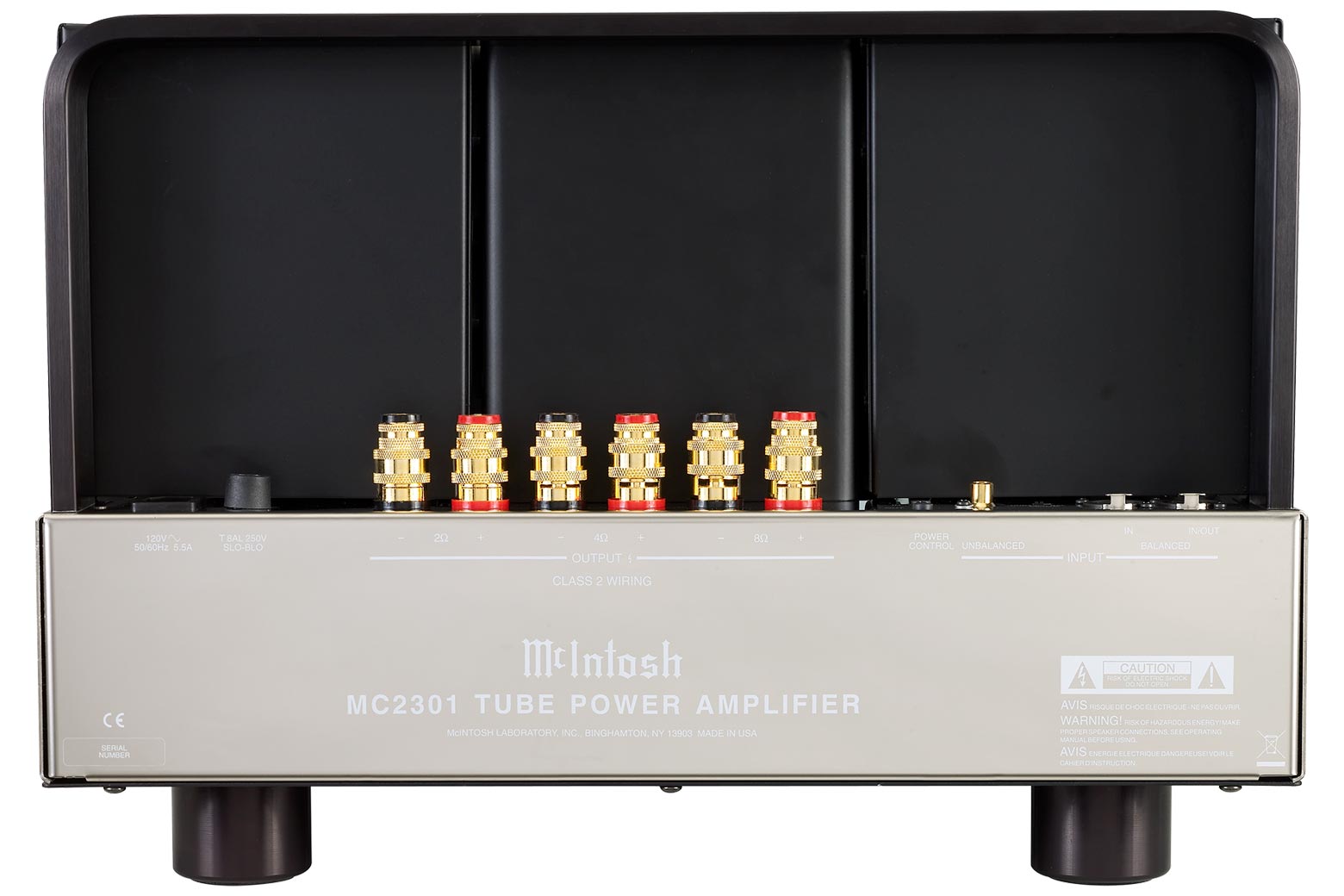

| Balanced Input | Yes |
| Front Panel | 1/2" Glass with handles |
| Illumination | LED Fiber Optic |
| Chassis Style | Open Stainless Steel |
| Connectivity | |
| Speaker Binding Post Type | Yes, 200 amp, 3-way |
| Weights & Dimensions | |
| Unit Dimensions (W x H x D) | 17-3/4" (45.09cm) x 12-5/16" (31.27cm) (including feet) x 23" (58.42cm) (including front panel and cables) |
| Unit Weight | 116 lbs (52.6 kg) |
| Shipping Weight | 141 lbs (63.9 kg) |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
