Isotek EVO3 NOVA
(THE SELECT SERIES)

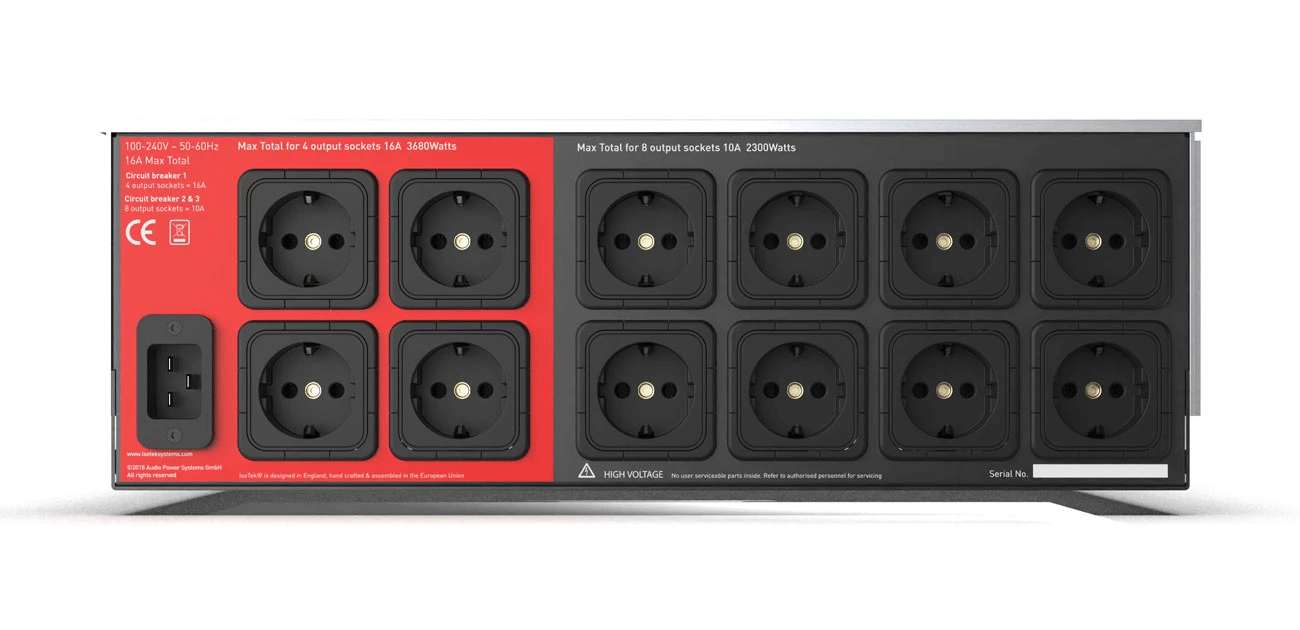

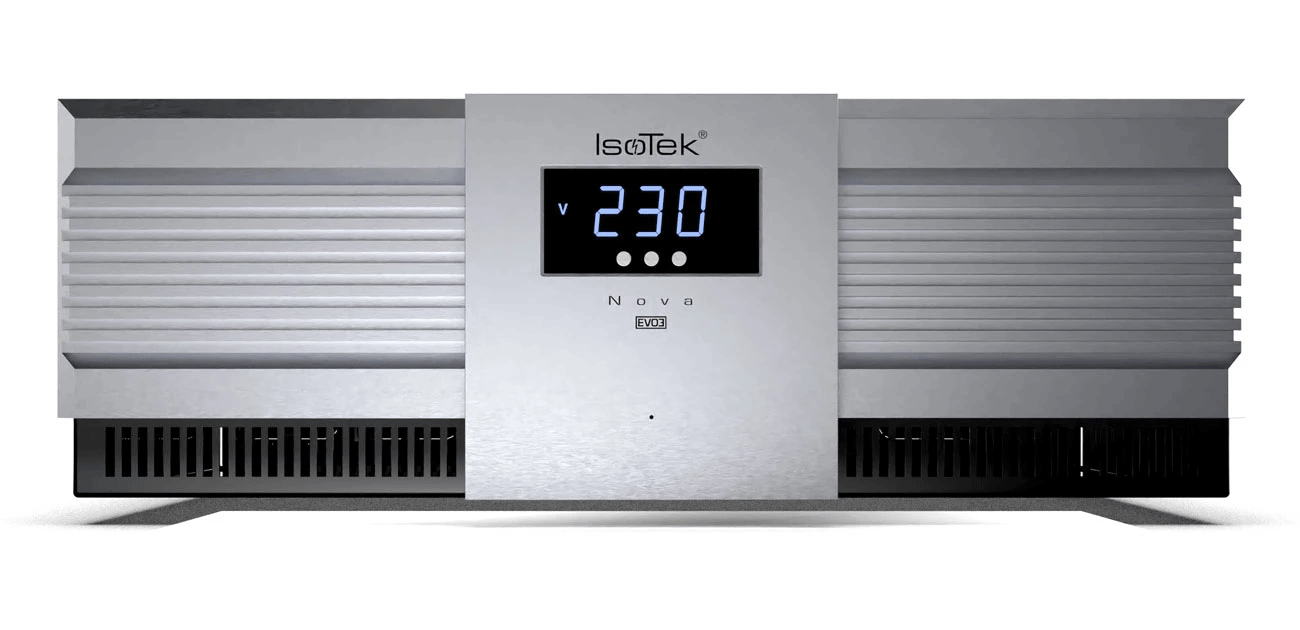

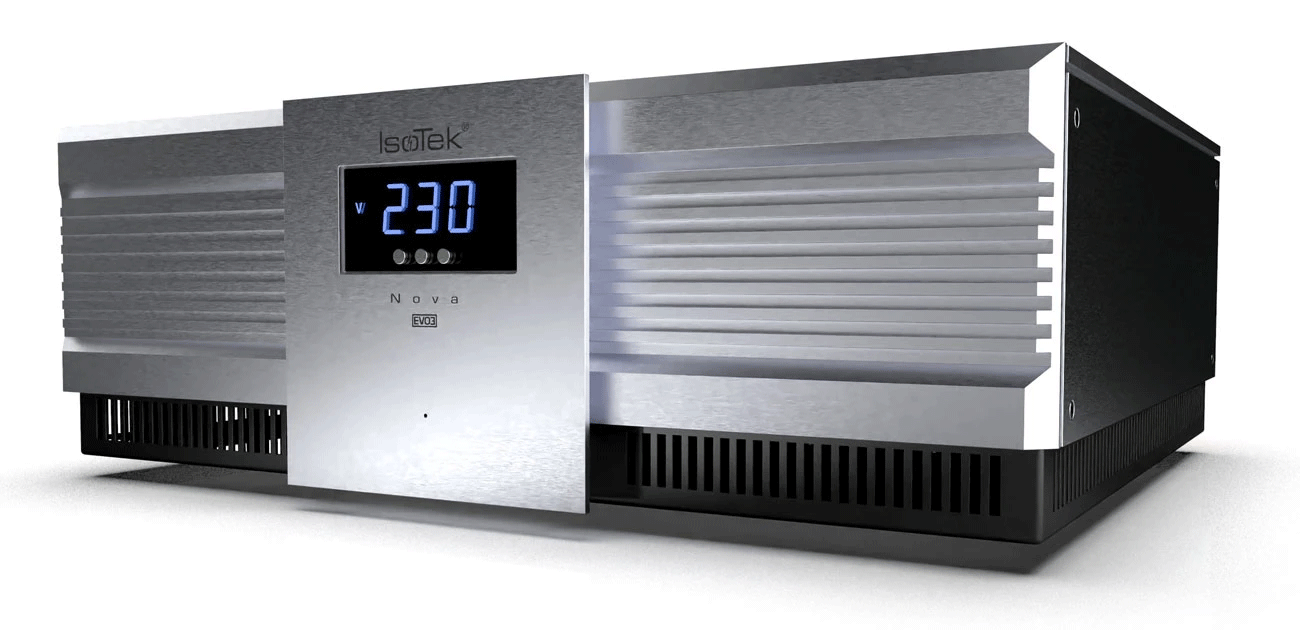

The EVO3 Nova is a state-of-the-art passive power cleaning system incorporating full DC cancellation. It is ideal for large scale audio systems or home theatre installations. The system offers twelve independently filtered power outlets, eight rated at 10A for source components and four rated at 16A. These are designed for high current electronics, for example power amplifiers, active loudspeakers, or subwoofers. They also feature a slightly pared down version of the Titan’s unique Direct-Coupled© circuit. Nova is a full system solution incorporating twelve independent power cleaning networks.
FEATURES:
- Suitable for all audio or AV systems
- RFI reduction 80dB
- 12 optimised power cleaning circuits remove Common and Differential Mode mains noise
- 8 independent outlets for source components
- 4 independent high current outlets for power amps, subwoofers, active speakers etc..
- DC cancellation through sine wave rebalance
- 216’000A instantaneous protection
- Fully star-earthed network
- Solid core Ohno Continuous Cast copper silver-plated internal wiring with FEP virtual air dielectric
- Supplied with IsoTek’s award winning EVO3 PREMIER POWER CABLE
- UK, EU, US, AU & CH outlets available
SPECIFICATIONS:
| NUMBER OF OUTLETS | 12 |
| TYPE OF OUTLETS | UK, EU, US, AU & CH |
| DISPLAY | Voltage / THD / off |
| MAINS INLET | 16A IEC C20 |
| MEDIUM CURRENT | 230V x8 (10A 2'300W total) |
| MEDIUM CURRENT | 115V x8 (10A 1'150W total) |
| HIGH CURRENT | 230V x4 (16A 3'680W total) |
| HIGH CURRENT | 115V x4 (16A 1'840W total) |
| SURGE PROTECTION | 108'000A |
| DIMENSIONS | (W X H X D) 440 x 160 x 370mm |
| WEIGHT | 15Kg |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
