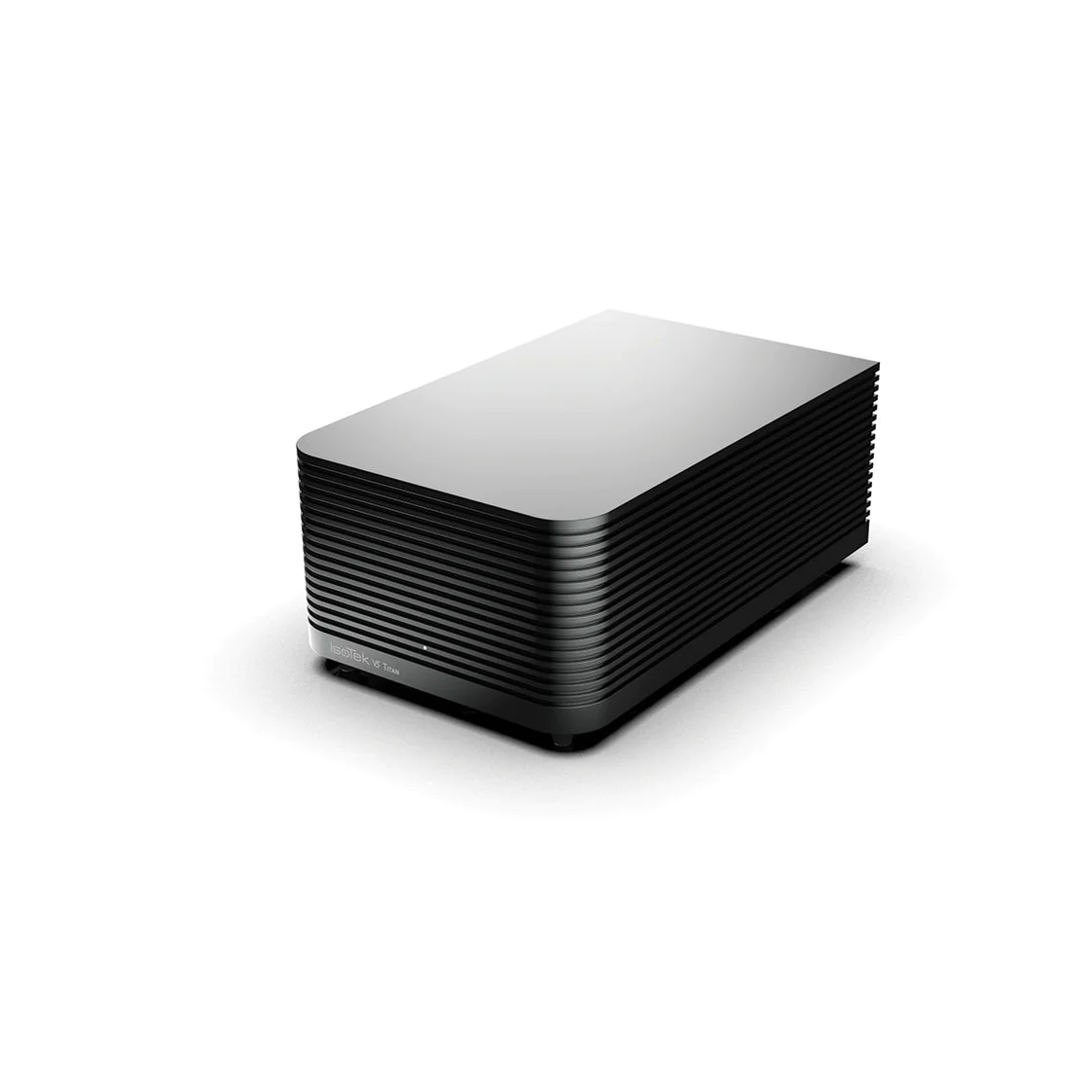

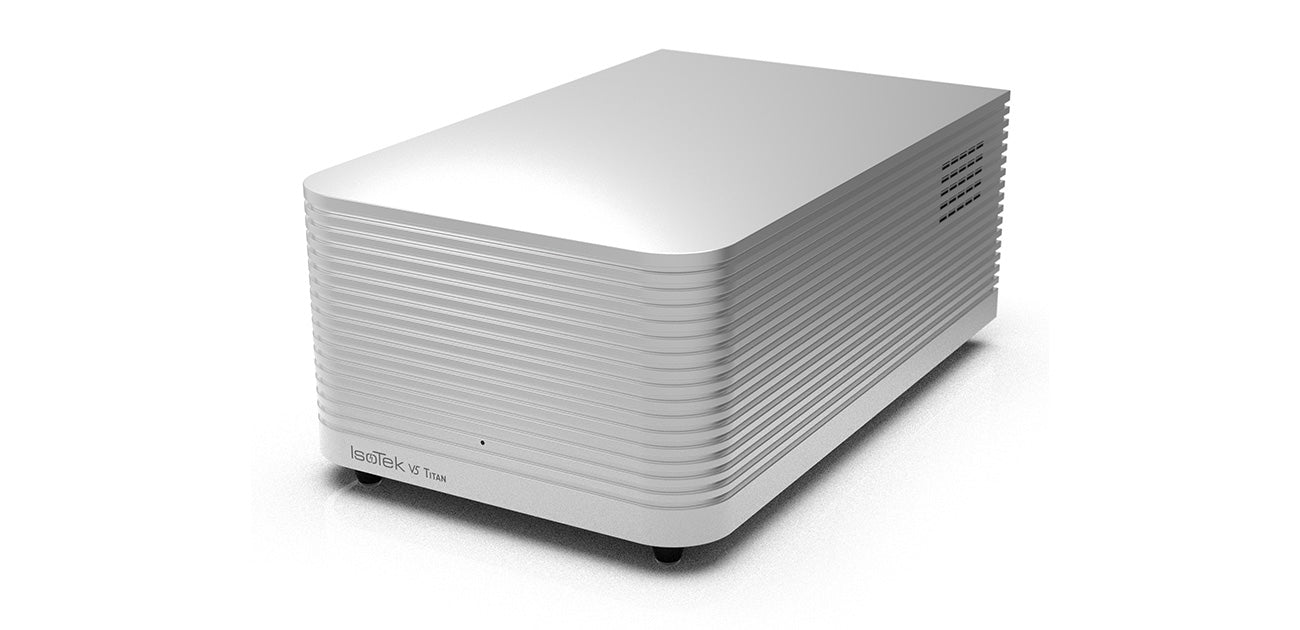

Isotek V5 Titan Power Conditioner
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Isotek V5 Titan Power Conditioner
The original Titan, when launched towards the end of 2004 set a new standard for high current power cleaning systems and went on to win Hi-Fi News power cleaning product of the year in 2005 along with numerous other international awards.
The new V5 model offers an additional third output socket as well as a new ‘System Link’ output, allowing multiple IsoTek devices to be connected via a star earth referencing back to a single wall socket. The legendary Titan Direct Coupled© circuit is also taken to a new level with instant absolute power on tap through over 50% increased PCB copper-loading, moving closer to the ideal of zero Ohms. This vastly improves amperage and decrease resistance. The new circuit also offers twice the inductance with an 80% increase of current handling ability. Protection is also raised to 153’000A instantaneous and 75’000A continuous, it is the most robust surge protection system IsoTek has offered in this model.
FEATURES
- Suitable for high current audio or AV systems
- RFI reduction 85dB (50 ohms standard), down to 5Hz
- Optimised power cleaning circuits effectively remove Common and Differential Mode mains noise
- 3 independent high current outlets for power amps, subwoofers, active loudspeakers (16A)
- Easy reset RCBO fusing system
- 153,500A instantaneous protection, 75,000 continuous
- Fully star-earthed network
- Solid core Ohno Continuous Cast copper silver-plated internal wiring with FEP virtual air dielectric
- SYSTEM LINK outlet for extending the outlets and maintaining a starred earth reference
- Supplied with IsoTek’s award winning EVO3 PREMIER POWER CABLE

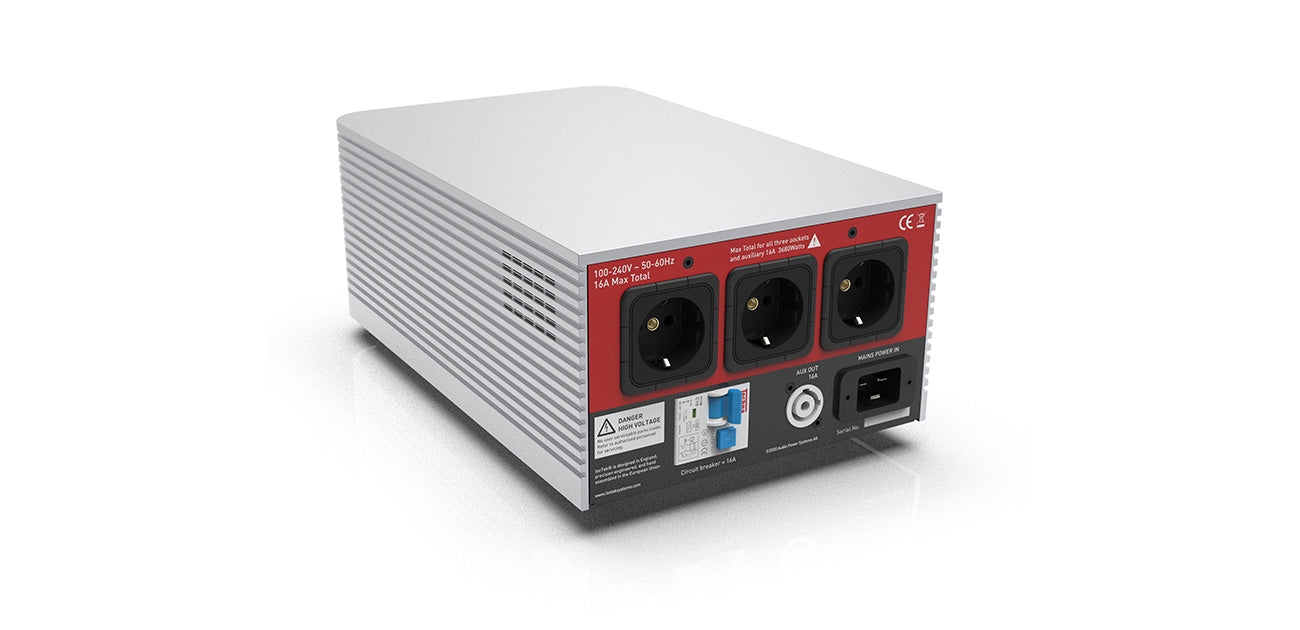

The V5 Titan is a dedicated high current power cleaning and distribution system delivering absolute power. The product measures 220mm in width, 350mm deep and 147mm high. It features 3 independent outlets each one with its own dedicated power cleaning network. Thus, Titan is three high current, low impedance power cleaning networks in a single half width chassis. Both Differential Mode and Common Mode noise are dramatically reduced. Cross contamination of connected components is also kept to a minimum due to the multiple power cleaning stages for each output socket. Most power filters join output sockets together, running each in series. This is an error as Differential Mode Noise created by your connected electronics will cross contaminate from one output socket to the next.
Specifications:
| NUMBER OF OUTLETS | 3 + System Link |
| TYPE OF OUTLETS | UK, EU, US, AU & CH |
| MAINS INLET | 16A IEC C20 |
| MAINS VOLTAGE | 100-240V / 50-60Hz |
| HIGH CURRENT - 230V | x3 (16A 3,680W total) |
| HIGH CURRENT - 115V | x3 (16A 1,840W total) |
| SYSTEM LINK | x1 |
| SURGE PROTECTION | 153,000A |
| DIMENSIONS (W X H X D) | 220 x 147 x 350mm |
| WEIGHT | 12kg |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
