Mola Mola Makua Pre-Amplifier
ANALOGUE DESIGN FOR A DIGITAL AGE

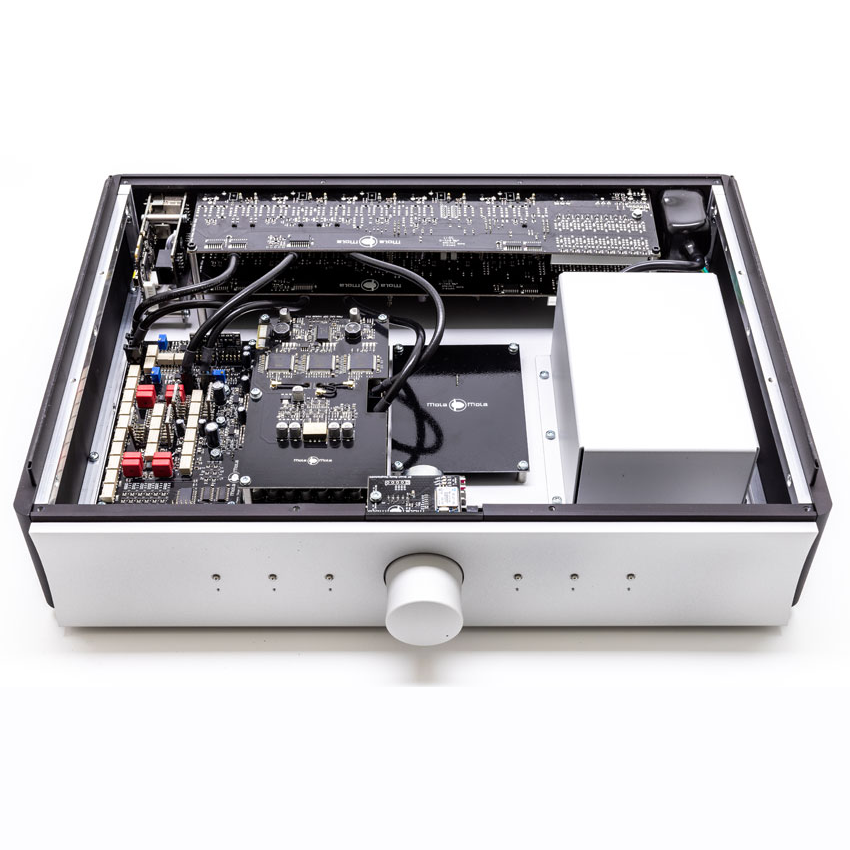

With the knowledge in hand to design minimally invasive electronics without needing to be minimalistic, we decided that our preamp should be complete, very complete. The basic Makua is an extremely transparent gain stage and a programmable routing matrix. The chassis has ample room to fit optional extras, most notably a DAC and a phono stage. The 6 preset buttons are programmable via RS232 or Bluetooth to access any combination of channel, processing and routing. In a system with mainly digital sources, the preset buttons would be programmed to select between them. Vinyl lovers on the other hand might want to use several buttons to select the same turntable but with different EQ settings to suit their large collection of historic LP's.

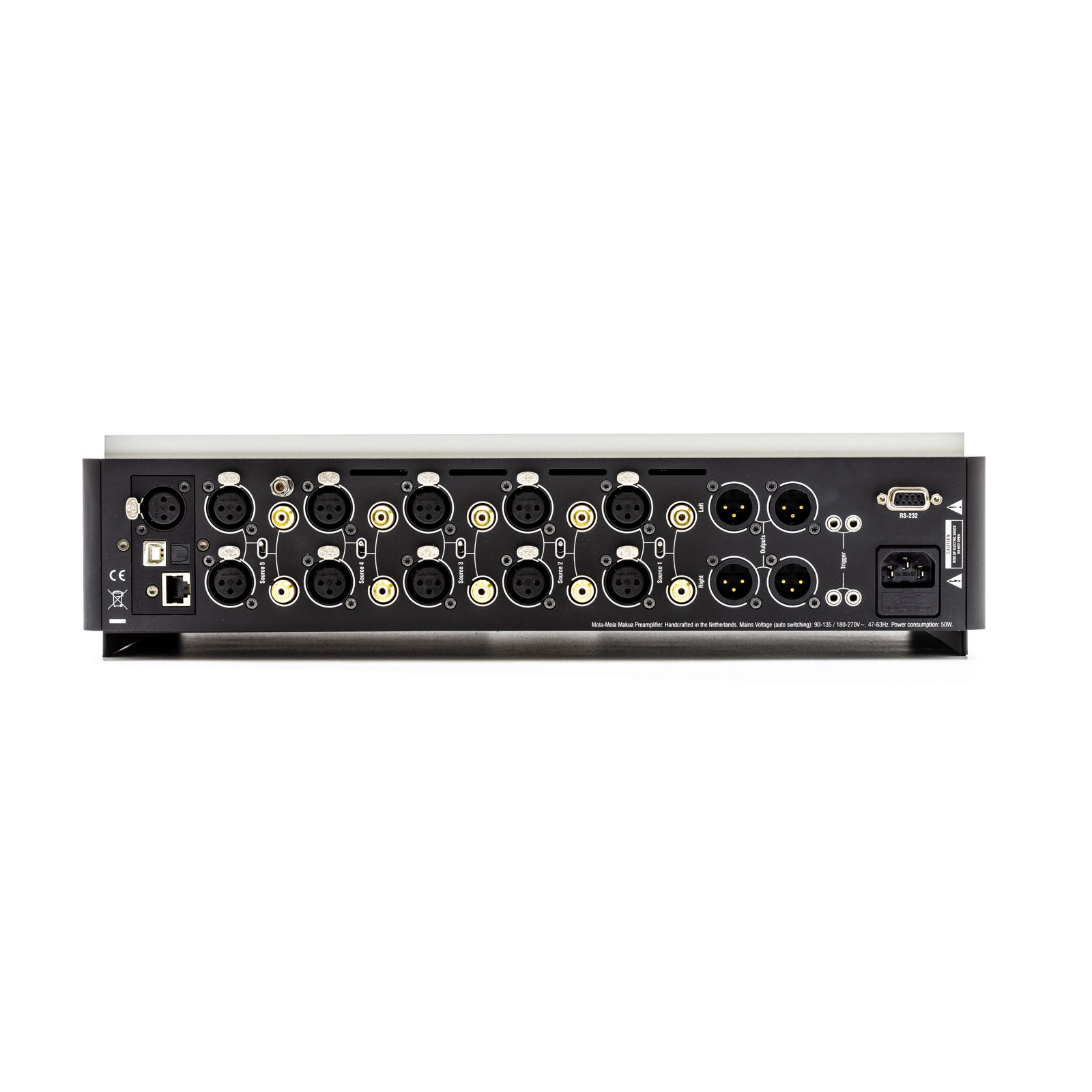

All five inputs are switchable between XLR and floating RCA connections, and all can be assigned as either phono or line. All stages in the Makua use discrete amplifier modules in a little known topology called "single-ended driven differential". Compared to doubly executed signal paths, this structure prevents noise from propagating all the way through. The Makua is amazingly immune to influences like mains quality and choice of interlinks. The relay-based volume control directly controls the gain of the output stage. Dynamic range and linearity of this arrangement is much greater than those of stepped attenuators. Operation is smooth and entirely glitch free.
Specifications
| I/O | 5 balanced and 5 unbalanced inputs, selectable by switch and software 2 parallel balanced outputs for bi-amping (XLR) Mastering mode 4 programmable trigger outputs (3.5mm Jack) All inputs routable through optional processor boards like the phono stage Processing balance and input gain offset Phase invert and mono sum Full software control of routing and processing |
| PERFORMANCE | |
| Maximum input/output level: | 20dBu (7.75Vrms) |
| Unweighted noise voltage at unity gain: | 1.9uV |
| Input impedance: | 100kohm |
| Output impedance: | 44ohm |
| Distortion at maximum signal level (THD, IMD): | not measurable, estimated around -150dB |
| Bandwidth | >200kHz |
| Gain range: | -70dB to +15dB |
| Gain resolution: | <1dB, better than 0.2dB over normal listening range |
| CONTROL | 6 programmable presets (premium) Remote control Mola Mola Remote app RS232 (SUB-D) |
| ADD-ON | Mola Mola Phono stage Mola Mola DAC |
| DIMENSIONS AND WEIGHT | 420mm (W) x 110mm (H) x 345mm (D). Depth includes volume knob and connectors. 11kg |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
