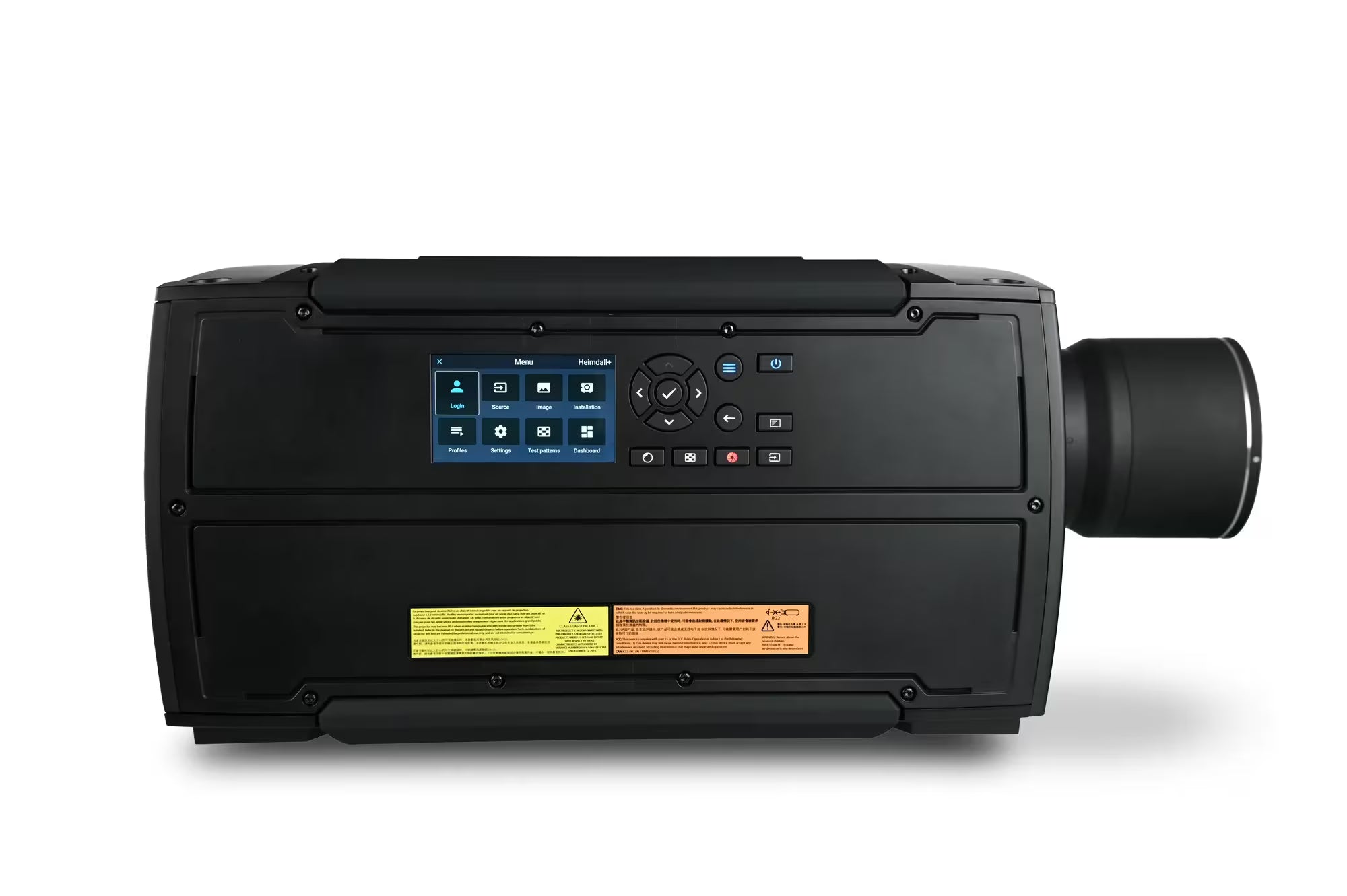

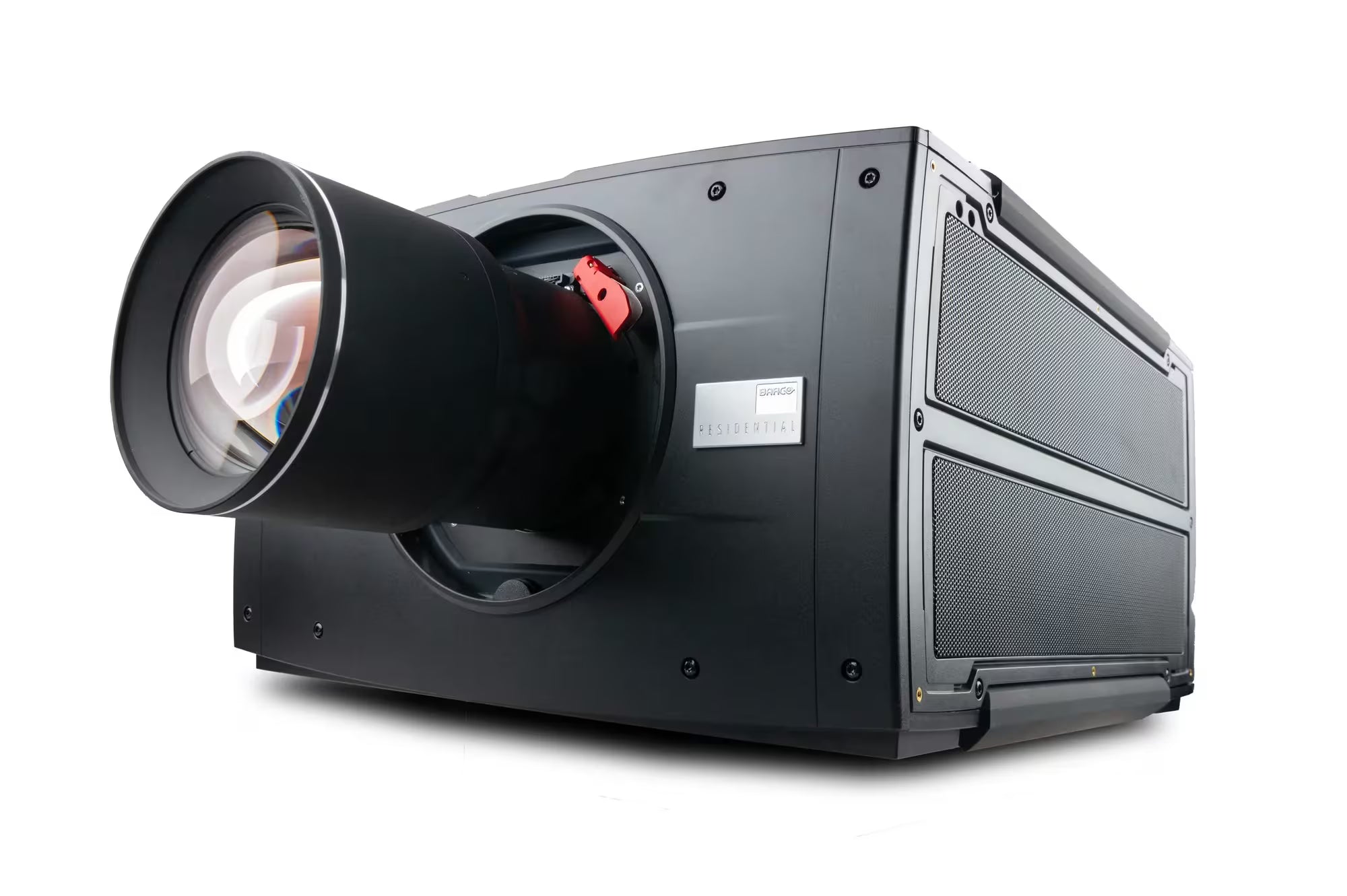

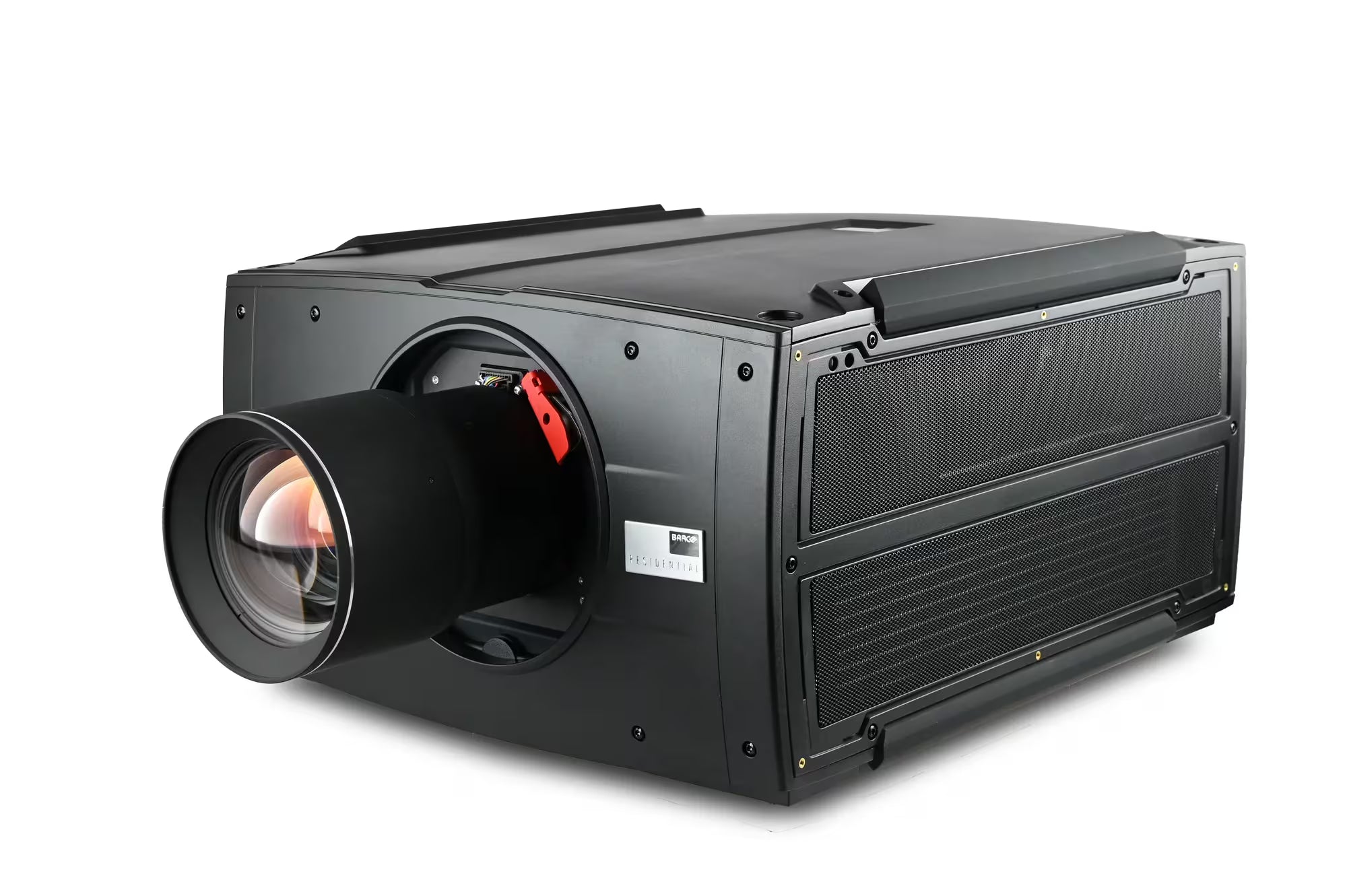

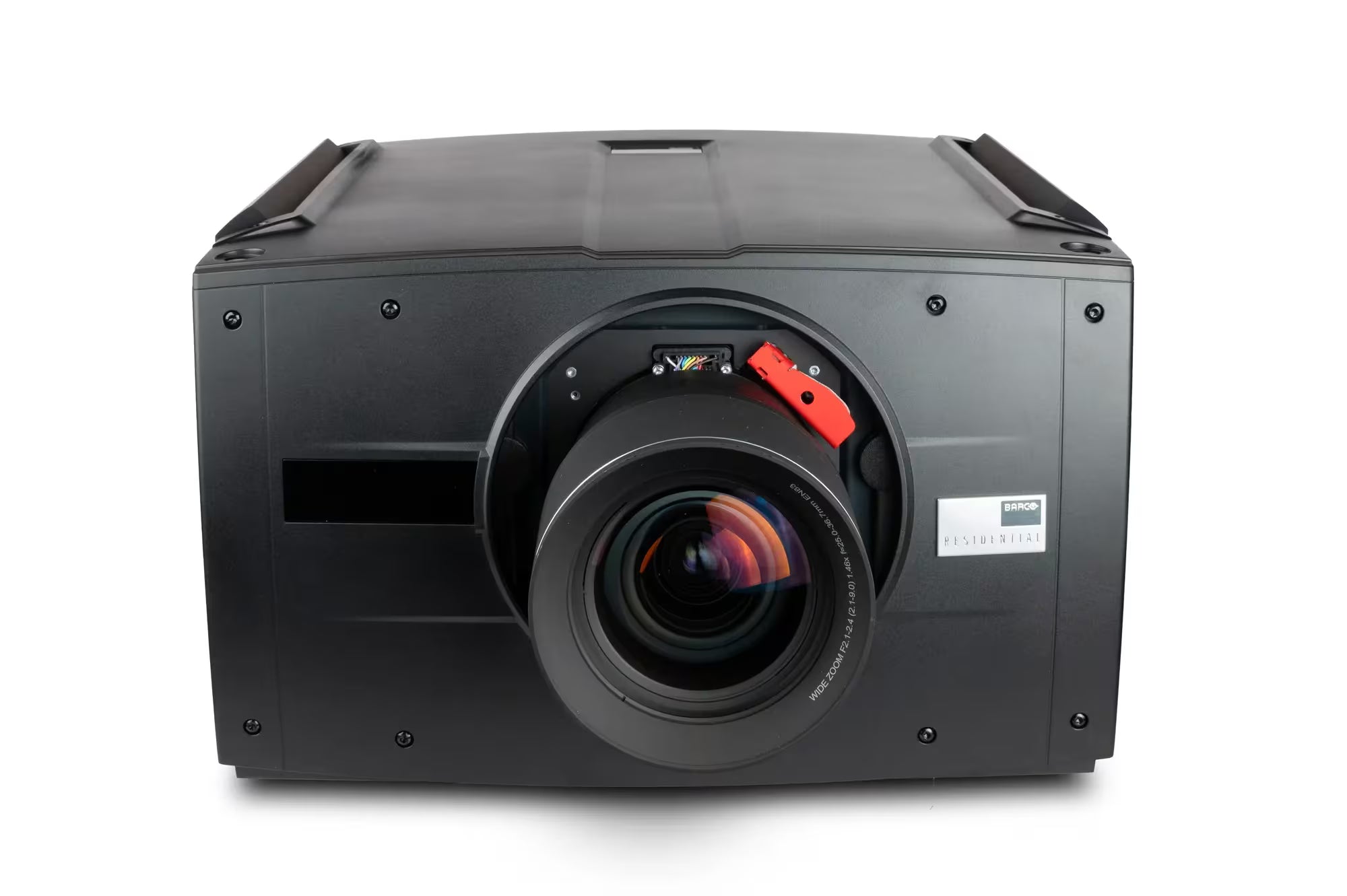

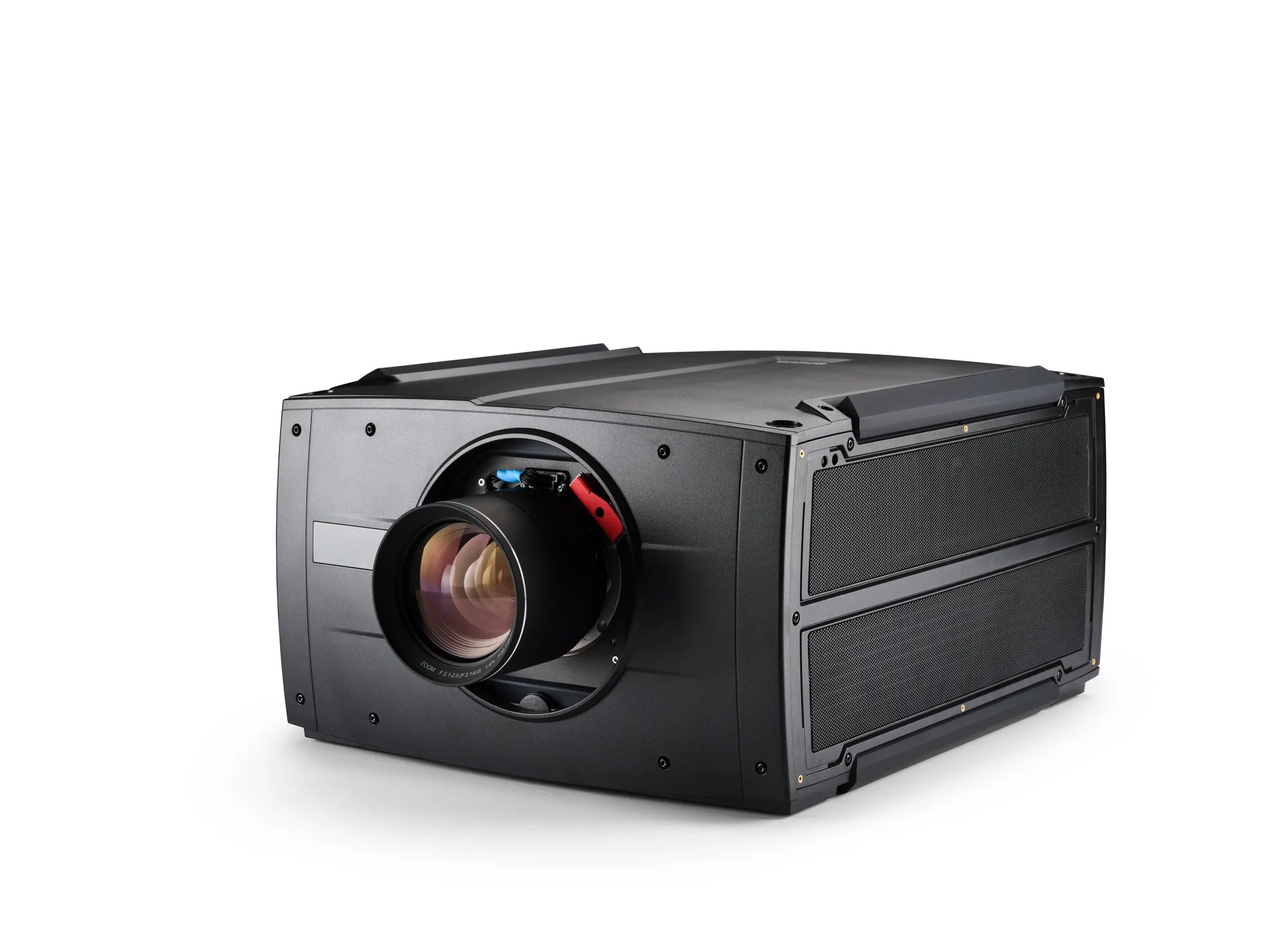

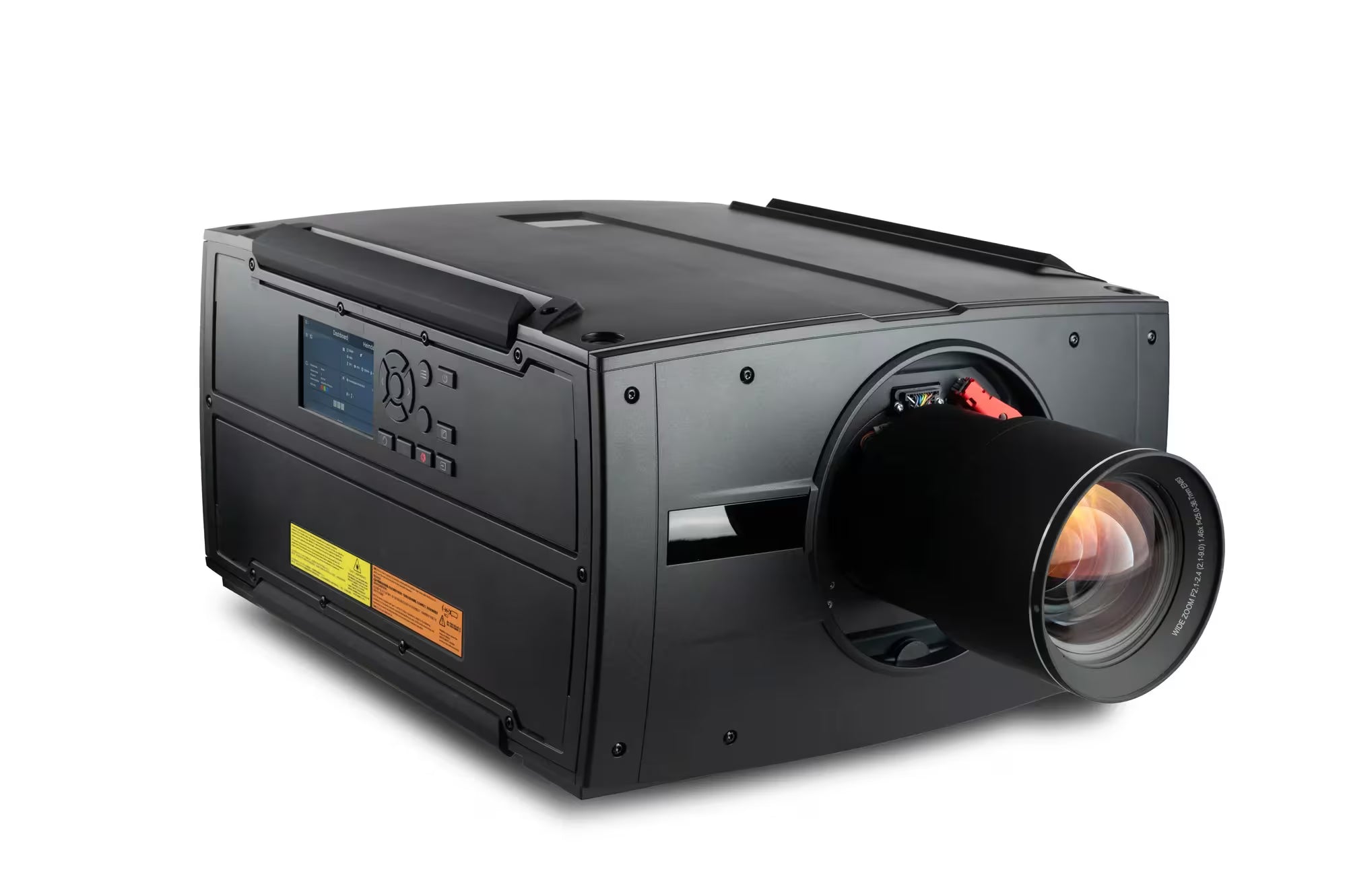

Barco Heimdall Native 4K RGB Laser Projector | 4,500 Lumens | REC.2020
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
This product is not available for purchase online. Please call to enquire.
Pricing excludes lens & installation.
Special Order Item — General ETA +/− 4 weeks.
Barco Heimdall — Native 4K RGB Laser Projector | 4,500 ANSI Lumens | 98% REC.2020
The Barco Heimdall is Barco Residential’s first native 4K single-chip DLP projector, powered by a solid-state RGB laser light engine. Delivering 4,500 ANSI lumens with a native resolution of 4,096 × 2,176 pixels and 98% REC.2020 colour gamut coverage, Heimdall produces an extraordinarily vivid, true-to-life image that sets a new standard for dedicated home cinema.
Native 4K Resolution — 4,096 × 2,176
Unlike pixel-shifted 4K projectors, Heimdall uses a single-chip 4K DMD to deliver every pixel natively — resulting in unmatched sharpness, detail, and clarity across the entire screen, from edge to edge.
Solid-State RGB Laser Light Engine
Heimdall’s brand-new solid-state RGB laser engine has no moving parts, delivering exceptional reliability and a laser lifetime of 25,000 hours at 100% power. The RGB architecture eliminates the colour wheel entirely, enabling the full REC.2020 colour gamut — faithful reproduction of every colour in every movie, exactly as the director intended.
DynaBlack® — Up to 20,000:1 Contrast
DynaBlack® analyses each frame of video and uses ultra-fast processing combined with laser pulsing to dynamically enhance contrast on a frame-by-frame basis — making dark scenes darker and bright scenes brighter for a truly cinematic dynamic range of up to 20,000:1.
Next-Generation Pulse Platform & SSP™
Barco’s Pulse electronics simplify the signal path from source to screen with Single Step Processing (SSP™), delivering geometry correction, warping, blending, and more with virtually no latency — even at 120Hz in native 4K resolution. This makes Heimdall equally exceptional for cinematic viewing and high-performance gaming.
HDMI™ 2.1 Connectivity
HDMI™ 2.1 (HDCP 2.3) supports frame rates up to 120Hz at 4K resolution with 12-bit colour depth — the ideal match for Heimdall’s low-latency design and a perfect platform for next-generation gaming consoles and media players.
Flexible Optics — 7 Lens Options
Seven lens options are available, including the all-new EN83, covering throw ratios from 0.53:1 to 4.05:1 — allowing Heimdall to be installed in virtually any room and any location. All throw ratios are adjusted for the 0.98″ DLP device.
Key Features
- Native 4K resolution: 4,096 × 2,176 pixels (single-chip 4K DMD)
- 4,500 ANSI lumens; solid-state RGB laser — no colour wheel
- 98% REC.2020 colour gamut; DCI-P3 and REC.709 also supported
- DynaBlack®: up to 20,000:1 dynamic contrast
- HDR10 and HLG support
- 25,000-hour laser lifetime at 100% power
- HDMI™ 2.1 (HDCP 2.3): up to 4K @ 120Hz
- Single Step Processing (SSP™): virtually zero latency
- P7 RealColor™ calibration
- 360° free rotation installation
- 7 lens options (0.53:1 to 4.05:1 throw ratio)
- Active stereoscopic 3D ready
- 3-year warranty; extendable to 5 years
Specifications
| Specification | Detail |
|---|---|
| Projector Type | Native 4K Single-Chip DLP RGB Laser |
| Technology | Single-Chip 4K DMD; Solid-State RGB Laser |
| Resolution | 4,096 × 2,176 pixels (Native 4K) |
| Aspect Ratio | 1.88:1 |
| Light Source | Solid-State RGB Laser (no colour wheel) |
| Light Source Lifetime | 25,000 hours at 100% power / 25°C / sea level |
| Light Output | 4,500 ANSI Lumens |
| Contrast Ratio | Up to 20,000:1 (DynaBlack®) |
| Colour Gamut | 98% REC.2020; DCI-P3; REC.709 |
| Colour Correction | P7 RealColor™ |
| HDR | HDR10, HLG |
| Image Processing | Barco Pulse Electronics; Single Step Processing (SSP™); Embedded Warp & Blend Engine |
| Installation Orientation | 360° Free Rotation |
| Input Resolutions | Up to 4,096 × 2,160 @ 120Hz (RGB/YCbCr 4:4:4, 12-bit) |
| Inputs | HDMI™ 2.1 (HDCP 2.3) |
| Control | IR, RJ45 (IP), Optional Cabled Remote |
| Network | 10/100/1000 Mbit Ethernet |
| 3D | Active Stereoscopic 3D |
| Lens Type | EN Series (7 options; throw ratios adjusted for 0.98″ DLP device) |
| Lens Range | EN67: 0.53:1 / EN66: 0.70–1.06:1 / EN76: 0.83–1.14:1 / EN63: 1.06–1.50:1 / EN83: 1.10–1.61:1 / EN61: 1.48–2.18:1 / EN64: 2.19–4.05:1 |
| Lens Adaptor Note | York lens adaptor (R9802623) required for FLDX/FLD+ lenses (EN67, EN66, EN76, EN63, EN61, EN64) |
| Power Requirements | 100–240V~ / 50–60Hz / 7–3A |
| Power Consumption | 520W typical; 750W maximum |
| BTU/h | 1,774 BTU/h typical; 2,545 BTU/h maximum |
| Noise Level | 30 dB(A) at 25°C; 29 dB(A) at 20°C |
| Operating Temperature | 10–40°C (sea level) |
| Operating Humidity | 20–80% RH |
| Storage Temperature | −20 to 60°C |
| Storage Humidity | 10–90% RH |
| Dimensions (W×L×H, excl. lens & feet) | 473 × 563 × 293 mm (18.6 × 22.2 × 11.6 in) |
| Weight (excl. lens) | 31 kg / 68 lbs |
| Shipping Dimensions (excl. lens) | 560 × 765 × 410 mm (22.1 × 30.1 × 16.1 in) |
| Standard Accessories | Power Cord, Remote Control |
| Certifications | CE, FCC Class A, cCSAus |
| Safety Classification | Risk Group 2 (RG2) — only lenses specified in the installation manual are permitted |
| Warranty | 3 years parts & labour (extendable to 5 years) |
Note: Lens sold separately. Only lenses specified in the Heimdall installation manual are permitted for installation.
