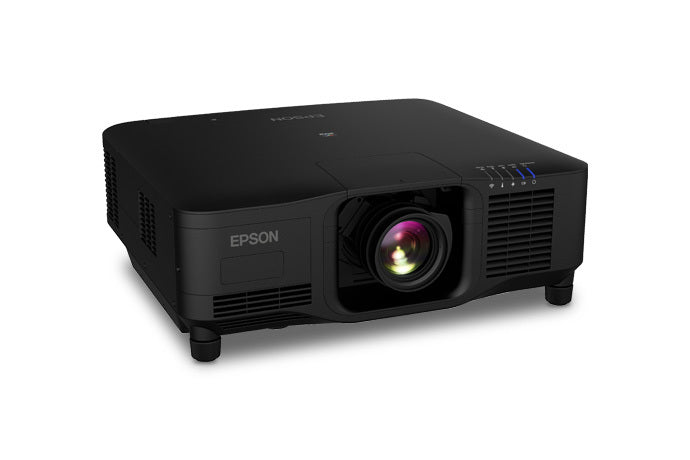

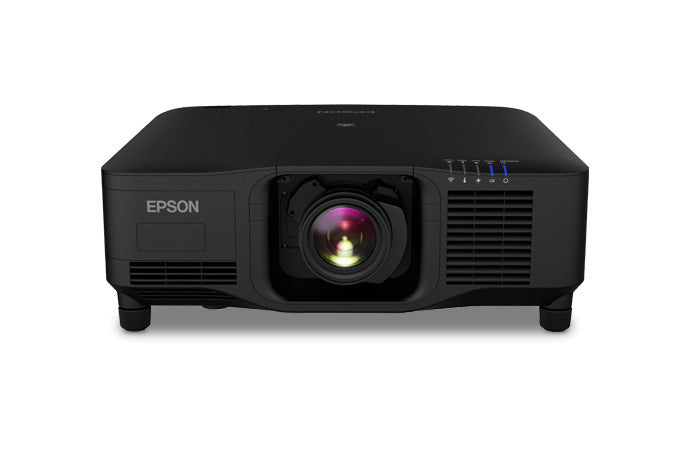

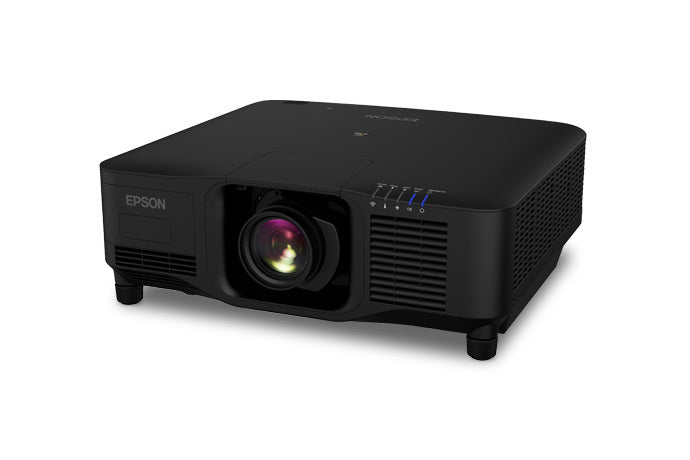

Epson EB-PQ2220B 20,000-Lumen 4K Pro Laser Projector
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
This product is not available for purchase online. Please call to enquire.
Epson EB-PQ2220B — 20,000-Lumen 4K Pro Laser Projector
Experience uncompromising image quality with the Epson EB-PQ2220B, a professional-grade 3LCD laser projector engineered for large-venue installations, auditoriums, and premium home cinema environments. Delivering a breathtaking 20,000 lumens of colour and white brightness, this projector ensures vivid, true-to-life images even in challenging lighting conditions — with zero lamp replacement required for up to 20,000 hours of operation.
Powered by Epson's advanced 3-chip 3LCD laser engine, the EB-PQ2220B produces stunning native 4K resolution imagery with exceptional colour accuracy, deep contrast, and virtually zero colour breakup. Whether projecting onto a 500-inch screen in a conference hall or a dedicated cinema room, this projector delivers cinematic performance at every scale.
Key Highlights
- 20,000 lumens colour and white brightness for large, bright environments
- Native 4K resolution (3840 × 2160) via 3LCD laser engine
- Up to 20,000 hours maintenance-free laser light source
- Flexible lens options with motorised zoom, focus, and lens shift
- HDR10 & HLG support for premium content compatibility
- No lens included — compatible with Epson's full range of interchangeable lenses
- Portrait mode and geometric correction for versatile installation
- 4K/60Hz input via HDMI 2.0 and HDBaseT
Technical Specifications
| Specification | Detail |
|---|---|
| Model | EB-PQ2220B |
| Display Technology | 3LCD, 3-chip |
| Native Resolution | 4K (3840 × 2160) |
| Brightness (Colour) | 20,000 lm |
| Brightness (White) | 20,000 lm |
| Contrast Ratio | 2,500,000:1 (dynamic) |
| Light Source | Laser |
| Light Source Life | Up to 20,000 hours (Normal mode) |
| Aspect Ratio | 16:9 (Native) |
| Throw Ratio | Depends on lens (no lens included) |
| Lens | Not included — interchangeable (ELPLX02S, ELPLU03S, etc.) |
| Zoom | Motorised (lens dependent) |
| Lens Shift | Motorised vertical and horizontal (lens dependent) |
| Keystone Correction | ±45° vertical, ±30° horizontal (manual) |
| HDR Support | HDR10, HLG |
| Colour Gamut | DCI-P3 (approx. 100%) |

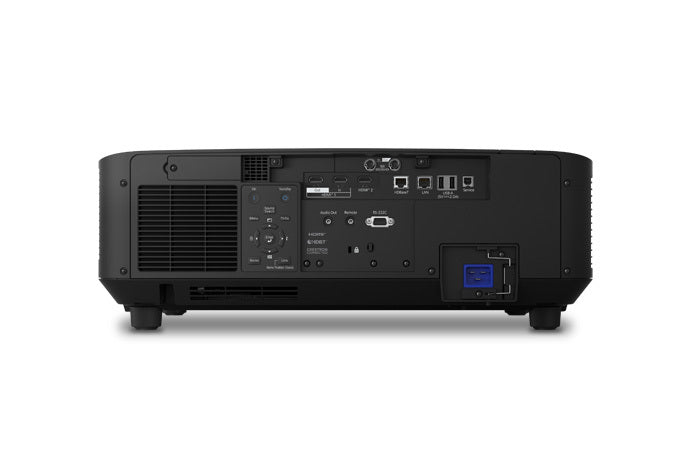

| Inputs | HDMI 2.0 ×2, HDBaseT ×1, DVI-D ×1, SDI ×1, VGA ×1, USB-A ×2 |
| Network | RJ-45 (100Base-TX), RS-232C, Wired LAN |
| Wireless | Optional (via USB adapter) |
| Colour Reproduction | Up to 1.07 billion colours |
| Portrait Mode | Yes |
| Geometric Correction | Yes (Point correction, curved surface) |
| Edge Blending | Yes |
| Multi-Projection | Yes |
| Noise Level | 38 dB (Normal mode) |
| Power Consumption | 1,550 W (Normal mode) |
| Standby Power | 0.5 W |
| Operating Temperature | 5°C – 45°C |
| Dimensions (W×H×D) | 620 × 274 × 655 mm (without lens) |
| Weight | Approx. 50 kg (without lens) |
| Colour | Black |
| Warranty | 3 years (parts & labour) / 1 year on-site |
Specifications sourced from Epson official product documentation. Contact us for lens compatibility, installation support, and volume pricing.
