Lumin AMP Class A/B Stereo Amplifier - 160W Dual Mono Power Amplifier
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days

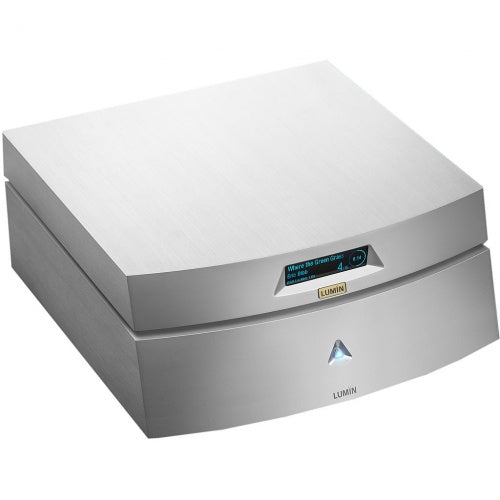

Lumin AMP Class A/B Stereo Amplifier
CHECK INSTORE FOR AVAILABILITY
Premium Performance Amplification
Featuring everything you need and nothing you don't, the Lumin AMP focuses purely on performance. Experience exceptional sound quality with true dual mono design and Class A/B operation for the finest musical details with minimal distortion.
Key Features
- Multi-stage transistor amplifier with Class A/B operation
- True dual mono power supply and amplifier design
- Fully discrete voltage and current gain stages
- DC-coupled signal path for superior transparency
- High input impedance and sensitivity for direct DAC drive
- Intelligent bias and thermal management
- Flexible operation: Stereo / Dual Mono / Bridged modes
- CNC-machined single billet aluminium construction
- 600VA custom toroidal transformer
- Built-in overload, overheat and DC protection
Matched Styling. Unmatched Performance.The Lumin AMP combines elegant design with exceptional audio engineering, delivering pure, uncolored sound reproduction that reveals every detail in your music. |
![]() |
![]() |
True Dual Mono Design ThroughoutKeeping the design dual mono all the way from the power supply delivers full power simultaneously from both channels and keeps crosstalk to an absolute minimum. In the Lumin AMP, each channel is a mirror image of the other, ensuring perfect stereo imaging and channel separation. |
Discrete TransistorsFully discrete voltage and current gain stages operating in Class A/B deliver the finest details with the lowest distortion from your music, revealing nuances that lesser amplifiers miss. |
![]() |
![]() |
Custom Low-Noise Toroidal Power SupplyThe Lumin AMP features a unique completely separate dual mono power supply design with a 600VA custom toroidal transformer. The ultra-low noise design features advanced voltage regulation circuitry for clean, stable power delivery. |
Technical Specifications
| Operating Mode: | Selectable: Stereo, Dual Mono or Bridged mode |
| Input: | 1 x XLR pair (pin 2 hot), 1 x RCA pair (selectable) |
| Power Output: | 160W per channel into 8Ω 320W per channel into 4Ω 640W into 8Ω (Bridged) |
| Power Supply: | Available in 220–240V AC and 110–120V AC versions ~ 50/60Hz |
| Power Consumption: | Standby <0.5W Idle 40W Max 700W |
| Frequency Response: | 20Hz - 40kHz ± 0.1dB |
| Signal to Noise Ratio: | 103dB, unweighted |
| Input Impedance: | 200kΩ Balanced (XLR) 100kΩ Unbalanced (RCA) |
| Output Impedance: | 0.1Ω |
| Input Sensitivity: | 1.16Vrms |
| Gain: | +26dB (Stereo, Dual Mono) +32dB (Bridged) |
| Protection: | DC, overload and overheating protection |
| Finishes: | Black anodized brushed aluminium or Raw brushed aluminium |
| Construction: | CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate |
| Dimensions: | 350mm (W) x 374mm (D) x 104mm (H) |
| Weight: | 19kg |
Manufacturer: Lumin
Product Type: Stereo Power Amplifier
Ideal For: High-end audio systems requiring exceptional amplification and sound quality
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
