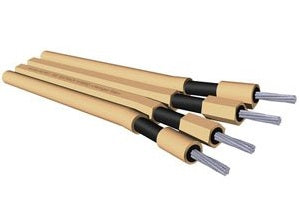

Van Den Hul The Teatrack Hybrid Bi-Wire Preterminated
Fitted with 12 x Berri connectors & Heat-shrinks
The TEATRACK HYBRID is the quadruple lead / bi-wiring version of our The CS – 122 HYBRID.
The TEATRACK HYBRID is a member of our quadruple lead / bi-wiring loudspeaker cable range.
Its four leads each feature 147 high purity dense Silver coated high purity Matched Crystal Oxygen Free Copper (OFC) strands with an effective cross-section area of 2.96 mm² equalling AWG 12.5 and exhibiting a resistance of 0.58 Ohm per 100 meter.
Covering each conductor is a layer containing our Linear Structured Carbon ®; This combination of metal and carbon (hybrid technology) has excellent properties when it comes to resolution and neutrality.
The cable’s cream colored jacket is made of our HULLIFLEX ® 5; a material with excellent mechanical, chemical and environmental properties, thus providing the cable with an optimal protection.
The TEATRACK HYBRID’s external dimensions are: 25.5 mm. wide and 6.0 mm. thick.
Polarity determination is simple: the four conductors have different insulator shapes, furthermore, one set has two cuts and the other set has only one cut and a flat surface at the other side with type printing.
Type printing at 25 cm. (10″) distance allows easy cutting of lengths.
It is advised to use the two inside conductors as the cold (-) leads and both outer conductors as the hot (+) leads.
Next to our standard sales units (see specifications below) The TEATRACK HYBRID is also available on 50 m. reels packed in a 320 x 320 x 310 mm. box with a total shipping weight of 13.8 kg.
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
