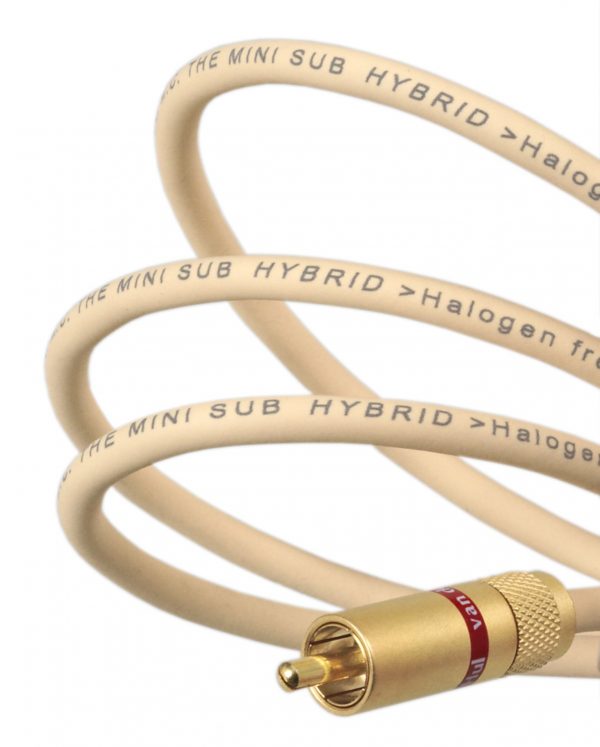

Van Den Hul The MINISUB Hybrid Subwoofer Cable
The MINISUB Hybrid has been designed as a premium active subwoofer cable. Extremely flexible with an attractive cream-colored jacket that blends seamlessly into any interior, making it ideal for longer subwoofer cable runs and interconnections requiring a very flexible, price-efficient solution.
This design successfully combines superior transmission quality, very low conductor-conductor capacitance, high screening factor, exceptional mechanical flexibility, and long durability.
Technical Specifications
| Material | Hybrid |
| Cable Type | Screened twin core (Balanced) |
| Conductor Material | Large Crystal OFC with dense Silver coating |
| Design Purpose | Active Subwoofer cable / Stereo Interconnect |
| Conductor Configuration | 2 × 12 strands × 0.15mm (AWG 24 each) |
| Effective Conductor Area | Cores: 0.212 mm² / AWG 24 (12 strands each); Screen: 144 strands |
| External Diameter | 5.0 mm |
| Jacket Material | HULLIFLEX® (Halogen Free) |
| Jacket Color | Cream |
| Resistance | Cores: 8.5 Ω/100m; Screen: 1.7 Ω/100m |
| Capacitance | Core-to-core: 44 pF/m |
| Insulation | Cores: Polypropylene foam; Jacket: HULLIFLEX® / 300 Vrms min. |
| Compatible Connectors | Neutrik XLR, Neutrik 1/4" (6.3mm) Jack/Phone plug, RCA type C-5.5 |
| Standard Lengths Available | Stereo pairs: 0.8, 1.0, 1.2, 1.5m; Single: 2.0, 3.0, 4.0, 5.0, 7.5m Custom assembled |
Key Features
- Balanced construction with two centre conductors in red and black foamed polypropylene insulation
- Large crystal OFC conductors with dense silver coating for superior signal transmission
- HULLIFLEX® jacket provides superior longevity without aging effects compared to PVC
- Very low capacitance and high screening factor for minimal signal degradation
- Extremely flexible design ideal for custom installations
- Halogen-free construction
- Custom mountable on ordered lengths
Note: RCA connector terminated units are equipped with a ground-end marking sticker.
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
