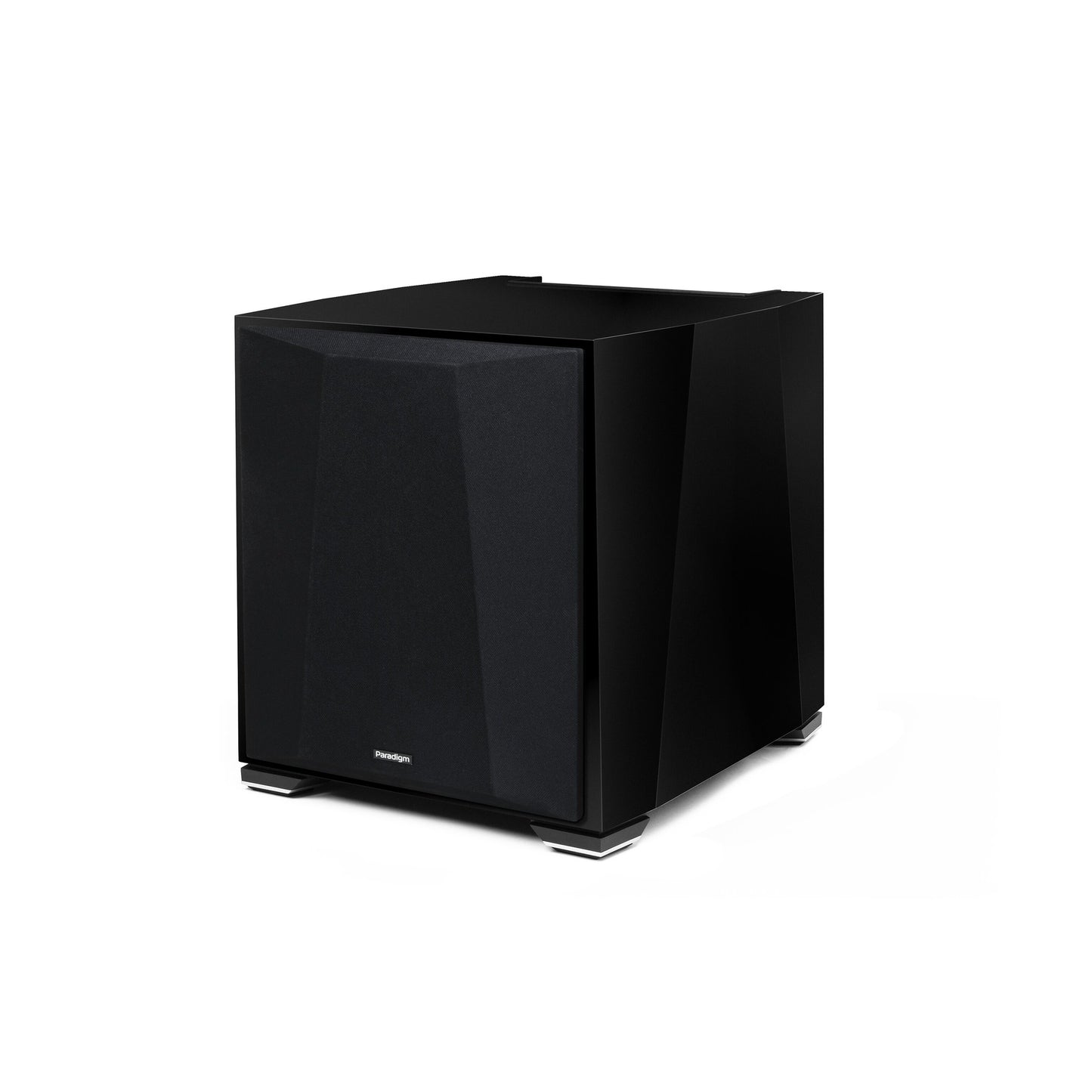

Paradigm XR13 Subwoofer
13” (330 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-FusionTM Bracing and ADVANCED Shock-Mount™, built-in Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included
Advanced Shock-Mount Technology
Paradigm’s exclusive Advanced Shock-Mount enabled outriggers are designed with multi-layered durometer rubber-metal matrices to provide industry-leading isolation whose benefits can be measured and heard in the real world.
Not only does this give a more accurate sound while elevating low-frequency performance, but it is also a neighbour-friendly technology.
By isolating the massive forces generated by the Ultra Long Throw Trilinear Suspension woofer, we prevent that energy from being transferred to your floor. This drastically reduces distracting bass-induced rattles and vibrations around the room and helps avoid noise complaints from adjoining spaces and neighbours.
Specifications
| DESIGN | 13” (330 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-Fusion™ Bracing and ADVANCED Shock-Mount™, built-in Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included |
| AMPLIFIER FEATURES | Auto-On / Off, Trigger On / Off |
| ROOM CORRECTION | ARC Genesis (microphone included) |
| FREQUENCY RESPONSE ON-AXIS | ±3dB from 17 Hz to 140 Hz |

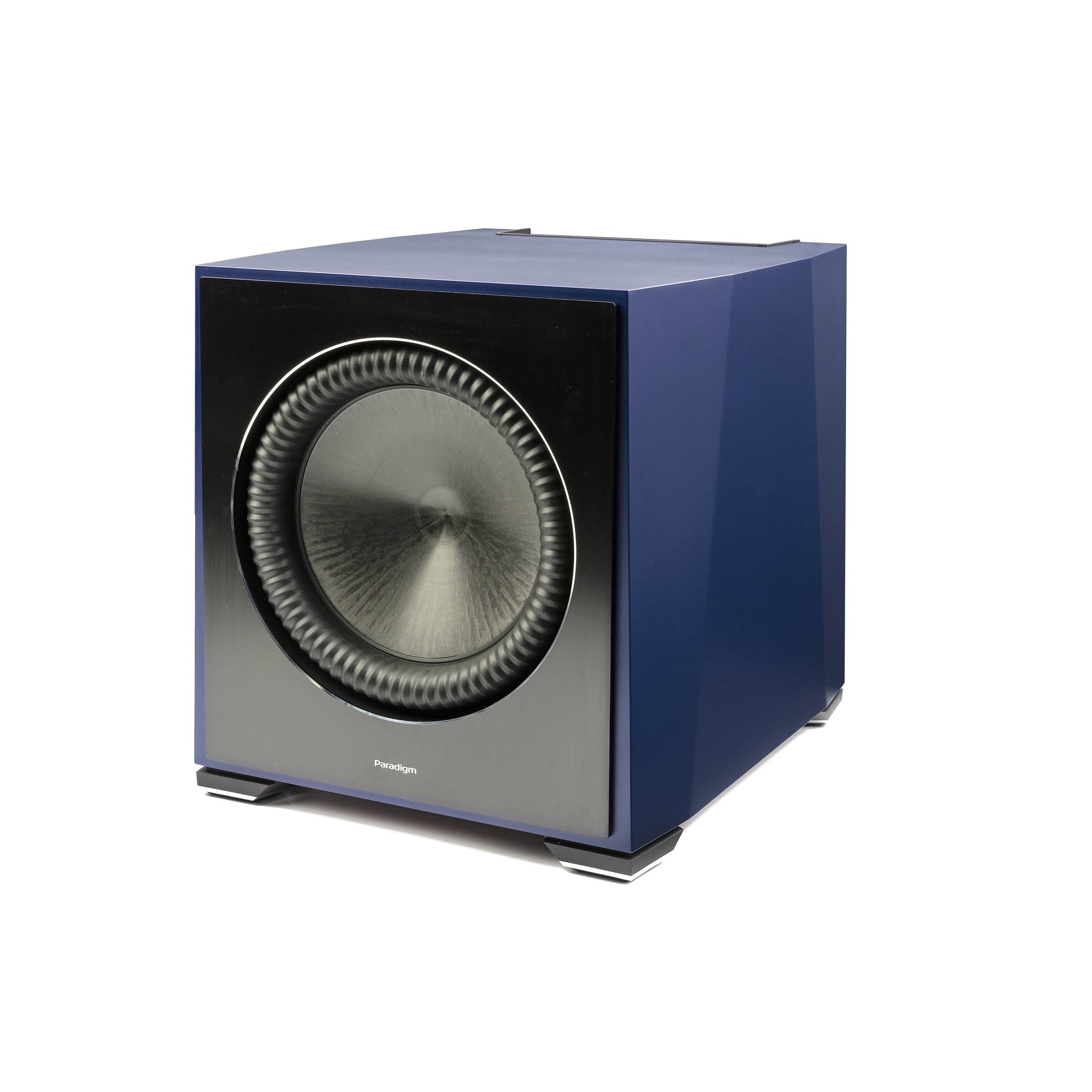

| LOW FREQUENCY DRIVER | 13” (330 mm) Ultra-High-Excursion CARBON-X Unibody Bass Driver, with Trilinear Suspension System and Active Ridge Technology (ART™), 2” high-temperature voice coil |
| EFFECTIVE PISTON AREA (SD) | 93.7 sq in / 0.06 sq m |
| EFFECTIVE DISPLACEMENT | 366.1 cu in/6 L |
| LOW FREQUENCY RESPONSE | 12 Hz (DIN) |
| AMPLIFIER POWER | Power measurements underway to ensure compliance with new FTC regulations |
| UNBALANCED INPUTS | Stereo or Mono (dual RCA jacks)/LFE RCA jack |
| BALANCED INPUTS | One Balanced XLR (LFE) |
| SPEAKER/HIGH-LEVEL INPUTS | Left and right speaker level inputs |
| INPUT GROUNDING | Grounded |
| POLARITY | 0 or 180 degrees |
| PHASE | Variable 0°-180° |
| DIMENSIONS HXWXD | 18.8” x 17.3 ” x 19.4” (47.8cm x 43.8cm x 49.3cm) |
| WEIGHT | 103.8 lb / 47.1 kg |

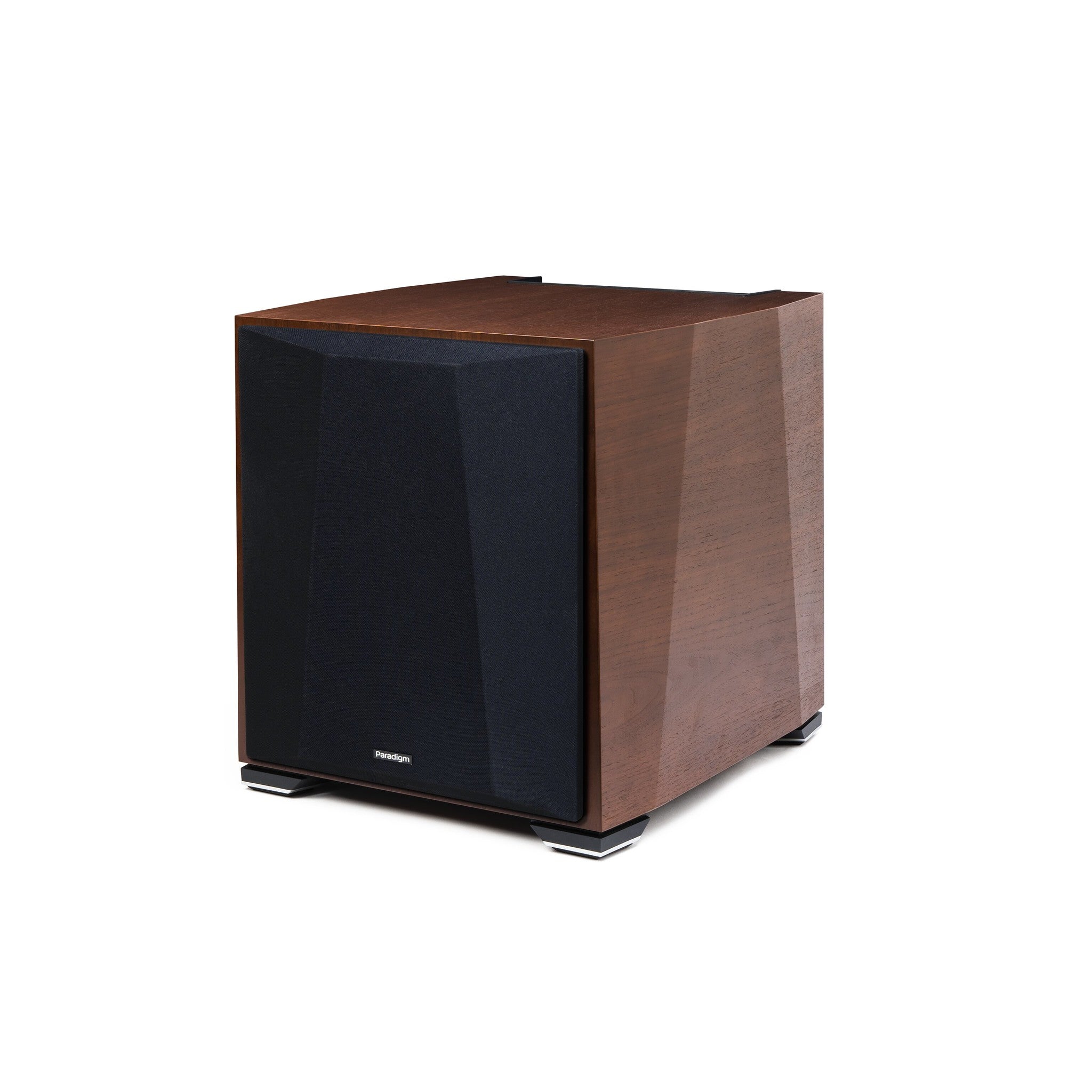

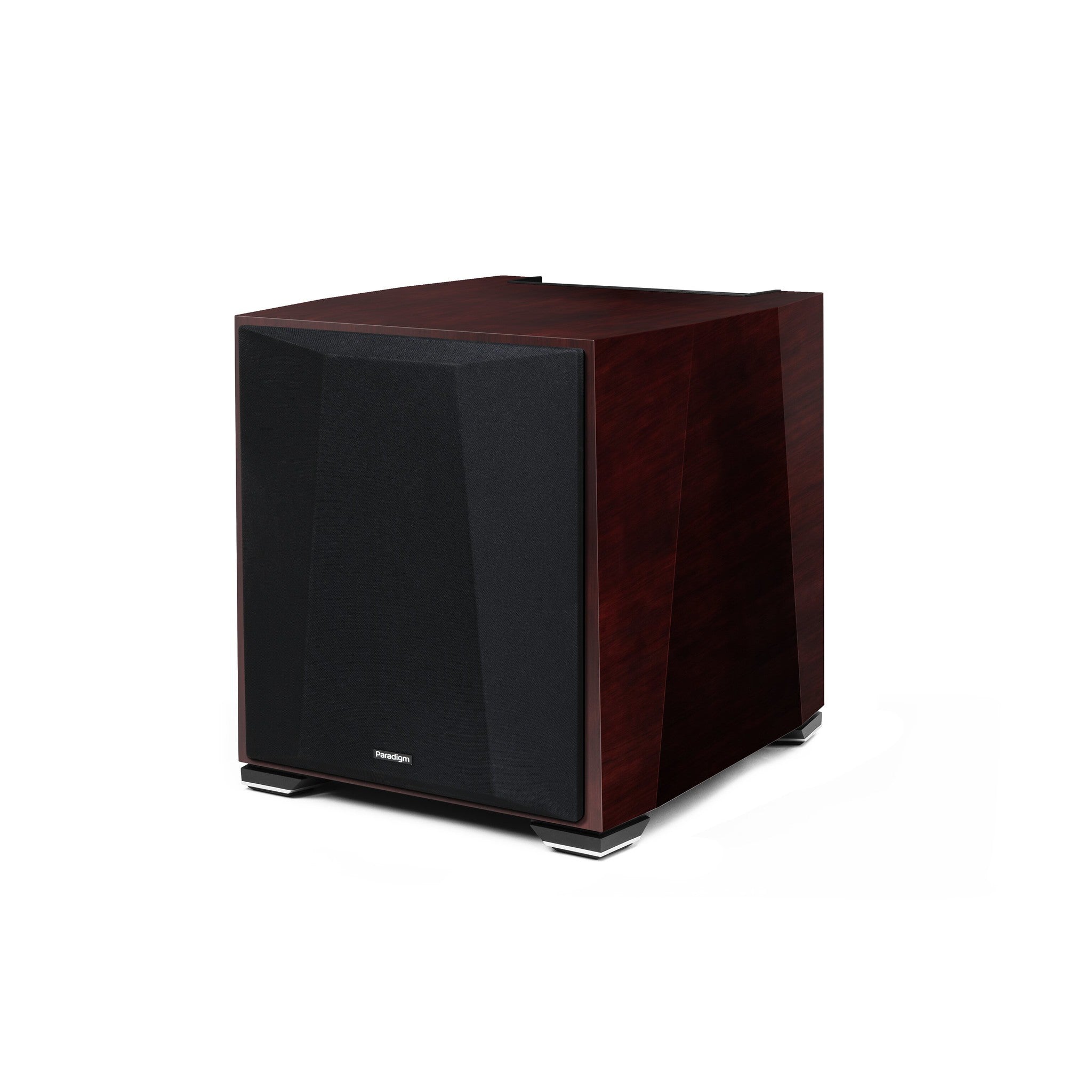

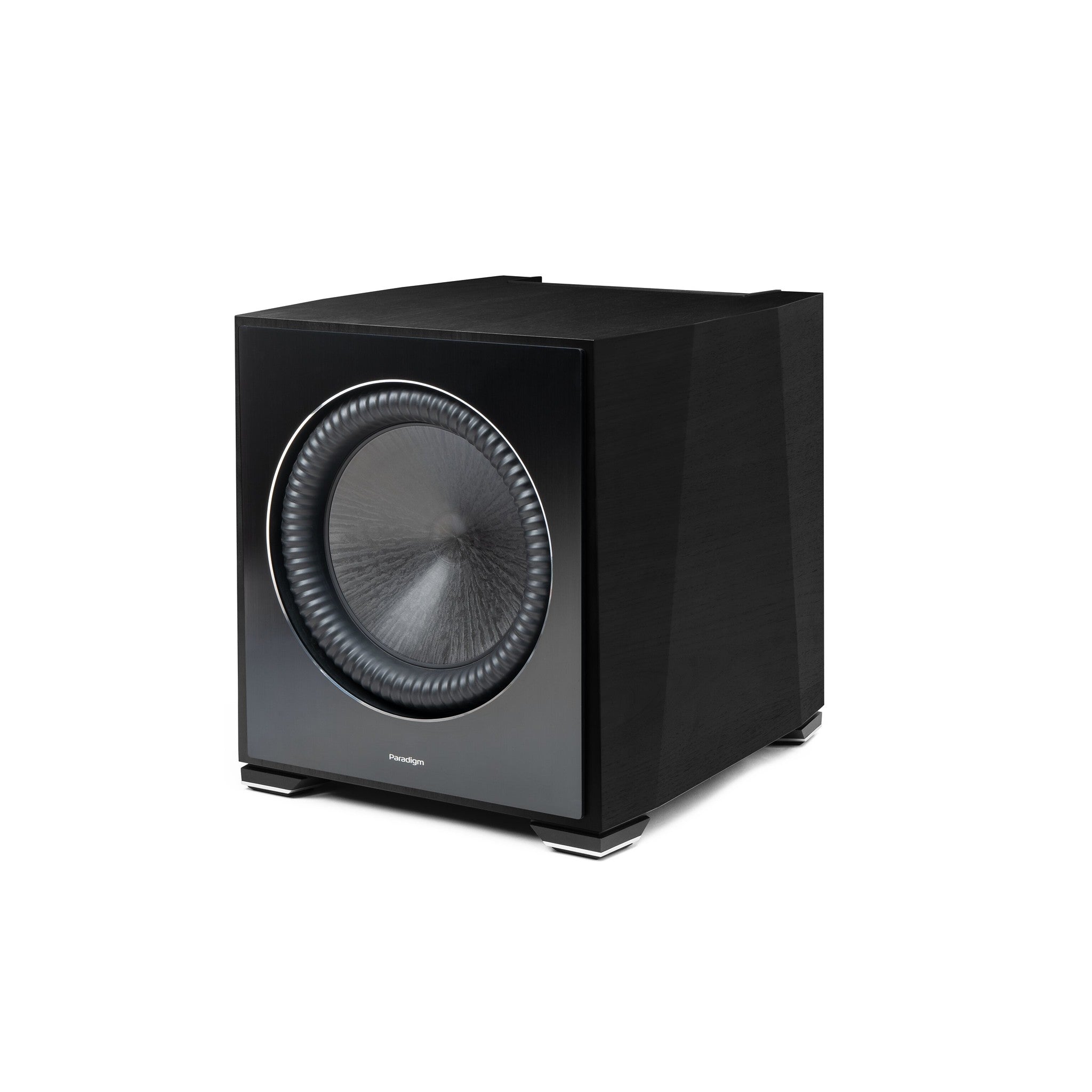

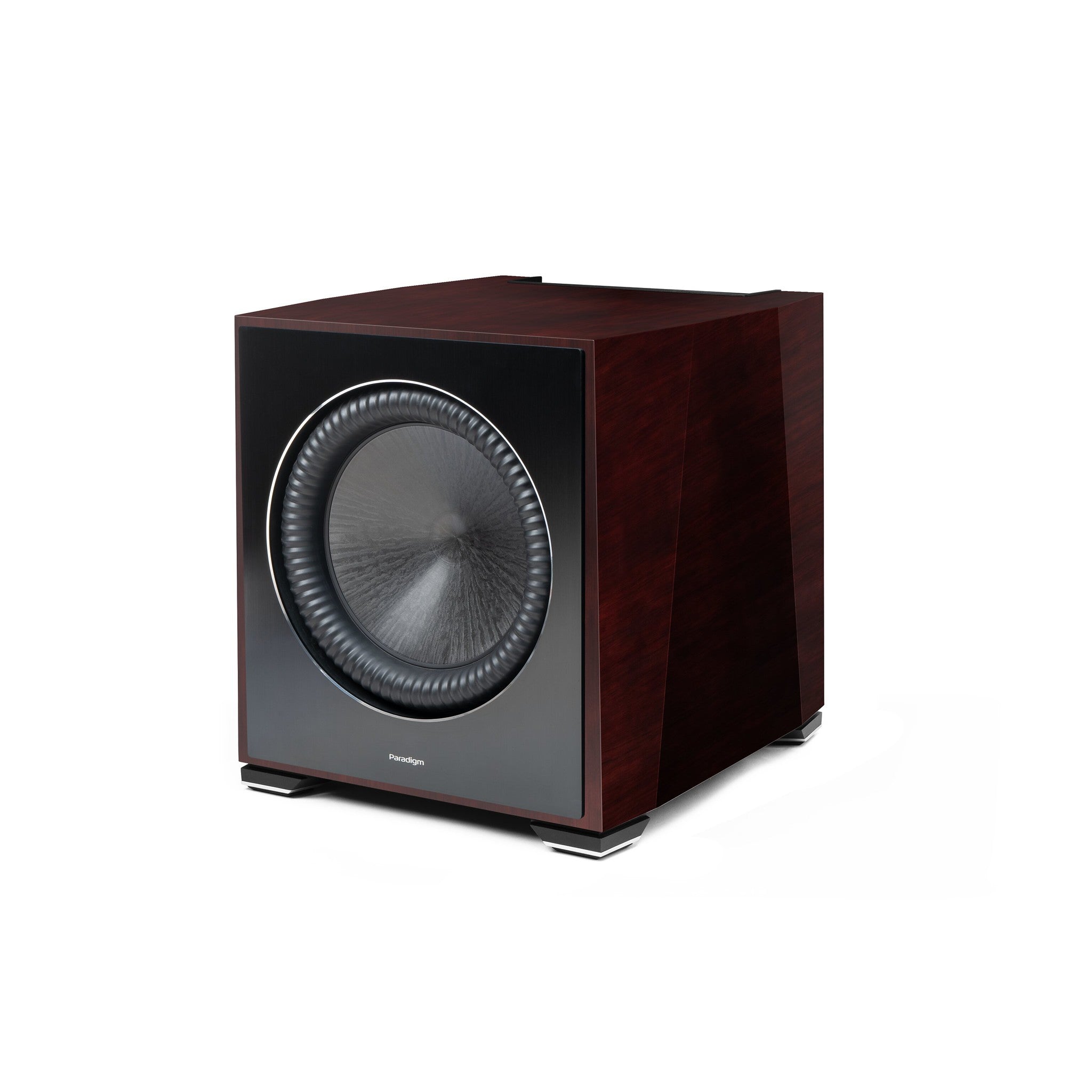

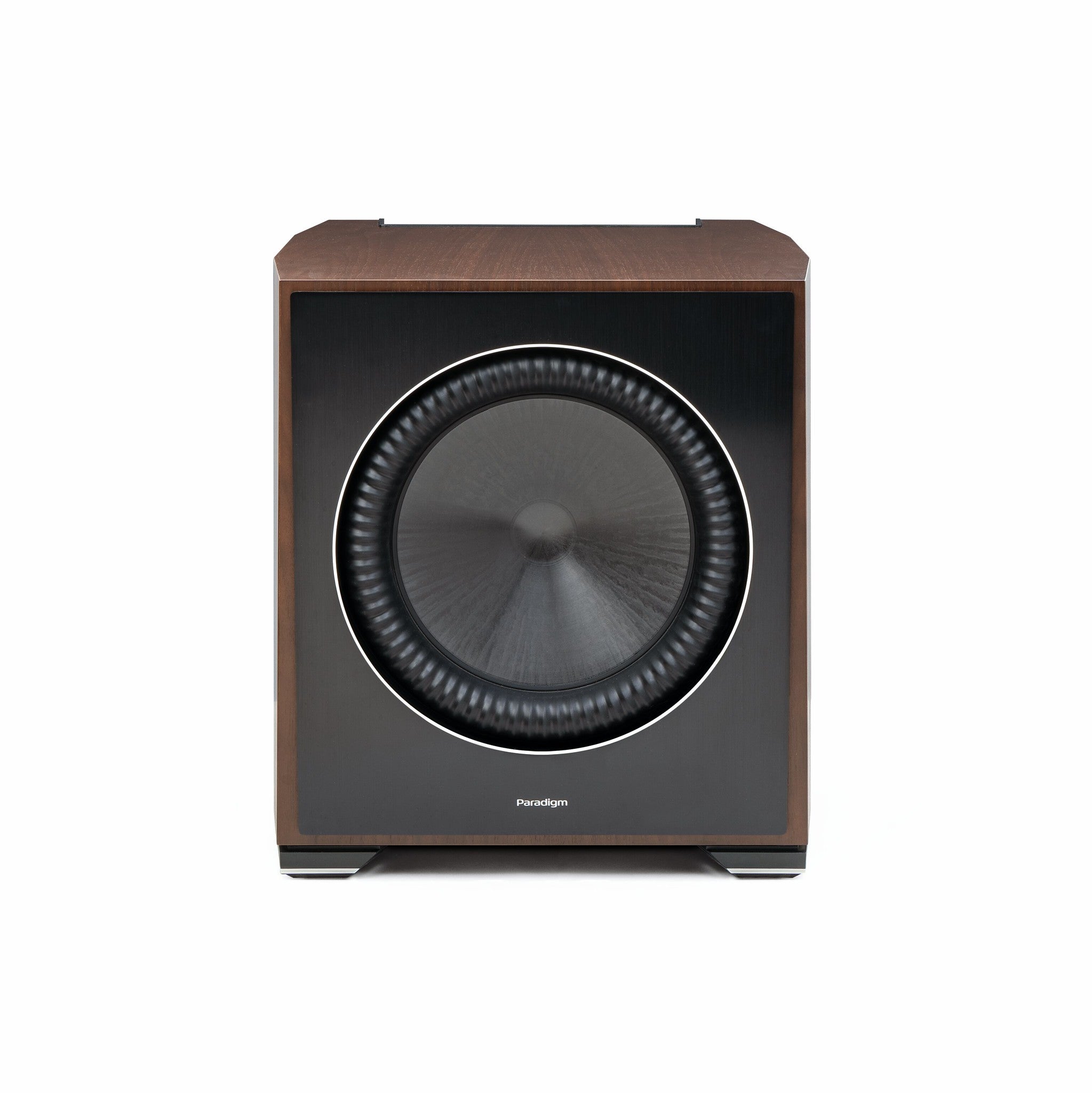

| FINISHES | Gloss: Piano Black & Midnight Cherry Satin: Walnut & Black Walnut |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
