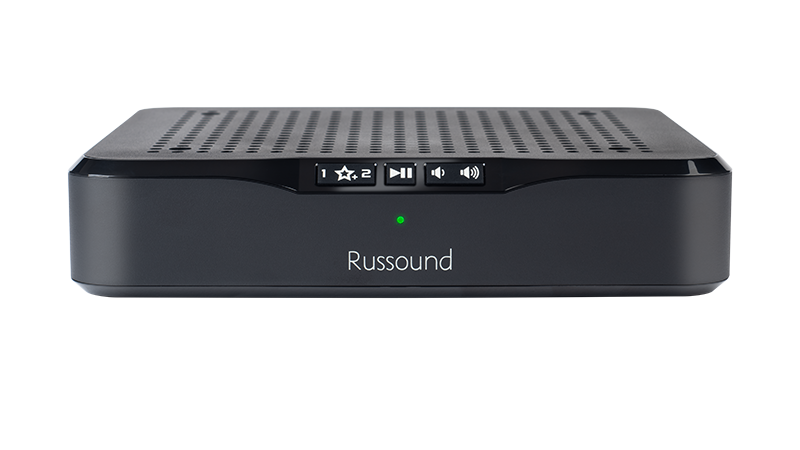

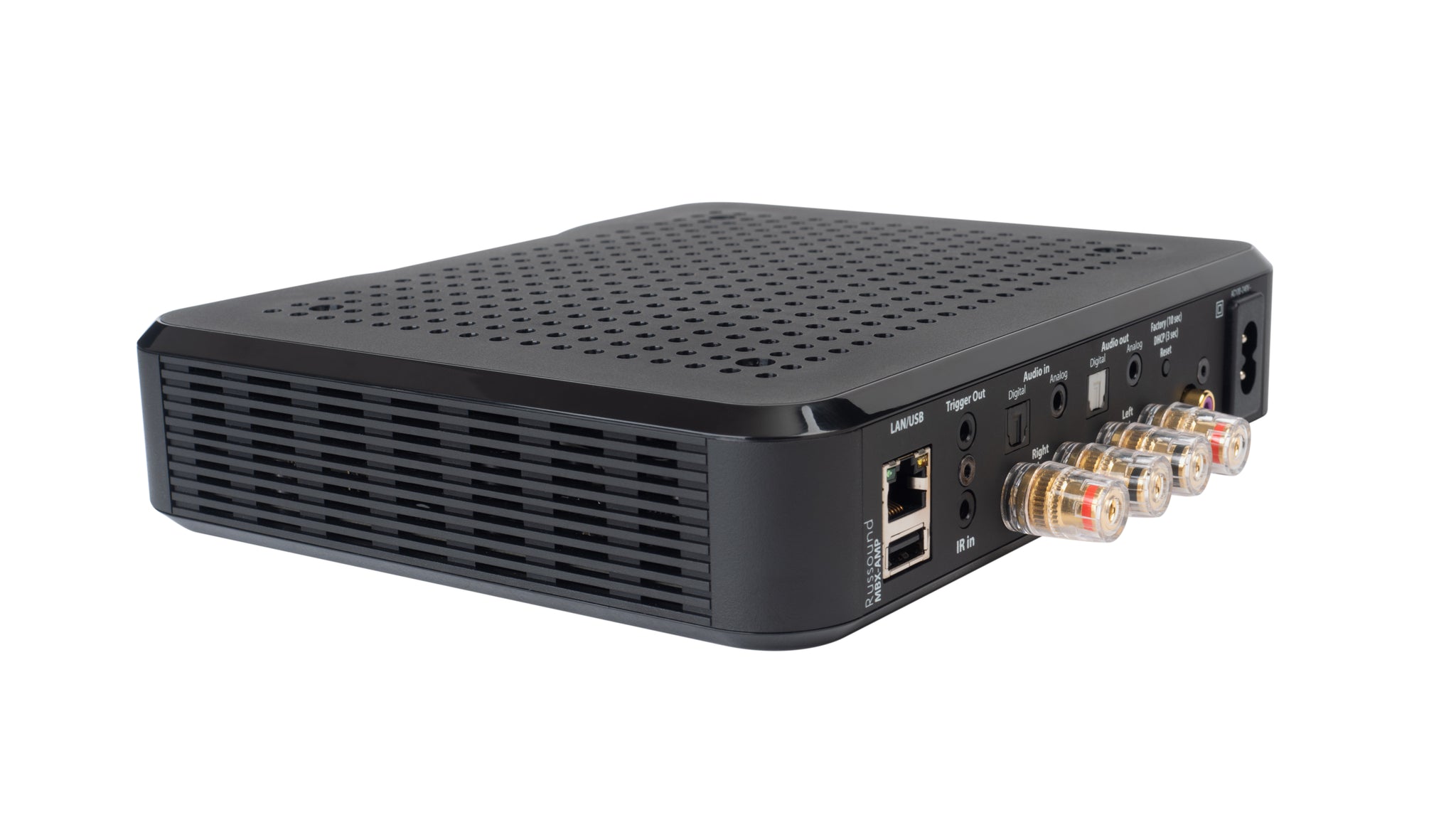

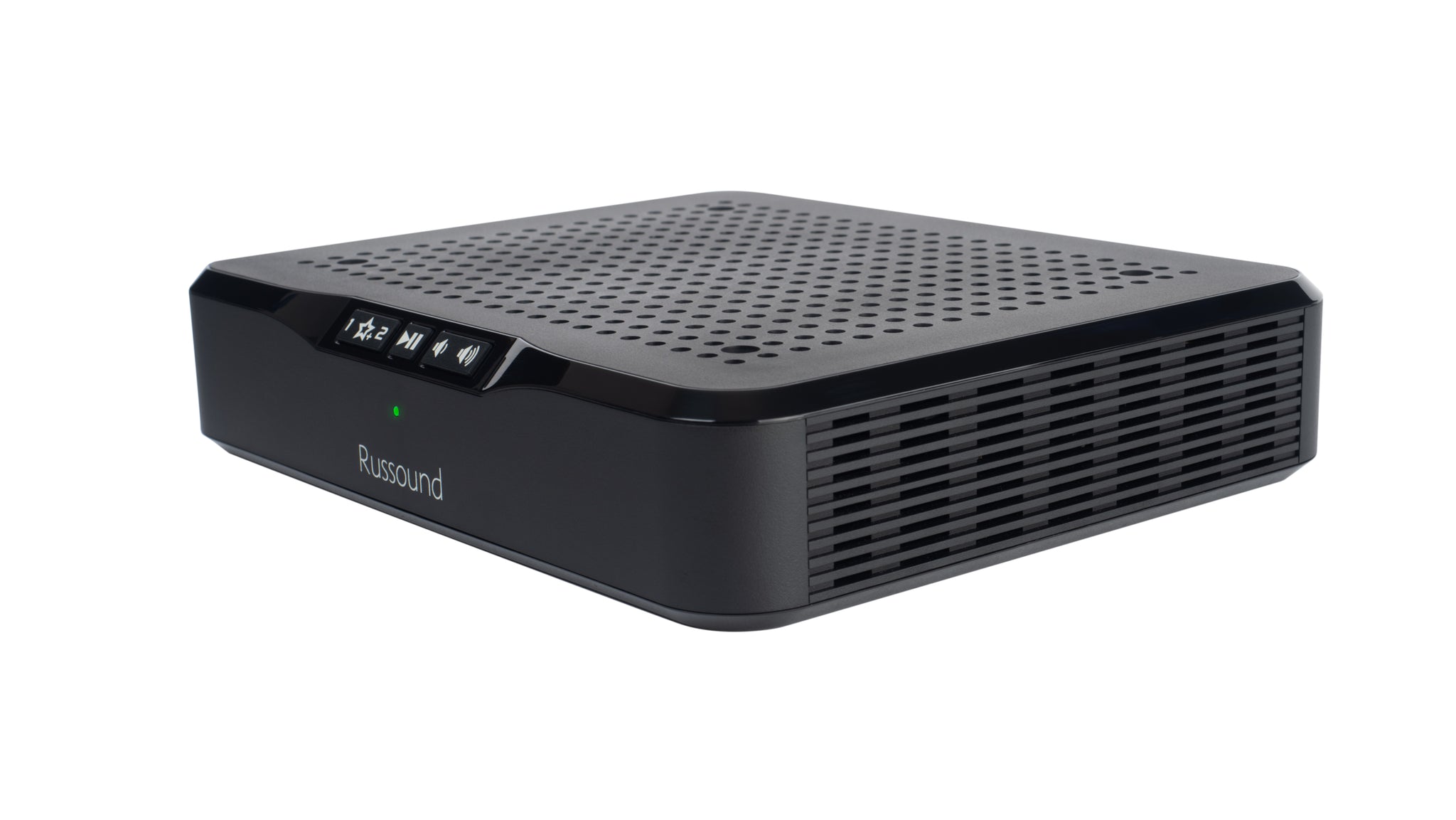

Russound MBX-AMP WiFi Streaming Zone Amplifier
The Russound MBX-AMP is a versatile WiFi streaming zone amplifier designed to deliver high-quality audio anywhere in your home. With advanced TV integration, multi-room streaming capabilities, and support for all major streaming platforms, the MBX-AMP offers a simple-to-install solution for whole-home audio.
Key Features
- Multi-Room Streaming - Expand to up to 32 streaming zones with other MBX-Series components
- TV Audio Integration - Connect your TV's digital audio output to share speakers between TV and audio system
- AirPlay & Chromecast Built-In - Stream from iOS/Android devices with full metadata support
- Hi-Res Audio Support - Supports high-resolution streaming up to 24-bit/192kHz
- Bluetooth Audio - Wireless streaming from any Bluetooth device
- USB Media Playback - Connect flash drives or external USB hard drives for local music collections
- IR Remote Control - Included external IR sensor works with your existing remote for volume/mute
- MyRussound App Control - Full control via smartphone/tablet app with bass, treble, and loudness settings
- XTSPlus Compatible - Fully compatible with Russound XTSPlus in-wall touchscreens
- UPnP Streaming - Stream from local network audio sources
- Easy Configuration - Onboard browser-based setup accessible from any device
Perfect For
- Whole-home audio installations
- TV audio enhancement and integration
- Multi-room streaming systems
- Retrofit installations with existing speakers
- Custom integration projects
Complete Technical Specifications
| Specification | Details |
|---|---|
| Power Output | 50W per channel @ 8Ω, 70W per channel @ 4Ω |
| Frequency Response | 20Hz - 20kHz |

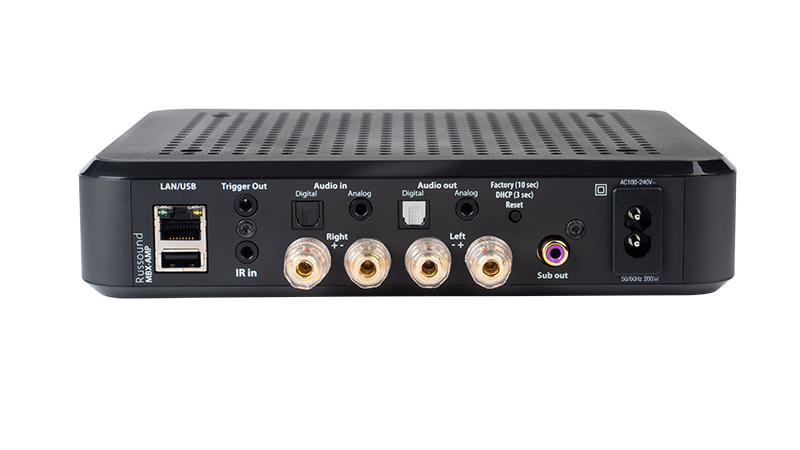

| Audio Inputs | 3.5mm analog stereo, digital optical, USB 2.0 |
| Audio Outputs | Analog stereo RCA, digital optical, RCA subwoofer out |
| Line Audio Output | 2V RMS (configurable as fixed or variable) |
| Subwoofer Crossover | 80Hz low-frequency filter |
| Streaming Protocols | AirPlay, Chromecast, Bluetooth, UPnP |
| Hi-Res Audio Support | Up to 24-bit/192kHz |
| Music File Formats | MP3 (CBR, VBR), WAV (8, 16-bit), OGG Vorbis, FLAC (8, 16-bit), AAC, AAC+ |
| Network Connectivity | Ethernet RJ45 10/100 BaseT, WiFi 802.11ac dual band |
| Control Options | MyRussound App (iOS/Android), XTSPlus touchscreen, IR remote, browser-based |
| Trigger Output | 12VDC @ 100mA |
| Power Requirements | 12VDC, 200 watts |
| Dimensions (W x D x H) | 8.25" x 7" x 1.75" (21cm x 17.8cm x 4.5cm) |
| Weight | 1.5 lb (0.68 kg) |
| Expansion Capability | Up to 32 zones with MBX-Series components |
What's Included
- Russound MBX-AMP Streaming Amplifier
- External IR sensor
- 12VDC power supply
- Quick start guide
Note: Speaker wire and mounting hardware sold separately. Compatible with 4Ω and 8Ω speakers.
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
