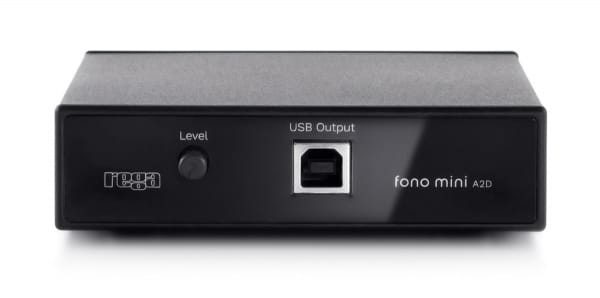

| The Fono Mini A2D is a compact high quality moving magnet disc stage with a circuit based on our multi award winning Fono MM. Our best selling phono stage also includes a USB interface which allows you to transfer your beloved vinyl to digital audio files. |
 |
 |
Analogue to Digital The Fono Mini A2D is a high-quality phono pre-amplifier for use with any moving magnet cartridge. The addition of a USB interface allows you to easily transfer vinyl to your PC if required. The restyled Fono Mini A2D amplifier offers improved usability, exceptional performance and incredible value for money while promising to be a valuable addition to any hi-fi set up. |
Features:
Specifications:
| Input Sensitivity |
5 mV for 500 mV Output |
| Input Loading | 47 k +100 pF |
| Maximum input level |
70 mV @ 1 kHz |
| Output Impedance | 100 Ω |
| Signal to noise ratio | 78 dBA ref 5 mV |
| Power requirements | 24 V AC 85 mA |
| Input for full scale digital output |
7.5 mV |
| Dimensions (W × H × D) | 102 × 30 × 125 mm |
| Sample rate |
16bit 44.1kHz (48kHz max) when transferring files via USB. |
| Color: | Blue, Purple, White |
| Size: | 20, 24 |
| Material: | 100% Polyester |
