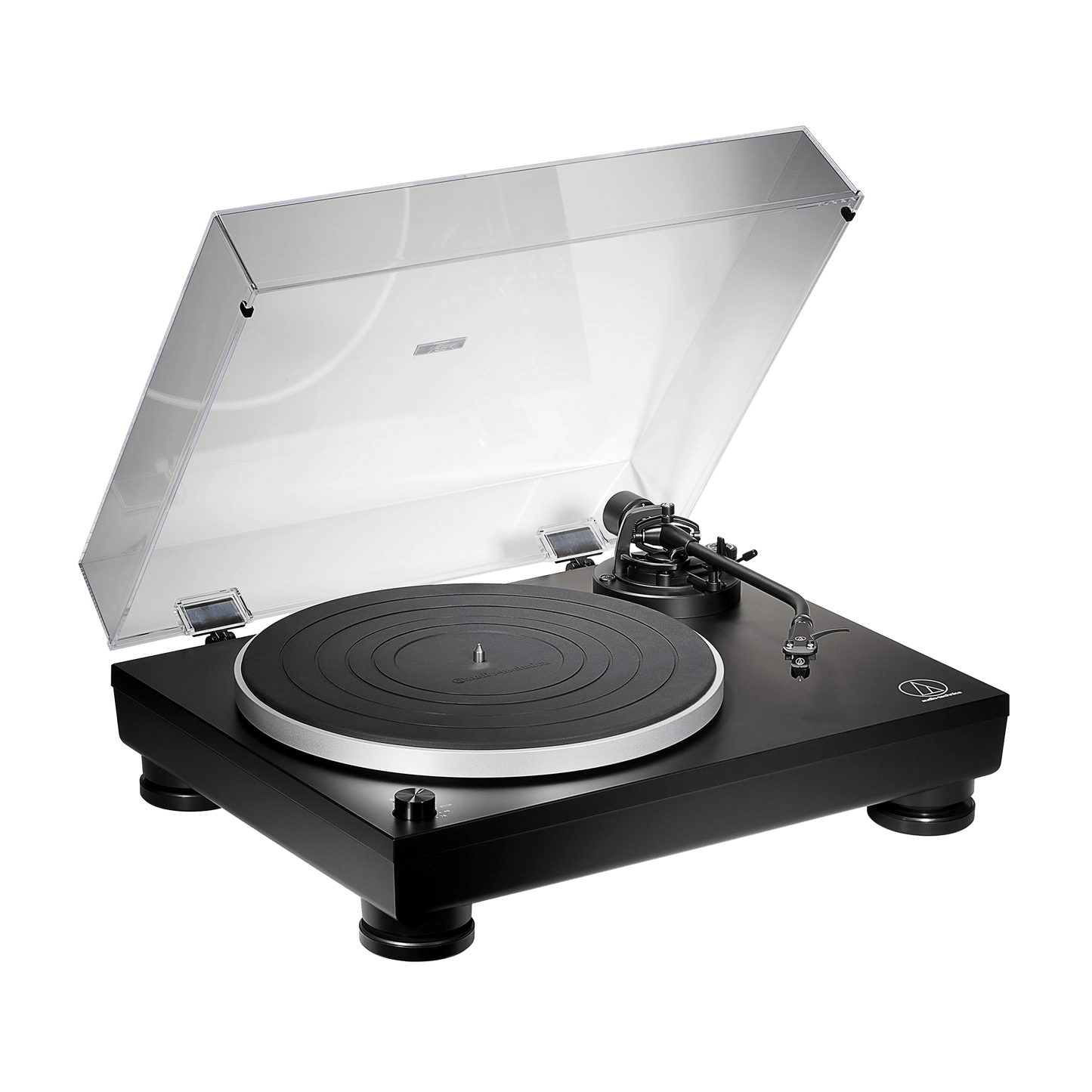

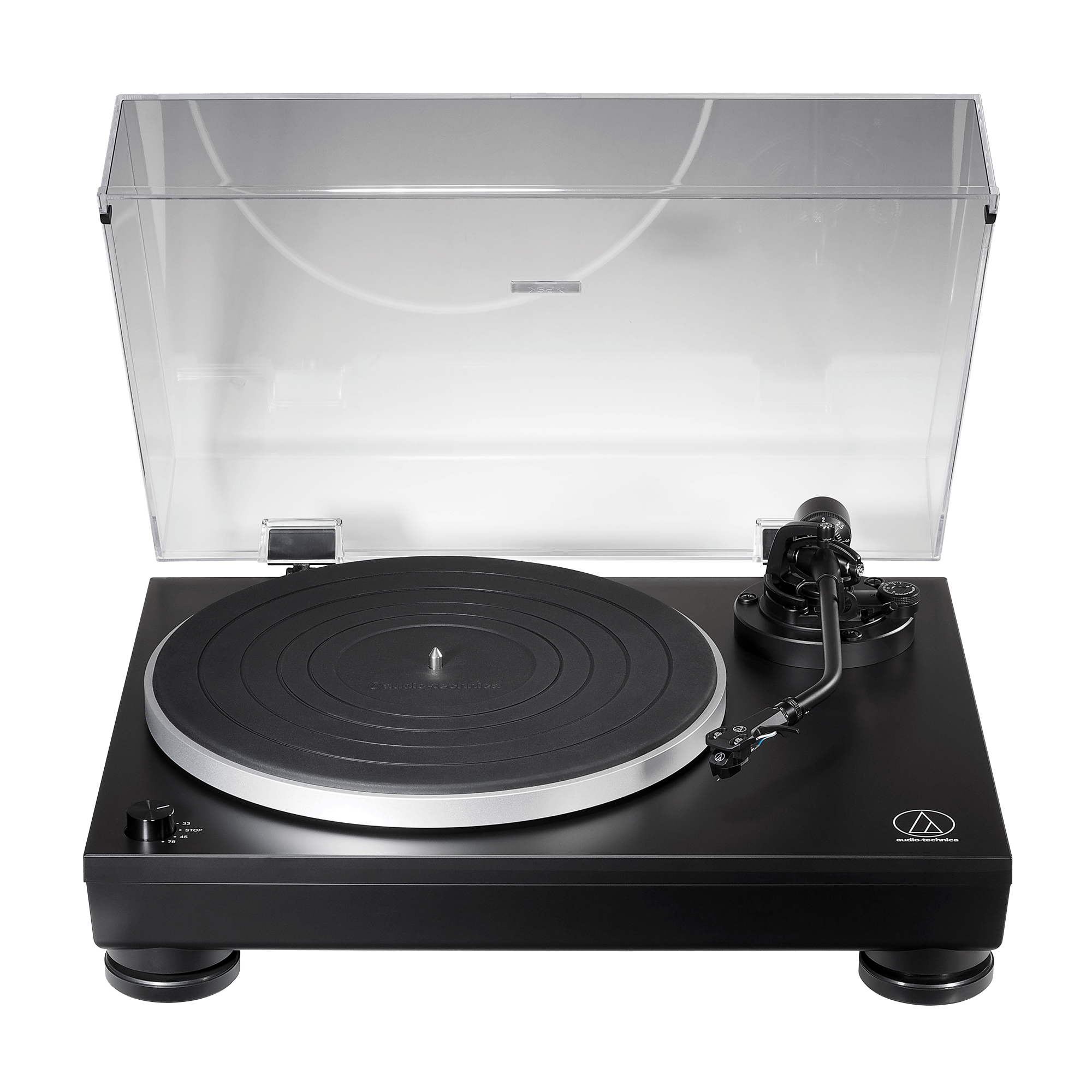

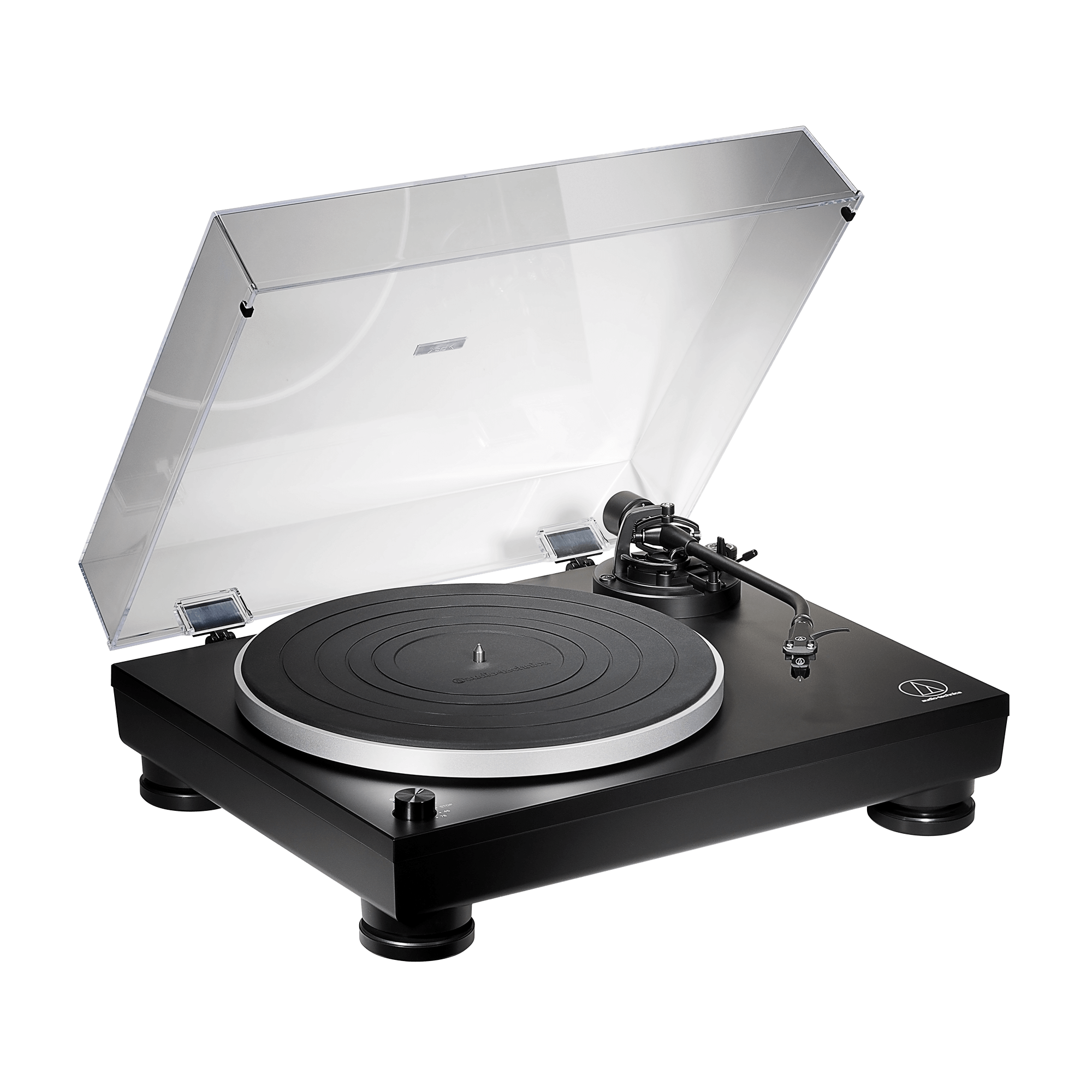

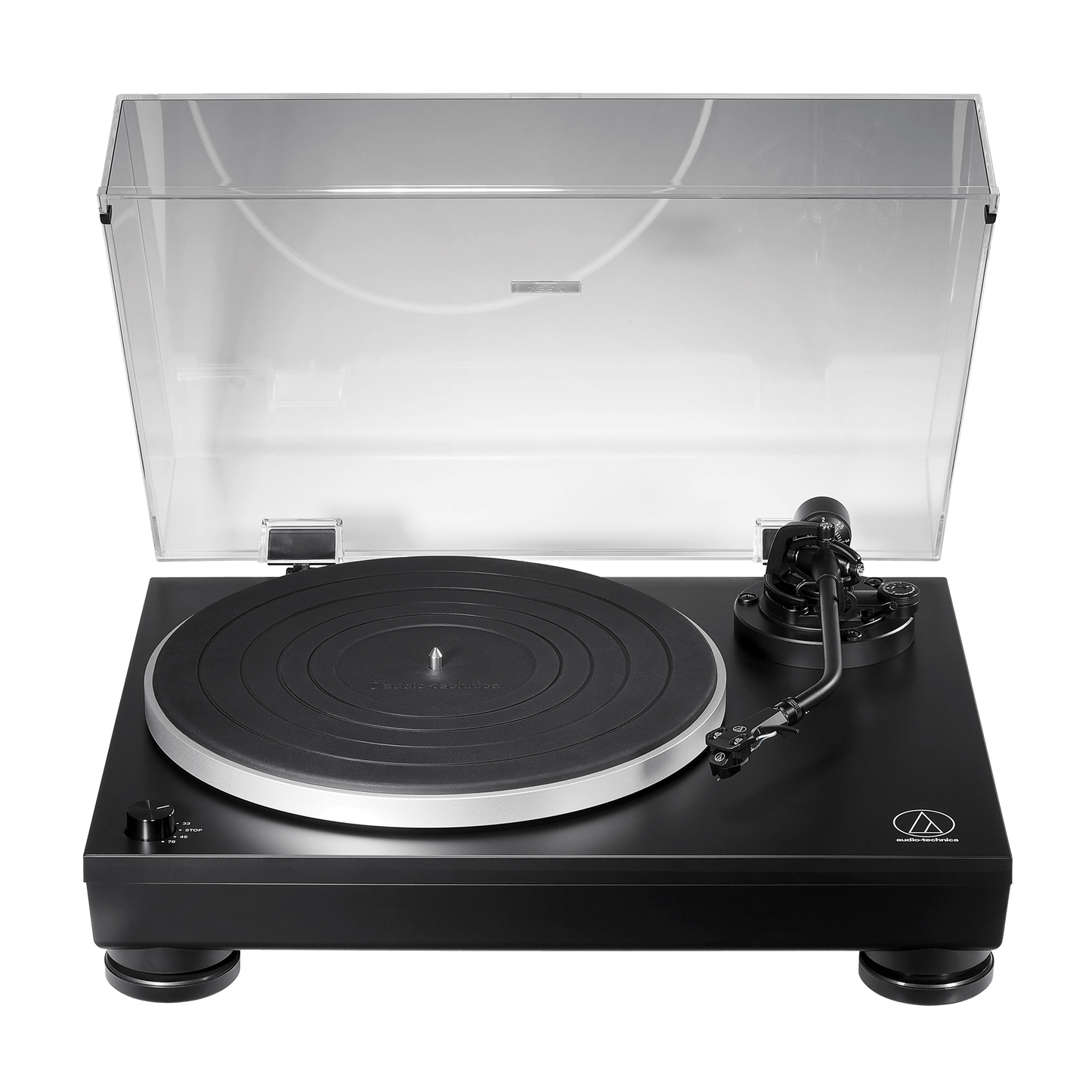

Audio-Technica AT-LP5X Fully Manual Direct Drive Turntable
Building on Audio-Technica’s analogue heritage and over 50 years of Japanese audio design, the AT-LP5x features upgraded technology while keeping the contemporary style and acclaimed performance of its predecessor, the AT-LP5.

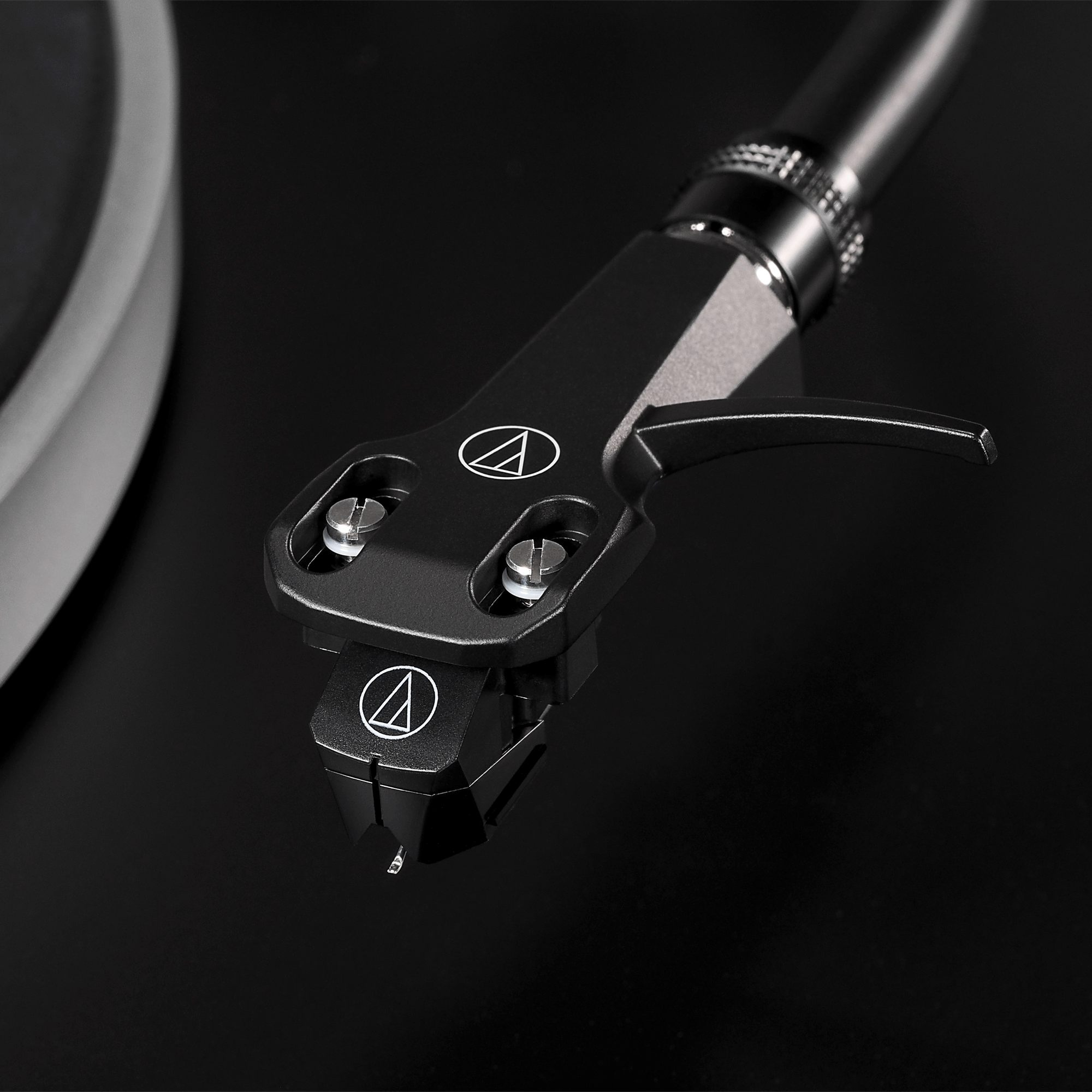

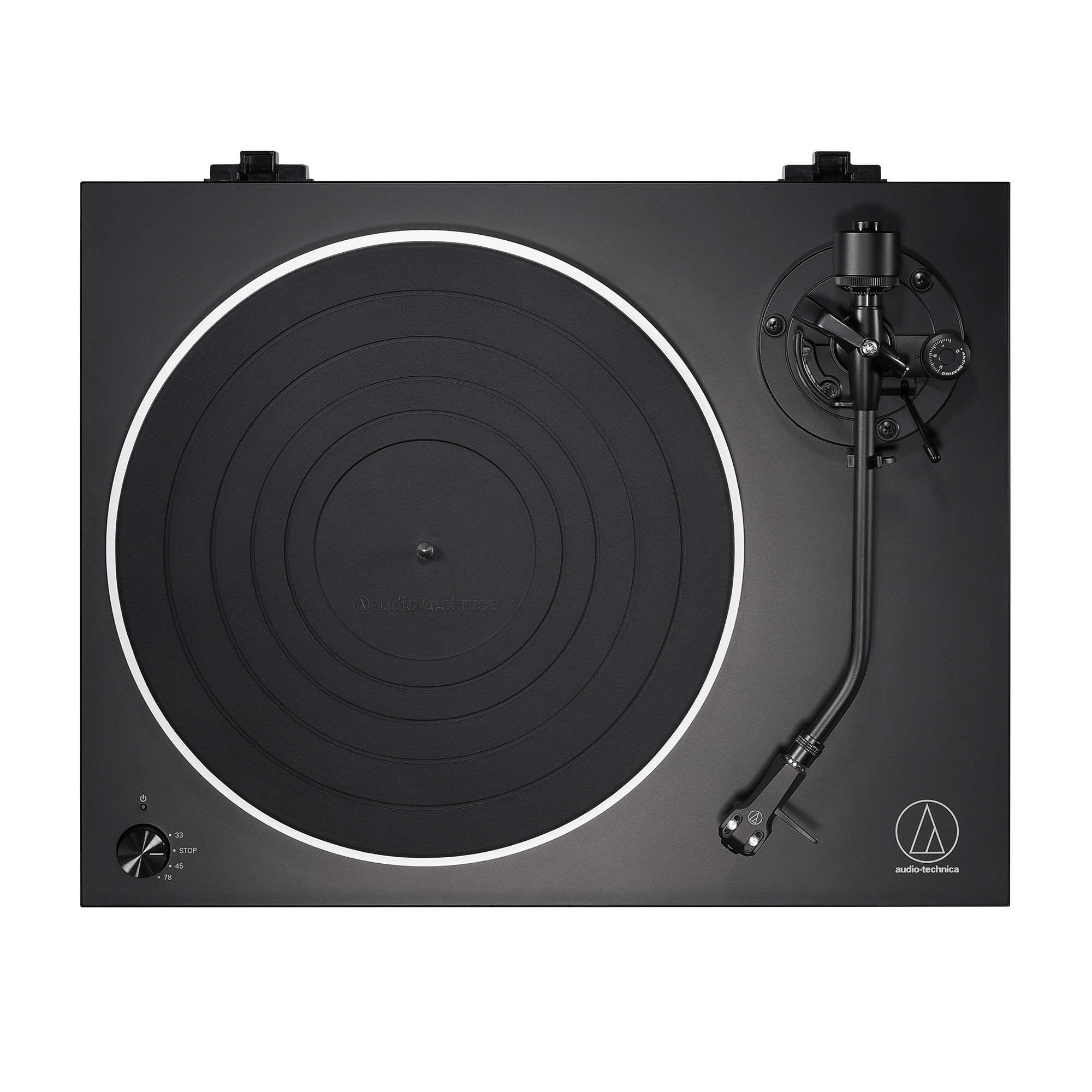

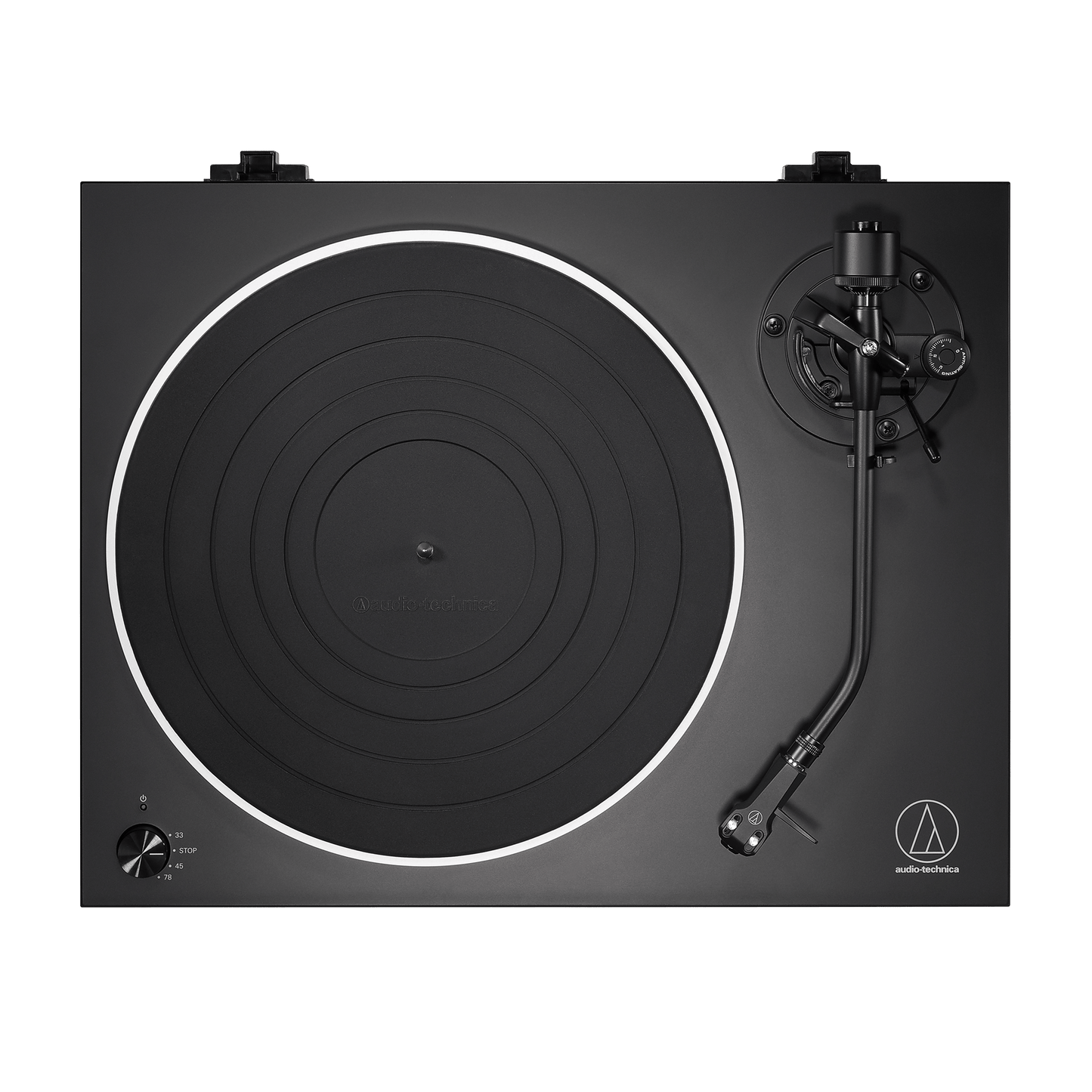

The LP5x retains the J-shaped tonearm, a design inspired by the classic Audio-Technica models of the 1960s and ’70s, and features a metallic gimbal suspension system and precision bearings to mitigate tracking errors. The tonearm also includes an adjustable counterweight and anti-skate control and comes fitted with a lightweight (9.3g) AT-HS6 headshell and the black AT-VM95E Dual Moving Magnet stereo cartridge.
Constructed of anti-vibration damping materials with heavy-mass metal chassis inserts, the AT-LP5x turntable has been designed to limit low-frequency acoustical feedback. Its precision-machined, die-cast aluminum platter is powered by a direct-drive, low-noise motor, ensuring stable, on-axis rotation at 33-1/3, 45 and 78 RPM. A 5 mm thick rubber-damping mat, which isolates from low frequency feedback while providing a highly stable surface for all LP formats, tops the platter.
Features:
- Direct-drive, low noise motor
- Fully manual operation with three speeds: 33-1/3, 45 and 78 RPM
- AT-VM95E Dual Moving Magnet stereo cartridge (black) with replaceable stylus
- Lightweight AT-HS6 headshell
- J-shaped tonearm, modeled after original Audio-Technica designs from the 1960s and ’70s, are engineered to minimize tracking errors

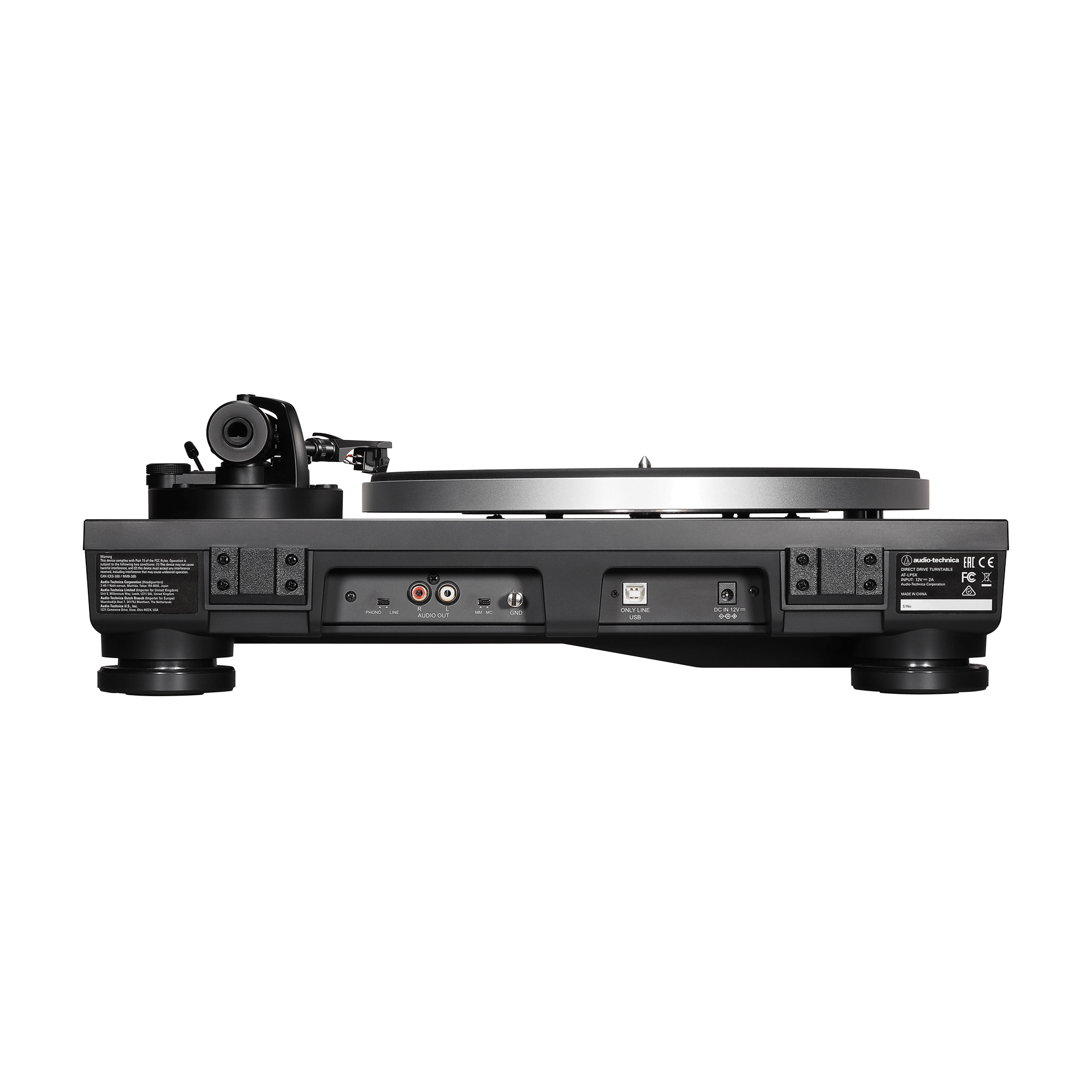

- Switchable MM/MC built-in pre-amplifier and line enables connection to components with or without a dedicated phono input
- Anti-resonance, die-cast aluminum platter
- Heavy rubber damping mat for improved low-frequency reproduction
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Elegant matte black finish
- Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, USB cable
- Included dust cover and mounting hardware
Specifications:
| Turntable | |
|---|---|
| Type | 3-speed, fully manual operation |
| Motor | DC motor |
| Drive Method | Direct Drive |
| Speeds | 33-1/3 RPM, 45 RPM, 78 RPM |
| Turntable Platter | Die-cast aluminum |
| Starting Torque | >1.0 kgf.cm |
| Braking System | Electronic brake |
| Wow and Flutter | <0.2% WRMS (33 RPM) at 3 KHz |
| Signal-to-Noise Ratio | >50 dB |
| Output Level | PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec LINE 250 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain | 36 dB nominal, RIAA equalized MC: 56dB nominal, RIAA equalized |
| USB Function | A/D, - 16 bit 44.1 kHz or 48 kHz USB selectable; Computer interface - USB 2.0 compliant Windows 7 or above, MAC OS X or above |
| Power Supply Requirements | 100-240V AC, 50/60 Hz |
| Dimensions | 450.0 mm (17.72") W x 352.0 mm (13.86")D x 157.0 mm (6.18")H |
| Weight | 7.3 kg (16.1 lbs.) |
| Accessories Included | AT-VM95E Dual Moving Magnet stereo cartridge (black) with replaceable stylus; AT-HS6 lightweight headshell; AC adapter ; dual RCA (male) to dual RCA (male) stereo cable; 45 RPM adapter; USB cable; dust cover with hinges. |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
