Audio-Technica AT-LPW30TK Turntable
Fully Manual Belt-Drive Turntable

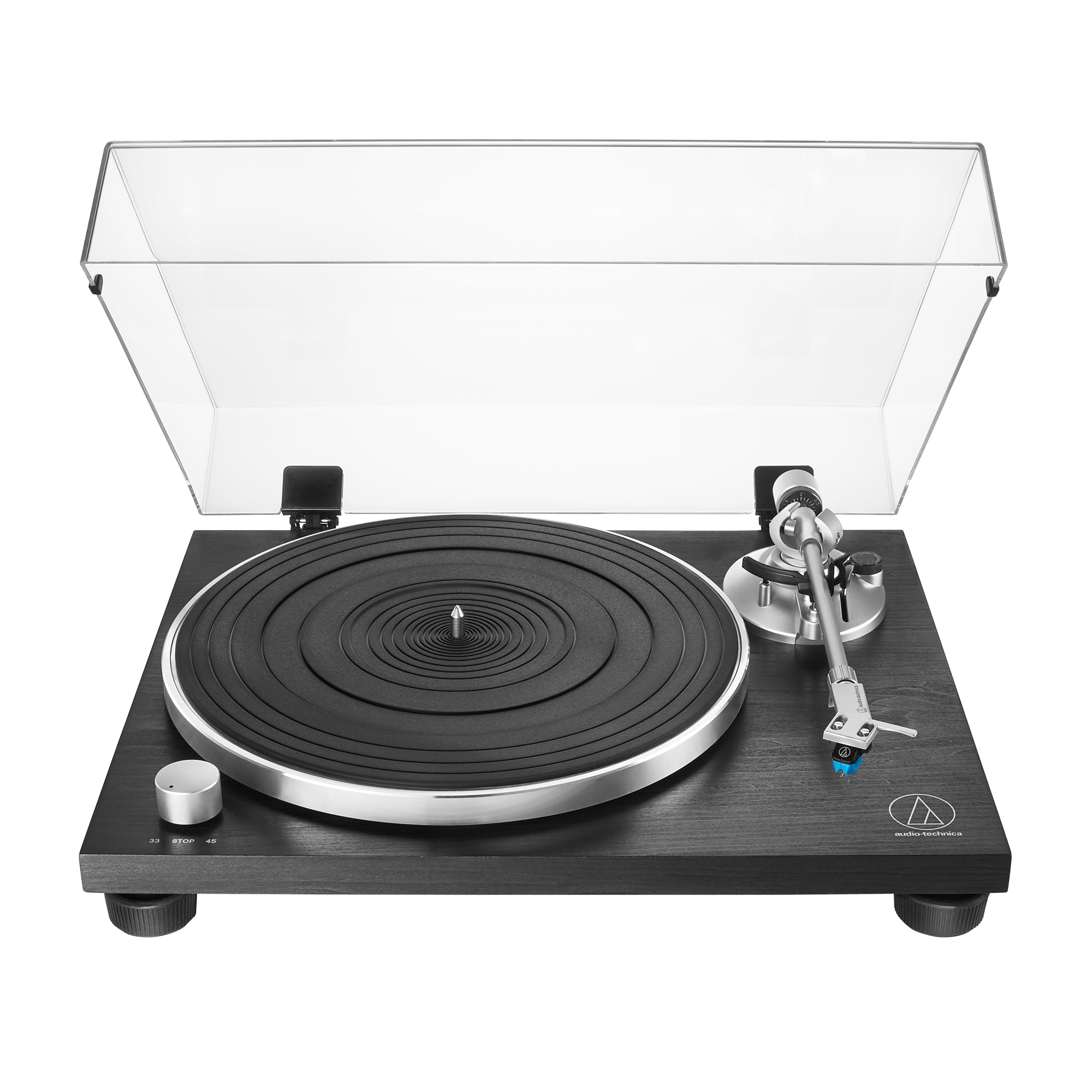

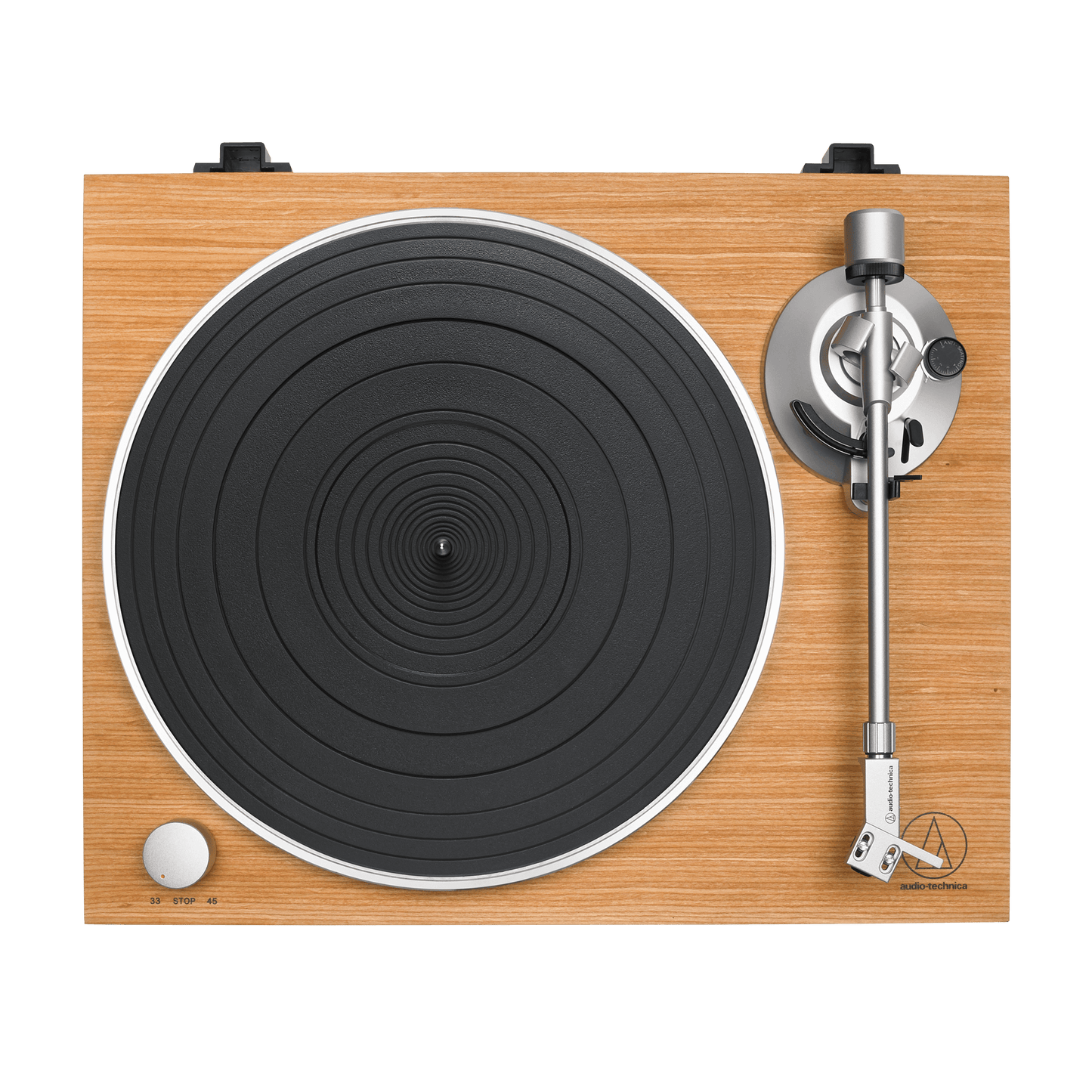

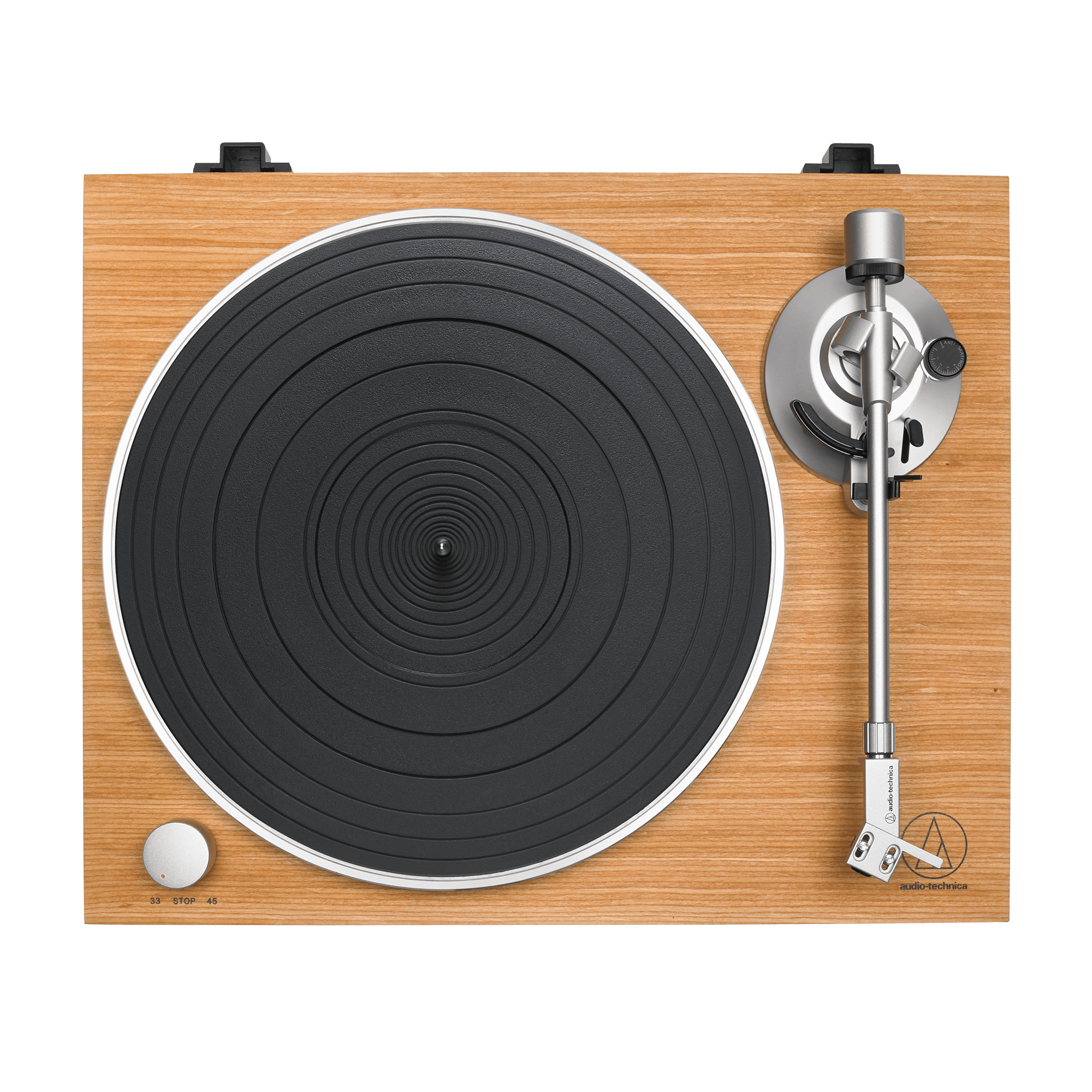

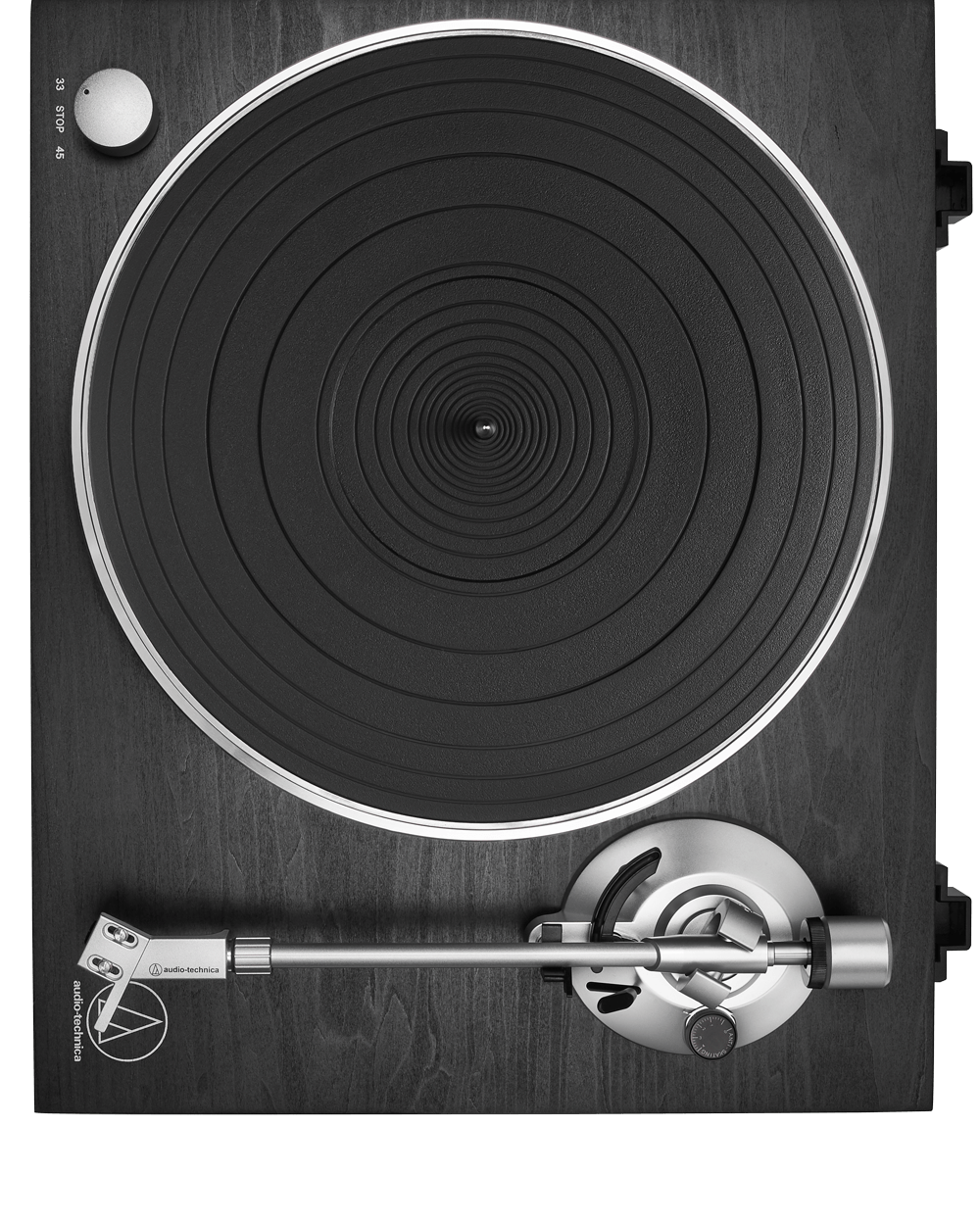

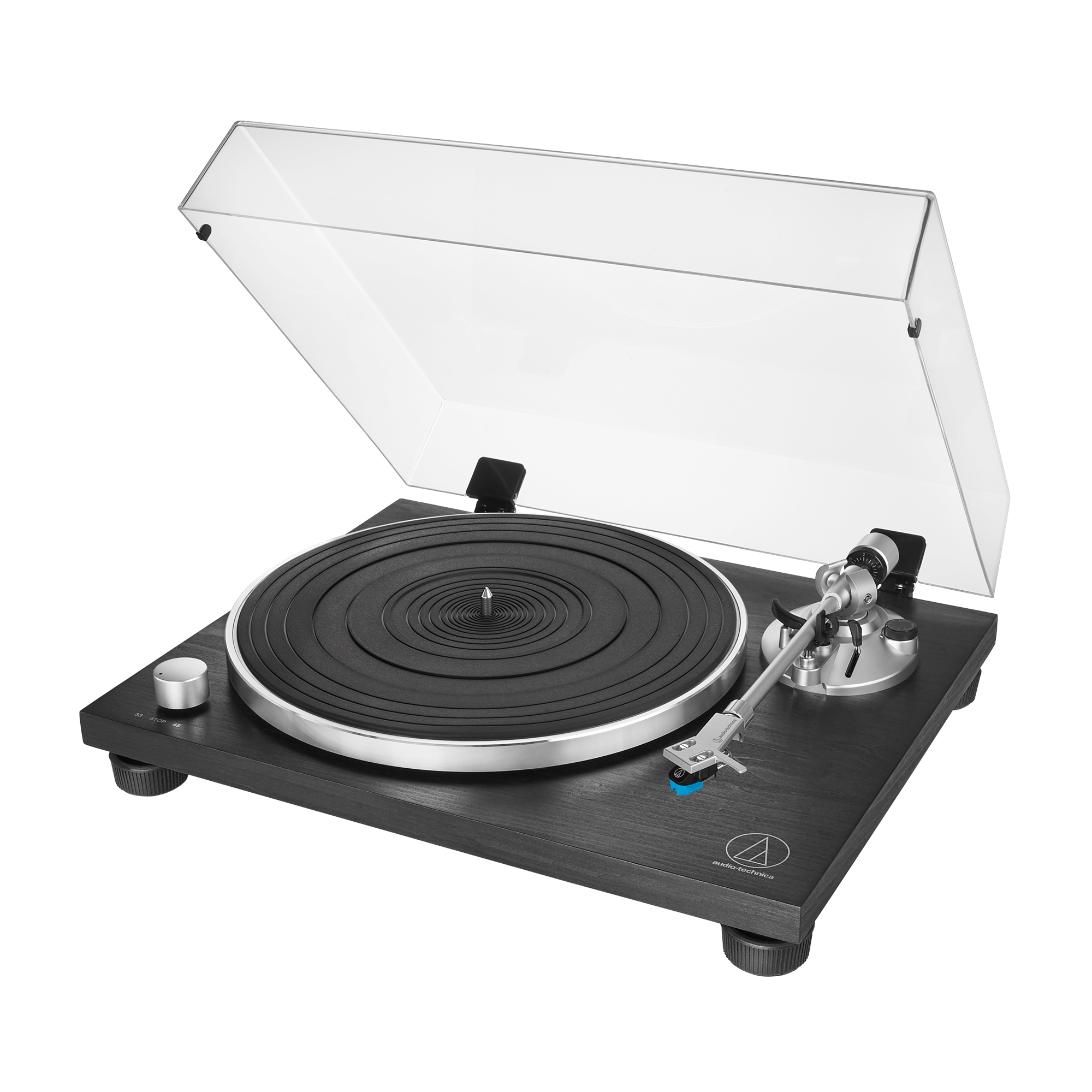

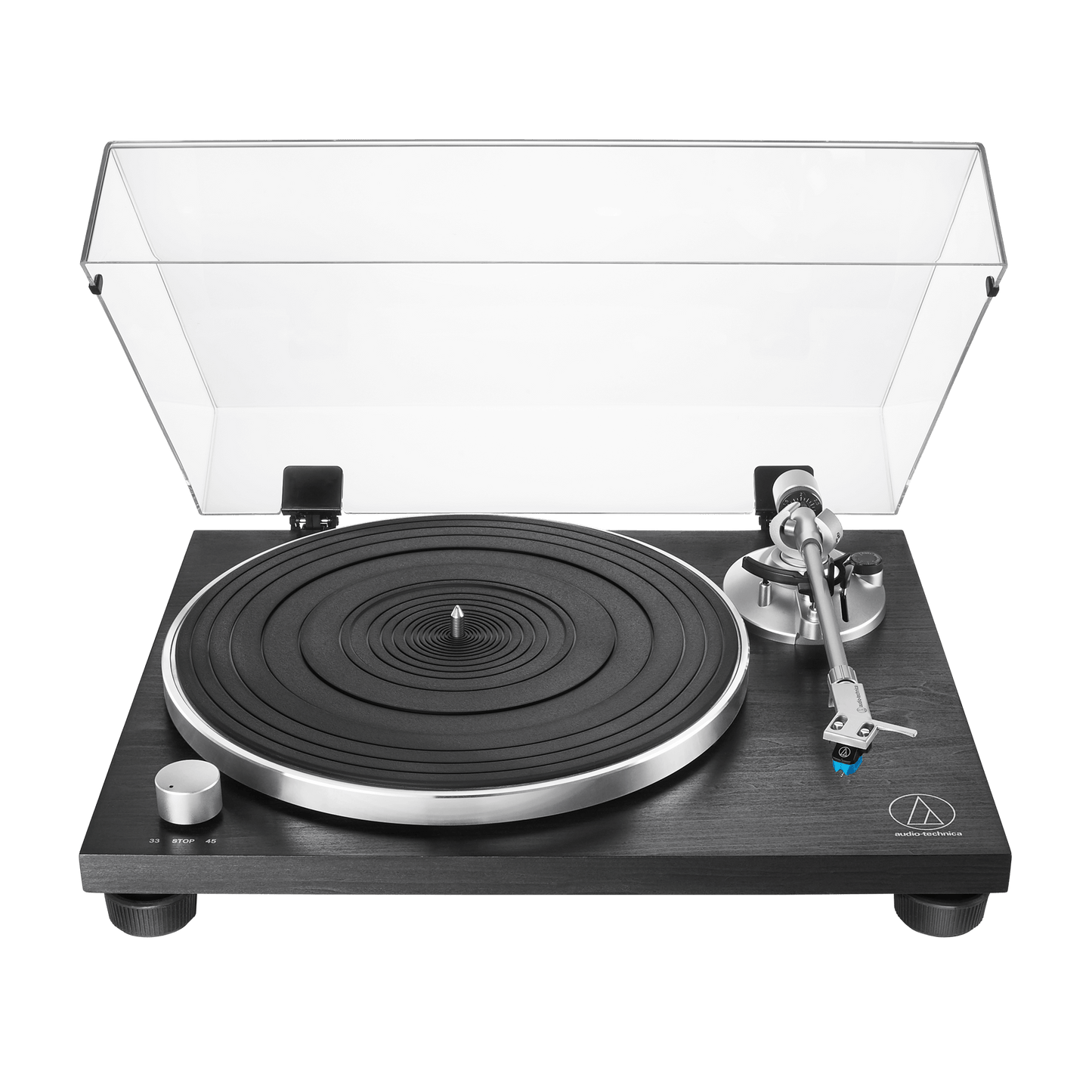

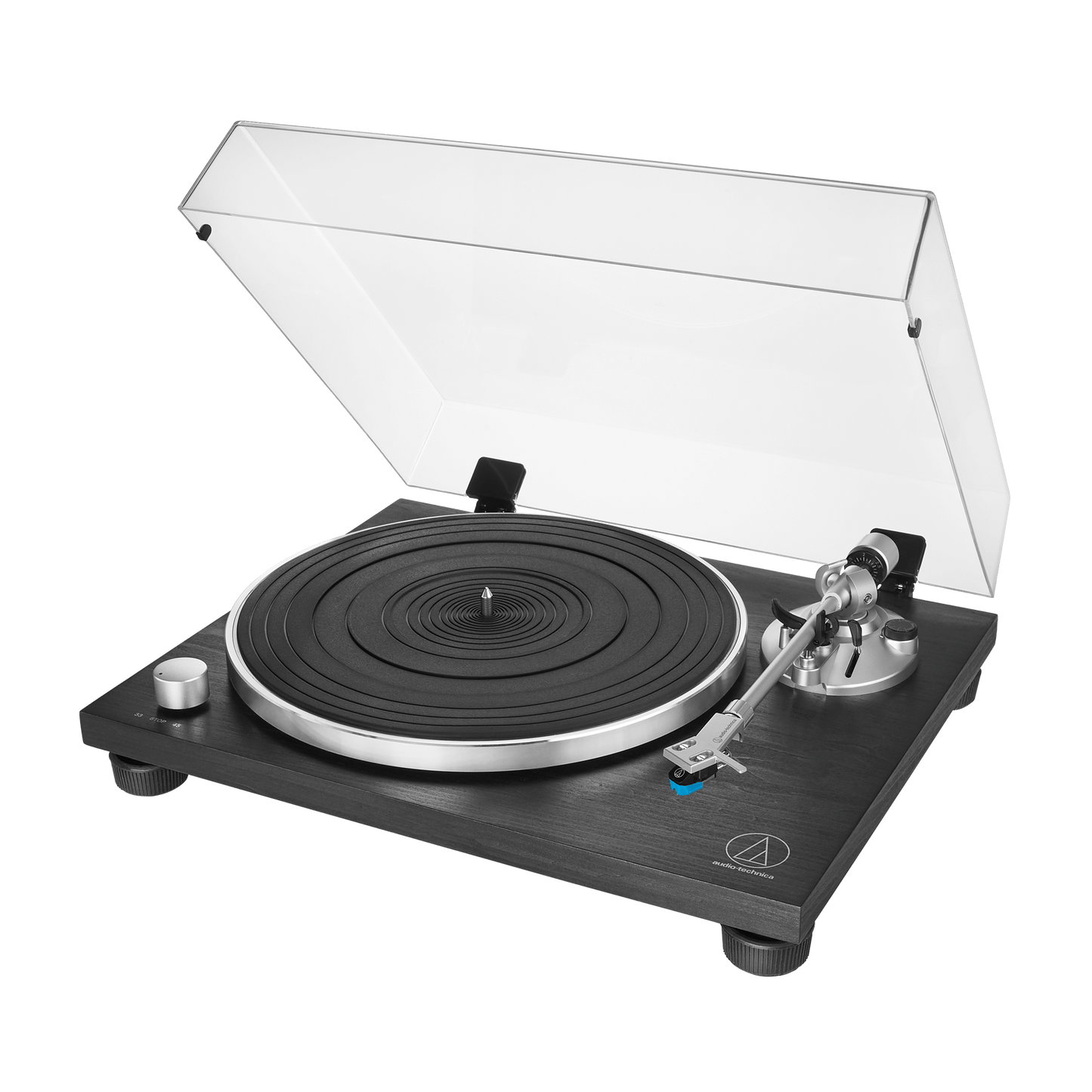

The AT-LPW30TK is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. The two-speed (33-1/3 and 45 RPM) turntable features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated teak veneer to limit low-frequency acoustical feedback.
Features:
- Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
- Fully manual operation
- Adjustable dynamic anti-skate control
- Professional anti-resonance, die-cast aluminum platter with rubber mat
- AT-HS4 universal ½"-mount headshell and AT-VM95C Dual Moving Magnet phono cartridge with 0.6 mil conical stylus
- AT-VM95C cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application

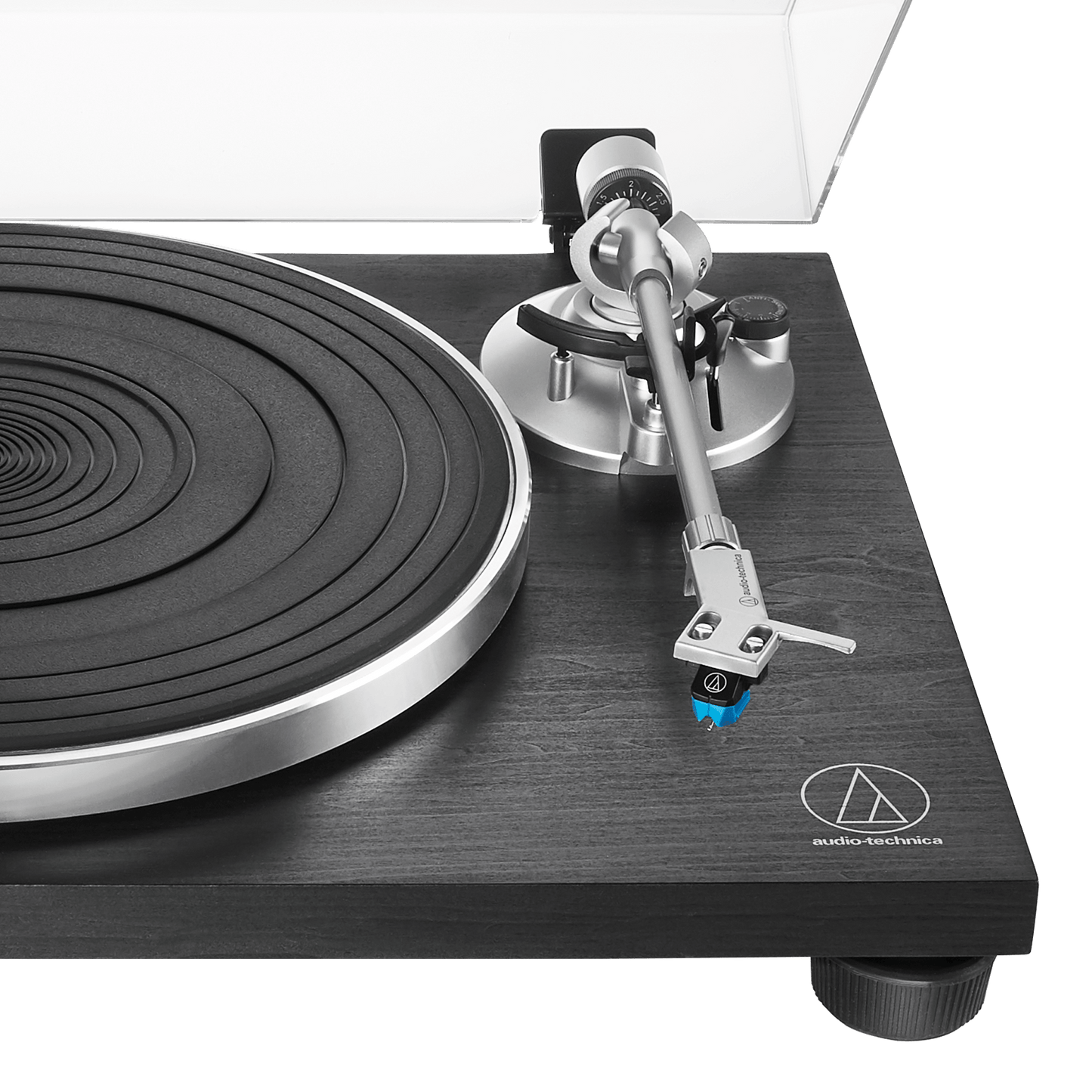

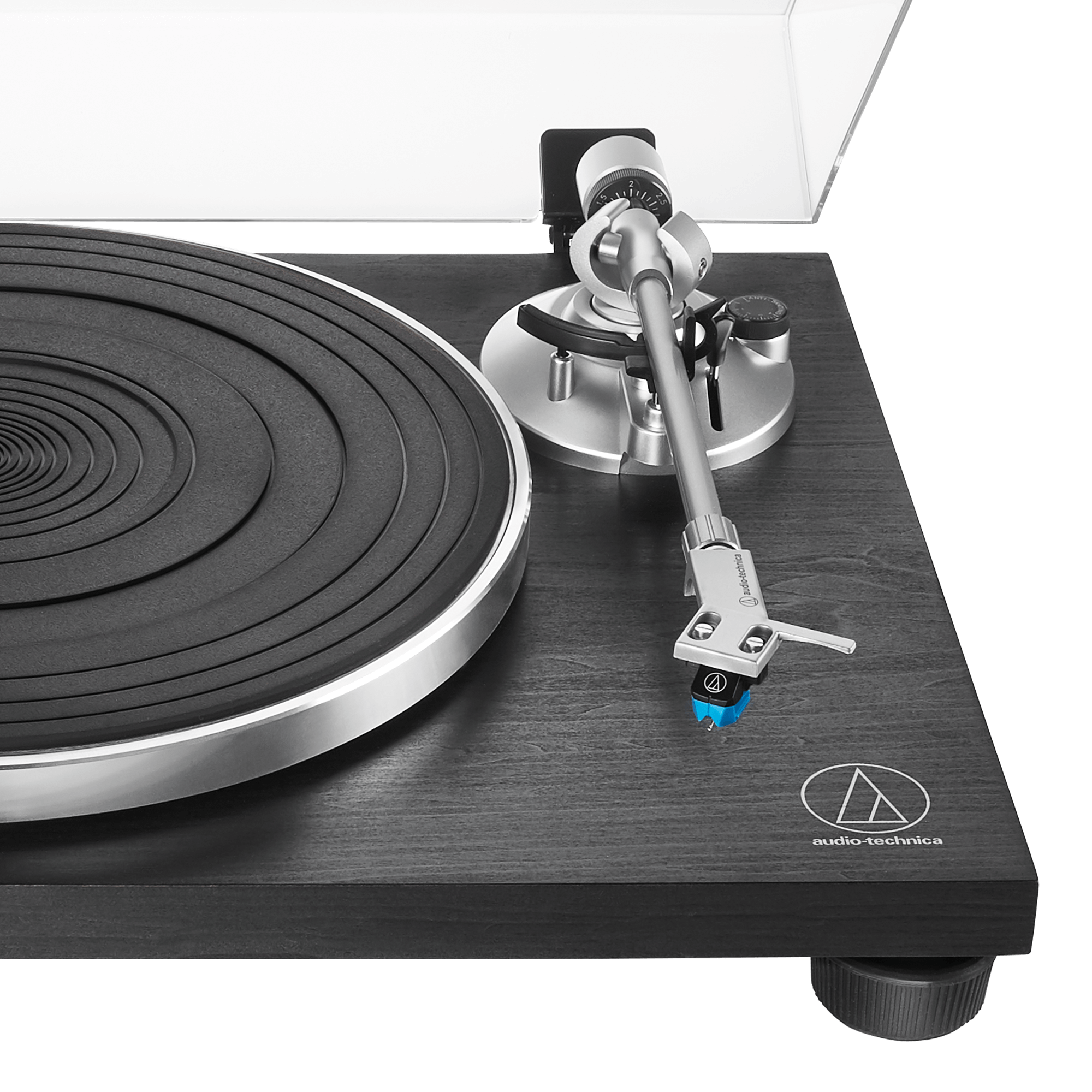

- Straight tonearm with hydraulically damped lift control and lockable rest
- Anti-resonance MDF (medium density fiberboard) plinth with black wood veneer
- Built-in switchable phono pre-amplifier for phono or line-level output
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain

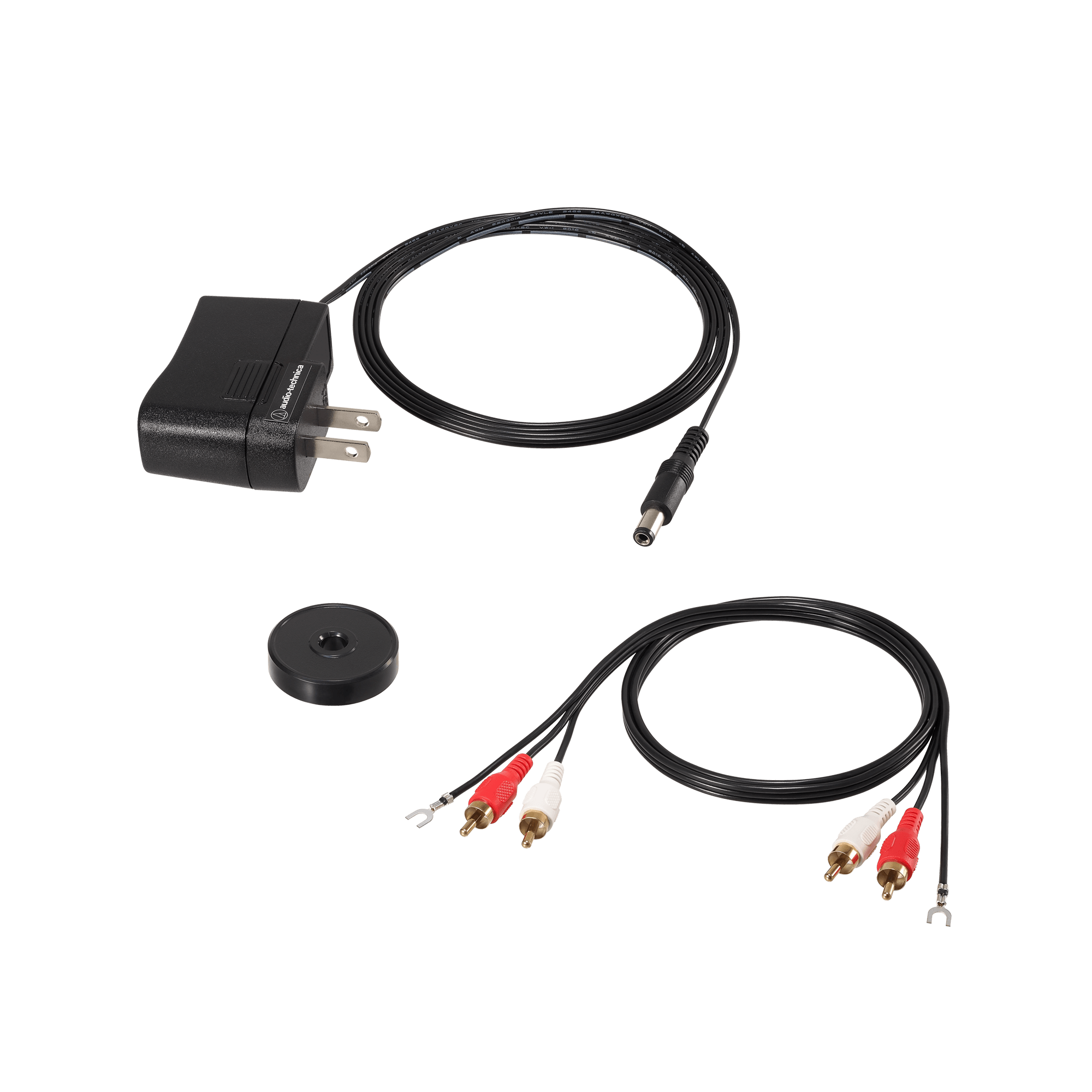

- Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover
The turntable includes a straight aluminum tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95C Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95C cartridge, which comes with a 0.6 mil conical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
The AT-LPW30TK is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.
Specifications:
| Turntable | |
|---|---|
| Type | 2-speed, fully manual operation |
| Motor | DC servo motor |
| Drive Method | Belt-drive |
| Speeds | 331/3 RPM, 45 RPM |
| Turntable Platter | Die-cast aluminum |
| Wow and Flutter | < 0.15% WRMS (33RPM) at 3kHz |
| Signal-to-Noise Ratio | > 60dB |
| Output Level | Pre-amp: PHONO: 4.0mV nominal at 1kHz, 5cm/sec Pre-amp: LINE: 200mV nominal at 1kHz, 5cm/sec |
| Phono Pre-Amp Gain | 35 dB nominal, RIAA equalized |
| Power Supply Requirements | 100 to 240V, 50/60Hz |
| Dimensions | 116.9 x 420.0 x 340.0 (H x W x Dmm) |
| Weight | 5 kg |
| Accessories Included | AT-HS4SV Headshell AT-VM95C Dual Moving Magnet Cartridge with Conical Stylus Detachable RCA output cable (dual RCA male to dual RCA male) AC adapter 45 RPM adapter Counterweight Rubber mat Removable hinged dust cover |
| AC Adapter | 12 V, 0.5 A |
| Tonearm Type | Static balanced straight aluminum pipe tonearm |
| Effective Arm Length | 223.6 mm |
| Overhang | 18.6 mm |
| Tracking Error Angle | <2 degrees |
| Applicable Cartridge Weight | 12-17 g |
| Replacement Stylus | AT-VMN95C |
| Notes | Stylus pressure adjustment range: 0-3 g |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
