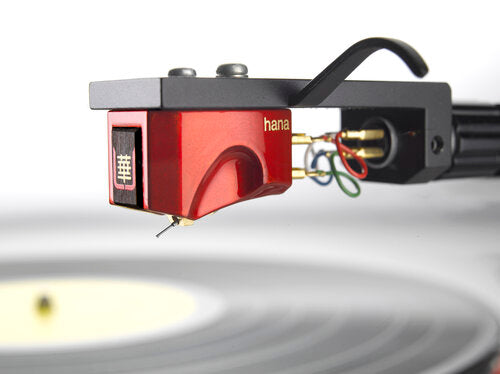

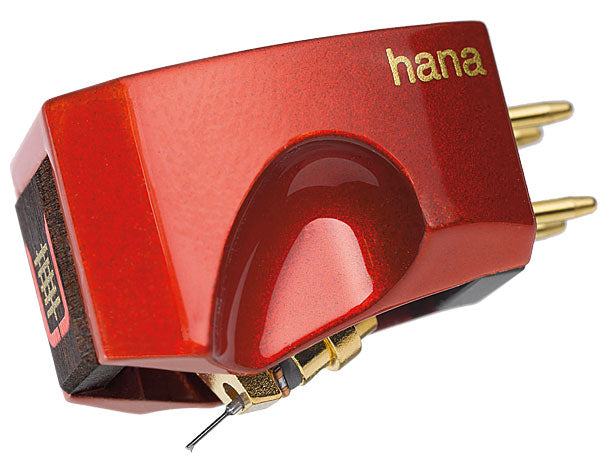

HANA Umami Red Moving Coil Phono Cartridge
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
HANA Umami Red Moving Coil Phono Cartridge
The HANA-Umami Red represents the pinnacle of moving coil cartridge design, combining brilliant materials and classic Japanese craftsmanship with modern audio engineering. Handcrafted by Excel Sound's master artisans with over 50 years of experience, this high-end cartridge features ebony wood, rare-earth samarium cobalt magnets, precision-cut microline diamond stylus, high-purity copper coil wire, traditional Urushi lacquering, and CNC-machined Duralumin—all synergizing under the vision of renowned designer Okada-san.
Umami Sound - Wonderful Taste in Music
Like a signature dish at a Michelin 3-star restaurant, every element and detail of the HANA-Umami Red works in concert to create a memorable and emotional listening experience. The synergistic relationship between magnet, armature, and coil windings delivers the HANA signature "Brilliant and Gorgeous" sound quality with exceptional musicality, detail retrieval, and tonal accuracy across the entire frequency spectrum.
Key Features
- Microline Diamond Stylus - Precision-cut advanced profile for maximum groove contact and detail extraction
- Boron Cantilever - Ultra-lightweight, ultra-rigid for superior transient response and tracking
- Samarium Cobalt Magnets - Rare-earth magnets with cryo-treated pure iron magnetic circuitry
- High-Purity Copper Coils - Optimized winding for exceptional signal purity
- Duralumin Body (A7075) - CNC-machined aerospace-grade aluminum with ebony wood accents
- Urushi Lacquer Finish - Traditional Japanese gloss red lacquer for stunning aesthetics
- Extended Frequency Response - 10Hz to 50,000Hz for full-spectrum reproduction
- Hand-Assembled in Japan - Crafted by Excel Sound's master technicians
- Low Output MC Design - 0.4mV output for use with high-quality MC phono stages
Complete Technical Specifications
| Cartridge Type | Low-Output Moving Coil (MC) |
| Stylus Type | Microline (Precision-Cut Diamond) |
| Cantilever Material | Boron |
| Magnetic Circuitry | Pure Iron with Cryogenic Treatment |
| Magnet Type | Samarium Cobalt (Rare-Earth) |
| Coil Wire | High-Purity Copper |
| Output Level | 0.4 mV @ 1 kHz |
| Output Balance | <0.5 dB @ 1 kHz |
| Frequency Response | 10 Hz - 50,000 Hz |
| Channel Separation | 30 dB @ 1 kHz |
| Coil Impedance | 6 Ω @ 1 kHz |
| Recommended Load Impedance | >60 Ω (MC phono stage required) |
| Vertical Tracking Force (VTF) | 2.0 grams |
| Trackability | 70 µm @ 2g |
| Cartridge Weight | 10.5 grams |
| Body Material | Duralumin (A7075) with Ebony Wood Accents |
| Body Finish | Gloss Urushi Lacquer - Red |
| Manufacturing | Hand-Assembled in Japan by Excel Sound |
| Manufacturer | HANA (Excel Sound Corporation) |
| Warranty | 2 Years |
Craftsmanship & Materials
Every HANA-Umami Red cartridge is meticulously hand-assembled by Excel Sound's highly trained craftsmen, drawing on over 50 years of expertise in precision audio manufacturing. The combination of aerospace-grade Duralumin, natural ebony wood, and traditional Urushi lacquer creates both a visual masterpiece and an acoustic marvel. The cryogenically treated pure iron magnetic circuit paired with samarium cobalt magnets ensures optimal magnetic flux density for exceptional dynamic range and low distortion.
System Requirements
- High-quality MC phono preamplifier or step-up transformer required (0.4mV output)
- Precision tonearm with adjustable VTF and azimuth
- Load impedance: >60Ω (typically 100-1000Ω)
- Compatible with medium to high-mass tonearms
What's Included
- HANA Umami Red Moving Coil Cartridge
- Mounting Hardware (screws and nuts)
- Stylus Guard
- User Manual
- Certificate of Authenticity
Perfect For
The HANA Umami Red is designed for discerning audiophiles and vinyl enthusiasts who demand reference-level performance from their analog playback systems. Ideal for high-end turntable setups with quality MC phono stages, this cartridge excels with all music genres—from the delicate nuances of classical chamber music to the dynamic impact of jazz and rock. Its extended frequency response (10-50kHz) and microline stylus reveal every detail in your vinyl collection, making it perfect for both vintage pressings and modern audiophile releases.
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
