Van den Hul MC-ONE Special Moving Coil Cartridge
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days

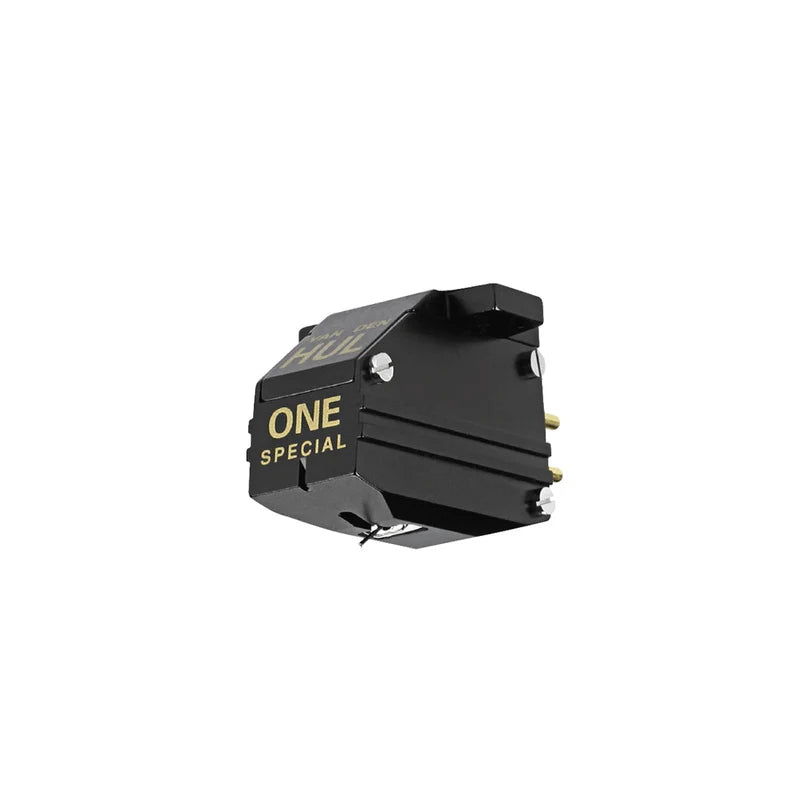

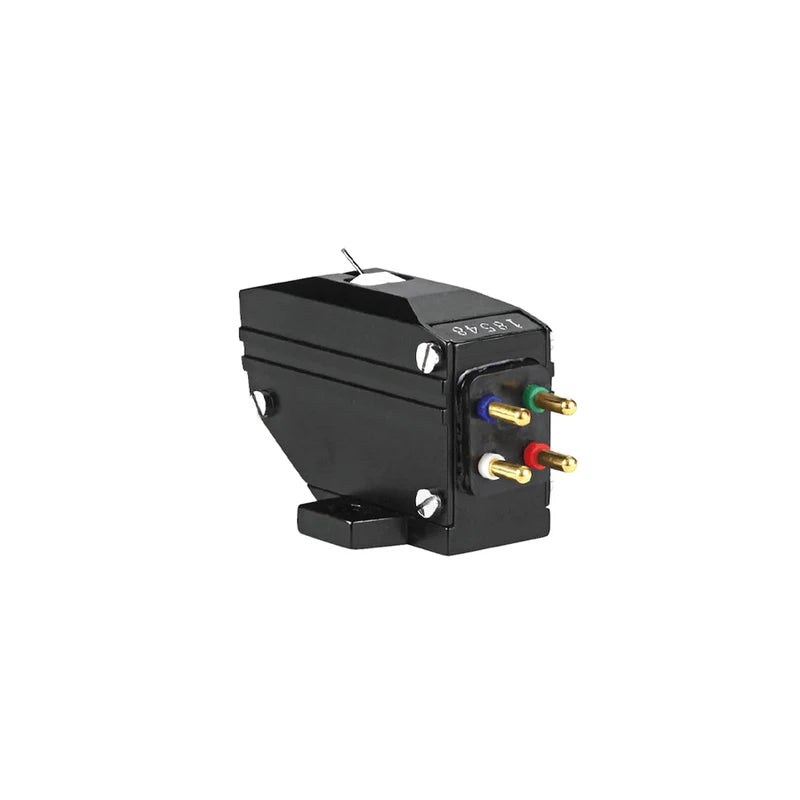

Van den Hul MC-ONE Special Moving Coil Cartridge
The MC-ONE Special is a high-quality, handbuilt moving coil cartridge with improved resolution capabilities and output voltage. It has a production time of about two weeks and comes with a range of specifications, including stylus shape, frequency range, tracking force, and recommended load impedance.
DESCRIPTION:
The MC-ONE Special from Van Den Hul is a custom handbuilt moving coil cartridge; Special selected version of the MC–10 Special with 0.65 mV/channel.
The designation “Special” in this cartridge’s name indicates important improvements over its previous version:
The cartridge is equipped with a thicker frontpole and an extra small magnet, both further enhancing its resolution capabilities and output voltage.
Production time:
The production time for a MC-ONE Special cartridge after ordering is about two weeks.
SPECIFICATIONS:
| Stylus Shape: | VDH - I |
| Stylus Radii: | 3 x 85 Micron |
| Frequency Range: | 5 - 50.000 Hz |
| Tracking Force: | 13.5 - 15.0 mN |
| Static Compliance: | 28 Micron/mN |
| Tracking Ability at 15mN at 315Hz: | 70 - 80 Micron |
| Output Voltage at 1 kHz at 5.7 cm/s eff.: | 0.65 mV RMS |
| Channel Unbalance: | < 0.5 dB |
| Channel Separation at 1kHz / 10kHz: | > 35 / > 30 dB |
| Equivalent Stylus Tip Mass: | 0.35 Milligram |
| System Weight: | 8.2 Gram |
| Vertical Tracking Angle : | 22 Degrees |
| Load Capacitance: | non critical |
| Recommended Load Impedance: | 200 Ohm |
| Recommended Eff Tone arm Mass: | 8 - 12 Gram |
| Moving Coil Resistance per channel: | 9 Ohm +/- 10% |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
