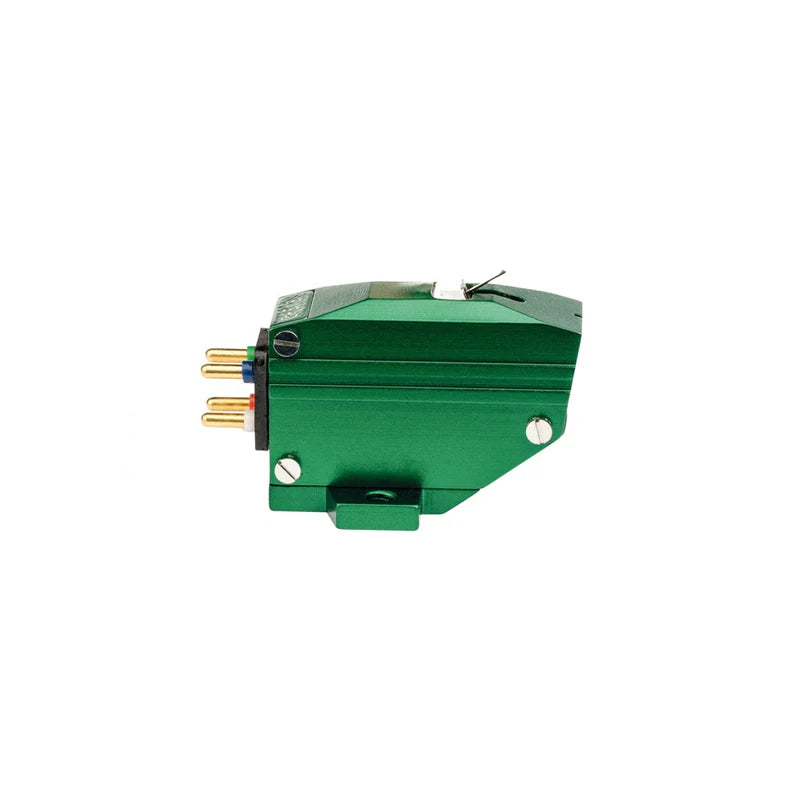

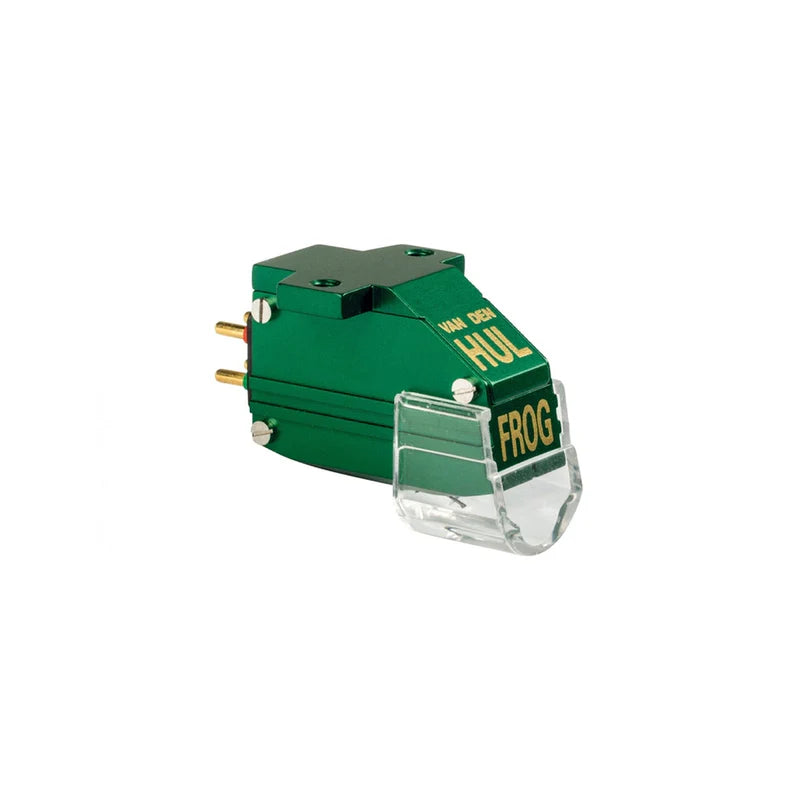

Van den Hul The Frog Gold Moving Coil Cartridge
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Van den Hul The Frog Gold Moving Coil Cartridge
The Frog Gold MC Cartridge is a high-quality, handbuilt moving coil audiophile cartridge with a frequency range of 5-55,000 Hz and an output voltage of 0.65 mV/channel. It has a production time of about two weeks and is recommended for use with tone arms weighing between 6-10 grams.
DESCRIPTION:
The Frog Gold is a custom handbuilt moving coil audiophile cartridge with the coil of a GRASSHOPPER III and the frontpole and suspension of the GRASSHOPPER IV: the best cartridge available for its price.
The Frog Gold MC Cartridge - Output 0.65 mV/channel, matched crystal gold-wire coils and extra magnet modification.
Production time:
The production time for The Frog cartridge after ordering is about two weeks.
SPECIFICATIONS:
| Stylus Shape: | VDH - IS |
| Stylus Radii: | 2 x 85 Micron |
| Frequency Range: | 5 - 55.000 Hz |
| Tracking Force: | 13.5 - 16 mN |
| Static Compliance: | 35 Micron/mN |
| Tracking Ability at 15mN at 315Hz: | 70 - 80 Micron |
| Output Voltage at 1 kHz at 5.7 cm/s eff.: | 0.65 mV RMS |
| Channel Unbalance: | < 0.3 dB |
| Channel Separation at 1kHz / 10kHz: | > 35 / > 30 dB |
| Equivalent Stylus Tip Mass: | 0.32 Milligram |
| System Weight: | 8.2 Gram |
| Vertical Tracking Angle : | 22 Degrees |
| Load Capacitance: | non critical |
| Recommended Load Impedance: | 500 (> 200) Ohm |
| Recommended Eff Tone arm Mass: | 6 - 10 Gram |
| Moving Coil Resistance per channel: | 16 Ohm +/- 10% |
