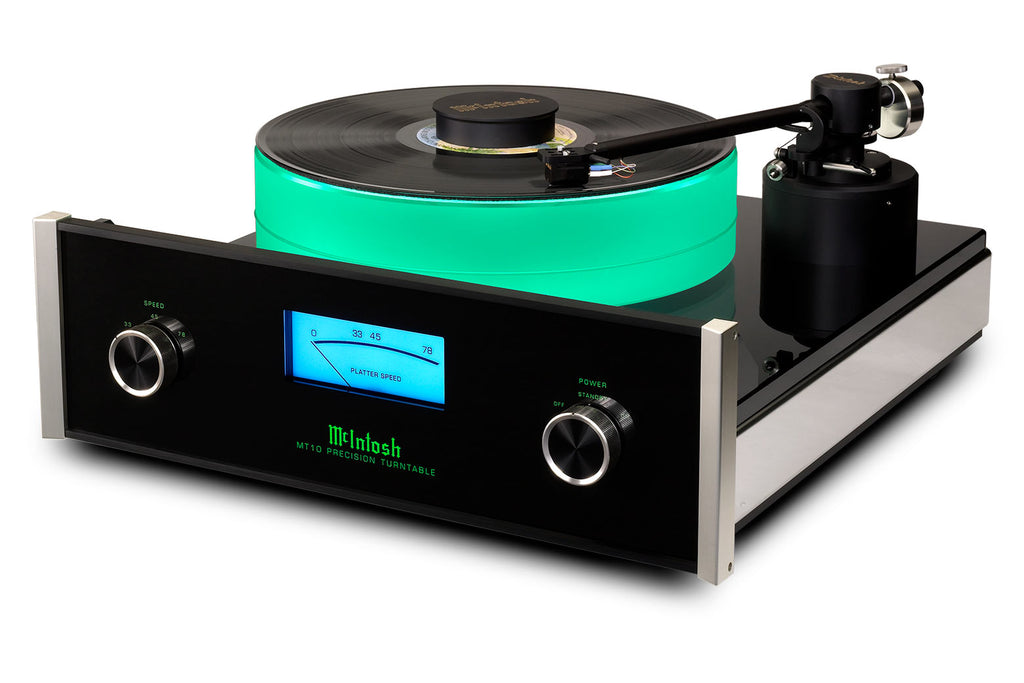

With tracking force, anti-skate and cartridge position preset at the factory, the McIntosh MT10 Precision Turntable delivers high performance LP playback with minimal set up. A custom tonearm features a rigid, dural-aluminum arm-tube gimbaled in two sapphire (horizontal) and two ceramic (vertical) bearings for the least possible friction. A .5mV moving coil cartridge is included, and features an ebony body with an elliptical stylus. Enjoy a new level of music with the MT10 turntable.
Cartridge Specifications |
|
| Cartridge Type | Moving Coil, Low Output |
| Output Level | 0.5 mV at 5 cm/s |
| Load Impedance | 400 to 500 Ohms recommended |
| Frequency Response | 20Hz to 50kHz |
| Channel Separation | Greater than 30dB at 1Khz |
| Compliance | 6 x 10-6 cm/dyne |
| Recommended Tracking Force | 2.4 g |
| Channel Difference | Less than 0.3dB at 1kHz |
| Total Mass | 11 g |
| Stylus | Elliptical Diamond |
| Cantilever Material | Aluminum |
Tonearm Specifications |
|
| Bearing | Sapphire and Ceramic |
| Arm Tube | Dural-Aluminum |
| Counterweight | Eccentric |
| Adjustments | Vertical Tracking Angle, Antiskate, Azimuth |
Turntable Specifications |
|
| Playback Speeds | 33-1/3, 45 and 78 rpm |
| Motor Type | DC Brushless |
| Speed Control | Electronic w/ braking feature |
| Platter | Silicon Acrylic |
| Platter Bearing | Magnetic Suspended Ceramic |
| Signal To Noise Ratio | 41dB - 44dB |
| Wow & Flutter | 0.10% - 0.15% |
Connectivity |
|
| Stereo Outputs Unbalanced | 1 |
| Control Power Control Input | 1 |
| Power Control Output | 1 |
| Platter Light | Yes |
| Speed Control Fine Adjustment | Yes |
General Specifications |
|
| Dust Cover Included | No |
Weights & Dimensions |
|
| Unit Dimensions (W x H x D) | 17-1/2" (44.45cm) x 8-13/16" (22.38cm) x 21" (53.34cm) Note: Tone Arm Height will vary depending on the type of Cartridge installed. |
| Unit Weight | 42 lbs (19 kg) |
| Shipping Weight | 63 lbs (28.6 kg) |
