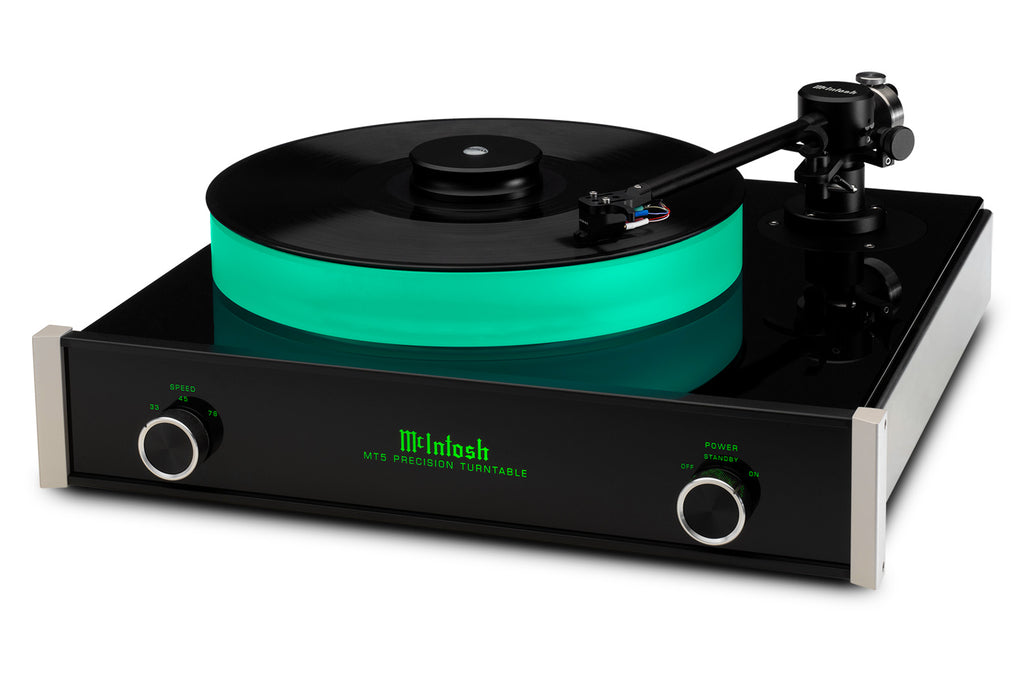

The McIntosh MT5 Precision Turntable is a complete turntable package that is more than the sum of its parts. Engineered to exacting McIntosh standards, each piece contributes to deliver a superb performance. The illuminated, magnetically suspended platter produces an inviting glow that's sure to be a conversation starter among friends and guests alike.
The MT5 comes equipped with a high performance platter and motor drive assembly, precision tone arm and a Sumiko Amethyst cartridge, a next-gen high output moving magnet phono pickup. Topped off with a nude line-contact diamond, the stylus couldn't be more nimble. Reaching every nook and cranny of your record grooves and handling that information with the utmost grace, Amethyst competes favorably with similarly priced moving coil designs. It is shockingly quiet and thus as transparent as can be, skillfully tracing even the most complicated passages your record collection has to offer. Expect effortless dynamic handling, depth and clarity over a black background, impeccably realistic transience, and images that leap from your soundstage but remain naturally positioned.
While maintaining complementary McIntosh styling, the MT5 takes full advantage of the chassis materials used to suppress noise, resonance and coloration so the only sound produced is that which is on your records. A clear, form-fitting dust cover is included to protect the MT5's moving parts, along with your valued records. The MT5 turntable is compatible with any McIntosh stereo preamplifier or phono preamplifier and is a great piece to complete your two-channel stereo system.
Cartridge Specifications |
|
Cartridge Type | Moving Magnet |
Output Level | 2.5 mV at 5 cm/s |
Load Impedance | 47K Ohms recommended (Preamp MM Input) |
Frequency Response | 12Hz to 35kHz |
Channel Separation | 30dB at 1kHz |
Compliance | 12 x 10-6 cm/dyne |
Recommended Tracking Force | 2.0 g |
Channel Difference | Less than 0.5dB at 1kHz |
Total Mass | 6.5 g |
Stylus | Extended Line Contact |
Cantilever Material | Aluminum |
Tonearm Specifications |
|
Bearing | Magnetic Sapphire and Ceramic |
Arm Tube | Dural-Aluminum |
Counterweight | Eccentric |
Adjustments | Vertical Tracking Angle, Antiskate, Azimuth |
Turntable Specifications |
|
Playback Speeds | 33-1/3, 45 and 78 rpm |
Motor Type | DC Motor with Stainless Steel Brushes |
Speed Control | Servo System |
Platter | Silicon Acrylic |
Platter Bearing | Magnetic Suspended Ceramic |
Signal To Noise Ratio | 36dB - 41dB |
Wow & Flutter | 0.15% - 0.20% |
Connectivity |
|
Stereo Outputs Unbalanced | 1 |
Control |
|
Power Control Input | 1 |
Power Control Output | 1 |
Platter Light | Yes |
Speed Control Fine Adjustment | Yes |
General Specifications |
|
Dust Cover Included | Yes |
Weights & Dimensions |
|
Unit Dimensions (W x H x D) | 17-1/2" (44.45cm) x 7" (17.8cm) (7-1/2" (19.0cm) with dust cover) x 17" (43.18cm) Note: Tone Arm Height will vary depending on the type of Cartridge installed. |
Unit Weight | 31.5 lbs (14.3 kg) |
Shipping Weight | 38 lbs (17.2 kg) |
