Vogel's TVM 5645 Full-Motion TV Wall Mount | Black | 40"–77"
R 8,180.00
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Product Description
Product Description
Care
Care
Shipping & Returns
Shipping & Returns

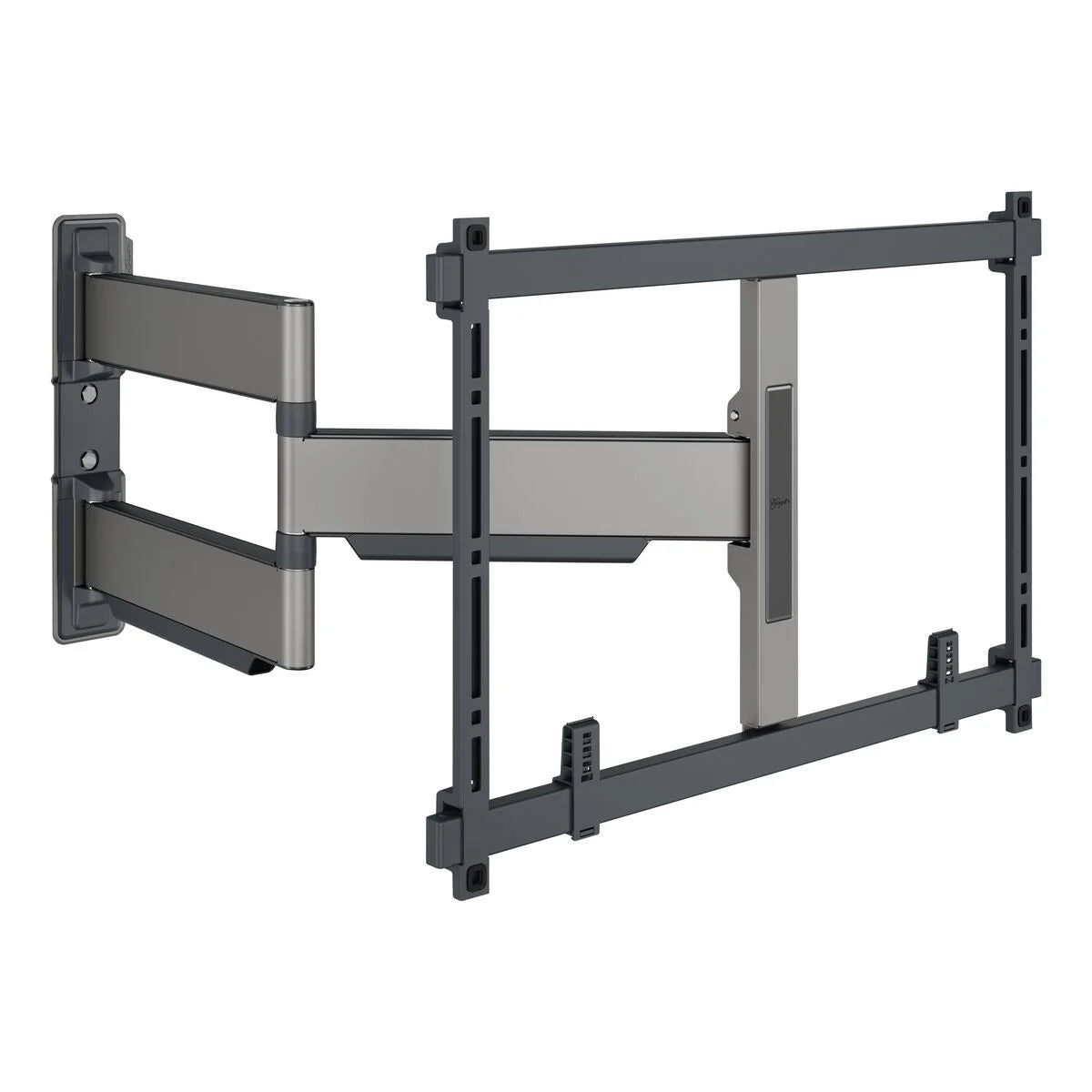

Vogel's TVM 5645 Full-Motion TV Wall Mount — Black

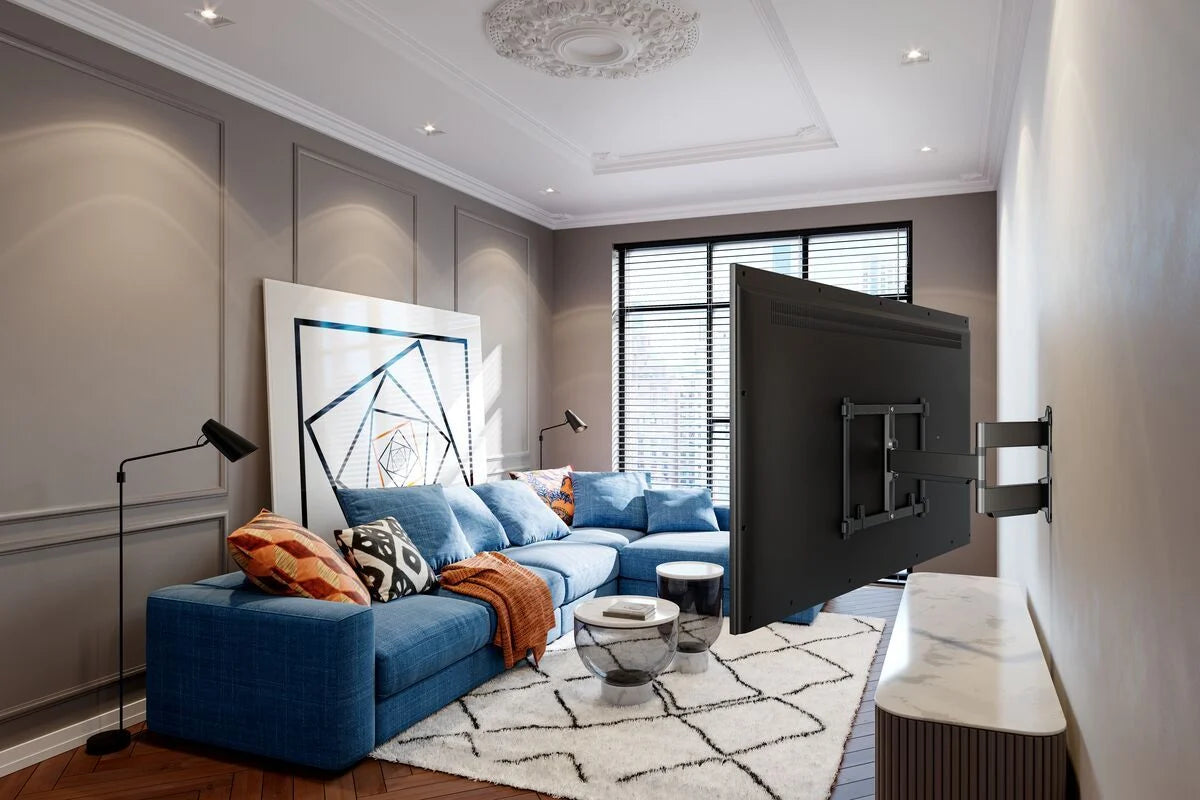

The Vogel's TVM 5645 is a premium full-motion TV wall mount built for larger, heavier screens — supporting TVs from 40 to 77 inches and weighing up to 70 kg. With a full 180° swivel and up to 20° tilt, you can achieve the perfect viewing angle from anywhere in the room. The patented EasyFIX™ system makes installation straightforward, and post-mount 3D levelling ensures your screen is perfectly aligned every time.
Key Features
- Full 180° swivel (90° left / 90° right) for maximum viewing flexibility
- Tilt range: -20° / +5° for glare-free viewing
- Compatible with TVs from 40" to 77" weighing up to 70 kg
- EasyFIX™ installation system — quick and straightforward setup
- 3D-Leveling™ for post-installation alignment (vertical, horizontal & depth)
- VESA compatible: 200×200 mm to 600×400 mm
- Integrated cable management for a clean finish
- Complete installation kit included
- Free DrillRight™ AR app for precise drill-hole marking
- Vogel's 5-year safety guarantee
What's in the Box
- TVM 5645 full-motion wall mount bracket
- Drilling template
- Screws & Fischer® DuoPower plugs
- Spirit level
- Cable ties
- Quick Installation Guide

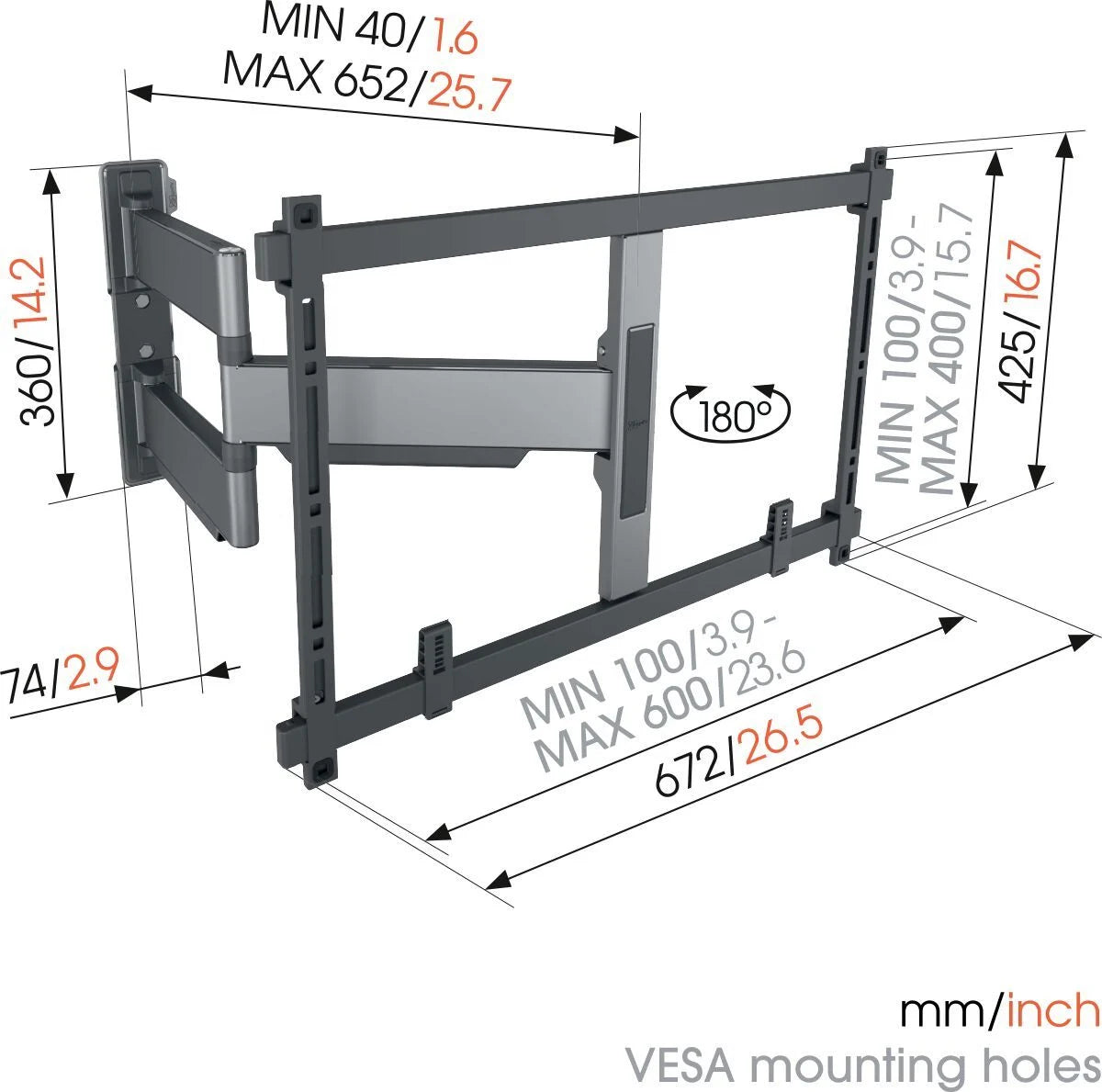

Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | TVM 5645 |
| Brand | Vogel's |
| Colour | Black |
| Compatible TV Size | 40" – 77" |
| Maximum TV Weight | 70 kg |
| Movement Type | Manual Full-Motion |
| Swivel Range | 180° (90° left / 90° right) |
| Tilt Range | -20° / +5° |
| VESA Compatibility | 200×200 mm – 600×400 mm |
| Min. Distance from Wall | 58 mm (folded) |
| Max. Distance from Wall | 541 mm (extended) |
| Mount Weight | 7.2 kg |
| Levelling System | 3D-Leveling™ (vertical, horizontal & depth) |
| Cable Management | Yes (integrated + cable ties included) |
| Installation Surface | Concrete, Brick, Drywall (with appropriate fixings) |
| Warranty | 5 Years |
| EAN / Barcode | 8712285323761 |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
