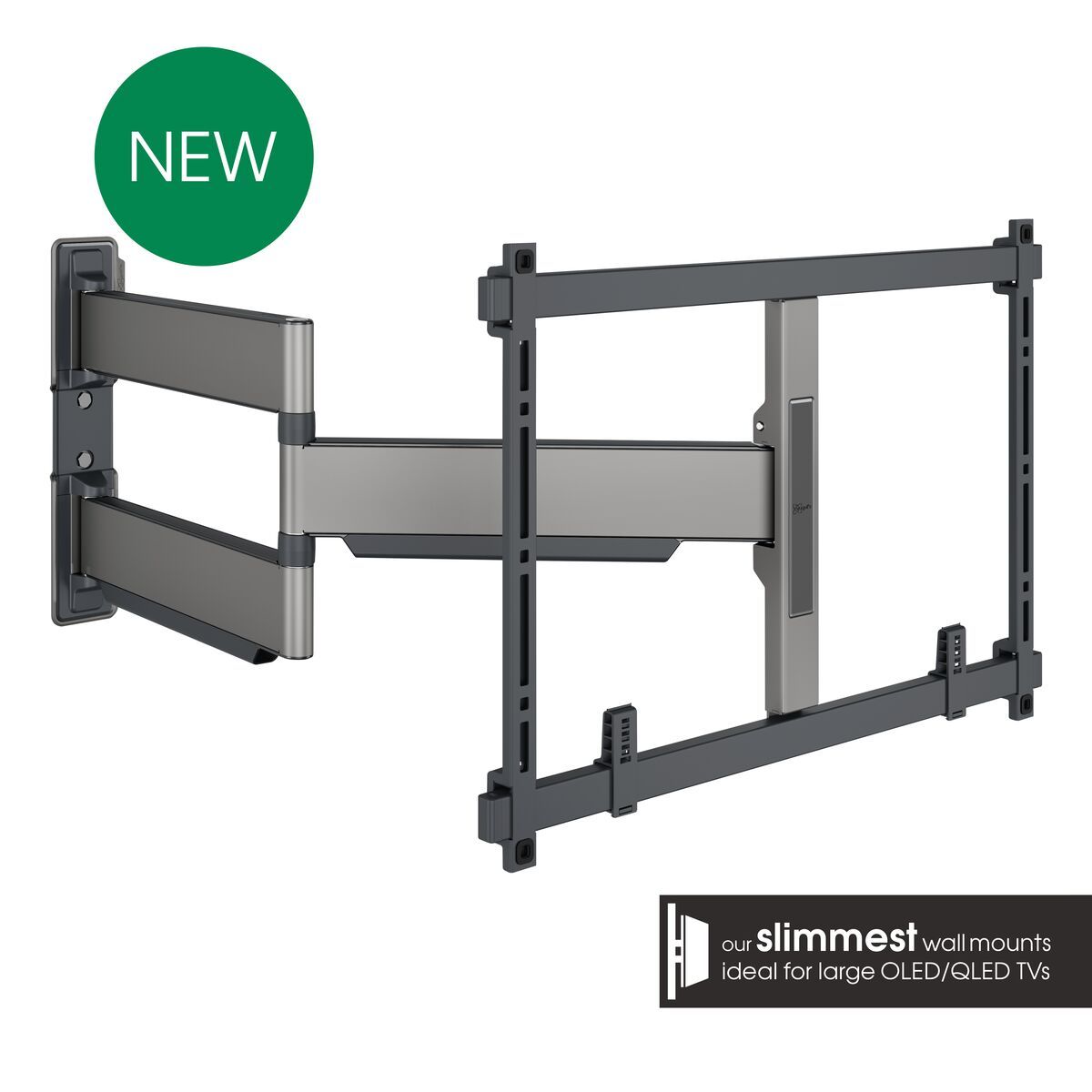

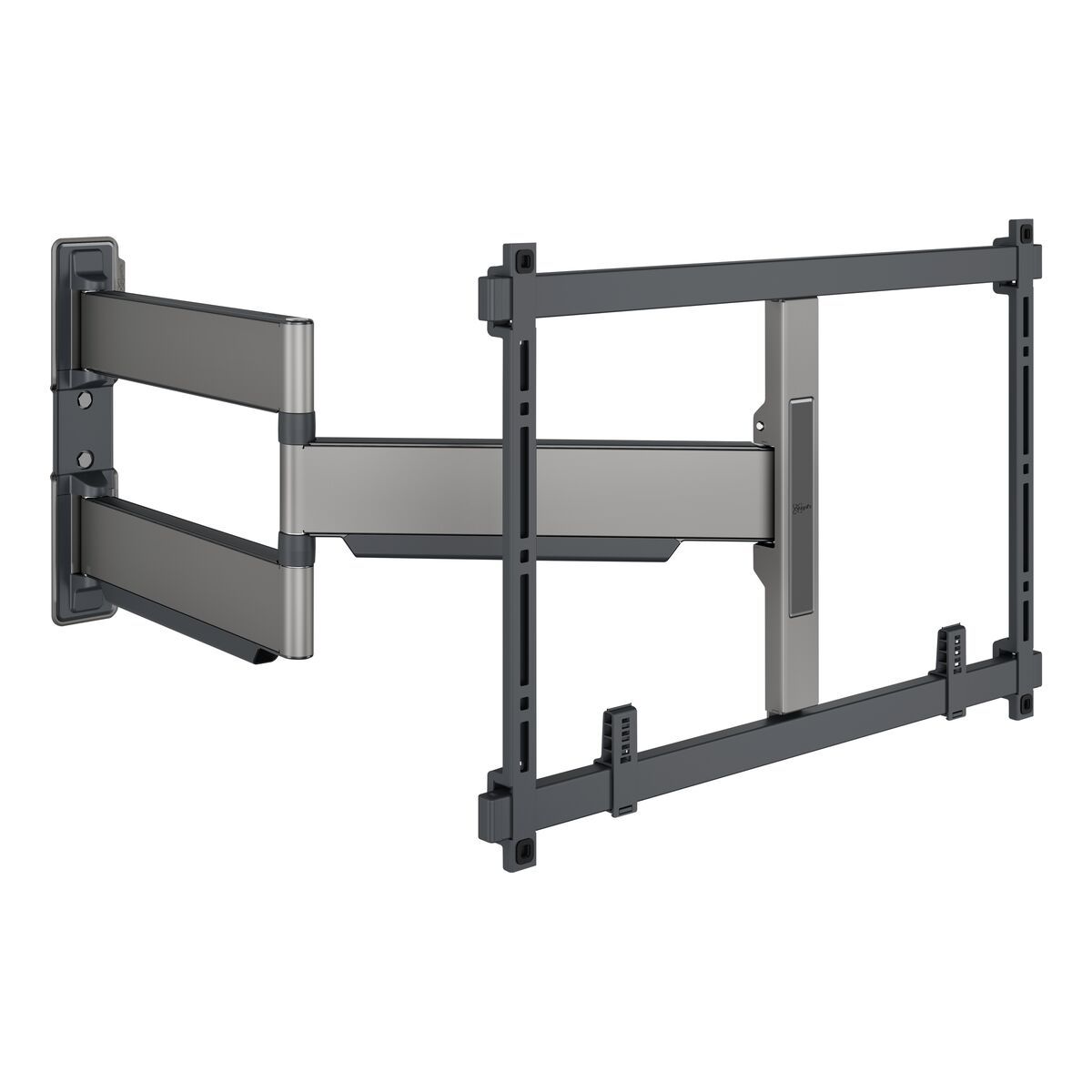

Vogel's TVM 5845 ELITE Full-Motion TV Wall Mount
Ultra-slim full-motion wall mount for large premium TVs from 55 to 100 inches — engineered for OLED & QLED displays.
When your TV spans 65, 77, or even 100 inches, it deserves a mount that matches its ambition. The Vogel's TVM 5845 is the flagship of the ELITE Full-Motion+ range — built for the largest, most fragile high-end displays on the market. At just 40 mm from the wall in the closed position, it disappears behind your screen. Extend the 74 cm arms and swivel up to 180° to fill any room with cinematic viewing. One finger is all it takes.
Key Features
- OneFinger™ Movement — Coated bearings and precision steel shafts deliver effortless, smooth repositioning with a single finger.
- Ultra-Slim Profile — Only 40 mm from the wall in the closed position; extends up to 740 mm for wide-angle viewing.
- 180° Full Swivel — Up to 90° left and right via 3 pivot points; optimise your viewing angle from anywhere in the room.
- 74 cm Support Arms — Extra-long arms designed specifically for large-format displays, enabling a full sweep even on 100" screens.

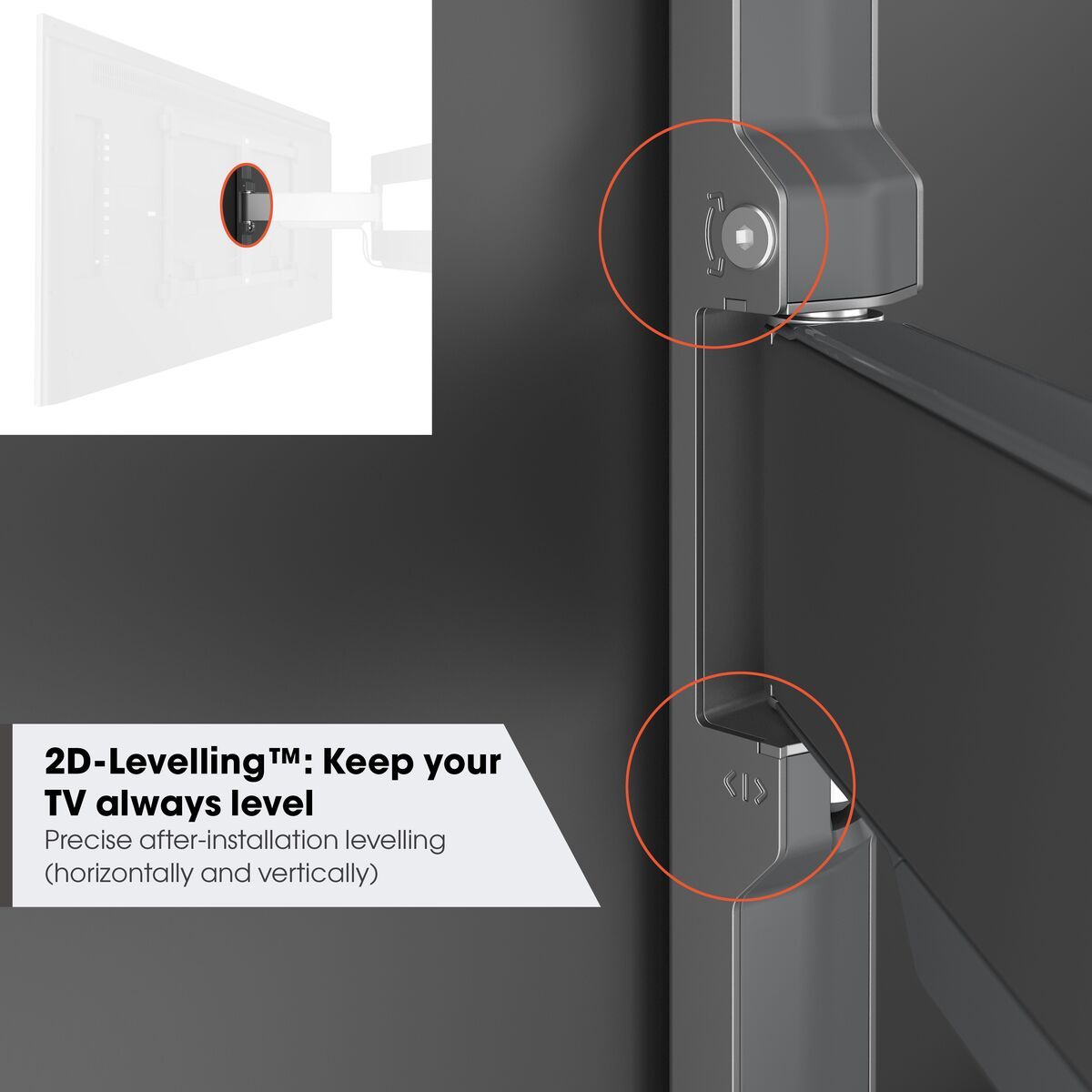

- 2D Leveling™ — Adjust horizontal and vertical alignment precisely after installation — no need to rehang your TV.

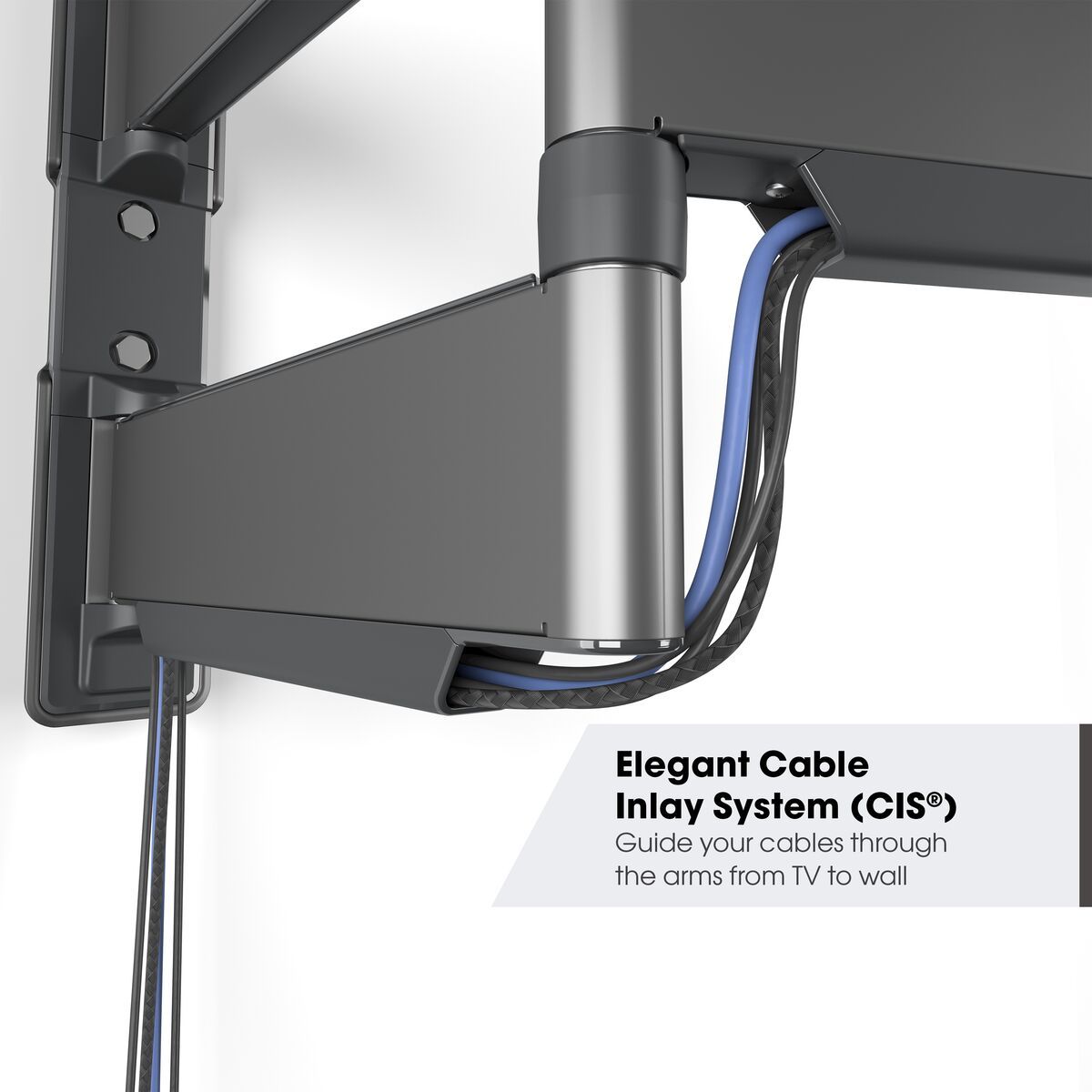

- Cable Inlay System (CIS®) — Cables routed through the support arms and concealed behind stylish cover plates for a clean finish.
- Protective TV Patches — Soft patches guard the rear panel of your TV during and after mounting.
- TÜV Certified — Tested at 3× the maximum rated weight capacity. Meets the most stringent international safety standards.
- 15-Year Warranty — ELITE-grade build quality backed by Vogel's longest warranty.
In the Box
- TVM 5845 ELITE wall mount with cover plates
- Wall mounting kit with Fischer® DuoPower plugs
- TV fasteners kit

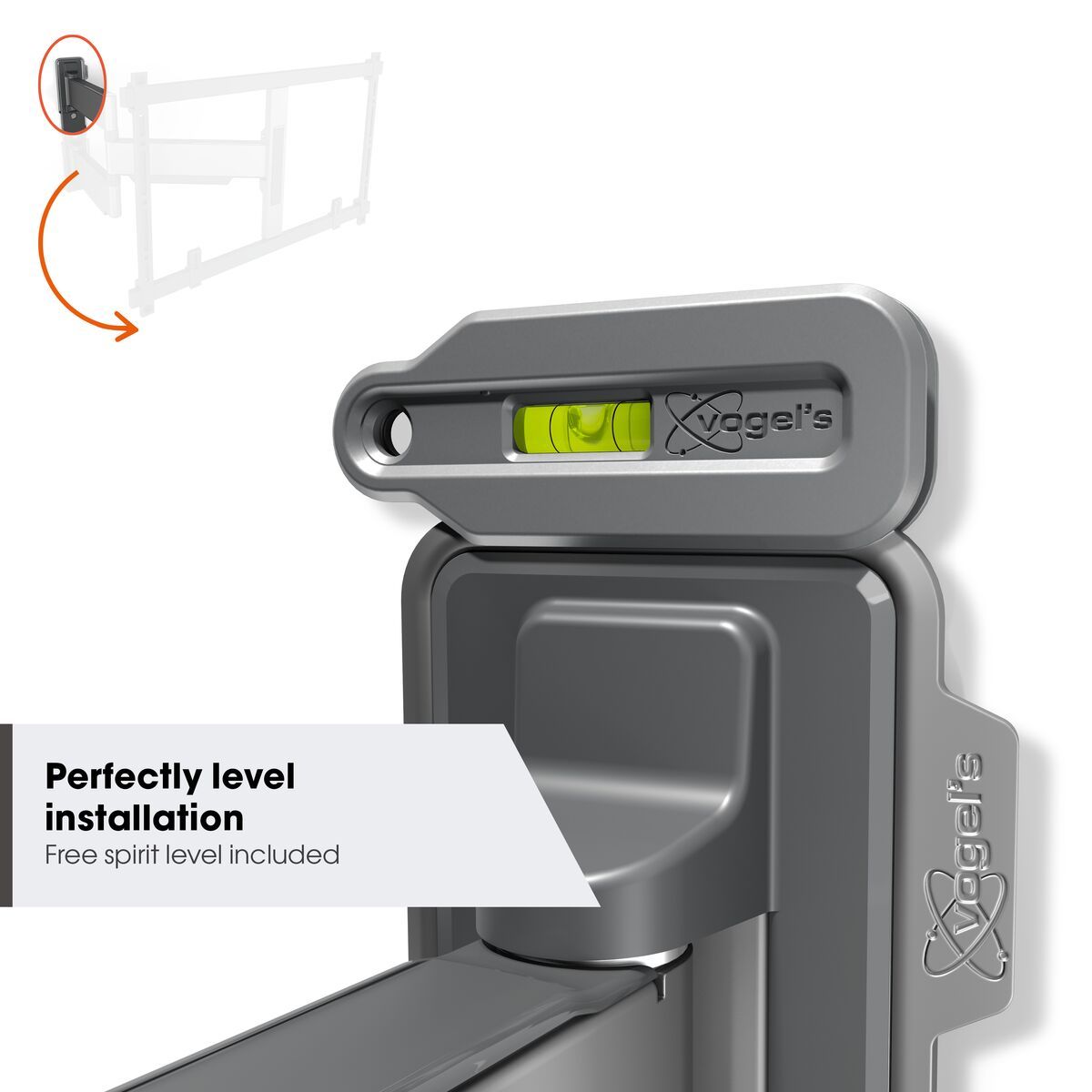

- Spirit level
- Drilling template
- Quick Installation Guide
- Access to DrillRight™ AR app (free download)
- Soft protective TV patches
Technical Specifications
| Model | TVM 5845 |
| EAN | 8712285354786 |
| Colour | Black |
| Product Series | ELITE |
| Product Category | Full-Motion TV Wall Mount |
| Min. Screen Size | 55 inches |
| Max. Screen Size | 100 inches |
| Max. Weight Load | 55 kg |
| Swivel / Rotation | Up to 180° (90° left + 90° right) |
| Tilt | None (omitted to protect large fragile displays) |
| Number of Pivot Points | 3 |
| Arm Length | 74 cm |
| Min. Distance to Wall | 40 mm (1.57 inch) |
| Max. Distance to Wall | 740 mm |
| VESA Compatibility | 100×100, 100×200, 200×100, 200×200, 200×300, 300×200, 300×300, 400×200, 400×300, 400×400, 500×200, 500×300, 500×400, 600×200, 600×300, 600×400 mm |
| Movement System | OneFinger™ (coated bearings, precision steel shafts) |
| Leveling System | 2D Leveling™ (horizontal & vertical post-install adjustment) |
| Cable Management | Cable Inlay System (CIS®) with cover plates |
| Safety Certification | TÜV certified (tested at 3× max. load) |
| Included Fixings | Fischer® DuoPower plugs, screws, TV fasteners, protective patches |
| Recommended TV Types | OLED, QLED, LED — large high-end flat panels up to 100" |
| Guarantee | 15 years |
