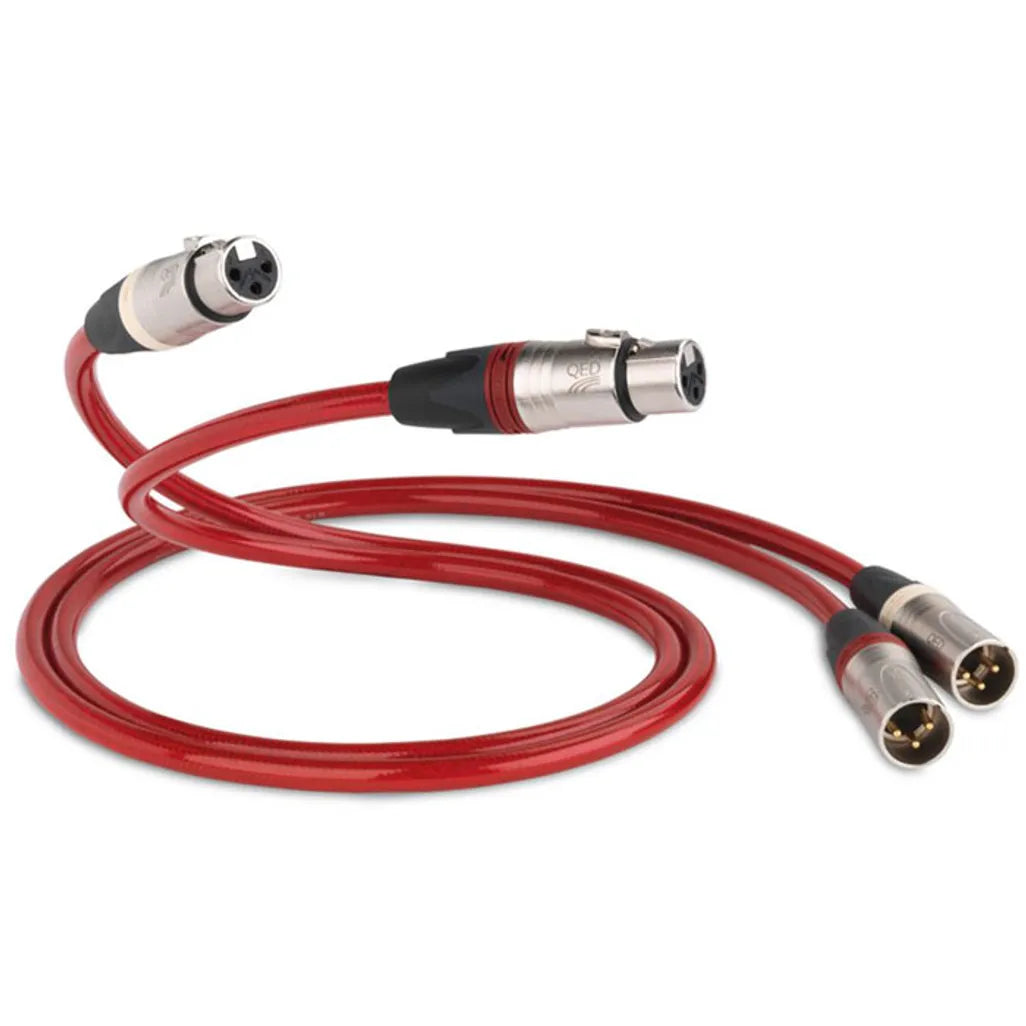

QED Ref Analoque XLR 40
Reference XLR 40 builds on the multi-award winning Audio 40 range of products, now available in XLR form.
XLR 40 is designed primarily for low capacitance as this has been identified by QED as a major factor which leads to a high fidelity experience. Further steps have been taken to eliminate minute timing errors in the cable by the use of a special floating Zn/Mn ferrite jacket alongside use of QEDs unique 'Tri-Conductor' technology reducing signal to ground capacitance to vanishingly low levels.
Specifications:
99.999% Silver Plated Oxygen Free Copper 24 AWG Tri-Conductors with foamed PE dielectric
QED Tri-Conductors provide a level of common mode rejection not found in ordinary "hot cold and screen" cables
Unique floating Zn/Mn impregnated ferrite jacket
99.999% OFC outer shield braid for 100% electrostatic screening
High performance gold plated Neutrik XLR connectors with low contact resistance and high signal integrity
Conductor Section 0.25 mm2
Parallel Capacitance 35 pF
Self Inductance 0.8 μH
Loop resistance 0.130 Ω/m
Dissipation Factor@10kHz 0.0001
Nominal Outside Diameter 8 mm
QED Lifetime Guarantee
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
