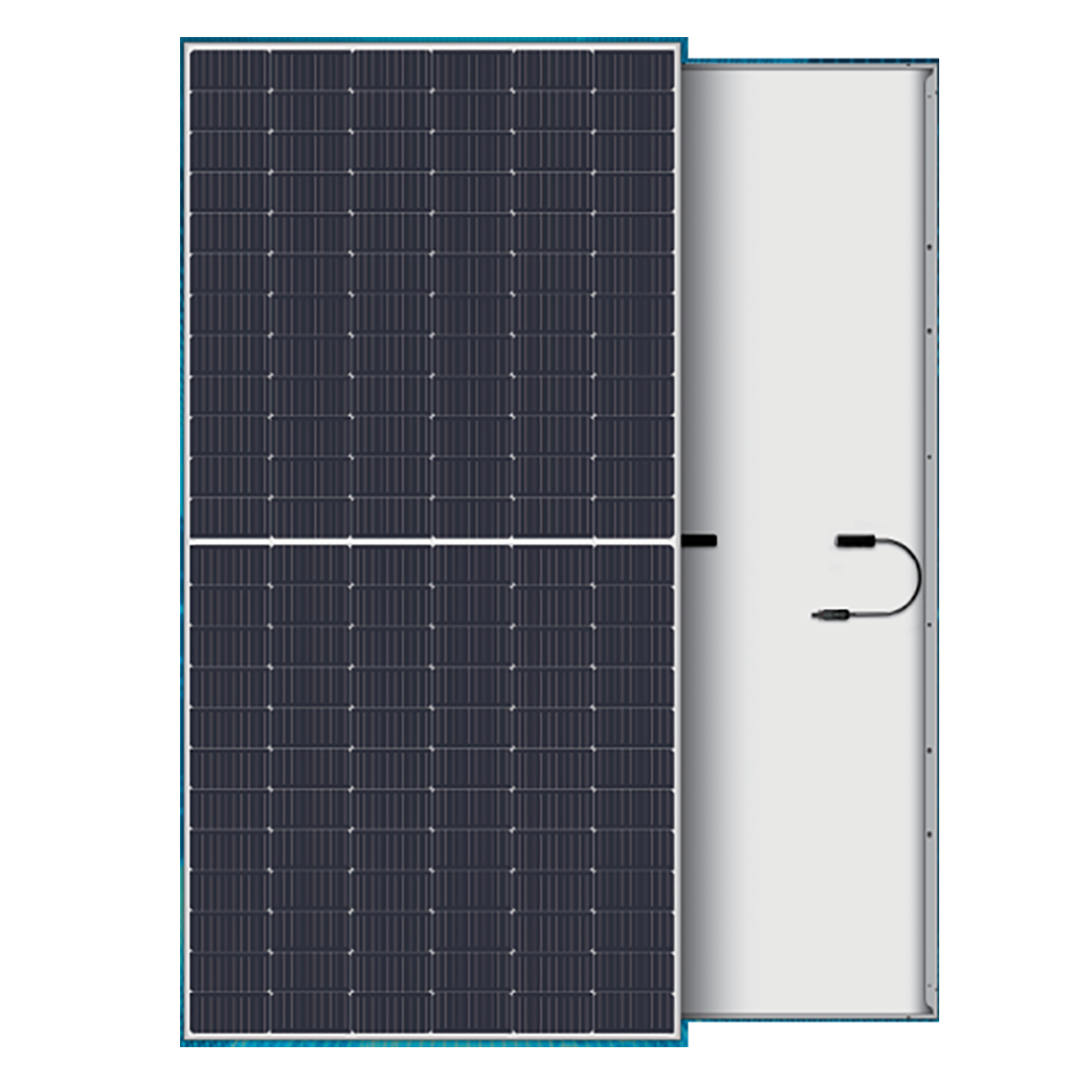

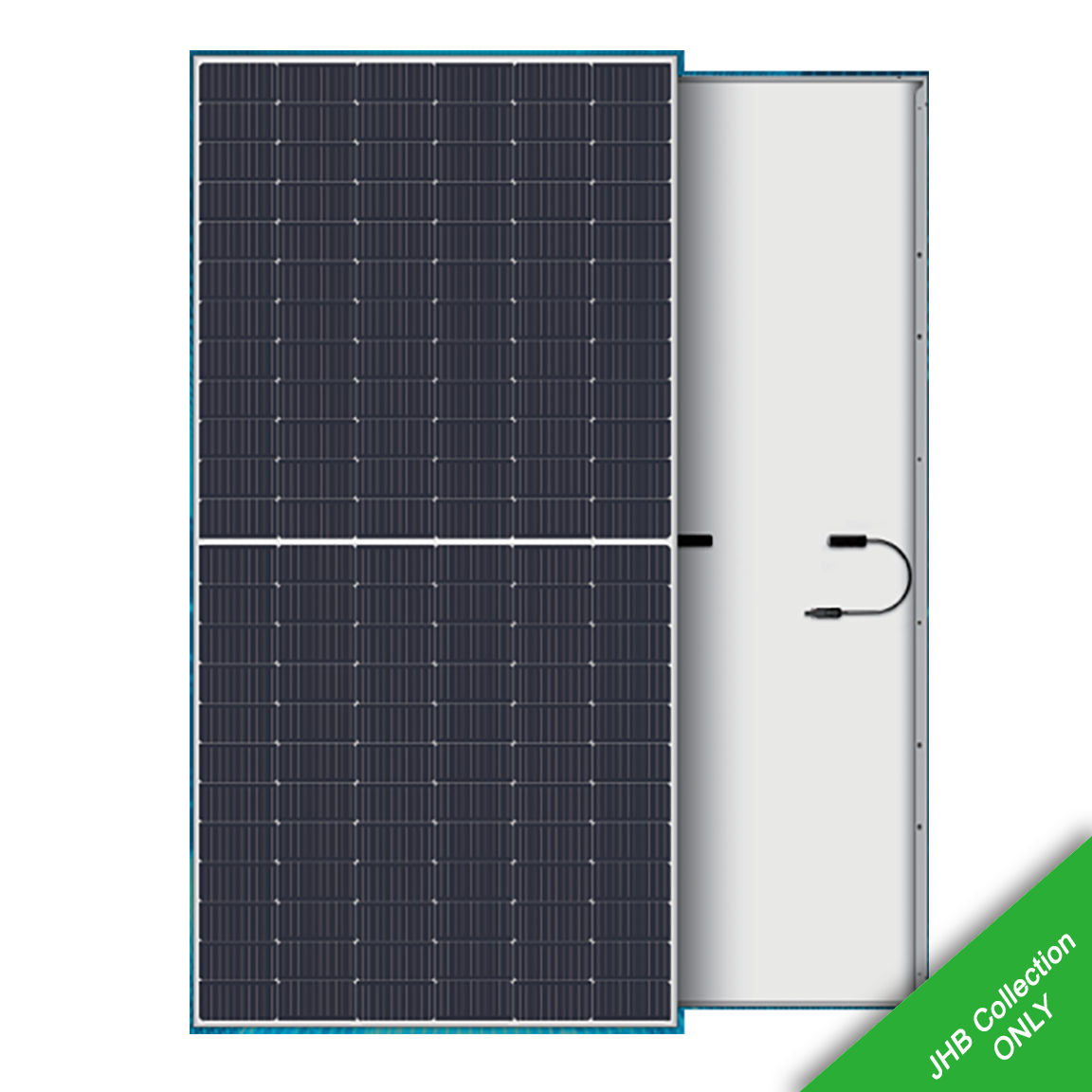

550W Solar Panel - Akcome MONO 10BB Half-Cut Module - 550W 1 Pallet Bulk Deal
31 Units per Pallet
The Akcome MONO 10BB Half-Cut Module 550W is an efficient solar module that is perfect for harsh environments. Designed with half-cut technology and series-parallel wiring, it provides increased power output and reduced shading loss. It boasts a 1.6°C lower temperature compared to conventional modules.
Features:
-
High Efficiency
-
Excellent Low-Irradiance Performance
-
Harsh Environment Adaptability
-
Robust Mechanical Durability
Half-Cut technique leads to increased power output
Compared with the whole cell, the current of half cell is halved, the heat loss is reduced, the hot spot temperature is reduced, and the power can be effectively increased.
Series-parallel wiring mode results in reduced shading loss
Series-parallel wiring will not only reduce power lows from shade but also improves
the effective use of supports and space.
Excellent temperature performance
The temperature of HC module is 1.6 °C lower than that of the conventional module
under the same working condition, which results less power loss.
Reduced encapsulation loss due to reduced current
HC module is of lower current and lower CTM loss at around 0.2%.
| Model No. | 550 |
| Warranty | Product Warranty 15 Years |
| Electrical Data at STC | |
| Maximum Power (Pmax) | 550 Wp |
| Voltage at Maximum Power (Vmpp) | 42.16 V |
| Current at Maximum Power (Impp) | 13.05 A |
| Open Circuit Voltage (Voc) | 49.8 V |
| Short Circuit Current (Isc) | 13.94 A |
| Panel Efficiency | 21.3 % |
| Power Tolerance (Positive) | 0 ~+ 3 % |
|
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C |
|
|
Electrical Data at NOCT |
|
| Maximum Power (Pmax) | 409 Wp |
| Voltage at Maximum Power (Vmpp) | 38.43 V |
| Current at Maximum Power (Impp) | 10.66 A |
| Open Circuit Voltage (Voc) | 46.31 V |
| Short Circuit Current (Isc) | 11.26 A |
| Temperature 45±2 °C | |
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |
| Thermal Ratings | |
| Operating Temperature Range | 40~85 °C |

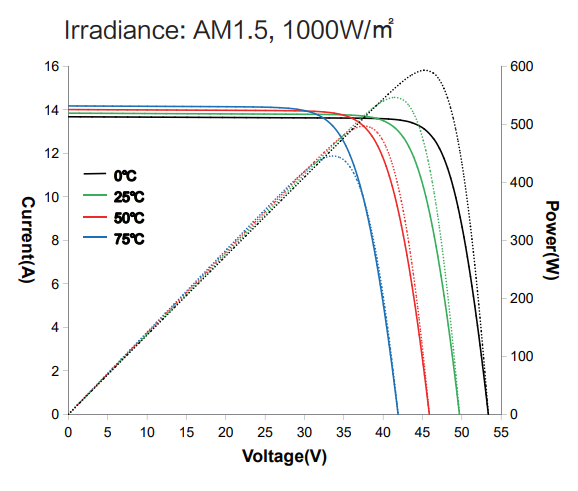

| Temperature Coefficient of Pmax | 0.36 %/°C |
| Temperature Coefficient of Voc | 0.29 %/°C |
| Temperature Coefficient of Isc | 0.048 %/°C |
| Maximum Ratings | |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 25 A |
| Material Data | |

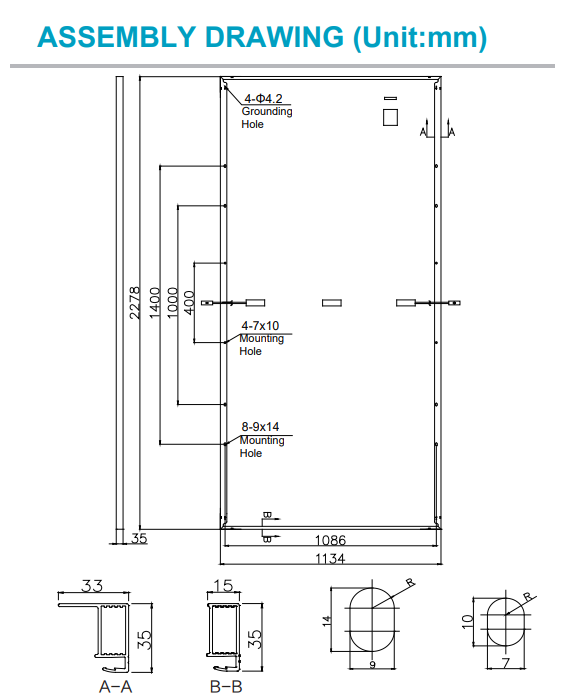

| Panel Dimension (H/W/D) | 2278x1134x35 mm |
| Weight | 28.96 kg |
| Cell Type | Monocrystalline |
| Cell Number | 144 |
| Frame Type | Anodized Aluminium Alloy |
| Junction Box Diodes | 3 |
| Junction Box Protection Class | IP 68 |
| Cable Crossection | 4 mm2 |
| Cable Length | 300 mm |
