    JVC DLA-NZ7 Laser Projector

    R 400,000.00

      JVC DLA-NZ7 Laser Projector

      Features
      • 8K/e-shift technology reproduces 8K image quality
      • New 0.69-inch 4K D-ILA (4096 x 2160) device x 3
      • BLU-Escent Laser Light Source
      • High brightness of 2,200 lm provides vibrant and dynamic images
      • 17-element, 15-group all-glass 65mm diameter high-quality lens
      • Native Contrast Ratio of 40,000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
      • 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
      • HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
      • Frame Adapt HDR* dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes. As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation
      • New Theater Optimizer** function, which works in Frame Adapt HDR mode, offers optimum HDR images by analyzing usage environments using the screen size and gain information and intelligently adjusts tone mapping.
      • Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality
      • For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
      • Nine settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect; stored installation modes for various environments can be called up.
      • Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles



      Specifications
      Device
      D-ILA Technology Yes
      Chip Type 0.69-inch 4K D-ILA device
      Native Resolution 4096 x 2160
      Number Of Chips 3
      8K/e-shift Yes
      Display Resolution 8192 x 4320
      Light Source
      Laser Yes
      Type BLU-Escent Laser Diode
      Life Time (Standard Mode) 20000 hours
      Brightness 2200 lm
      Dynamic Contrast ∞ : 1
      Native Contrast 40000 : 1
      Dynamic Light Power control Yes
      Modes Mode 1 (gentle), Mode 2 (strong), Off
      Manual Aperture Yes
      Range -15 (stops down) to 0 (opens up)
      100% REC 709 Yes
      Color Bit Depth 12 bit
      ISFccc Certification Yes
      HDR
      HDR10 Yes
      HDR10+ Yes
      Frame Adapt HDR Yes
      Theatre Optimizer Yes
      HLG Yes
      Auto Tone Mapping Yes
      Mastering Info Display Yes
      Info data MaxCLL and MaxFALL mastering data
      HDR Picture Modes BT.709 / BT.2020 / DCI / HDR
      Lens
      Zoom 2 x
      Throw Ratio 1.43-2.92:1
      Diameter 65 mm
      Material All-glass
      Build 17-element, 15-group in full aluminium lens barrel.
      Lens Shift Yes
      Range Horizontal ± 34 %
      Range Vertical ± 80 %
      Motorized Zoom Yes
      Motorized Shift Yes
      Motorized Focus Yes
      Projection Display size (diagonal) 60 - 200 inch
      Memory Function Yes
      Number of user presets 10
      Lens Cover Yes
      HDMI Number of connections 2
      Data Rate 48 Gbps
      HDCP Version 2.3
      8K60P signal input Yes
      4K120p signal input Yes
      4K60P signal input Yes
      Video Signal range 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24 PC Signal range VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
      Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
      Color Space Range Auto/ YCbCr4444 / YCbCr422 / RGB
      EDID Modes A and B (older hardware may need to use B settings)

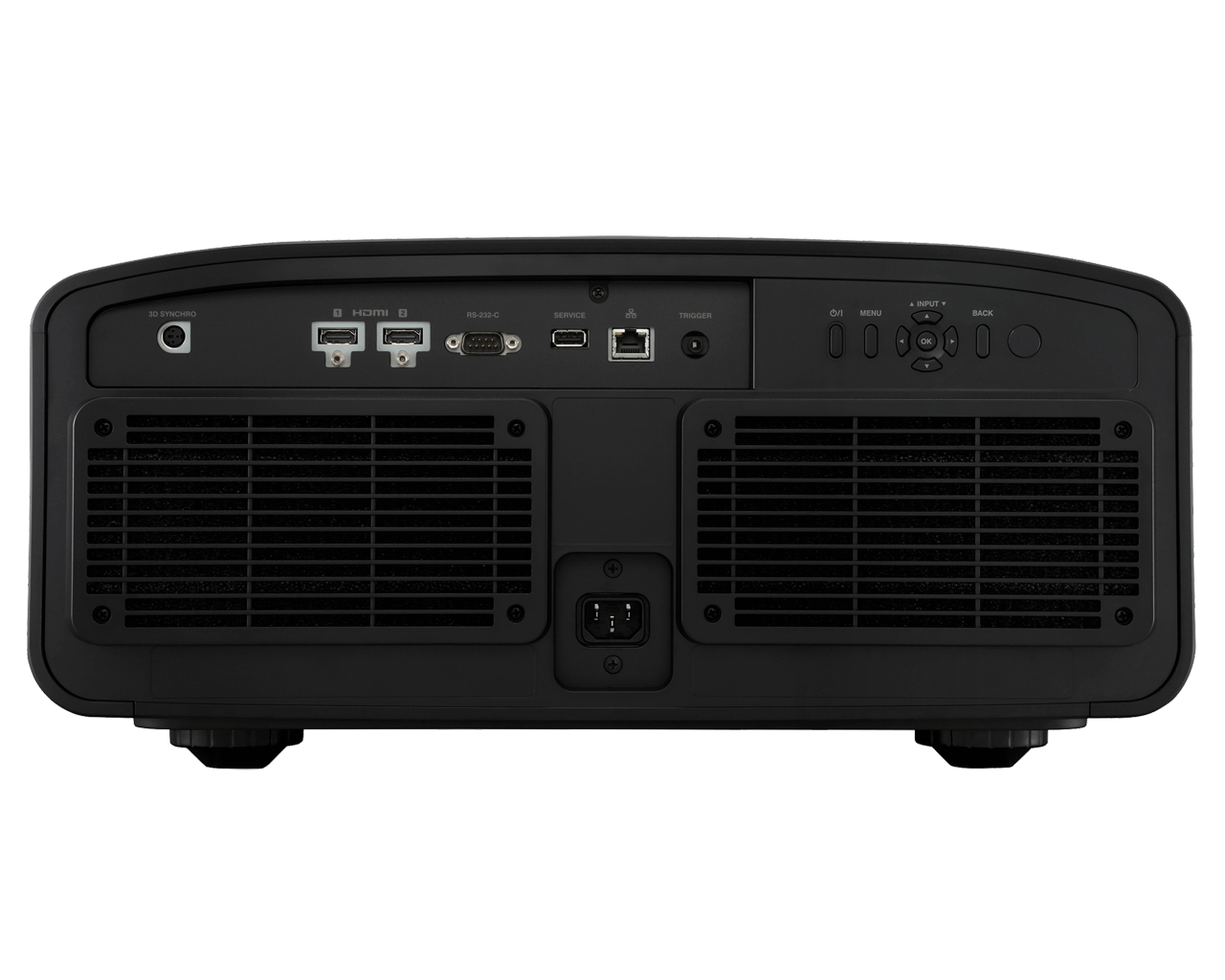

      Connections
      Trigger out Yes
      Connector Mini-Jack (3,5mm)
      Power DC 12V / 100mA
      3D Synchro Yes
      Connector Mini DIN 3-pin
      LAN Yes
      Connector RJ45
      RS-232 Yes
      Connector D-sub 9-pin
      Service Yes
      Connector USB (Type A) for firmware update.
