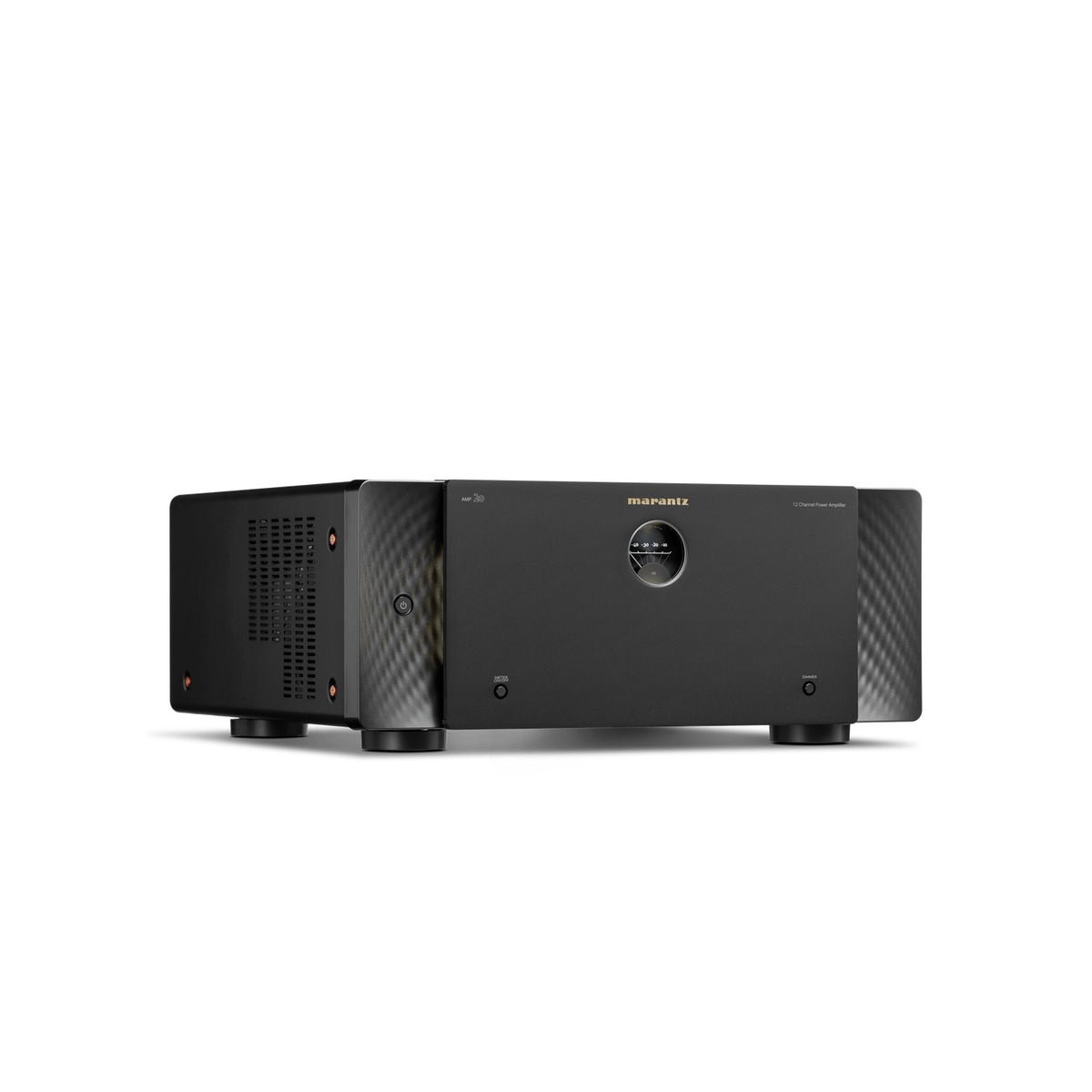

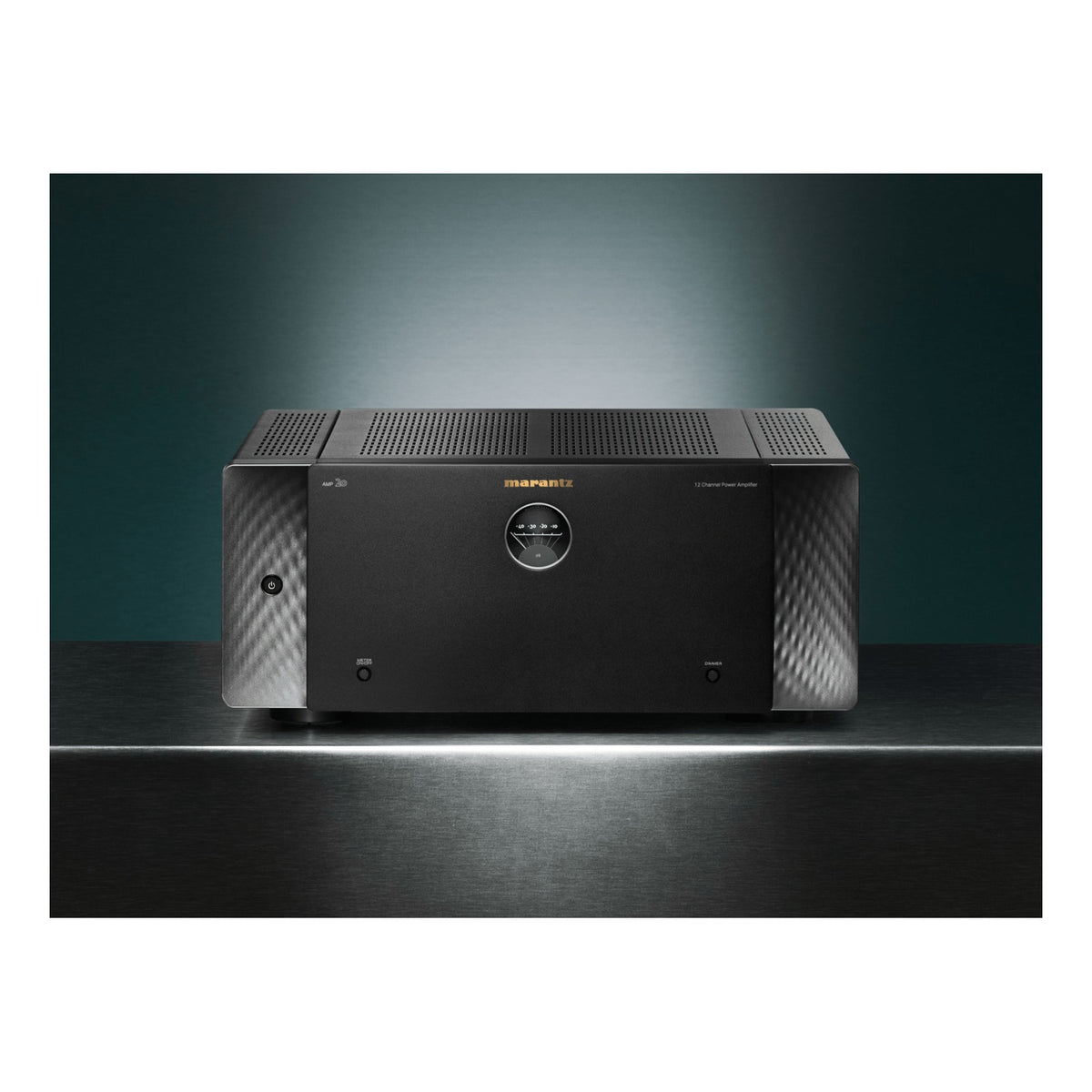

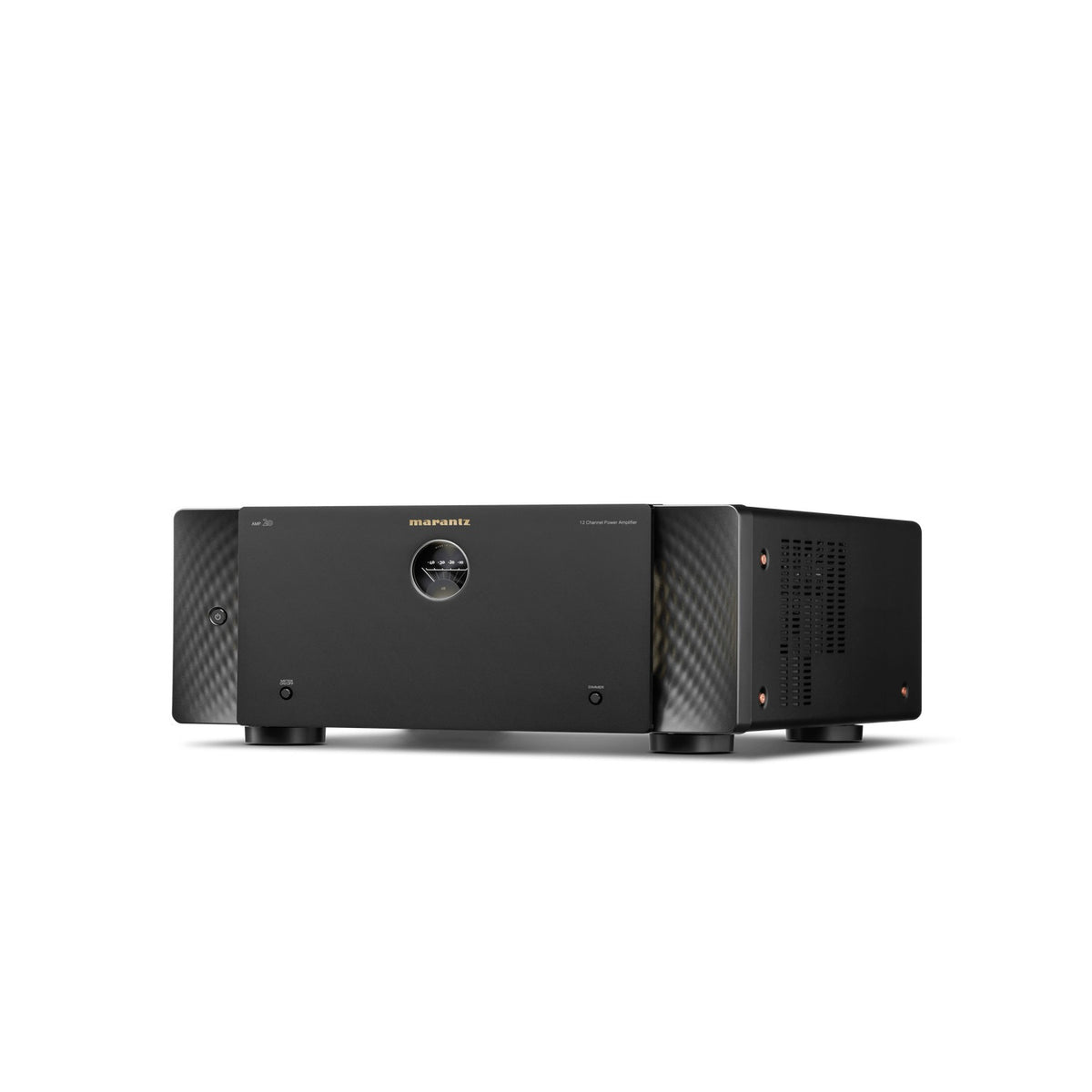

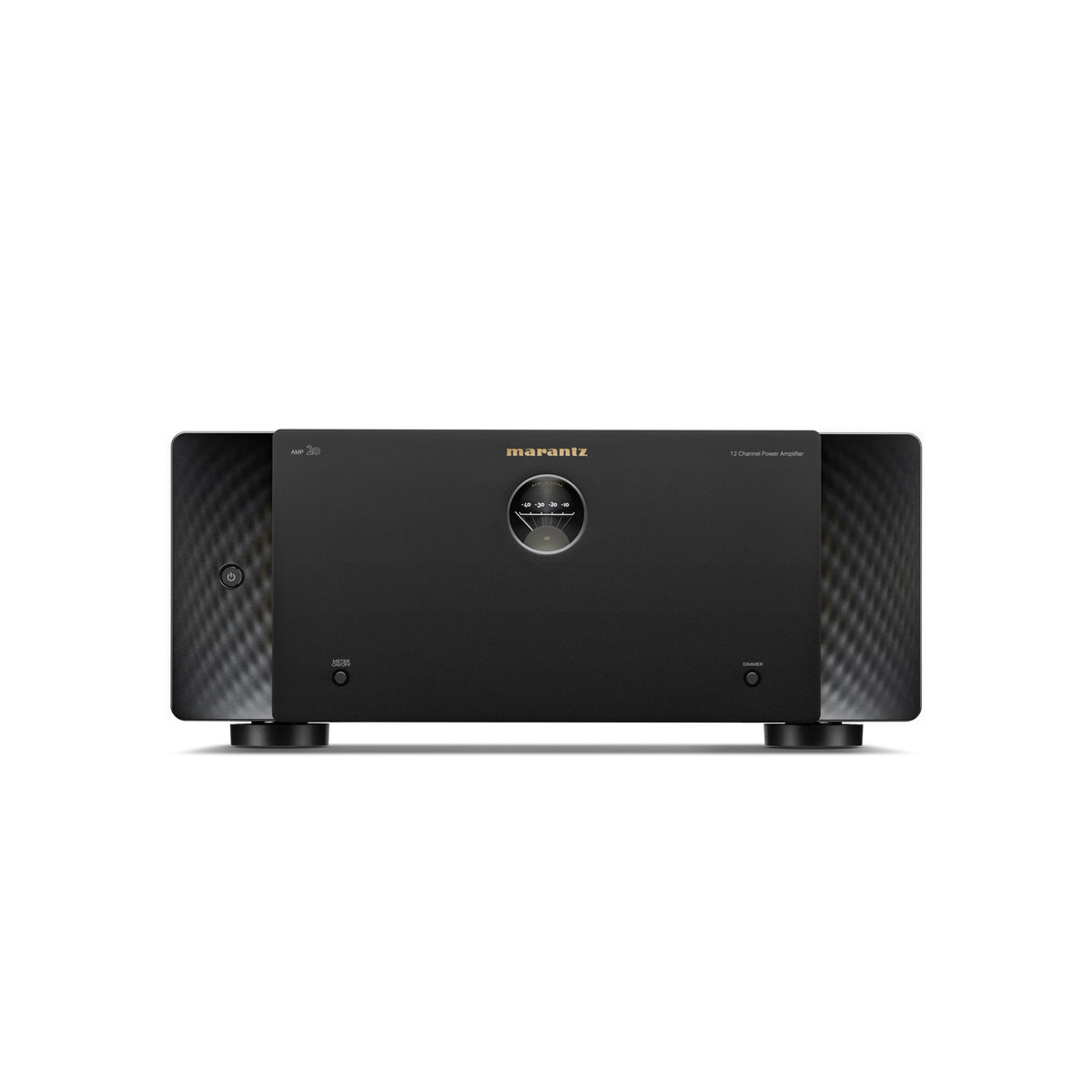

AMP 20 12-Channel Power Amplifier
Specifications
| Model | AMP20 |
| Number of poweramps | 12 |
| Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL | 200W / 400W |
| Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal | 400W |
| Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal | 200W |
| Pack Type | Each |
| Available Colours | Black |
| Inputs Outputs | |

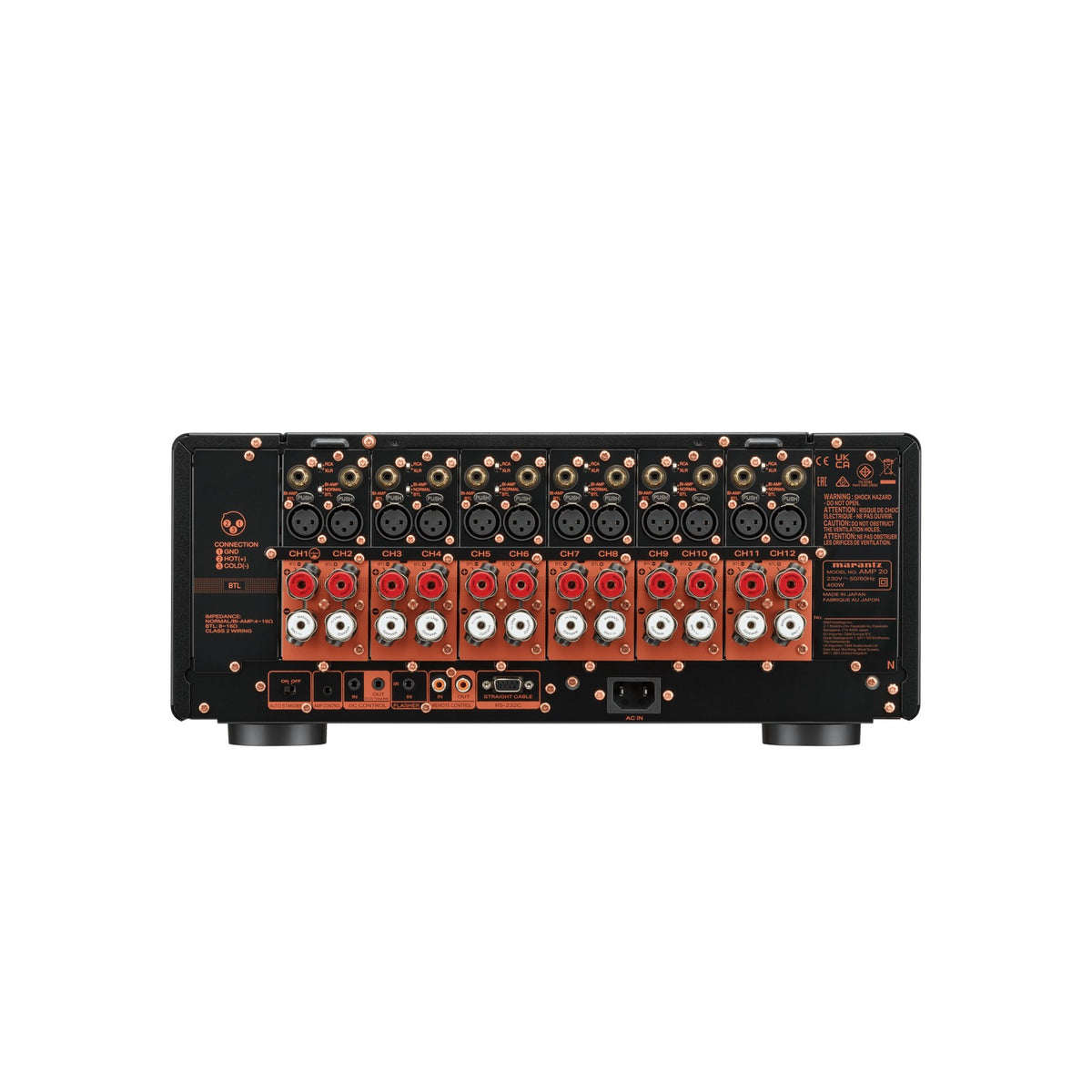

| Main Amplifier in | Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.) |
| Speaker Terminal | SPKT-1+ |
| Number of Speaker Terminals | 12 |
| Bi-Amp Drive /BTL Drive | Yes / Yes |
| Level Meter | Yes |
| Chassis | Copper Plated |
| Multi-Room CI | |
| RS232 Control | Yes |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Input/ Output | 1 / 1 |
| General | |
| Front Display | Level Meter |
| Auto Power Off | Yes |
| Metal Front Panel | Yes |
| Power Consumption | 400W |
| Power Consumption, No-Sound | 110W |
| Standby Consumption | 0.2W |
| Maximum Dimensions (W × D × H) | 17.4 × 17.4 × 7.5 in. |
| Weight | 39.7 lbs |
| What's in the box | Main unit, quick start guide, AC cord,Amp control cable, Remote control cable, SP terminal wrench |
| UPC code | 747192143930 |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
