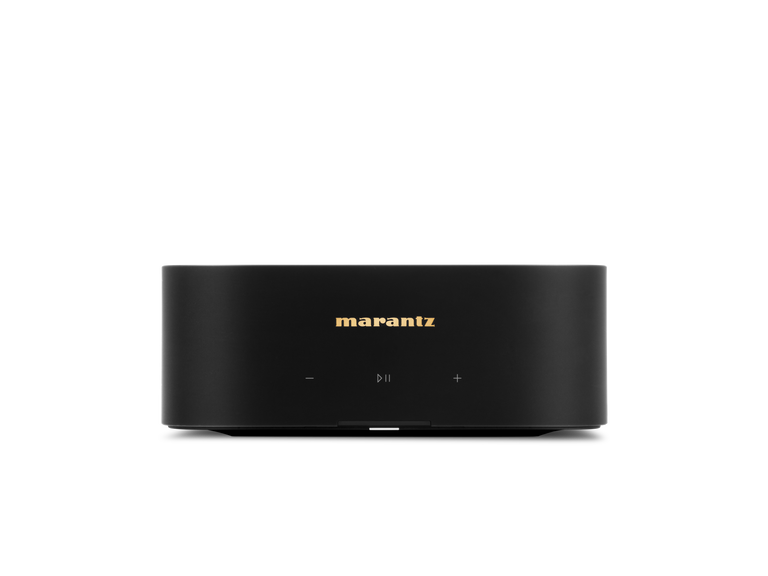

MODEL M1 is a wireless streaming amplifier engineered with performance and versatility in mind. Enjoy your favorite music or TV shows with seamless connectivity from one elegant, compact device.
Specifications:
Amplifier | |
Power Amplifier Rated output & THD (8 ohm) | 100 W+100 W (8 Ω, THD 0.05%) |
Power Amplifier Rated output & THD (4ohm) | 125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.05%) |
Frequency Response | 20 Hz to 20 kHz : ±1 dB |
Connected loudspeaker Impedance | 4 – 16 Ω/ohms |
Loudspeaker Binding Posts | 4-way binding posts |
Digital Inputs | HDMI (eARC), TOSLINK |
Analog Inputs | RCA L/R |
Stereo PCM / Multi-channel PCM | Yes / Yes |
Stereo File Formats (HEOS network share or USB) | WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz |
Bluetooth Receive |
BT 4.2.X |
Music Services and Sources | |
Music Services Supported (HEOS®, subject to change and local availability) | Music Services Supported (HEOS®, subject to change and local availability) |
Music stored on mobile device | Yes (iOS, Android or Kindle Fire) |
NAS (Network Attached Storage) | Network share |
General | |
Product Color | Black |
User Interface | Volume up/down, Play / Pause, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear) |
Dimensions (W x D x H) Inches | 9.41 x 3.31 x 8.54 |
Dimensions (W x D x H) mm | 239 x 84 x 217 |
Weight (lbs) | 4.84 |
Weight (kg) | 2.2 |
