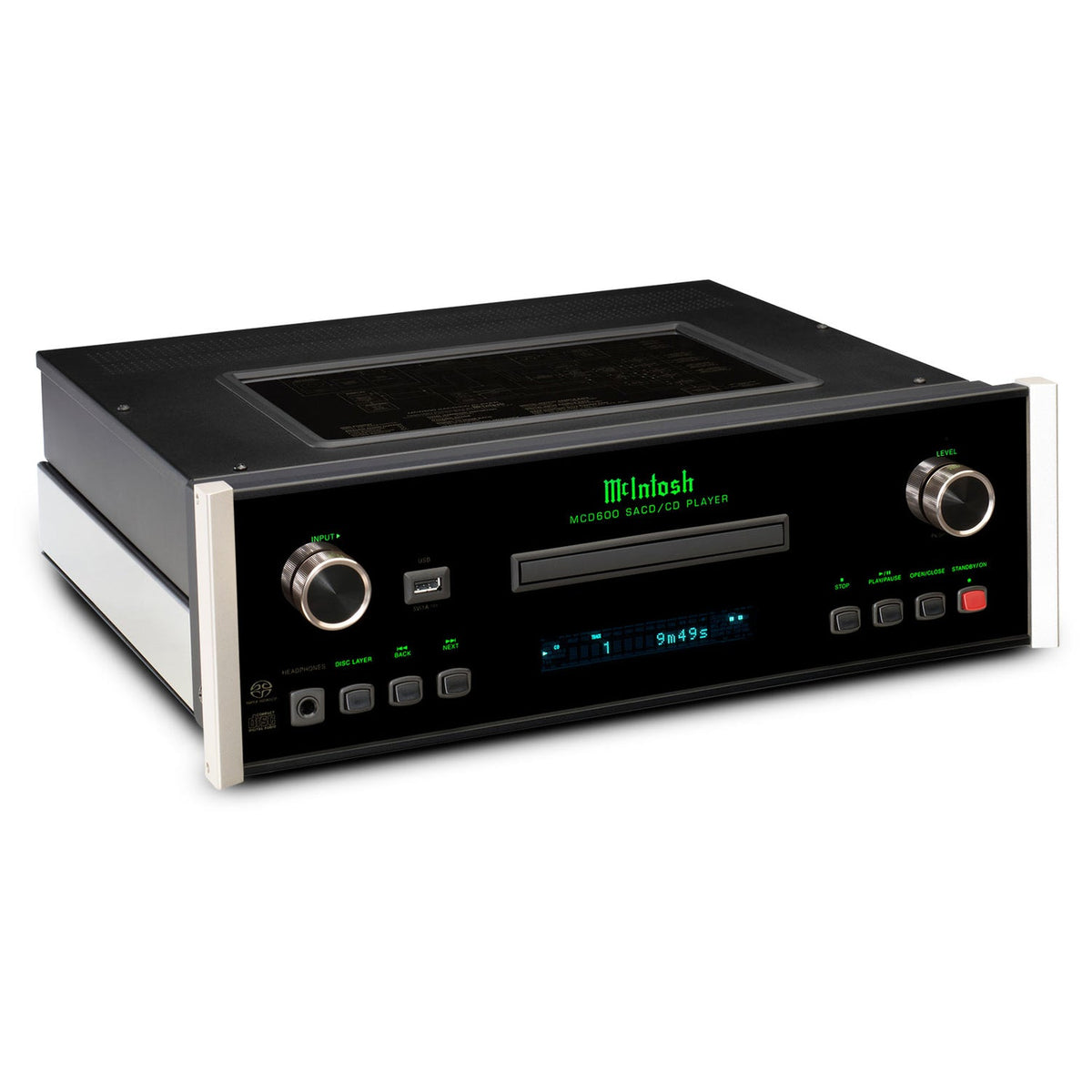

McIntosh MCD600 2-Channel SACD/CD Player
R 190,000.00
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Request Quote
Ask for a price, product details or a supply-and-install quote. We'll reply with the details for this exact product.
Product Description
Product Description
Care
Care
Shipping & Returns
Shipping & Returns
MCD600 2-channel SACD/CD player (Single)
An SACD/CD player with a premium 8-channel, 32-bit Quad Balanced DAC that also plays data discs and USB flash drives. Priced and sold individually.
Description
Hours of listening pleasure from disc and USB
The DAC is used in Quad Balanced mode, with four DAC channels allocated to each of the left and right channels, and all PCM signals are up-sampled up to 32-bit/384kHz.
Beyond commercial SACDs and CDs, it plays CD or DVD data discs and USB flash drives in formats including AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA. Fixed and variable balanced and unbalanced outputs are included.
- Premium 8-channel, 32-bit PCM/DSD Quad Balanced DAC
- Plays SACD, CD, CD/DVD data discs and USB flash drives
- Front panel USB input
- Fixed and variable analog stereo outputs
Specifications
| Model | MCD600 |
| Pack Type | Single |
| Audio Specifications | |
| Number of Channels | 2 |
| Fixed Output Level | 2.0Vrms Unbalanced 4.0Vrms Balanced |
| Variable Output Level | 0 - 8.0Vrms Unbalanced 0 - 16.0Vrms Balanced |
| Output Impedance | 600 ohms Unbalanced and Balanced |
| Frequency Response | 4Hz to 40kHz, +0.5, -2dB (SACD) 4Hz to 20kHz, ±0.5dB (CD) 4Hz to 40kHz, +0.5, -2dB (Data) |
| Signal To Noise Ratio | Better than 110dB (A-weighted) |
| Dynamic Range | Better than 100dB |
| Total Harmonic Distortion | 0.002% @ 1000Hz (SACD) 0.002% @ 1000Hz (CD) 0.002% @ 1000Hz (Data) |
| Channel Separation | Better than 98dB (1,000Hz) |
| Headphone Output Impedance | 47 ohms |
| Digital Audio Specifications | |
| Digital-to-Analog Converter (DAC) Type | Premium 8-channel, 32-bit PCM/DSD, Quad Balanced |
| Coaxial Sample Rate | 16, 24-bit/96kHz |
| Optical Sample Rate | 16, 24-bit/192kHz |
| USB Sample Rate | 16, 24-bit/192kHz |
| Digital Coaxial Input | 0.5V p-p/75 ohms |
| Digital Optical Input | -15dbm to -21dbm |
| Digital Output Sample Rate | Up to 24-bit/192kHz |
| Digital Optical Output | -15dbm to -21dbm |
| Digital Coaxial Output | 0.5V p-p/75 ohms |
| Connectivity | |
| Balanced Fixed Output | 1 |
| Unbalanced Fixed Output | 1 |
| Balanced Variable Output | 1 |
| Unbalanced Variable Output | 1 |
| Digital Coaxial Input | 1 |
| Digital MCT Input | 0 |
| Digital Optical Input | 1 |
| Digital USB Input | 1 (front) |
| Digital USB Input Type | Type A |
| Digital Coaxial Output | 1 |
| Digital MCT Output | 0 |
| Digital Optical Output | 1 |
| Digital XLR Output | 0 |
| Headphone Output | 1/4" High Drive |
| Control | |
| Power Control Inputs | 1 |
| Power Control Outputs | 1 |
| Rear Panel Data Inputs | 1 |
| Rear Panel IR Sensor Inputs | 1 |
| RS232 Control Inputs | 0 |
| General Specifications | |
| Disc Formats | SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA |
| Disc Capacity | 1 |
| Laser Type | Twin Beam |
| Laser Beam Wavelength | 650nm (SACD) 790nm (CD) |
| Laser Power | CLASS IIa/CLASS I |
| Standby Power Requirement | <0.5 watt |
| Weights & Dimensions | |
| Unit Dimensions (W x H x D) | 17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm)Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm). |
| Unit Weight | 28 lbs (12.7 kg) |
| Shipping Weight | 45 lbs (20.4 kg) |
