McIntosh ML1 Mk II Loudspeaker
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Request Quote
Ask for a price, product details or a supply-and-install quote. We'll reply with the details for this exact product.

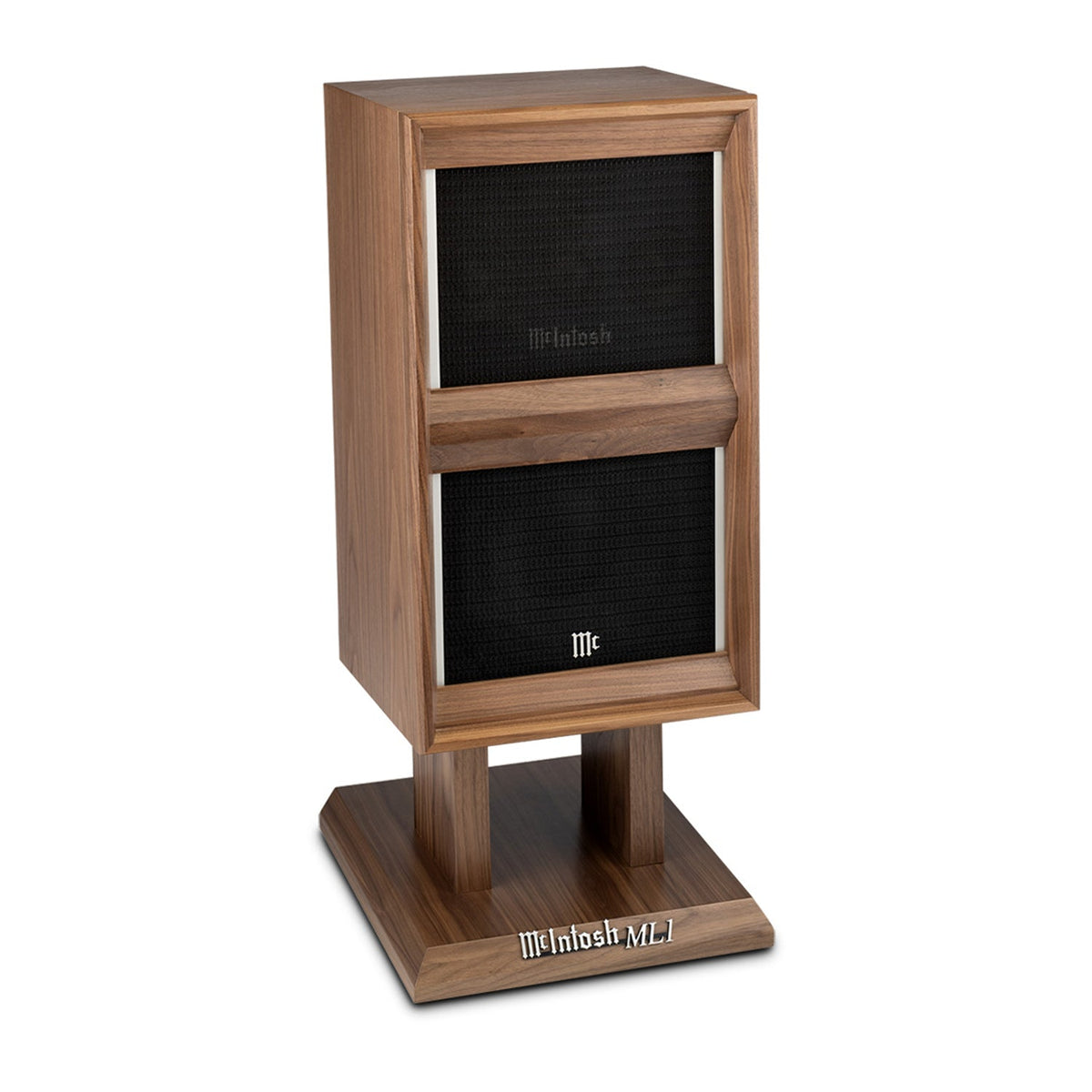

ML1 Mk II 4-way loudspeaker with stand (Single)
A 4-way loudspeaker based on the first McIntosh speaker of 1970, finished in American Walnut and supplied with a matching stand. Priced and sold individually.
Description
Vintage style meets cutting-edge sound
The ML1 was the first McIntosh loudspeaker, introduced in 1970. The Mk II revives its mid-century modern look with five drivers in a sealed 4-way design, including a 12” woofer with LD/HP technology for deep bass.
It is engineered to handle up to 600 Watts and delivers an expansive sound stage. The cabinet is built from American Walnut with a satin finish and comes with a matching speaker stand.
- Based on the first McIntosh speaker
- 4-way speaker with five separate drivers
- Engineered to handle up to 600 Watts
- Deep bass from 12” woofer with LD/HP technology
- Expansive sound stage
- Built from American Walnut with a satin finish
- Includes matching speaker stand
Specifications
| Model | ML1 |
| Pack Type | Single |
| Available Colours | American Walnut solid woods and veneers with a satin finish |
| Electronic Specifications | |
| Impedance Nominal | 8 Ohms |
| Power Rating | 75 - 600 Watts |
| Frequency Response | 27Hz - 45kHz |
| Sound Pressure Level, 2.8V/1m | 85dB |
| Crossover | 180Hz, 500Hz, 4.5kHz |
| Driver Specifications | |
| Number of Woofers | 1 |
| Woofer Size | 12" |
| Woofer Type | Polypropylene cone and dust cap with synthetic rubber suspension |
| Number of Midranges | Low Frequency: 2 Upper Frequency: 1 |
| Midrange Size | Low Frequency: 4" Upper Frequency: 2" |
| Midrange Type | Low Frequency: Polypropylene cones and dust caps with synthetic rubber suspension Upper Frequency: Soft Dome |
| Number of Tweeters | 1 |
| Tweeter Size | 3/4" |
| Tweeter Type | Titanium Dome |
| General Specifications | |
| System Type | Sealed 4-Way |
| Grille | Black knit cloth, magnetically attached |
| Available Finishes | American Walnut solid woods and veneers with a satin finish |
| Weights & Dimensions | |
| Unit Dimensions (W x H x D) | Speaker: 15" (38.1cm) x 26-1/8" (66.4cm) x 13-3/8" (34cm) Stand: 16" (40.6cm) x 10-1/4" (26cm) x 16" (40.6cm) |
| Unit Weight | Speaker: 66 lbs (30 kg) Stand: 19 lbs (8.6 kg) |
| Shipping Weight | Speaker: 75.3 lbs (34.2 kg) Stand: 25.3 lbs (11.5 kg) |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
Shipping & Returns
- Free shipping on orders over R500 within the country.
- Standard delivery within 2–5 business days. Delays will be communicated. This might vary slightly depending on your location.
- Return items in original condition for a full refund. (unopened state)
- Returns that are open/unboxed will be subject to a handling fee. Refunds will only be processed after testing the unit.
