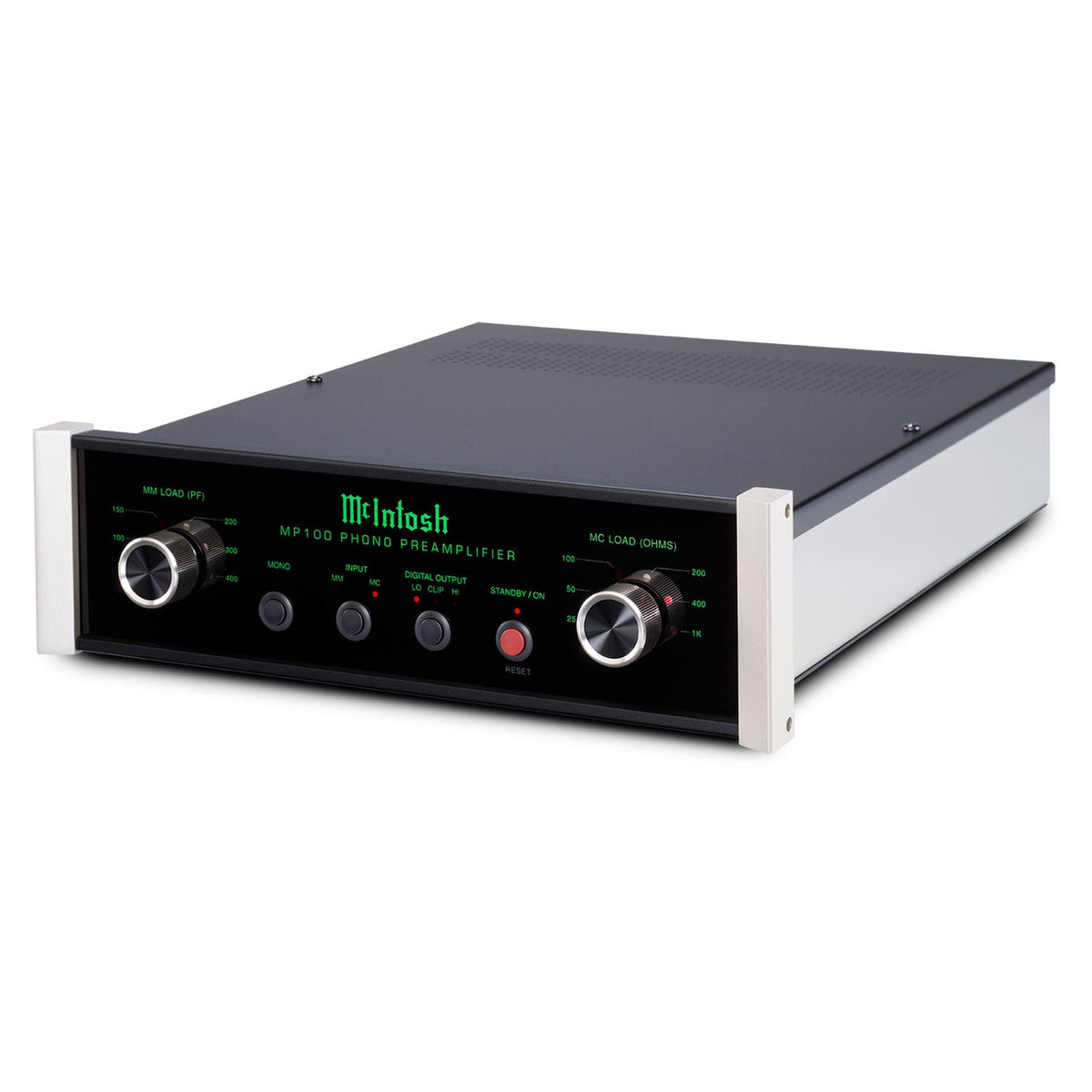

McIntosh MP100 2-Channel Phono Preamplifier
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Request Quote
Ask for a price, product details or a supply-and-install quote. We'll reply with the details for this exact product.
MP100 2-channel phono preamplifier (Single)
The first dedicated McIntosh phono preamplifier, with Moving Coil and Moving Magnet inputs, adjustable loading and analog and digital outputs. Priced and sold individually.
Description
Get the most from your vinyl
Moving Coil and Moving Magnet inputs each offer six adjustable loading settings. A Mono switch reduces noise and plays mono records correctly.
Balanced and unbalanced analog outputs are joined by optical, coaxial and USB digital outputs, including USB for ripping albums to a computer. For pure analog use, the digital outputs can be fully disabled and powered down.
- Type: Solid State
- Moving Coil and Moving Magnet inputs
- Adjustable loading
- Analog and digital outputs
- USB output for ripping albums to a computer
- Mono switch for playing mono albums
- Narrow chassis size
Specifications
| Model | MP100 |
| Pack Type | Single |
| Electronic Specifications | |
| Total Harmonic Distortion | 0.005% |
| Frequency Response | ±0.3dB from 20Hz to 20,000Hz |
| Maximum Volts Out (Balanced / Unbalanced) | 16/8 V RMS |
| Input Impedance | Moving Coil: 25, 50, 100, 200, 400 or 1k Ohms; 470pF Moving Magnet: 47k Ohms; 50, 100, 150, 200, 300 or 400pF |
| Voltage Gain (Phono) | Moving Coil: 60dB Moving Magnet: 40dB |
| Signal To Noise Ratio (Phono) | Moving Coil: 78dB Moving Magnet: 80dB |
| Maximum Input Signal (Phono) | Moving Coil: 8mV Moving Magnet: 80mV |
| Sensitivity (Phono) | Moving Coil: 1mV Moving Magnet: 10mV |
| Rated Output | 2V Balanced 1V Unbalanced |
| Output Impedance | 200 Ohms Balanced 100 Ohms Unbalanced |
| Phono Equalization Curves | 1: RIAA |
| Connectivity | |
| Phono Input | 1 Moving Coil (adjustable) 1 Moving Magnet (adjustable) |
| Balanced Fixed Output | 1 Stereo |
| Unbalanced Fixed Output | 1 Stereo |
| Digital Coaxial Output | 1 |
| Digital Optical Output | 1 |
| Digital USB Audio Output | 1 |
| Unbalanced Analog Connector Type | Standard |
| Control | |
| Power Control Inputs | 1 |
| Power Control Outputs | 1 |
| Digital Audio Specifications | |
| Digital Output Sample Rate | Optical: PCM - 24-bit/96kHz Coaxial: PCM - 24-bit/96kHz USB: PCM - 24-bit/96kHz |
| General Specifications | |
| Multi-Chassis or Single | Single |
| Output Meters | No |
| Vacuum Tube or Solid State | Solid State |
| Power Consumption (On) | 8 Watts |
| Weights & Dimensions | |
| Unit Dimensions (W x H x D) | 11.5" (29.2cm) x 3.78125" (9.6cm) x 16.75" (42.5cm) |
| Unit Weight | 8.6 lbs (3.9 kg) |
| Shipping Weight | 9.6 lbs (4.4 kg) |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
