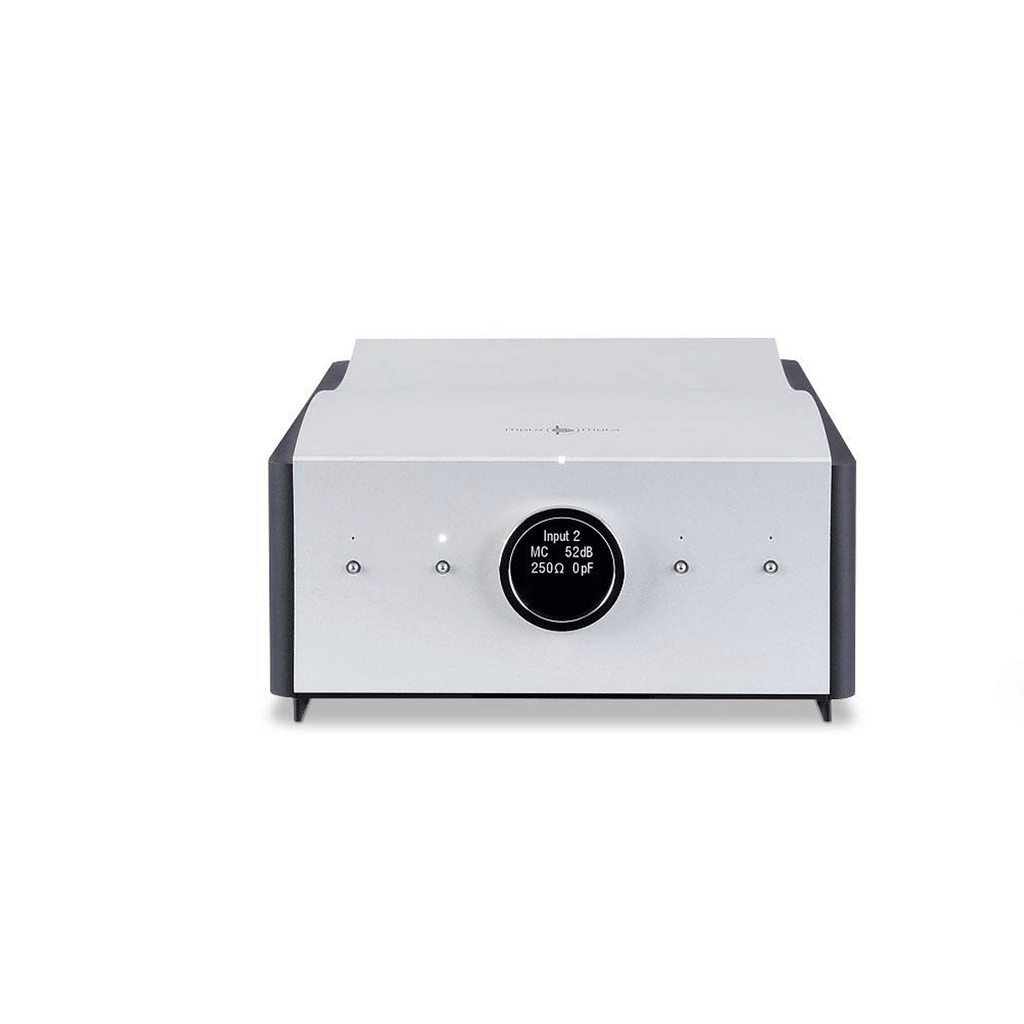

    Mola Mola Lupe Phonostage

    R 159,900.00

      Mola Mola Lupe Phonostage

      The standalone version of our well-known archival grade Phono stage features three single-ended inputs and one balanced input. It has a balanced output as well as a single-ended output. The Lupe with its dedicated power supply, k and the added "subsonic filter" provides the discerning record aficionado with the most accurate set-up for recreating the magic of the turntable as it was intended. The display of the well-known "half sized chassis" Lupe offers at a glance information on the settings.



      What was conceived as a simple RIAA add-on for the Makua Preamplifier (also available in the Kula Integrated amplifier) has quickly spiraled into the quietest and probably most versatile phono stage ever built. MC/MM input stages are optimized for current noise and voltage noise respectively. Unlike the more common arrangement of an MC head amp feeding into the MM stage, the two stages are fully independent, realizing an equally short signal path for both. Input gain is switchable in 5dB steps over a 40dB range. Input resistance and capacitance are individually switchable. Available EQ settings cover practically all known cutting curves including 78 RPM.



      All settings are software controllable, either on the fly using a smart-phone or tablet via the Mola Mola Remote app or directly stored under the preset buttons. Digitally controlled all switching is done in the analogue domain. The Lupe can be configured to route any of the four inputs through the phono stage, this allows you to have multiple turntables and/or cartridges connected.

      Specifications

      PERFORMANCE

      Input noise (MC): 0.35nV/rtHz

      Input noise (MM): 0.9pA/rtHz

      Sensitivity: variable from 30uV to 5mV

      THD, IMD: not measurable

      RIAA conformance: +/-0.1dB

      Subsonic filter -3dB @20Hz

      AVAILABLE LOADS
      Variable Depends of "CAR"
      In case of MM In case of MC
      "RES" 120kΩ
      75kΩ
      47kΩ
      30kΩ
      18kΩ
      1kΩ
      650Ω
      400Ω
      250Ω
      150Ω
      100Ω
      60Ω
      "CAP" 0pf
      50pf
      100pf
      150pf
      220pf
      270pf
      330pf
      380pf
      NA
      AVAILABLE GAIN
      Variable Depends of "CAR"
      In case of MM In case of MC GAIN 45dB
      50dB
      52dB
      57dB
      62dB
      67dB
      72dB
      77dB
      82dB
      87dB
      AVAILABLE TIME CONSTANTS
      t1: 200, 250, 318, 400, 450us
      t2: 50, 64, 75, 100us
      bass shelf: 14, 18, 20dB
      Color: Blue, Purple, White
      Size: 20, 24
      Material: 100% Polyester
